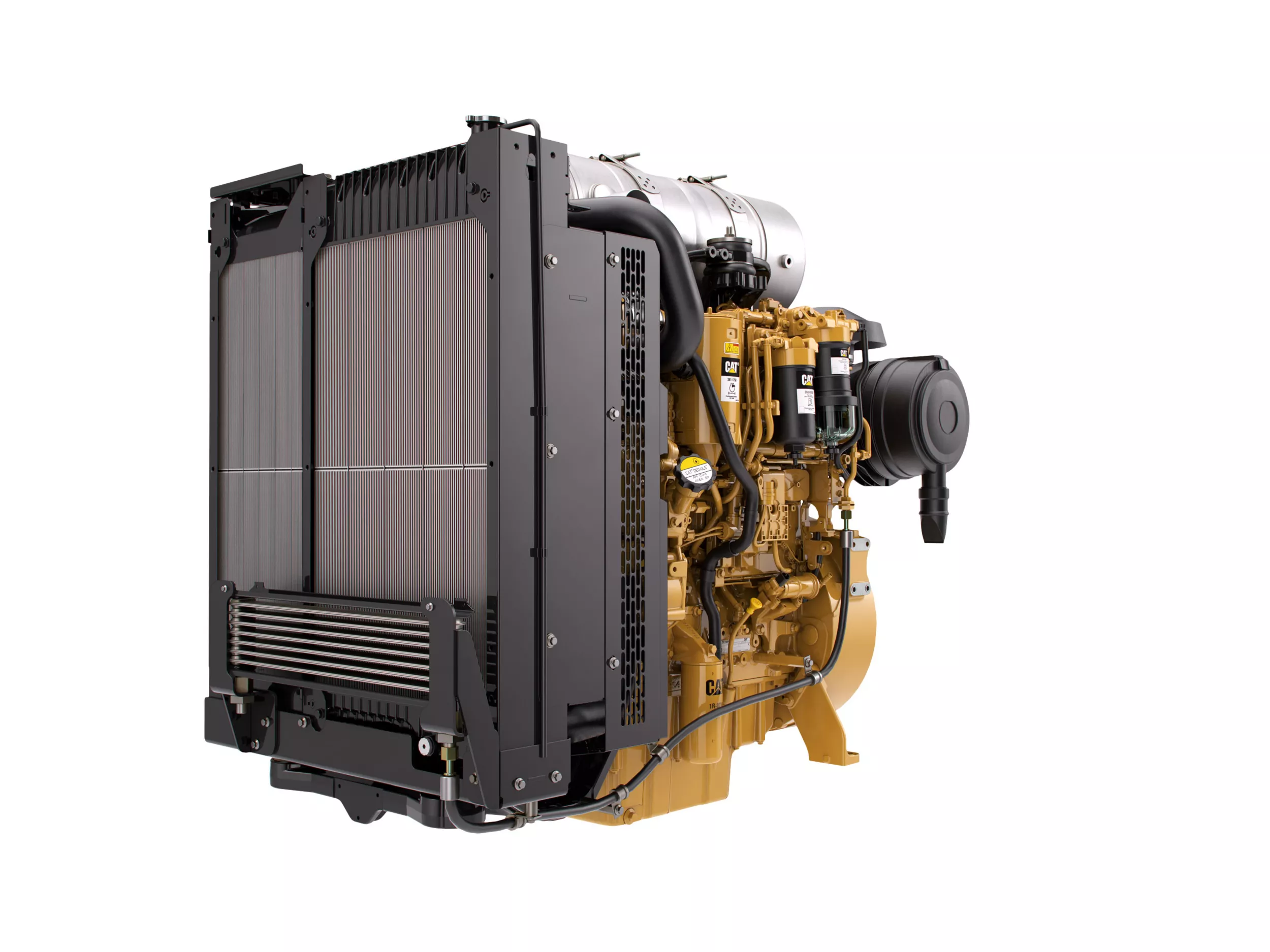

C4.4 EU StageV Tier 4 Industrial Power Units - Highly Regulated

Industrial Diesel Power Units C4.4

Request A Price Find Dealer

Key Specs

Maximum Power
188 HP
140 kW
Maximum Torque
601 lb-ft @ 1400 rpm
815 Nm @ 1400 rpm
Emissions
EU Stage V, U.S. EPA Tier 4 Final, Japan 2014 (Tier 4 Final)
EU Stage V, U.S. EPA Tier 4 Final, Japan 2014 (Tier 4 Final)

Overview

The C4.4 IPU engine is a common rail direct injection engine with either a single turbo or twin turbo chargecooled air system. It meets U.S. EPA Tier 4 Final, EU Stage V and Japan 2014 (Tier 4 Final) emission standards. For ease of installation, the IPU provides full aftertreatment mounting, an integrated cooling system and inlet air filter mounted to the IPU.

Product Specifications for C4.4

Maximum Power 188 HP 140 kW
Maximum Torque 601 lb-ft @ 1400 rpm 815 Nm @ 1400 rpm
Rated Speed 2000 - 2200 rpm 2000 - 2200 rpm
Minimum Power 137 HP 102 kW
Emissions EU Stage V, U.S. EPA Tier 4 Final, Japan 2014 (Tier 4 Final) EU Stage V, U.S. EPA Tier 4 Final, Japan 2014 (Tier 4 Final)
Engine Configuration Inline 4, 4-Stroke-Cycle Diesel Inline 4, 4-Stroke-Cycle Diesel
Bore 4.1 in 105 mm
Stroke 5 in 127 mm
Displacement 268.5 in³ 4.4 l
Compression Ratio 16.0:2 16.0:2
Aspiration Turbocharged Aftercooled (TA) or Twin Turbocharged Aftercooled (TTA) Turbocharged Aftercooled (TA) or Twin Turbocharged Aftercooled (TTA)
Rotation from Flywheel End Counterclockwise Counterclockwise
Aftertreatment DOC+DPF+SCR DOC+DPF+SCR
Length 60.3 in 1532 mm
Width 34.2 in 869 mm
Height 53.7 in 1364 mm
Weight 1559 lb 707 kg

C4.4 Standard Equipment

Air Inlet System

  • Standard air cleaners

Control System

  • Full electronic control system, all connectors and wiring looms waterproof and designed to withstand harsh off-highway environments
  • Flexible and configurable software features and well-supported SAE J1939 CAN bus enables highly integrated machines

Cooling System

  • Top tank temperature 108° C (226° F) as standard to minimize cooling pack size
  • 50:50 water glycol mix
  • Guidance on cooling system design available through your dealer to ensure equipment reliability

Flywheels and Flywheel Housing

  • Wide choice of drivetrain interfaces, including SAE No. 2 and SAE No. 3 configurations

Fuel System

  • Electronic high pressure common rail
  • Innovative filter design to ensure maximum protection of the engine

Lube System

  • Wide choice of sumps for different applications

Power Take Off

  • SAE A and SAE B flanges on left-hand side. Additional SAE A flange available on left-hand side. Engine power can also be taken from the front of the engine on some applications. Factory fitted compressors are also available.

General

  • Available with or without a balancer
  • Paint: Caterpillar yellow, with optional colors available at request

U.S. EPA TIER 4 FINAL, EU STAGE V AFTERTREATMENT, JAPAN 2014 (TIER 4 FINAL) / CLEAN EMISSIONS CONTROL EQUIPMENT

  • Diesel Oxidation Catalyst (DOC) / Diesel Particulate Filter (DPF) / Selective Catalytic Reduction (SCR)
  • No ash service requirement
  • Passive regeneration
