CBI
Horizontal grinder/chipper

Powered by a Cat® C27 Industrial Engine

POWER PROFILE: CBI grinder chipper
POWER PROFILE: CBI grinder chipper

TOUGH AS ALL GET-OUT

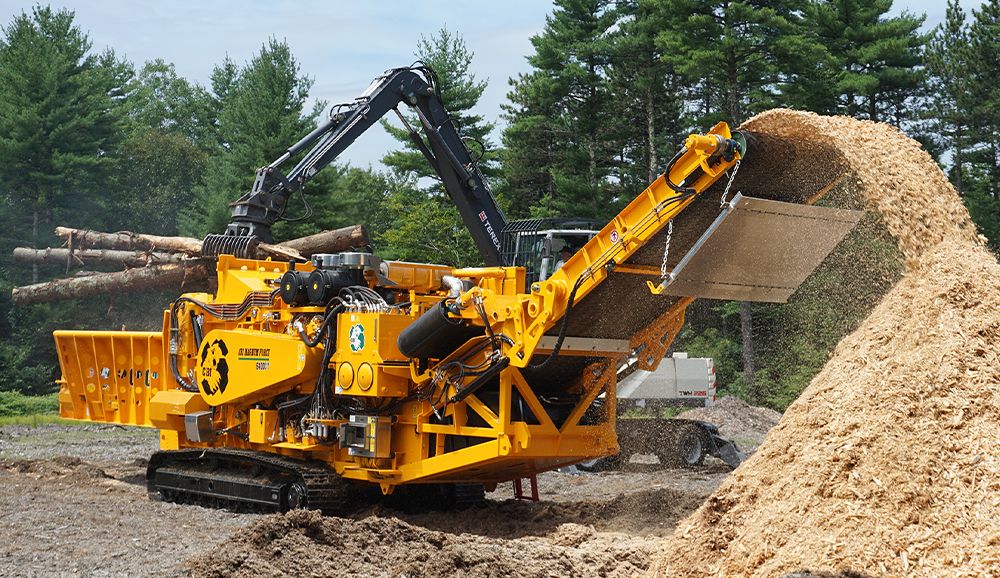

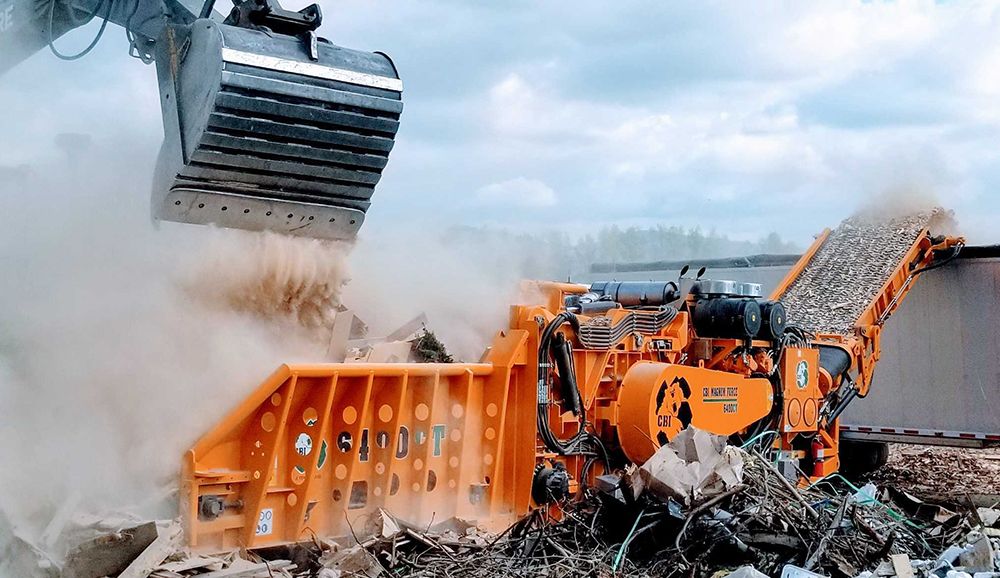

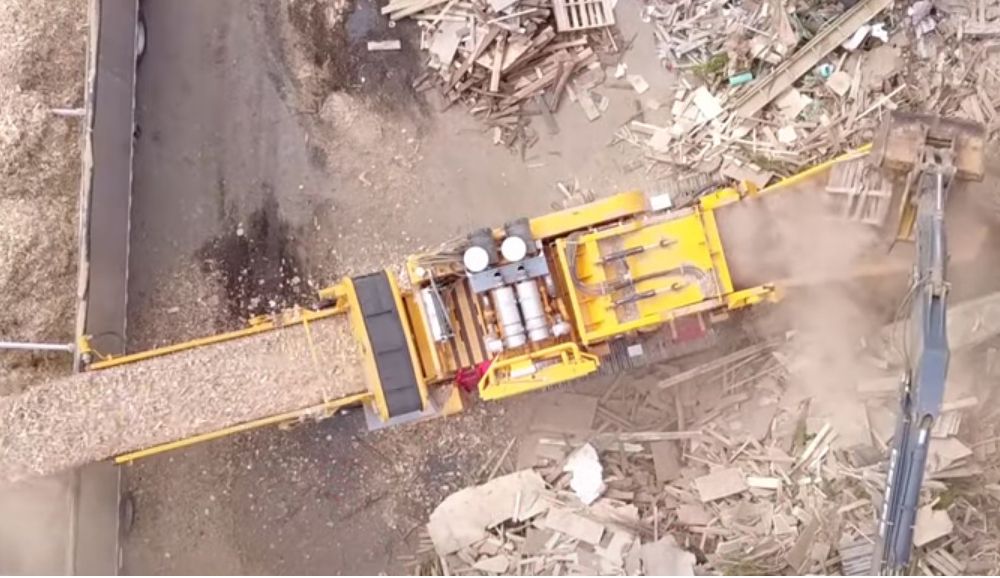

CBI MAGNUM FORCE 6400CT HORIZONTAL GRINDER/CHIPPER

Every grinder CBI makes sets out to outproduce, outperform and outlast other grinders. It’s a tall task for machines charged with processing everything from construction and demolition waste to whole trees and even fully assembled railroad ties. But over the course of 30 plus years, CBI grinders have proven their mettle, amassing 5,000-10,000 hours plus in some of the world’s most violent, high-vibration applications.

CBI logo
CBI logo

PRODUCT OVERVIEW

  • CBI does not build machines for trade shows but for harsh conditions. Their grinders are built for high performance, a long life and the lowest cost of ownership.
  • The CBI 6400CT Horizontal grinder/chipper, powered by the Cat® C27 and C32 industrial engines, is incredibly versatile with four interchangeable rotors. This allows it to go from a chipper to a grinder in less than a day, so customers can finish jobs more efficiently and be cost conscious.
  • Another feature that keeps 6400CT customers on the job is the T-Link remote fleet monitoring system, which makes it easy to track location, maintenance, fuel burn and more — and also aids CBI in troubleshooting.
  • Choosing an engine to power the 6400CT came down to two main factors: horsepower and customer demand. At 1050 and 1200 horsepower, the C27 and C32 can move massive amounts of material through the grinder quickly. The Cat dealer network provides the dependability and extensive service network that customers want.
  • Most of the 6400CT grinders sold today feature U.S. EPA Tier 4 Final/EU Stage V engines. The fact that neither the C27 nor C32 requires the use of diesel exhaust fluid (DEF) is a big bonus and so is the fact that there is no need to sacrifice power to meet emissions standards.

CHECK THE SPECS

CONTACT CBI

CONTACT YOUR CAT DEALER

CBI grinder
of
Product image

Cat® Engine Overview

Cat C27

  • The Cat® C27 Industrial Diesel Engine is offered in ratings up to 1050 hp (783 kW) and peak torque 4674 Nm (3451 lb-ft).  The power-dense Cat C27 is a fully-configurable common core engine that makes installation across a wide variety of applications simple.
  • With options like rear-mounted turbos and engine-mounted aftertreatment, it's now easier than ever to install. And because the C27 is DEF-free, there's even more room to maneuver under the hood.
  • Featuring a clean emissions module, the Cat C27 uses DOC-only technologies to keep the engine — and the air around it — cleaner, not only making for a more efficient machine, but also a safer job site.  Available as remote mounted aftertreatment for great flexibility or optional engine mounted aftertreatment for ease of installation.
  • Dual certified U.S. EPA Tier 4 Final/EU Stage V offers a single installation globally for all countries requiring EU Stage V or similar emissions standards. U.S. EPA Tier 2 equivalent ratings available for countries that permit this level of emissions.
  • Superior dealer service and support, scheduled maintenance and a five year warranty: it’s what Cat C27 owners network can expect with their new engine.



C27 Industrial Engine
of
C27 Industrial Engine

CAT C32

  • The Cat C32 industrial engine is offered in power ranges up to 1200 hp (895 kW) and peak torque 5500 Nm (4056 lb-ft) and allows for platform downsizing while maintaining reliability and durability.
  • The C32 engine is ideal for tough industrial and construction applications such as dredges, chippers, grinders, emergency water pumps and rock drills among other applications requiring continuous peak performance under the most demanding conditions.
  • The key to success for any machine is avoiding downtime as much as possible. Thanks to the DEF-free, dual-can DOC with transparent regeneration offered by the 32 engine, operators can stay focused on being productive for the long haul.
  • When it comes to making the engine installation process smoother for Original Equipment Manufacturers (OEMs), look to the C32 engine. Using innovative technology solutions, the C32 was created to eliminate the need for thermal management and Diesel Exhaust Fluid (DEF), reducing the size of the overall engine package. And thanks to flexible aftertreatment mounting options, installing such a large engine just got a lot less complicated.
  • Optimized to meet some of the most demanding operating cycles of just about any machine, the DEF-free Cat C32 helps owners and operators save on operating costs while also remaining maintenance-free for the engine's lifetime.



C32 Industrial Engine
of
C32 Industrial Engine

Compare Models

POWER PROFILE

CUSTOMER:

CBI

PRODUCT:

CBI Magnum Force 6400CT Horizontal grinder/chipper

LOCATION:

Newton, New Hampshire

SCOPE OF ENGINE USE:

Cat® C27 and C32 U.S. EPA Tier 4 Final/EU Stage V Industrial Engines

DEALER:

Milton Cat

LOGGING THE HOURS

Outproduce. Outperform. Outlast. Every grinder CBI makes must live up to these high expectations. It’s a tall task for machines charged with processing everything from construction and demolition waste to whole trees and even fully assembled railroad ties. But over the course of 30-plus years, CBI grinders have proven their mettle, amassing 5,000-10,000 hours plus in some of the world’s most violent, high-vibration applications.

“Any machine can look good at a trade show, but we don’t build our products for trade shows,” says Joe Gallagher, CBI’s marketing manager. “We build them for the harshest conditions and to deliver the highest performance, longest life and lowest cost of ownership, so our customers can grow their businesses.”

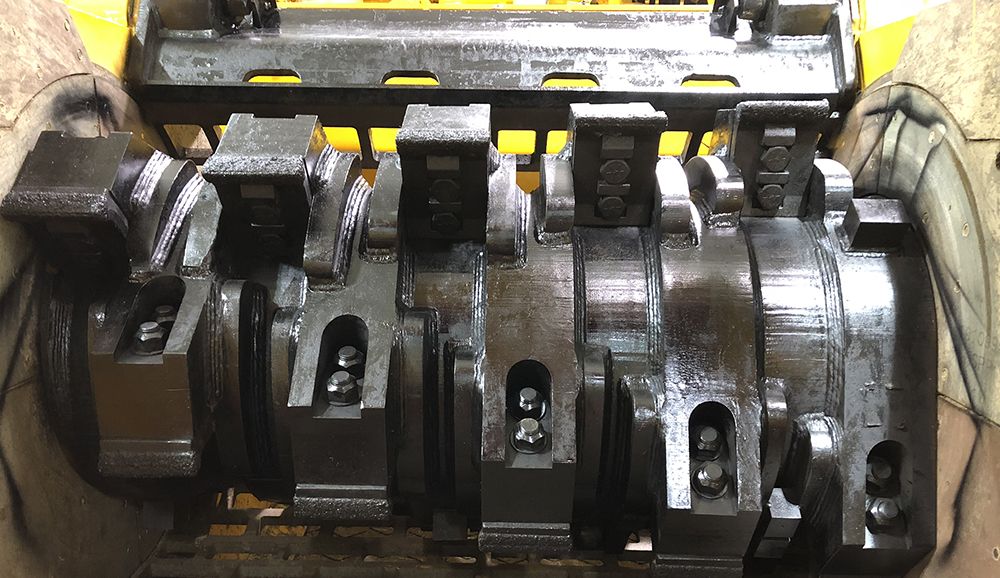

That’s especially true of the CBI 6400CT Horizontal Grinder/Chipper, powered by Cat® C27 and C32 industrial engines. It’s not just a rugged machine built to process big quantities of wood. It’s also incredibly versatile. Thanks to a unique cassette-style design, the 6400CT’s four interchangeable rotors swap out faster than any other grinder in its class. “It can go from chipper to grinder in less than a day, so customers can use the same machine to bid across more jobs and win more contracts,” says Jeff Helle, product engineering lead for CBI.

Another feature that keeps 6400CT customers on the job is the T-Link remote fleet monitoring system, which makes it easy to track location, maintenance, fuel burn and more — and also aids CBI in troubleshooting. “We can log in and provide setting recommendations to further optimize a customer’s efficiency,” Helle says. “It’s like having a body on site without having anybody there. The amount of time it saves is amazing.”

THE ULTIMATE WORKHORSE

Choosing an engine to power the 6400CT came down to two main factors: horsepower and customer demand. At 1050 and 1200 horsepower, respectively, the C27 and C32 can move massive amounts of material through the grinder quickly — delivering the throughput customers demand. And the Caterpillar name is known and trusted across the industry. “Many of our customers have a history of working with Cat engines, and they want that dependability and extensive service network for their grinders,” Helle says.

No grinding to a halt. Reliability matters because a grinder is the primary workhorse on many jobs. “If you’re clearing in a remote location, the grinder is at the center of the whole operation. If it goes down, all the other equipment on site is going to be down as well, driving up costs,” Gallagher says. With Cat engines powering the 6400CT, that’s one less worry for CBI customers. “This is one of the harshest environments you can put an engine in, and Cat engines just continue to withstand the challenge,” Helle says.

Lose the fluid, keep the power. Though CBI offers a Tier 2 engine for a few locations, most 6400CTs sold today feature Tier 4 Final/Stage V engines. The fact that neither the C27 nor C32 requires the use of diesel exhaust fluid (DEF) is a big bonus. So is the fact that there was no need to sacrifice power to meet emissions standards. “The power curve going from Tier 2 to Tier 4 Final is different, but we’re still getting maximum power out of these engines. We haven’t had any complaints about power loss,” Helle says.

Support in every neck of the woods. CBI rarely hears complaints about service after the sale, either. The company takes an all-hands-on-deck approach to keep machines up and running and expects the same for the 6400CT’s engines. CBI worked with local dealer Milton Cat to engineer the C27 and C32 into the grinder and relies on the global Cat dealer network to handle engine issues in the field. “It doesn’t matter where we sell one of these machines — there always seems to be a Cat dealer within driving distance,” Helle says.

"THIS IS ONE OF THE HARSHEST ENVIRONMENTS YOU CAN PUT AN ENGINE IN, AND CAT® ENGINES JUST CONTINUE TO WITHSTAND THE CHALLENGE."

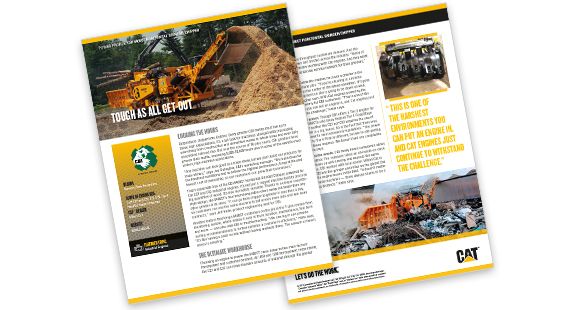

DOWNLOAD PDF VERSION
