TRS26 - HCS80 top, HCS80 bottom configuration

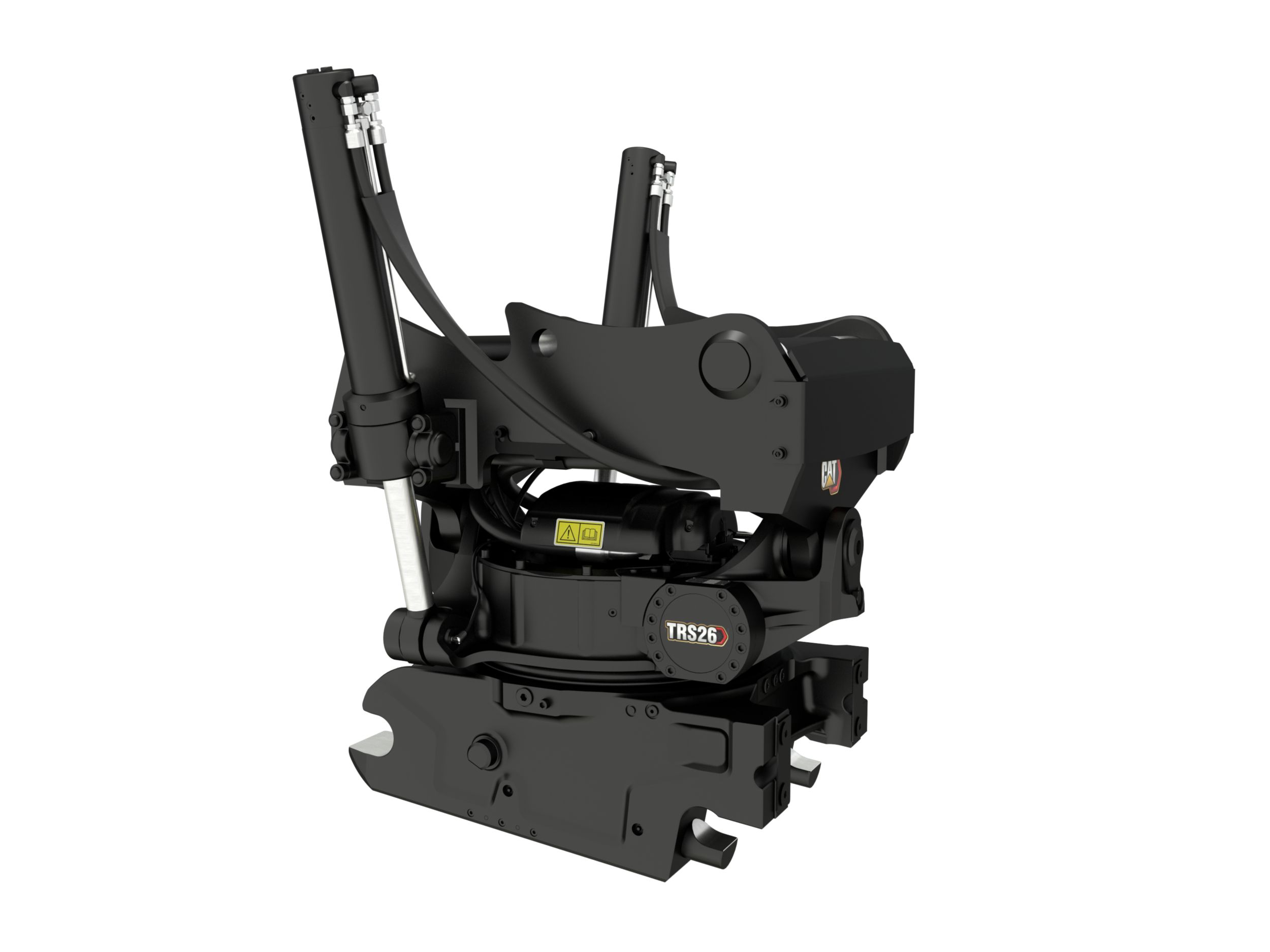

Tilt Rotate Systems TRS26 Tiltrotator: 645-6931

Request A Price Shop Now

Key Specs

Machine Class: 23-32 ton Excavators; 23-32 ton Excavators

Weight: 2,535 lb; 1150 kg

Interface Options: Top-Bottom: HCS80 / HCS80; HCS80 / HCS80

TRS26 Tiltrotator: 645-6931
Change model

Overview

Cat® Tiltrotators help you get the job done faster with the quality you expect from Cat products. Integrated to your excavator, Tiltrotators are productive, easy-to-use, and add value to your operation. Tiltrotators are a versatile solution providing enhancements to your operation.

Features At A Glance

Simultaneous 360° rotation plus up to 40° left and right tilt adds capability to fixed attachments
Mixed configurations enable use of a wide range of fabricated and hydraulic attachments to fit your needs
Ability to covert standard S coupler to hydraulic connect S coupler
Perform a large variety of tasks, such as digging, grading, compacting, etc. with more precise movements without repositioning the machine
Use grapple module without removing bottom attachment

Fully integrated solution helps reduce installation time and imrpove durability of attachment
Innovative control system, including full tiltrotator controls and positioning system, can be controlled through the in-cab monitor
The GS520 Tilt sensor, included with a standard protected mounting location, enables precise tilt position feedback to the grading system
SecureLock™ uses sensor technology inside the locking cylinder to verify the tool is correctly connected and securely locked to reduce the risk of swinging or dropping tools

Pressure compensated hydraulics maintain stable rotation speed for smooth and consistent operation
High-flow hydraulic performance up to 200L/min flow at 250 bar for use with high-flow attachments
Lubrication System has one grease point, which can be connected with machine's auto-grease system
Oil-filled gear box keeps gears constantly lubricated, extending the life of the rotor
Large diameter steel hoses help reduce back pressure, extend lifespan, and simplify maintenance

Curl to Unlock technology verifies the operator has the coupler or tiltrotator curled in the correct position before it is allowed to unlock during the process of switching attachments. This helps keep your attachments secure while working and connected to the coupler during the uncoupling process.
Visual verification indicator allows the operator to visibly confirm from the cab, that the coupler has successfully locked the attachment in place.
Grapple module is faster and safer than people manually moving heavy objects
Operator stays in cab while switching attachments
Hydraulic quick connect does not require manual hose change
Double acting tilt cylinders have built-in load holding valves in the event of pressure loss
By reducing the need for machine repositioning, tiltrotators help keep the excavator stable and improve job site safety. Operators can also work in tight spaces with fewer movements, helping to reduce the risk of accidents

Meet your usage and attachment interface needs with a variety of top and bottom configuration options for your tiltrotator depending on your preferred coupler system.
Tiltrotators with a pin-on top are ideal when the tiltrotator is used regularly and compatible attachments are switched out on the bottom side.
Options with a specific coupler interface on top are used with a standard coupler so the tiltrotator can be detached and larger or higher flow requirement attachments can be used with the standard coupler.
Specific coupler interfaces may require attachments or brackets for attachments with that interface.
The following are the current available interfaces for tiltrotators:
- Pin-on
- S Type
- Hydraulic Connecting S Type

Boost Efficiency and Productivity with Integrated Technologies

Never waste time looking for your attachments again. Cat asset tracking is available on select attachments.
Track your entire fleet of attachments and machines from one source. Attachments with asset tracking can be viewed within VisionLink® alongside Product Link™ subscribed equipment.
Keep your assets secure. Attachments with an asset tracker send an alert if they leave an easy-to-setup site boundary.

Product Specifications for TRS26 Tiltrotator: 645-6931

Machine Class	23-32 ton Excavators 23-32 ton Excavators
Weight	2,535 lb 1150 kg
Interface Options: Top-Bottom	HCS80 / HCS80 HCS80 / HCS80
Overall Height	53 in 1345 mm
Length	37 in 929 mm
Overall Width	48 in 1223 mm
Rotation Speed	8 seconds, per 1 full rotation 8 seconds, per 1 full rotation
Tilt Angle Range	40° Left/Right 40° Left/Right
Maximum Bucket Capacity	2.09 yd³ 1.6 m³
Maximum Bucket Width	79 in 2000 mm

Product Specifications for TRS26 Tiltrotator: 645-6931

Download Print

Machine Class	23-32 ton Excavators 23-32 ton Excavators
Weight	2,535 lb 1150 kg
Interface Options: Top-Bottom	HCS80 / HCS80 HCS80 / HCS80
Overall Height	53 in 1345 mm
Length	37 in 929 mm
Overall Width	48 in 1223 mm
Rotation Speed	8 seconds, per 1 full rotation 8 seconds, per 1 full rotation
Tilt Angle Range	40° Left/Right 40° Left/Right
Maximum Bucket Capacity	2.09 yd³ 1.6 m³
Maximum Bucket Width	79 in 2000 mm
