Sullair
Portable Air Compressors

The Sullair Mid-Range Series brings
versatile blasting in a compact,
Cat® powered package.

POWER PROFILE: Sullair Mid-Range Series
POWER PROFILE: Sullair Mid-Range Series

Sullair Mid-Range Series

From abrasive sand and water blasting to drilling, cable blowing and pneumatic hand tool use, there is a common force that drives these services: air compressors. And when it comes to air compressors, Sullair brings the blast. Established in 1965 in Michigan City, Indiana, Sullair has always been committed to creating high-quality air compressors. The company introduced its first portable compressor a year later and was one of the first in the industry to implement rotary screw technology in its design.

Portable Air Compressors
Portable Air Compressors

Product Overview

  • Combining the power and capabilities of nine previous models into one lightweight, compact compressor, the Mid-Range Series can be configured between 100 to 200 psi and 800 to 1100 cfm for versatility over a wide range of applications.
  • Designed for maximum durability, the Mid-Range Series features a galvannealed sheet metal canopy and upgraded paint to fight against corrosion and harsh environments, including temperatures ranging from -20 to 125° F.

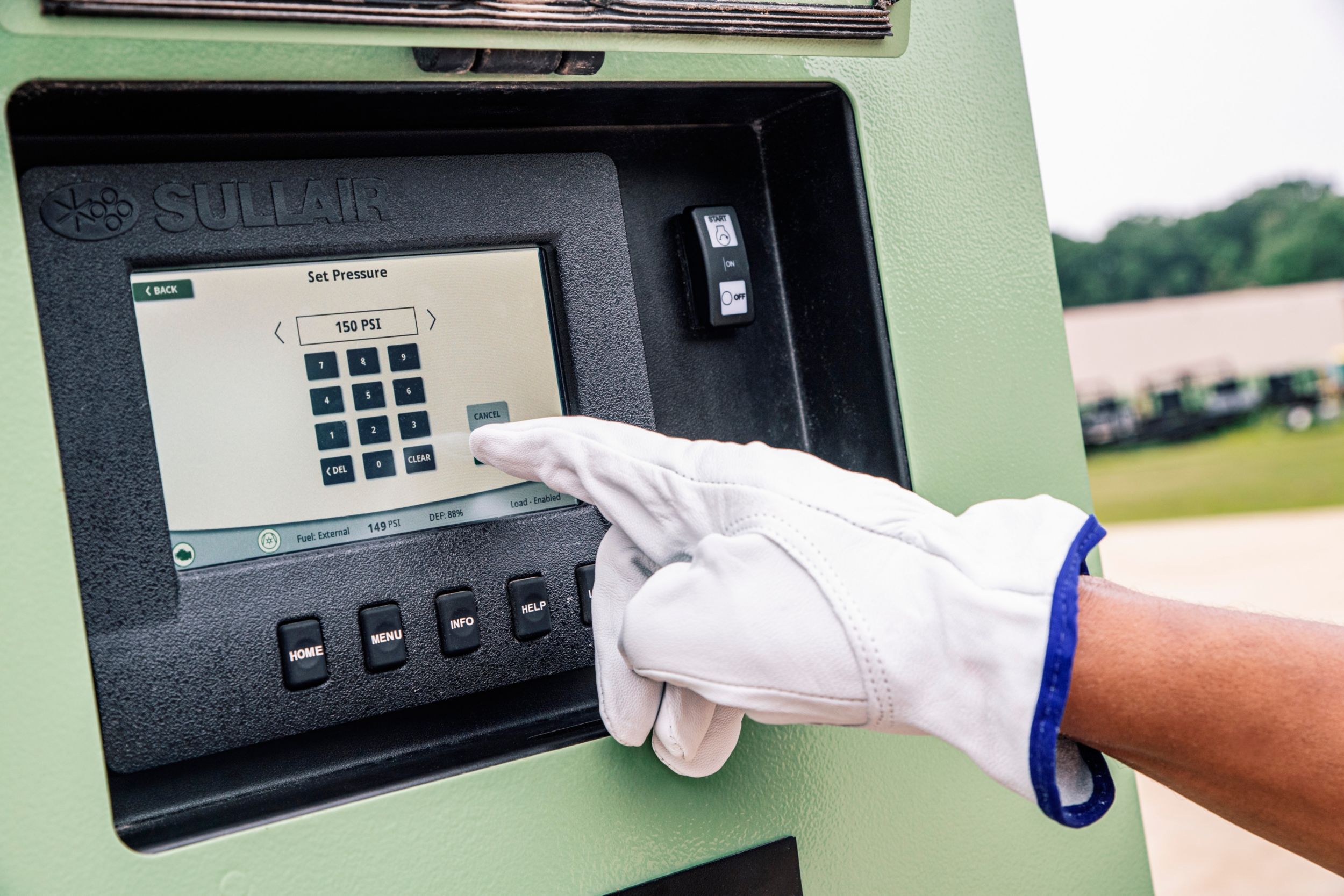

  • Pressure and flow settings, performance indicators and signature electronic spiral valve technology can all be easily accessed and managed through a state-of-the-art 7-inch color Sullair Touch Screen (STS) Controller, even while gloved.
  • Size and weight from the legacy model has been reduced by 50% for the new Mid-Range Series design, allowing for improved maneuverability.
  • Equipped with a Sullair 23-Series variable capacity air end that is engineered with fewer parts for greater longevity.

Check the specs

CONTACT SULLAIR

CONTACT YOUR CAT DEALER

of
Sullair

Cat® Engine Overview

  • C7.1 industrial diesel engine punches up to 320 HP at 2200 rpm. Taking the place of 9-liter counterparts previously used in the Mid-Range Series, the C7.1 packs a higher power density.
  • Modular in design, the C7.1 features an engine-mounted aftertreatment proven to reduce installation and ownership costs while supporting increased uptime.
  • Passive regeneration technology is incorporated, allowing operators to continuously perform tough tasks in harsh environments without engine delays.
  • The smaller 7-liter package size, fitted with an advanced fuel system, improves fuel efficiency. Onboard fuel storage allows for 10 hours of continual operation.
  • Meets U.S. EPA Tier 4 Final and EU Stage V emissions standards.
of
C4.4 Industrial Engine

Compare Models

Power Profile

CUSTOMER:

Sullair

PRODUCT:

Mid-Range Series Tier 4 Final Portable Lubricated Rotary Screw Air Compressor

LOCATION:

Michigan City, Indiana

SCOPE OF ENGINE USE:

Cat® C7.1 Tier 4 Final, EU Stage V Engine

Supreme Blasting Power from Sullair

From abrasive sand and water blasting to drilling, cable blowing and pneumatic hand tool use, there is a common force that drives these services: air compressors. And when it comes to air compressors, Sullair brings the blast.

Established in 1965 in Michigan City, Indiana, Sullair has always been committed to creating high-quality air compressors. The company introduced its first portable compressor a year later and was one of the first in the industry to implement rotary screw technology in its design. To this day, rotary screw compressors carry praise for their reliability and versatility.

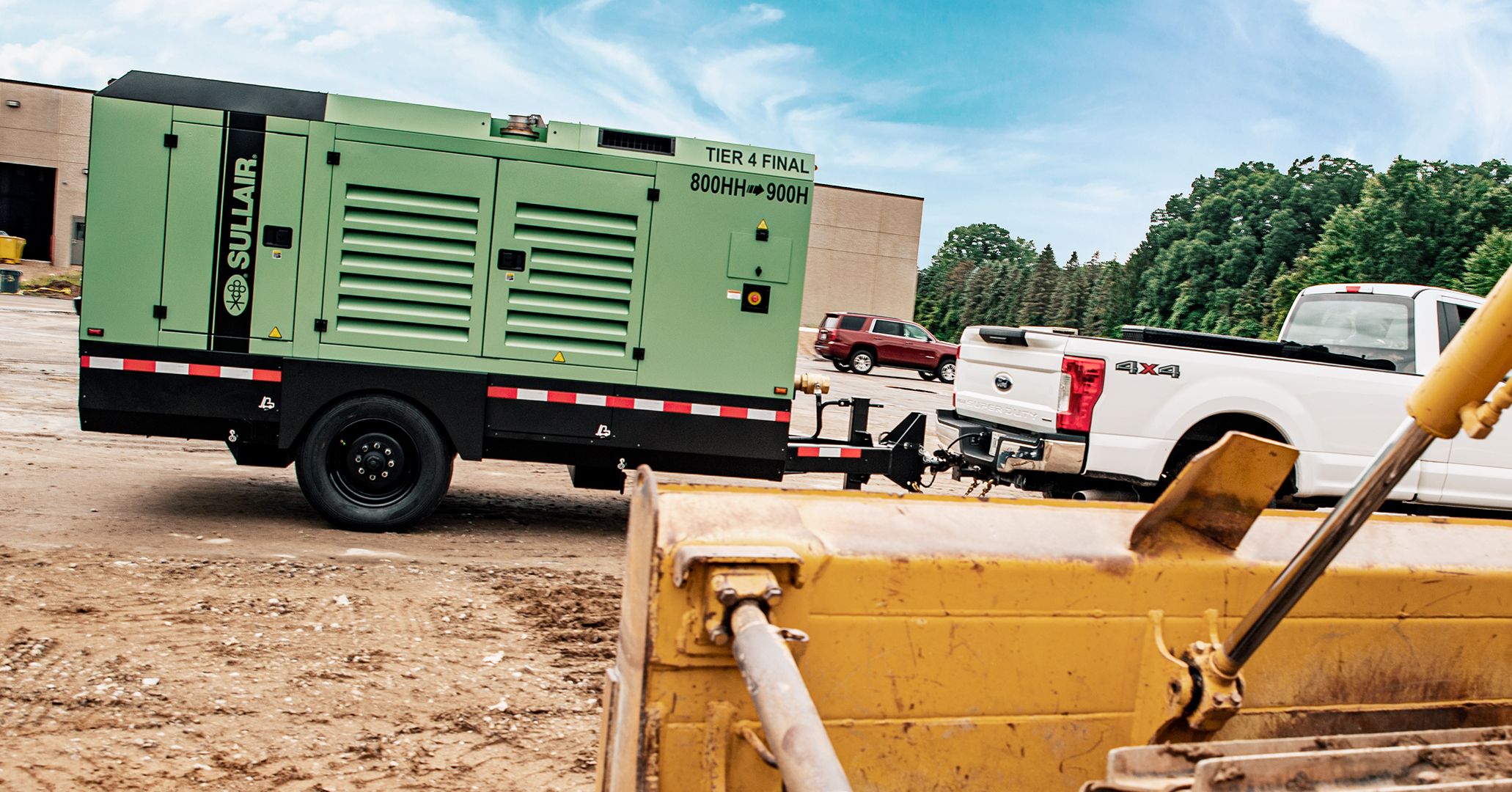

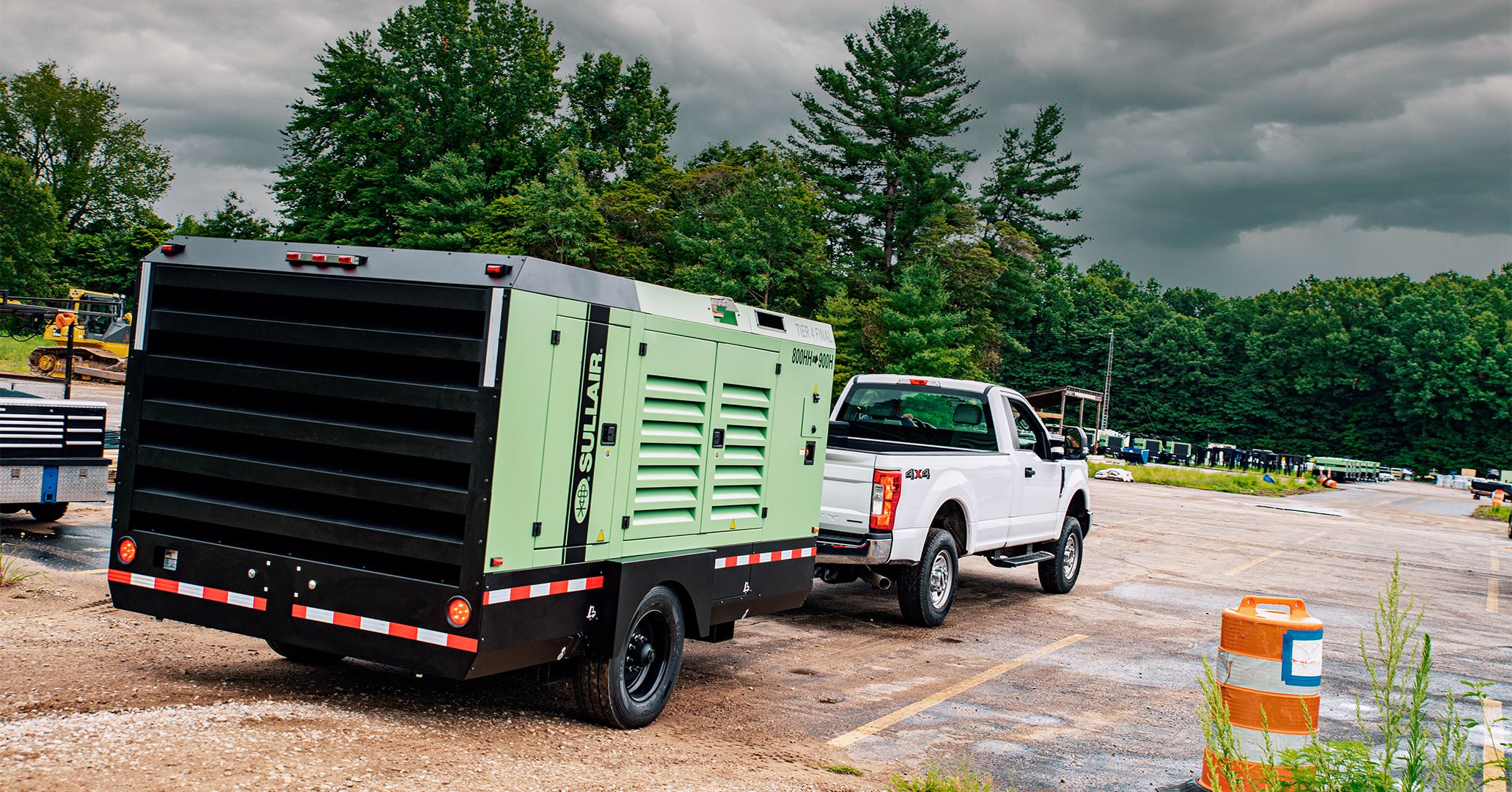

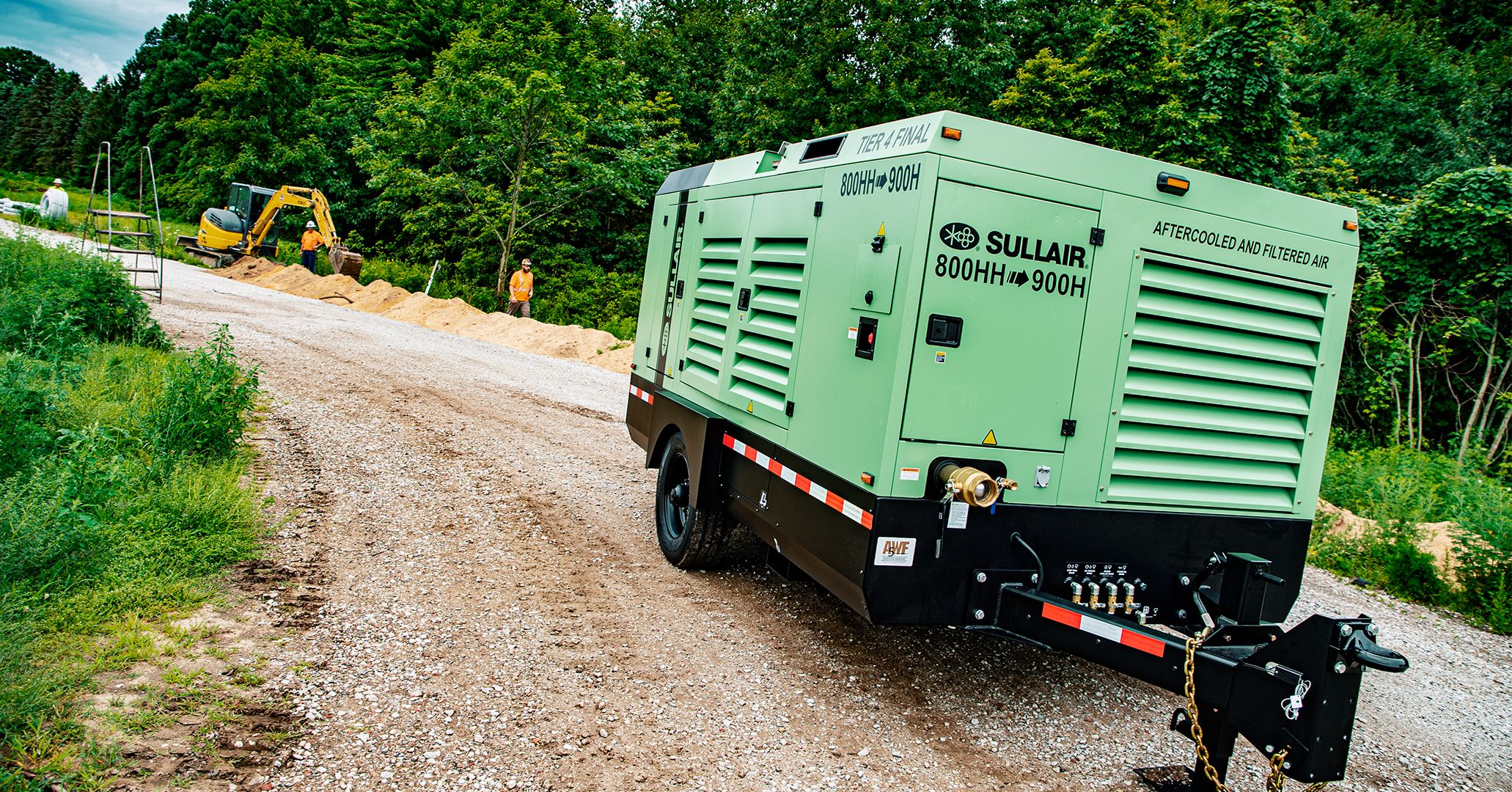

The Sullair Mid-Range Series Tier 4 Final Portable Lubricated Rotary Screw air compressor, powered by the Cat® C7.1 engine, is one of the company’s latest and greatest innovations. Launched in February 2021, the Mid-Range Series condensed nine previous Sullair compressors into a single lightweight, compact, easy-to-maneuver package.



LEADING IN VERSATILTY & PERFORMANCE

Rotary screw technology combined with Sullair’s electronic spiral valve technology provides operators the ability to configure the compressor between 100 to 200 psi and 800 to 1100 cfm, which enables the compressor to be used in various applications without having to swap between different equipment.

The new, all-encompassing Mid-Range Series has seen other upgrades, too. “With the new design, we’ve reduced the size and weight from our legacy model by 50%. We made the product much easier to maneuver and much more versatile as far as usefulness in applications,” said Jerel Cole, Sullair’s senior project manager for portable products.

The benefits don’t stop there. The Mid-Range Series is best-in-class in a number of areas. It can operate safely for 10 hours with onboard fuel storage or around the clock with external fuel connections. It also excels in harsh environments, as it’s able to operate between -20 to 125º Fahrenheit and in altitudes up to 12,000 feet. Customers also appreciate its improved accessibility and ease-of-use provided by the model’s 7-inch Sullair Touch Screen (STS) Controller, enlarged doors for enhanced component accessibility and central drains.

It’s all made possible with Sullair design and Cat power. “We work with the Caterpillar engineering department to make our products easy to operate and fuel. Caterpillar is involved in every aspect to make sure that each engine is easy to service and maintain. We take pride in the robustness and the optimization we have to offer together,” explained Cole.



CONFIDENCE WITH CATERPILLAR

Maxing out at 320 HP, Cat’s C7.1 engine has taken the place of a 9-liter engine that historically powered Sullair’s legacy model. The C7.1 has a higher power density, which allows a smaller, more efficient engine to be packaged in Sullair compressors. A Tier 4 Final, EU Stage V engine, the C7.1 meets EPA emissions standards. The engine also adheres to noise requirements for metropolitan, suburban and rural areas.

With more than 60 primary dealer locations across the U.S., Caterpillar offers an extensive network for simple service and accessibility. In many cases, technicians and operators already use other Cat equipment on the job, so having another Cat powered product means one less dealer to hunt down for preventive maintenance or service.



REALITY IS KING

“Most projects are time-based, so downtime is not acceptable or tolerated in these markets. That’s where this power train in our Mid-Range Series excels. Where uptime is key, this is the ideal product for the customer,” Cole added.

Between the care and expertise that’s gone into every component to the Cat dealer network, owners and renters alike can have confidence that the Sullair Mid-Range Series Tier 4 Final Portable Lubricated Rotary Screw air compressor is in it for the long haul.

DOWNLOAD PDF VERSION
OF POWER PROFILE

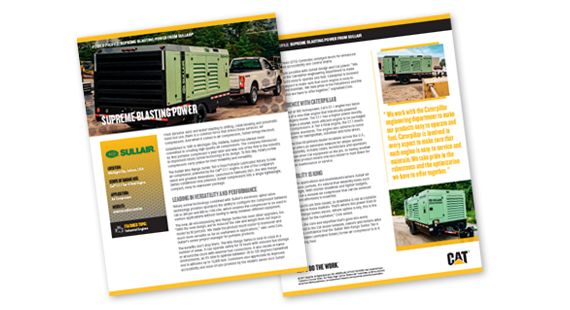

Want to share this story? Download a PDF of this Cat Industrial Engine Power Profile.

Download Power Profile
Download PDF
Download PDF

Power Profile Image Gallery

of
of
of
of
of
Image 1
Image 2
Image 3
Gallery 4
Sullair video
