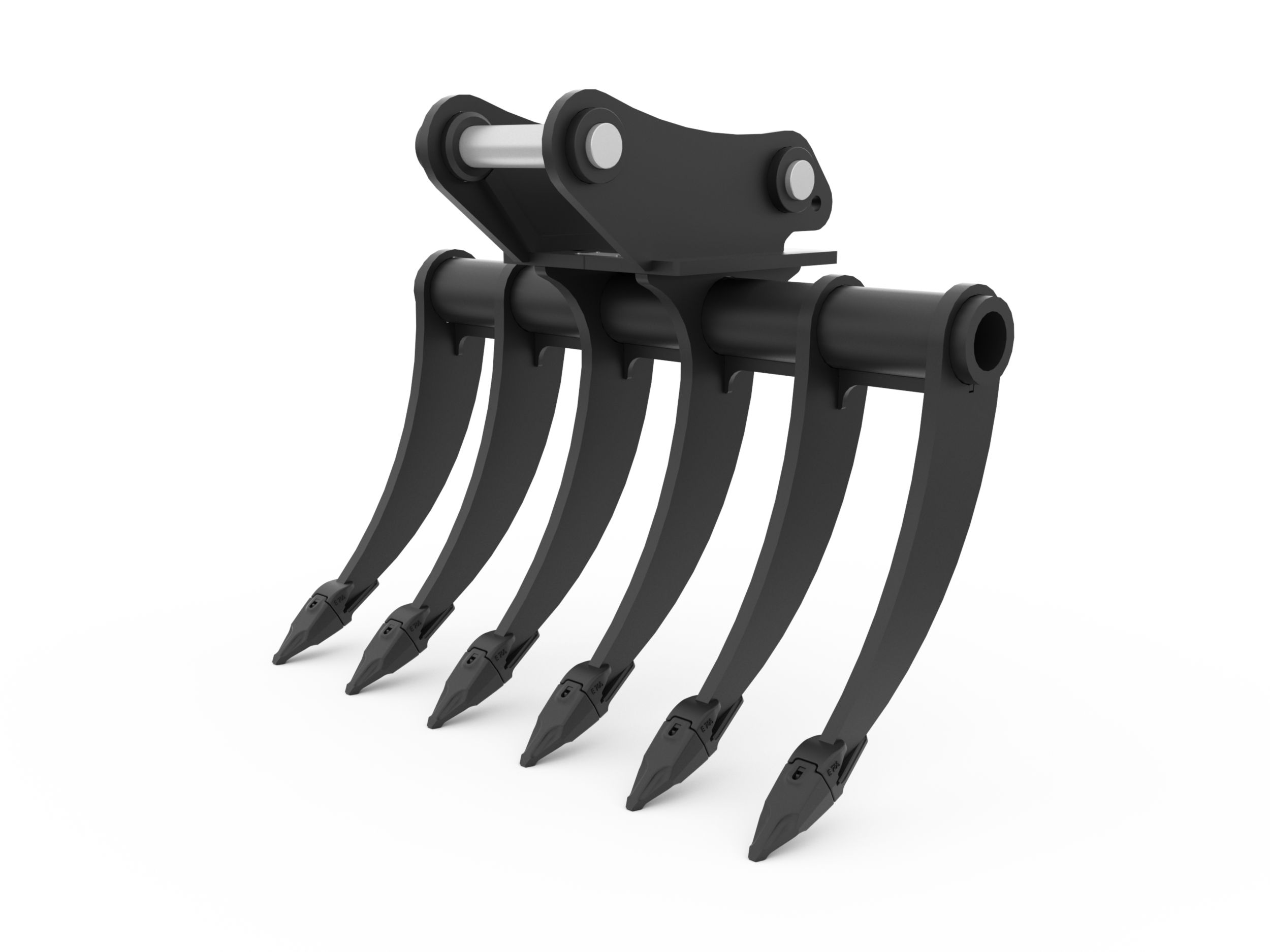

Heavy Duty Ag Rakes 1200 mm (47 in), 10 Ton Mini Excavators/450 Backhoe Loader

Request A Price Shop Now

Key Specs

Width: 47 in; 1200 mm

Weight: 601.9 lb; 273 kg

Height: 38.1 in; 968 mm

1200 mm (47 in), 10 Ton Mini Excavators/450 Backhoe Loader
Change model

Overview

Cat® Heavy Duty Ag Rakes are designed to break up clumps, level the ground, and remove debris to prepare the perfect seedbed in banana, pineapple, and other fruit-growing environments.

Features At A Glance

Cat® heavy duty ag rakes are built with high strength steel and able to withstand extreme wear, which means you can use the tool longer without needing maintenance.

With the specially designed profile, you can easily use it for removing roots, rubbish or tree stumps during your ground preparation.

Replaceable teeth helps the rake last longer in harsh environments.

These holes are used for manufacturing. They are not certified for lifting and should not be used as such.

Product Specifications for 1200 mm (47 in), 10 Ton Mini Excavators/450 Backhoe Loader

Width	47 in 1200 mm
Weight	601.9 lb 273 kg
Height	38.1 in 968 mm
Length	26.1 in 663 mm
Tine Spacing	7.9 in 200 mm
Tine Thickness	1 in 25 mm
Tip Radius	35.5 in 901 mm
Number of Tines	6 6
Interface Type	Pin On (Pin Grabber) Pin On (Pin Grabber)

Product Specifications for 1200 mm (47 in), 10 Ton Mini Excavators/450 Backhoe Loader

Download Print

Width	47 in 1200 mm
Weight	601.9 lb 273 kg
Height	38.1 in 968 mm
Length	26.1 in 663 mm
Tine Spacing	7.9 in 200 mm
Tine Thickness	1 in 25 mm
Tip Radius	35.5 in 901 mm
Number of Tines	6 6
Interface Type	Pin On (Pin Grabber) Pin On (Pin Grabber)
