Heavy Duty Ag Rakes 400 mm (16 in), 1-2 Ton Mini Excavators

Request A Price Shop Now

Key Specs

Width: 15.7 in; 400 mm

Weight: 77.2 lb; 35 kg

Height: 20.2 in; 512 mm

400 mm (16 in), 1-2 Ton Mini Excavators
Change model

Overview

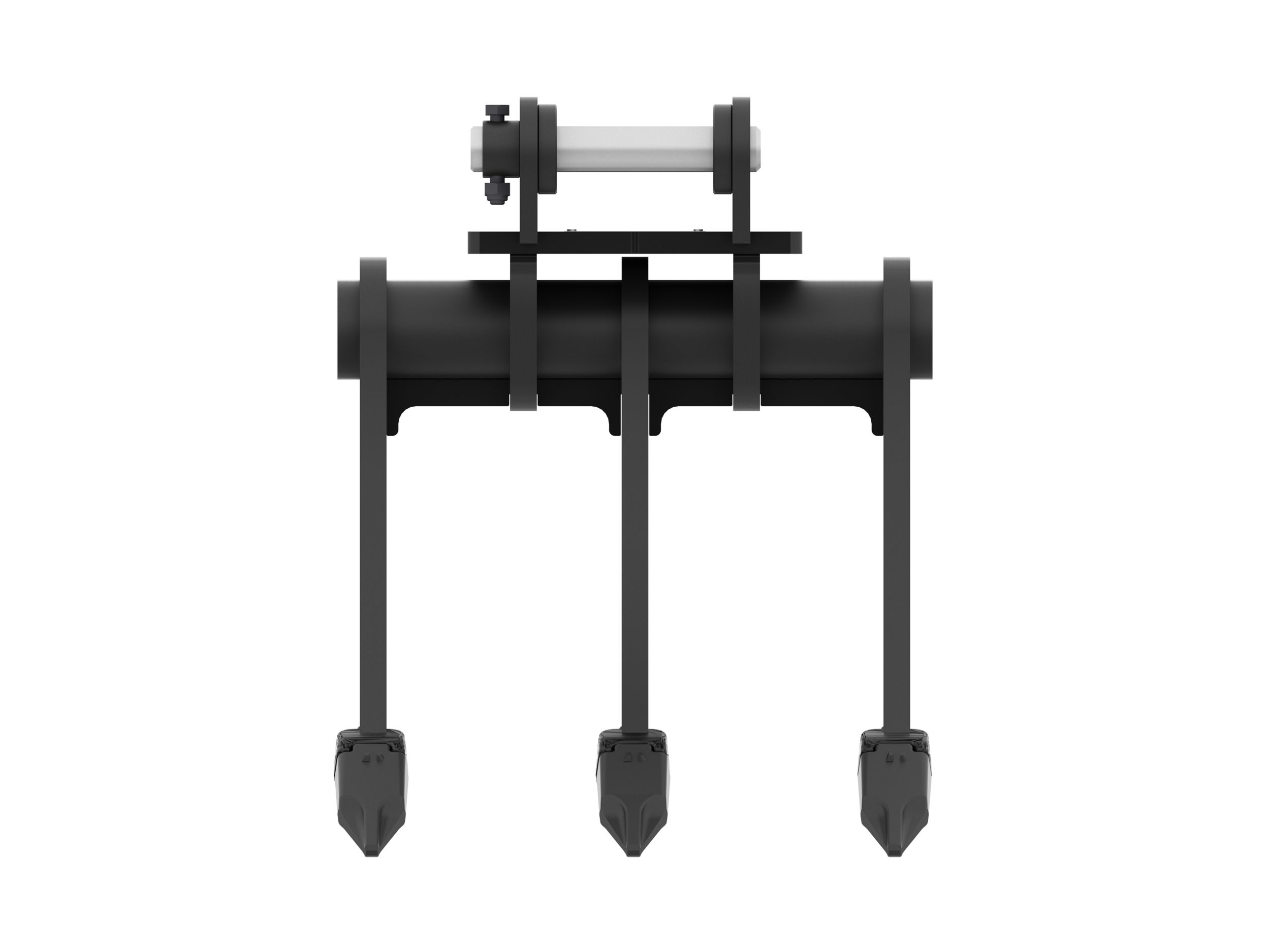

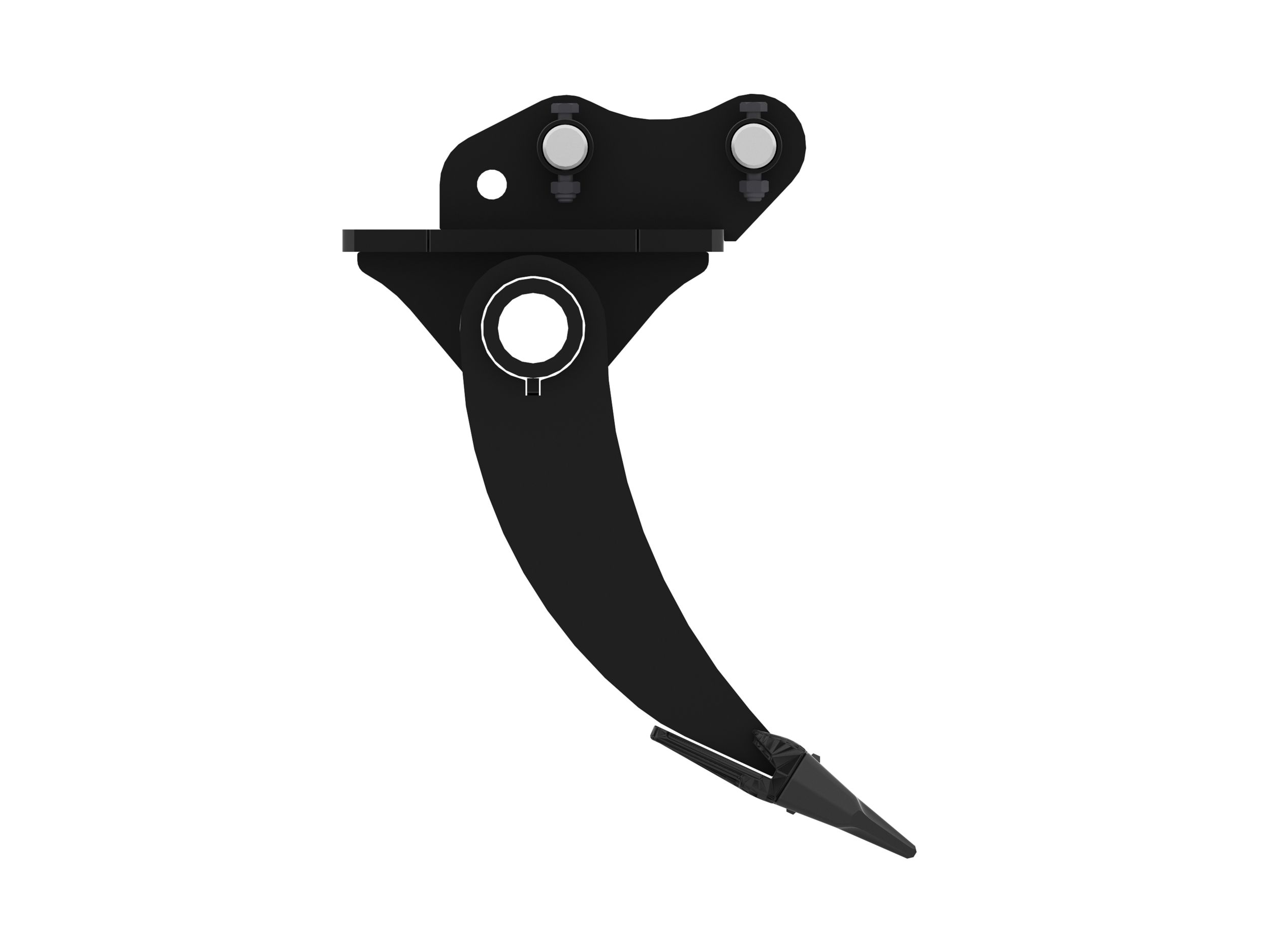

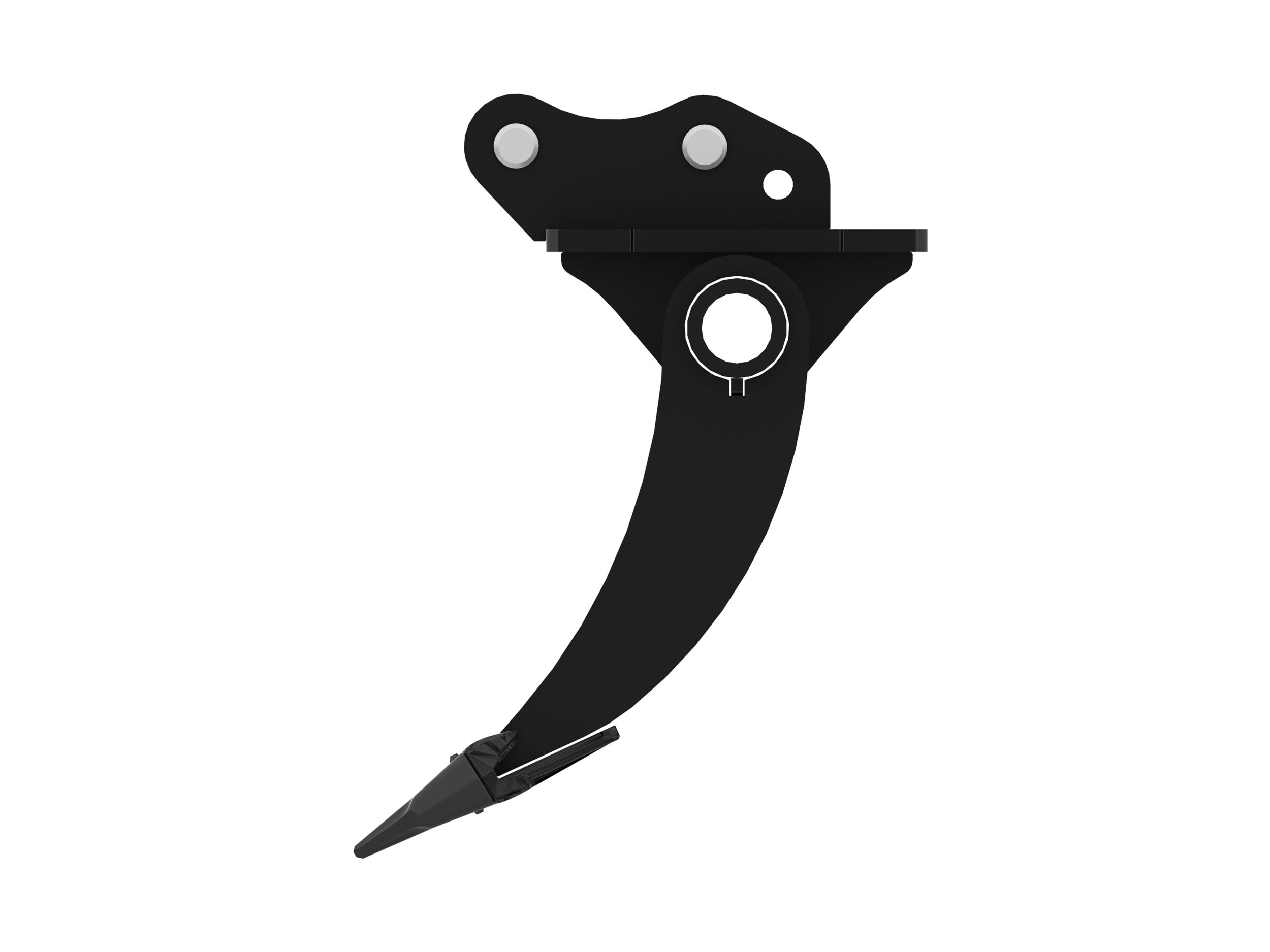

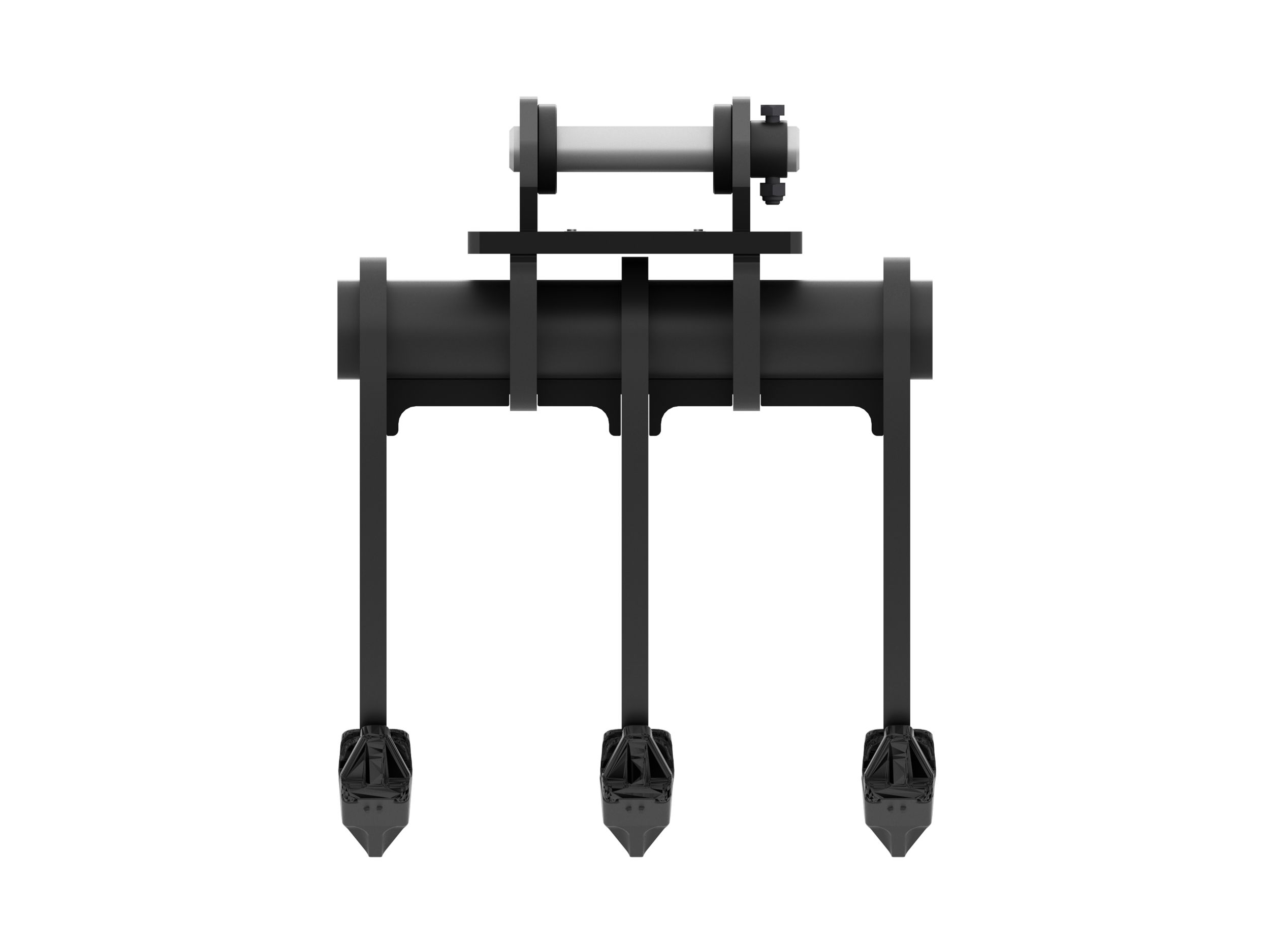

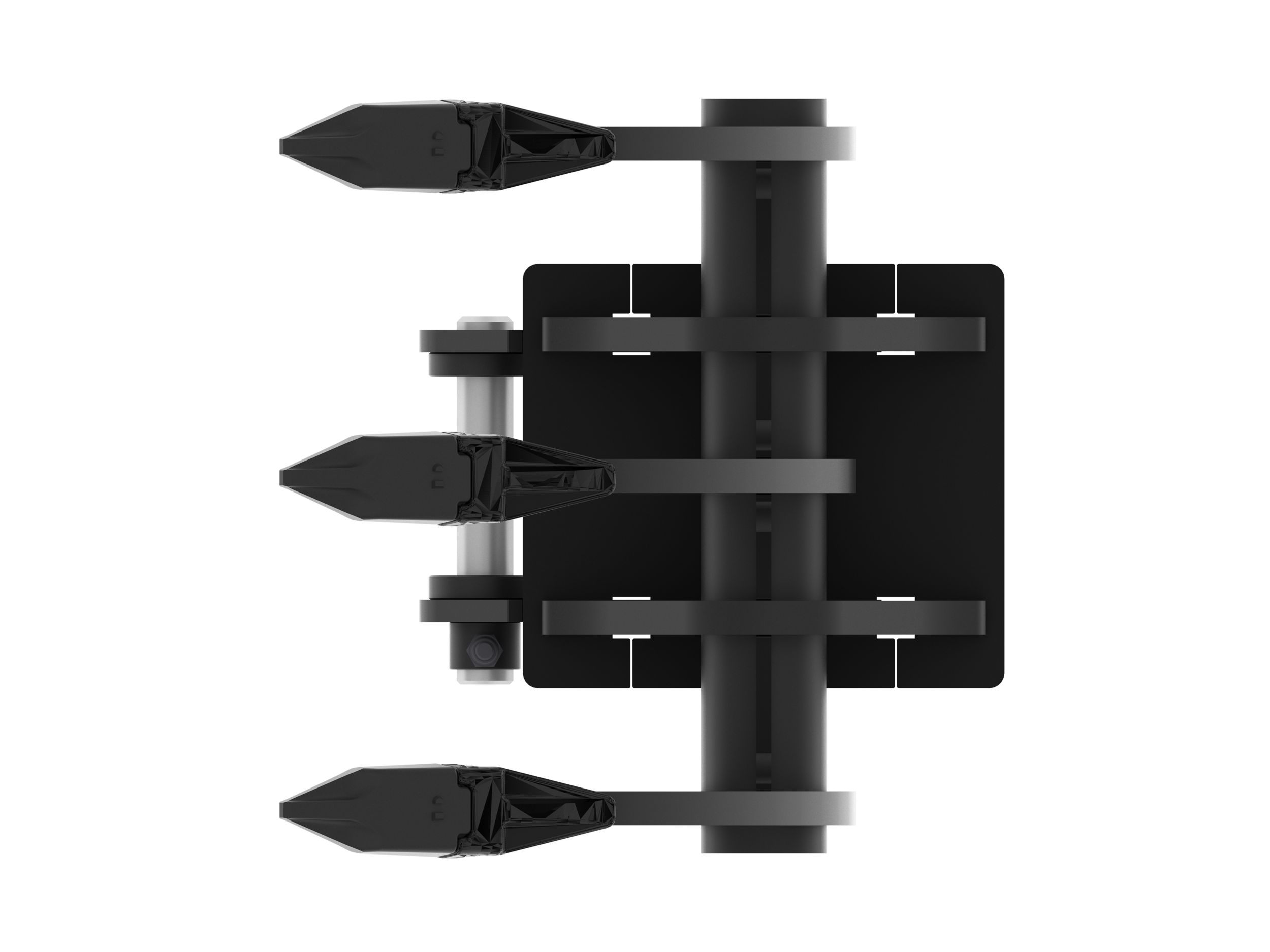

Cat® Heavy Duty Ag Rakes are designed to break up clumps, level the ground, and remove debris to prepare the perfect seedbed in banana, pineapple, and other fruit-growing environments.

Features At A Glance

Cat® heavy duty ag rakes are built with high strength steel and able to withstand extreme wear, which means you can use the tool longer without needing maintenance.

With the specially designed profile, you can easily use it for removing roots, rubbish or tree stumps during your ground preparation.

Replaceable teeth helps the rake last longer in harsh environments.

These holes are used for manufacturing. They are not certified for lifting and should not be used as such.

Product Specifications for 400 mm (16 in), 1-2 Ton Mini Excavators

Width	15.7 in 400 mm
Weight	77.2 lb 35 kg
Height	20.2 in 512 mm
Length	15.1 in 384 mm
Tine Spacing	6.2 in 158 mm
Tine Thickness	0.7 in 18 mm
Tip Radius	19.2 in 487 mm
Number of Tines	3 3
Interface Type	Pin On (Pin Grabber) Pin On (Pin Grabber)

Product Specifications for 400 mm (16 in), 1-2 Ton Mini Excavators

Download Print

Width	15.7 in 400 mm
Weight	77.2 lb 35 kg
Height	20.2 in 512 mm
Length	15.1 in 384 mm
Tine Spacing	6.2 in 158 mm
Tine Thickness	0.7 in 18 mm
Tip Radius	19.2 in 487 mm
Number of Tines	3 3
Interface Type	Pin On (Pin Grabber) Pin On (Pin Grabber)
