Tillers LT118

Request A Price Click for Price

Key Specs

Working Width: 72.8 in; 1848 mm

Working Depth: 25-152 mm (1-6 in); 25-152 mm (1-6 in)

Weight: 925.9 lb; 420 kg

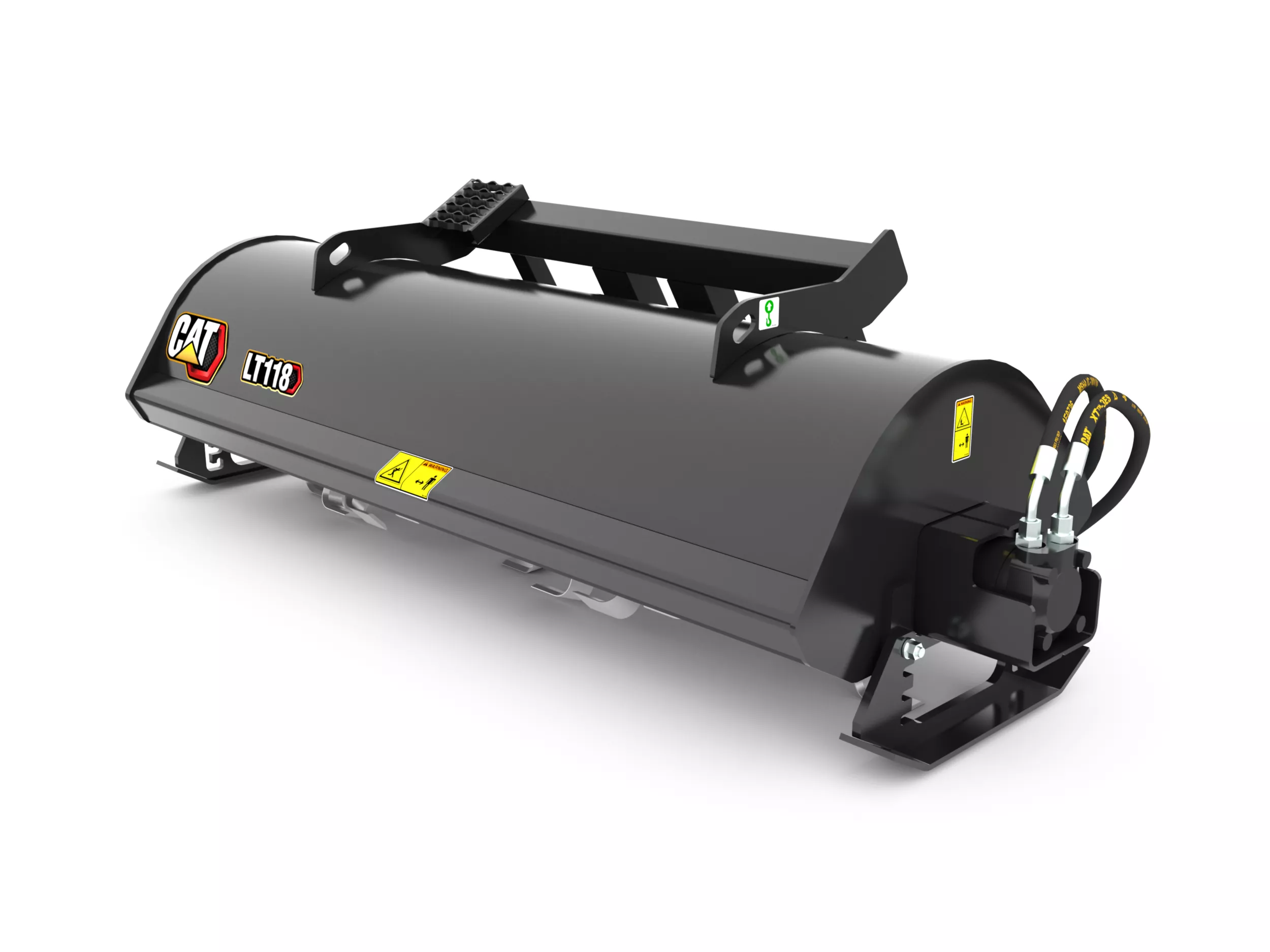

LT118
Change model

Overview

Landscape Tillers break up and mix soil in landscaping applications.

Features At A Glance

Designed for breaking up and pulverizing soil, mixing compost or other materials into existing soil, and stabilizing and leveling existing terrain in landscape finish applications.

Single motor direct drive system is matched to the machine's auxiliary hydraulic system for maximum performance.

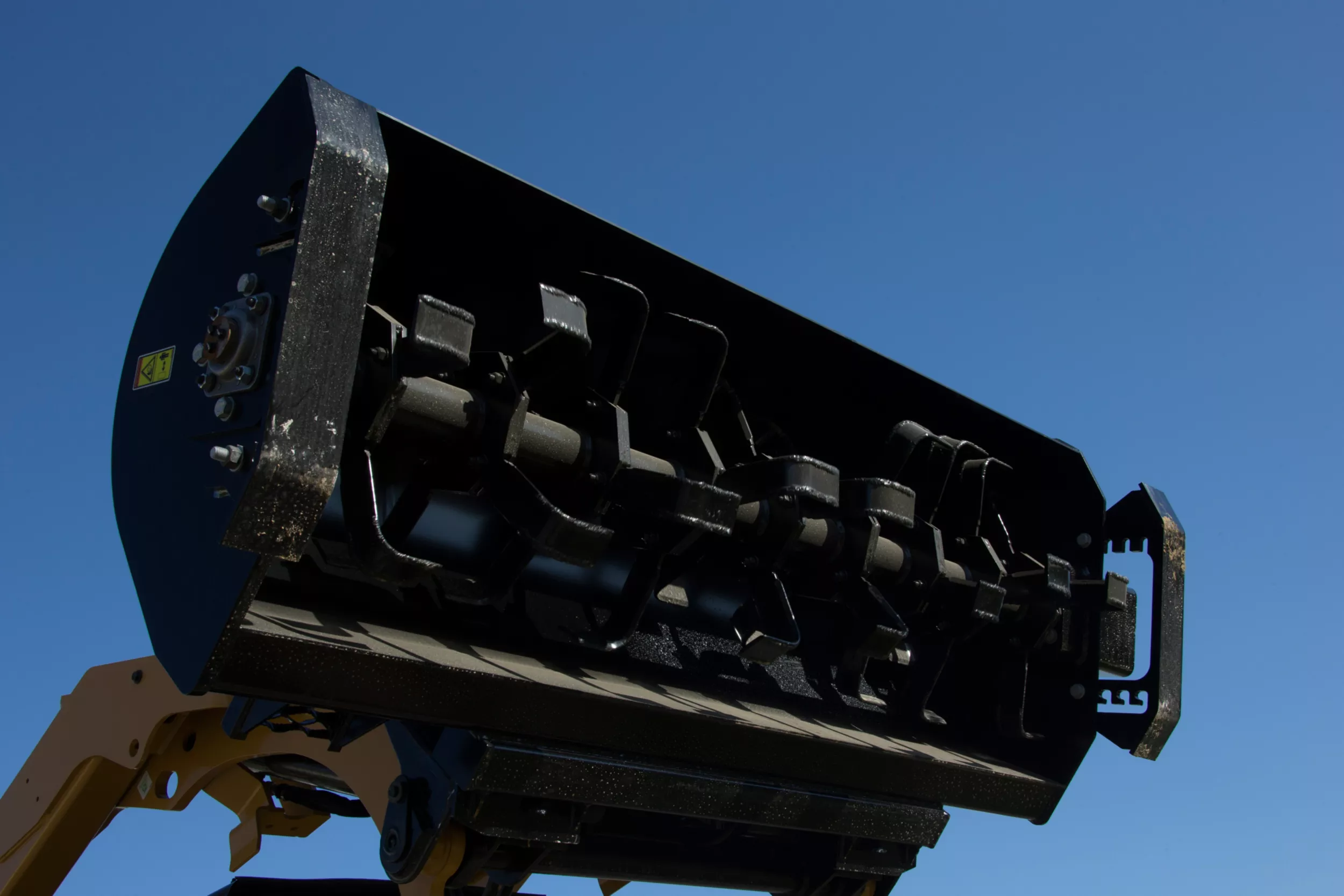

Unique spiral tine arrangement provides 10% greater cutting performance over tillers with standard placements.

Tines are hardened for maximum strength, durability and wear life in the toughest soil conditions. The bolt-on design provides quick change versatility and extended work tool life.

Two full-width torque tubes provide rigid structural enforcement of tiller housing. Front torque tube design minimizes hood damage caused from larger rocks.

Arm level indicator provides operator a visual set-up and operating reference with top tiller attachment arms designed parallel to skid shoe.

Adjustable and replaceable skid shoes with three position tiller depth adjustment allows for tilling depth to be quickly adjusted without skid shoe removal.

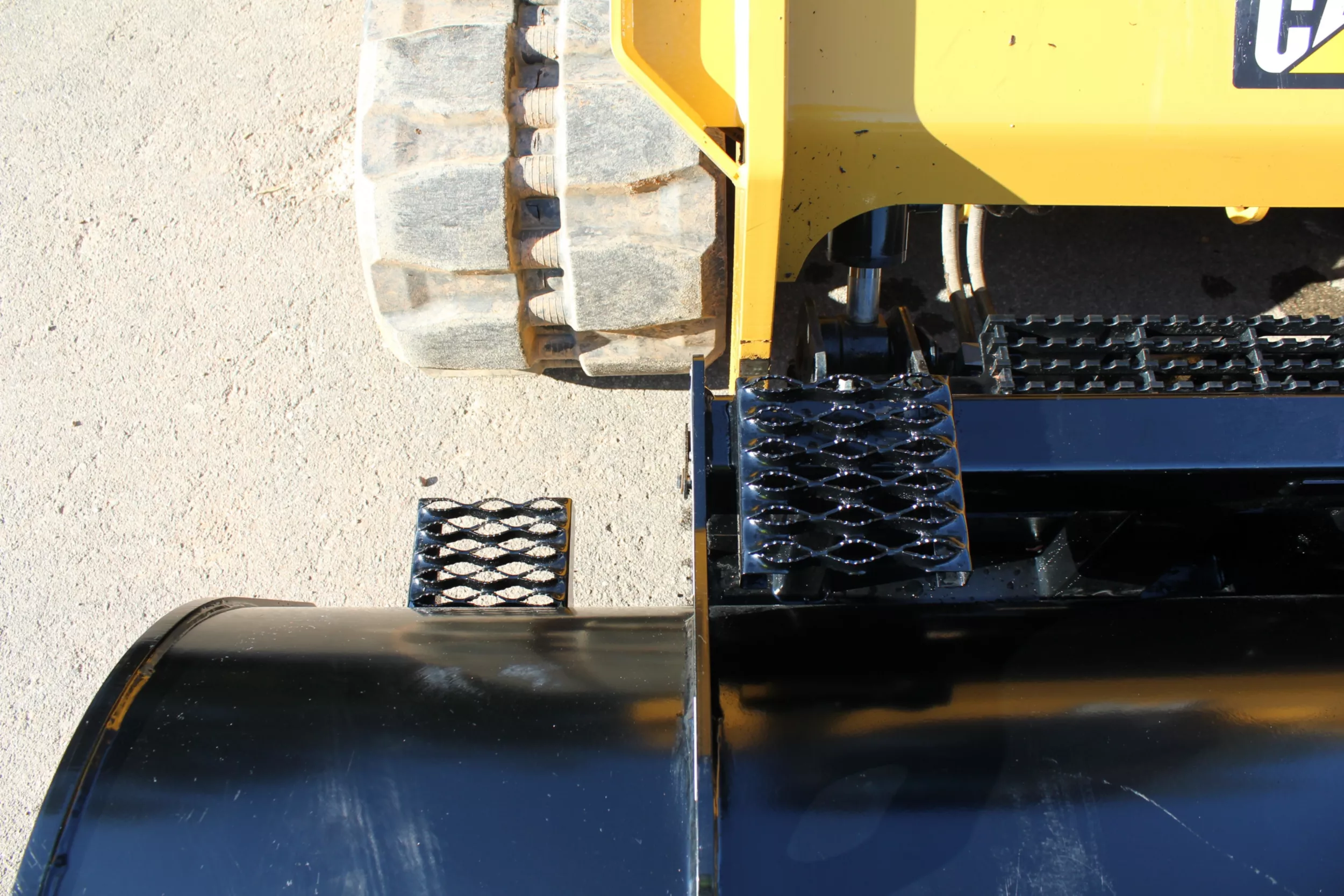

Serrated steps provide safe ingress and egress from machine cab.

Product Specifications for LT118

Working Width	72.8 in 1848 mm
Working Depth	25-152 mm (1-6 in) 25-152 mm (1-6 in)
Weight	925.9 lb 420 kg
Overall Width	89.4 in 2272 mm
Height	29.7 in 755 mm
Length	37.6 in 956 mm
Optimal Hydraulic Flow	60-114 L/min (16-30 gpm) 60-114 L/min (16-30 gpm)
Optimal Hydraulic Pressure	207-310 bar (3000-4500 psi) 207-310 bar (3000-4500 psi)
Motor Displacement	38.4 in³ 629.09 cm³
Drum Speed	127 rpm @ 80 L/min (21 gpm) 127 rpm @ 80 L/min (21 gpm)
Number of Hard Face Tines	36 36
Required Hydraulics	Standard Flow Standard Flow

Product Specifications for LT118

Download Print

Working Width	72.8 in 1848 mm
Working Depth	25-152 mm (1-6 in) 25-152 mm (1-6 in)
Weight	925.9 lb 420 kg
Overall Width	89.4 in 2272 mm
Height	29.7 in 755 mm
Length	37.6 in 956 mm
Optimal Hydraulic Flow	60-114 L/min (16-30 gpm) 60-114 L/min (16-30 gpm)
Optimal Hydraulic Pressure	207-310 bar (3000-4500 psi) 207-310 bar (3000-4500 psi)
Motor Displacement	38.4 in³ 629.09 cm³
Drum Speed	127 rpm @ 80 L/min (21 gpm) 127 rpm @ 80 L/min (21 gpm)
Number of Hard Face Tines	36 36
Required Hydraulics	Standard Flow Standard Flow
