Articulated Truck Bare Chassis 740 GC Bare Chassis

Request A Price Find Dealer

Key Specs

Standard Wheel Base
162.4 in
4126 mm
Rated Payload
49.2 ton (US)
44.6 t
Engine Model
Cat® C15
Cat® C15

Overview

Customized to work for your application.

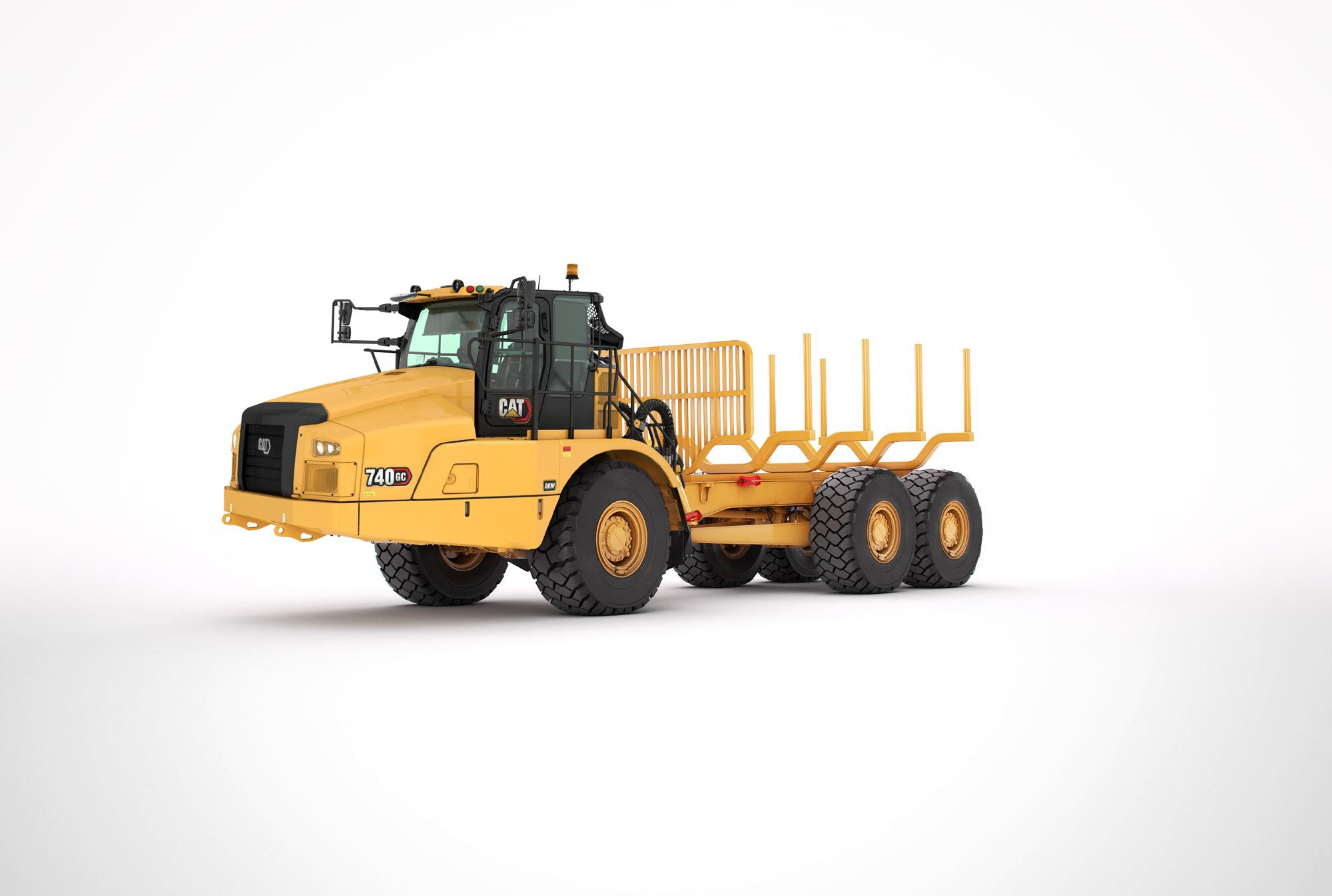

The Cat® OEM 740 GC Bare Chassis is available in a standard wheel base. With up to a 44.6 tonnes (49.2 tons) capacity, the 740 GC bare chassis offers proven reliability, durability, high productivity, superior operator comfort and lower operating costs.

Benefits

UP TO 50% LESS OPERATOR INPUT

A uniquely combined hoist and transmission lever allows for easy operation which suits a wide range of operator experience.

IMPROVED OPERATOR COMFORT

Quieter, more spacious cab with improved visibility helps operators work more productively throughout the day.

UNMATCHED SAFETY

Safety features help increase operator confidence by providing a safer operation. The Operator-presence detection system applies parking brake if gear is engaged and operator is not seated.

Product Specifications for 740 GC Bare Chassis

Engine Model Cat® C15 Cat® C15
Bore 5.4 in 137 mm
Stroke 6.75 in 171.5 mm
Displacement 926 in³ 15.2 l
Gross Power - SAE J1995 452 HP 337 kW
Net Power - SAE J1349 439 HP 327 kW
Peak Engine Torque Gross (SAE J1995) 1711 lb/ft 2320 N·m
Net Power - ISO 14396 447 HP 333 kW
Peak Engine Torque Net (SAE J1349) 1670 lb/ft 2264 N·m
Peak Engine Torque Speed 1200 r/min 1200 r/min
Engine Model - U.S. EPA Tier 4 Final/EU Stage IV/Japan 2014 (Tier 4 Final)/Korea Tier 4 Final Cat® C15 Cat® C15
No Engine De-rating Required Below 10000 ft 3050 m
Standard Wheel Base 162.4 in 4126 mm
Rated Payload 49.2 ton (US) 44.6 t
Forward - 1 4 mile/h 6.4 km/h
Forward - 2 5.3 mile/h 8.5 km/h
Forward - 3 7.3 mile/h 11.5 km/h
Forward - 4 9.2 mile/h 14.8 km/h
Forward - 5 12.2 mile/h 19.7 km/h
Forward - 6 14.9 mile/h 24 km/h
Forward - 7 20.6 mile/h 33.1 km/h
Forward - 8 24.7 mile/h 39.8 km/h
Forward - 9 35.7 mile/h 57.5 km/h
Reverse - 1 4.2 mile/h 6.8 km/h
Reverse - 2 9.8 mile/h 15.7 km/h
Fuel Tank 143.5 gal (US) 550 l
Cooling System 23.7 gal (US) 90 l
Brake Cooling Tank 17.7 gal (US) 67 l
Steering/Hoist Hydraulic System 36.9 gal (US) 140 l
Engine Crankcase 13.7 gal (US) 52 l
Transmission - OTG 19.8 gal (US) 75 l
Final Drive - Each 1.3 gal (US) 5 l
Axles - Each 15.8 gal (US) 60 l
DEF Tank 25 gal (US) 6.5 l
Interior Cab 72 dB(A) 72 dB(A)
Brakes ISO 3450:2011 ISO 3450:2011
Cab - FOPS ISO 3449:2005 Level II ISO 3449:2005 Level II
Cab - ROPS ISO 3471:2008 ISO 3471:2008
Steering ISO 5010:2019 ISO 5010:2019
Lock to Lock 4.75 seconds at 60 rpm 4.75 seconds at 60 rpm
Turning Dimensions - Aisle Width 220 in 5595 mm
Turning Dimensions - SAE Turning Radius 303 in 7698 mm
Turning Dimensions - Clearance Radius 330 in 8395 mm
Turning Dimensions - Inside Radius 156 in 3960 mm
Turning Dimensions - Steer Angle - Left/Right 45° 45°
Note Dimensions are for machines equipped with 29.5 R25 tires. Dimensions are for machines equipped with 29.5 R25 tires.

740 GC Bare Chassis Standard Equipment

For bare chassis standard and optional equipment, please reference the 740 GC Articulated Truck. For more information on 740 GC Bare Chassis options, please contact Caterpillar OEM Solutions at oemsolutions@cat.com.
