Wheel Material Handlers MH3040 - Tier 4 / Stage V

Tier 4 / Stage V

Request A Price Find Dealer

Key Specs

Engine Model: Cat C7.1; Cat C7.1

Operating Weight: 85310 lb; 38700 kg

Maximum Reach: 50.8 ft; 15490 mm

MH3040 - Tier 4 / Stage V
Change model

Overview

Proven Reliability

The Cat® MH3040 material handler is built to be powerful, reliable, and easy to use. With a comfortable cab and low maintenance costs, it helps optimize performance and boost productivity for operators. Designed with proven components, it helps provide the durability and power needed to handle tough jobs with confidence.

Benefits

Proven Reliability

The MH3040 is built from proven components designed to withstand the toughest applications. Count on your machine to provide the durability and reliability you expect from Cat products.

Low Fuel Consumption

Two power modes and an electrically driven fan with auto reverse function help minimize fuel use and increase engine efficiency.

Low Maintenance Costs

Long life filters for fuel, hydraulic oil, and air help lower your overall costs.

Less CO₂ Emissions

The MH3040 emits less CO₂ than the previous M325D L MH.

Features At A Glance

Machine Setup Simplification

At the touch of fingertips and navigating user-friendly icons, the latest operator oriented User Interface (UI) maximizes uptime and gets crews to work without delay. From re-ordering work tool lists to creating new work tool combinations as needed, operators can quickly set up machines and easily access information.
The interface allows operators to maintain accuracy and makes the most of every second of their shift. Adding the ability to input couplers and attachments into the system makes setting up work tool combinations highly efficient by significantly reducing calibration time. It also eliminates the need to measure up again when changing Cat^® work tool attachments and makes it manageable for a single person to check and adjust for bucket wear.

Cat Payload*

Cat Payload provides operators with on-the-go weighing to help them hit load targets and avoid overloading, underloading, or misloading materials. Combine Payload with VisionLink^® Productivity** to analyze jobsites and individual assets for remote management of production targets and key metrics.

Swing Assist

Swing Assist automatically stops machine swing at operator-defined preset points. Simply swing to the desired stopping point and activate using the machine monitor or a preset joystick button. As you get closer, the machine will automatically decelerate and not allow swing past the set point. Swing Assist helps you hit more repetitive swing targets to help reduce fuel use and improve cycle times.

*Payload technologies are not legal for trade.
**VisionLink^® subscription required.

Not all features are available in all regions. Please check with your Cat dealer for specific offering availability in your area. Build Number: 07E

The C7.1 engine can run on biodiesel up to B20 and meets U.S. EPA Tier 4 Final and EU Stage V emission standards with an aftertreatment system that requires no scheduled maintenance or downtime.
Match the machine to the job with three power modes - Power, Smart, and Eco. Smart mode automatically matches engine and hydraulic power to working conditions, helping provide maximum power when needed and reducing power when it isn't to save fuel.
The advanced electro-hydraulic system helps provide the optimum balance of power and efficiency while giving you the control you need.
Available SmartBoom™ lets the boom freely travel up and down without using any pump flow so operators can focus on stick and bucket work.
Valve priority helps put hydraulic pressure and flow where you need it.
Program and store your preferred power mode and joystick settings using your Operator ID. The machine will automatically remember your selections.

Cat Payload helps you achieve precise load targets to improve your operating efficiency. Pick up a load of material--with a bucket and thumb combination or grapple and clamshell attachments--and get a real-time weight estimate without swinging.
Combine Cat Payload with VisionLink^® and remotely manage your production targets.
VisionLink^® provides actionable data insights for all assets - regardless of fleet size or equipment manufacturer. *Review equipment data from your desktop or mobile device to maximize uptime and optimize assets. Dashboards provide information such as hours, miles, location, idle time, and fuel utilization. Make informed decisions that lower costs, simplify maintenance, and improve safety and security on your jobsite.
Swing Assist automatically stops machine swing at operator-defined preset points. Simply swing to the desired stopping point and activate using the machine monitor or a preset joystick button. As you get closer, the machine will automatically decelerate and not allow swing past the set point. Swing Assist helps you hit more repetitive swing targets to help reduce fuel use and improve cycle times.
Remote Troubleshoot is a mobile application that allows your Cat dealer to perform diagnostic testing on your connected machine remotely to help ensure that issues are resolved quickly and with less downtime.
Remote Flash is a mobile application that allows you to update onboard software without a technician being present, allowing you to initiate software updates when convenient, increasing your overall operating efficiency.

*Data field availability can vary by equipment manufacturer.

Choose between a deluxe and premium cab. Both provide a comfortable, ergonomic work environment.
The cab has a wide seat that adjusts for operators of all sizes.
Get in and out of the cab easier using the tilt-up left console.
Control the machine comfortably with easy-to-reach controls all located in front of you.
Standard automatic climate control keeps you at the right temperature all shift long.
Stow your gear with plenty of in-cab storage beneath and behind the seat, overhead, and in the consoles. A cup holder, document holder, bottle holder, and coat hook are also provided.
Connect to personal devices via the standard radio's USB ports and Bluetooth^® technology.
Optional auxiliary relay powers on and turns off CB radios, beacon lights, and other attachments without taking your hands off the joysticks.
Cat continues to improve user interface functionality for operators of all skill levels. The touchscreen monitor is an easy-to-use operating tool that presents the jobsite dashboard with an intuitive format.
Productivity applications are displayed in grid view to read on the go, and touchscreen navigation is programmed to ensure job performance continues without any hold-ups.

Count on your machine to withstand wear throughout the years. Boom, sticks, and other high-stress areas are reinforced with thick multi-plate fabrications, castings, and forgings to help ensure quality and reliability.
The upper frame uses specially designed mountings to support the heavy-duty cab, and the lower frame is reinforced to help enhance component durability.
Work up to 3000 m (9,840 ft) above sea level without de-rating.
Don't let the temperature stop you from working. The machine has a standard high-ambient temperature capability of 43°C (109°F) and cold start capability of -18°C (0°F).
Auto warm-up speeds up hydraulic oil warming in cold temperatures and helps prolong the life of components.
Standard autolube simplifies maintenance by automatically keeping the machine greased from the swing bearing and cab riser to the stick end.
Match your machine to the application. Multiple configurations allow you to customize your machine to your needs.
An optional 20 kW (27 hp) generator allows for magnet operation. Generator controls are fully integrated into the cab monitor.
Expand your work capabilities with attachments for a variety of applications.
Make operating easier with the touch of a joystick button. Additional auxiliary relays allow you to power on or turn off a CB radio, beacon light, and even a dust suppression watering system without taking your hands off the joysticks.

Track your machine's filter life and maintenance intervals via the in-cab monitor.
Scheduled Oil Sampling (S•O•S^SM) ports are located at ground level, helping simplify maintenance and allowing for quick, easy extraction of fluid samples for analysis.
The long life of the air intake filter with pre-cleaner helps save on maintenance costs.
The hydraulic oil filter helps provide high filtration performance, anti-drain valves to help keep oil clean when the filter is replaced, and long life with a 3,000-hour replacement interval.
High-efficiency cooling fans run only when needed; you can program intervals so they automatically reverse to help keep cores clean without interrupting your work.
Boost productivity with proactive service reminders. The integrated vehicle health management system alerts the operator with step-by-step service guidance and the parts needed to help reduce unnecessary downtime.

Cab Avoidance helps you avoid contact between your worktool attachment and the cab.
Standard 2D E-fence prevents your machine from moving outside operator-defined parameters.
Ground-level shutoff switch stops all fuel to the engine when activated and shuts down the machine.
Keep your machine secure with Operator ID. Use your PIN code on the monitor to enable the push-button starting feature.
Enjoy great all-around visibility with the help of small cab pillars, large windows, and a flat engine hood design. Rearview and side-view cameras are standard.
Standard 1800-lumen LED exterior lights illuminate your surroundings for a safer work environment.
Thick impact-resistant windshields fulfill P5A standards.
Service platform design provides easy, safe, and quick access to the upper service platform. The service platform steps use an anti-skid punch plate to help prevent slipping.
The standard hydraulic lockout lever isolates all hydraulic and travel functions in the lowered position.
Optional Operator Protective Guards (OPG) protect from falling and flying debris.
In an emergency, lower the cab safely with the emergency cab lowering valve behind the cab riser or to the right of the seat. The valve located behind the cab riser is easily accessible.
Boom and stick lowering check valves prevent reverse flow, keeping your front linkage securely in place should the hydraulic system unexpectedly lose pressure.
Make service work more accessible and safer with optional inspection lighting. With the flip of a switch, lights will illuminate the engine pump, battery, and radiator compartments to enhance visibility.

The Cat^® C7.1 engine meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
The MH3040 emits less CO₂ than the M325D L MH.
Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrogenated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
Cat Scheduled Oil Sampling (S•O•S^SM) Services help reveal excessive wear, contaminated fluids or other "unseen" issues that can shorten component life. In many cases, you can extend oil and coolant change intervals by using fluid monitoring. Consult your Cat dealer or the machine's operation and maintenance manual for more information.
Cat 2D E-fence keeps the front linkage within a predefined work area to avoid hazards such as traffic - not only helping keep personnel safe and helps avoid repairs, downtime, and costly jobsite fines.
Extended maintenance intervals help reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
VisionLink^® displays the CO₂ emissions for monitored assets, calculated by fuel type for the Runtime Fuel Burned each day in a selected date range.
Remote Flash helps minimize downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.
Remote Troubleshoot helps decrease maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.

*Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).
**Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels.

Specifications Standard Equipment Optional Equipment

Product Specifications for MH3040 - Tier 4 / Stage V

Engine

Engine Model	Cat C7.1 Cat C7.1
Net Power - ISO 9249	202 hp 151 kW
Net Power - ISO 9249 (DIN)	205 hp (metric) 205 hp (metric)
Engine Power - ISO 14396:2002	201 hp 150 kW
Engine Power - ISO 14396 (DIN)	204 hp (metric) 204 hp (metric)
Bore	4 in 105 mm
Stroke	5 in 135 mm
Displacement	428 in³ 7 l
Biodiesel Capability	Up to B20¹ Up to B20¹
Emissions	Meets U.S. EPA Tier 4 Final and EU Stage V emission standards. Meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
Note (1)	Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system, and alternator with engine speed at 2,200 rpm. Advertised power is tested per the specified standard in effect at the time of manufacture. Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system, and alternator with engine speed at 2,200 rpm. Advertised power is tested per the specified standard in effect at the time of manufacture.
Note (2)	¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. ¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels* up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). *Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels.

Transmission

Maximum Travel Speed	11.2 mile/h 18 km/h
Drawbar Pull	34621 lbf 154 kN
Maximum Gradeability	44% 44%

Hydraulic System

Maximum Pressure - Implements	5076 psi 35000 kPa
Maximum Pressure - Swing	4061 psi 28400 kPa
Maximum Pressure - Travel	5076 psi 35000 kPa

Swing Mechanism

Swing Speed	7 r/min 7 r/min
Maximum Swing Torque	60628 lbf·ft 82 kN·m

Weights

Operating Weight	85310 lb 38700 kg
Note	Operating weight includes full fuel tank, 75 kg (165 lb) operator, grapple 2000 kg (4,410 lb) and single tires. Weight varies depending on configuration. Operating weight includes full fuel tank, 75 kg (165 lb) operator, grapple 2000 kg (4,410 lb) and single tires. Weight varies depending on configuration.

Service Refill Capacities

Fuel Tank Capacity	125.2 gal (US) 474 l
Cooling System	6.6 gal (US) 25 l
Engine Oil	6.6 gal (US) 25 l
Rear Axle - Housing (Differential)	9 gal (US) 34.2 l
Final Drive	2 gal (US) 7.4 l
Powershift Transmission	0.8 gal (US) 3 l
Hydraulic System - Including Tank	86.9 gal (US) 329 l
Hydraulic Tank	38.8 gal (US) 147 l
Diesel Exhaust Fluid (DEF) Tank	10.8 gal (US) 41 l

Dimensions

Boom	MH 9.3 m (30'6") MH 9.3 m (30'6")
Stick	Industrial 7.1 m (23'3") Industrial 7.1 m (23'3")
Shipping Length	42 ft 12800 mm
Machine Length	20.8 ft 6330 mm
Tail Swing Radius	10.3 ft 3130 mm
Counterweight Clearance	5.7 ft 1740 mm
Cab Height- Lowered	12 ft 3660 mm
Cab Height-Lowered with OPG	12.5 ft 3805 mm
Cab Height-Raised	20.5 ft 6255 mm
Cab Height-Raised with OPG	21 ft 6400 mm
Wheel Base	10.5 ft 3210 mm
Shipping Width	9.8 ft 3000 mm
Ground Clearance	0.9 ft 265 mm
Undercarriage Length	20.4 ft 6225 mm

Working Ranges

Maximum Reach	50.8 ft 15490 mm
Boom	MH 9.3 m (30'6") MH 9.3 m (30'6")
Stick	Industrial 7.1 m (23'3") Industrial 7.1 m (23'3")
Maximum Height	57.4 ft 17510 mm
Maximum Dump Height	17.9 ft 5445 mm
Maximum Depth	17.3 ft 5265 mm
Boom Pin Height	40 ft 12195 mm

Air Conditioning System

Note (1)

The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.2 kg (2.6 lb) of refrigerant which has a CO2 equivalent of 1.716 metric tonnes (1.891 tons). The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.2 kg (2.6 lb) of refrigerant which has a CO2 equivalent of 1.716 metric tonnes (1.891 tons).

Sustainability

Recyclability

95% 95%

MH3040 - Tier 4 / Stage V Standard Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

CAB

Advanced sound suppressed Tip Over Protective Structure (TOPS) certified cab with rubber mounts

High-resolution 254 mm (10") LCD touch screen monitor

Automatic bi-level air conditioner

Jog dial and shortcut keys for monitor control

Keyless push-to-start engine control

Tilt-up left-side console

Heated seat with air suspension (Deluxe cab)

Heated and ventilated seat with air suspension (Premium cab)

CAT TECHNOLOGY

VisionLink®

Remote Flash and Remote Troubleshoot

Cat Payload

ELECTRICAL SYSTEM

Maintenance-free battery

LED chassis light, left-hand/right-hand boom lights, cab lights - 1800 lumens

Centralized electrical disconnect switch

Programmable time delay LED working lights after engine shutdown

ENGINE

Cat C7.1 diesel engine

Three selectable modes: Power, Smart, Eco

Up to 4500 m (14,760 ft) altitude capability with engine power derate above 3000 m (9,840 ft)

Cold start capability -18°C (0°F)

Reversible electric cooling fans

Cold start, ether start (N Am and Aus-NZ only)

HYDRAULIC SYSTEM

Boom and stick lowering control check valves

Boom and stick regeneration circuits

Electronic main control valve

Automatic hydraulic oil warm up

Heavy lift mode

SAFETY AND SECURITY

Rear and right-hand-sideview cameras

Caterpillar One Key Security System

Travel alarm

Ground-level accessible secondary engine shutoff switch in cab

Signal/warning horn

2D E-fence

Cab Avoidance

Swing Assist

Rear window emergency exit

SERVICE AND MAINTENANCE

Grouped location for engine oil and fuel filters

Scheduled Oil Sampling (S·O·S℠) ports

Automatic lubrication system for implement and swing system

UNDERCARRIAGE AND STRUCTURES

All wheel drive

Automatic brake/axle lock

Creeper speed

Electronic swing and travel lock

Heavy-duty axles, advanced disc brake system, and travel motor with adjustable braking force

Lockable, oscillating front axle with remote greasing point

Two speed hydrostatic transmission

Counterweight 7700 kg (16,975 lb)

MH3040 - Tier 4 / Stage V Optional Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

BOOM AND STICKS

10.4 m (34'9") Material Handler boom

9.3 m (30'6") Material Handler boom

9.9 m (32' 6") Barge boom

6.8 m (22'4") Log Loader boom (N Am only)

7.5 m (24'7") Industrial stick

7.1 m (23'3") Industrial stick

5.7 m (18'8") Industrial stick

6.4 m (21'0") Straight stick

4.1 m (13'3") Over/Under Log Loader stick (N Am only)

CAB

Fixed one-piece front window and skylight (P5A classified)

Fixed two-piece front window and skylight (P8B classified)

Operator Protective Guards (OPG)

ELECTRICAL SYSTEM

Generator, 20 kW with wiring to stick nose

ENGINE

Cold start, block heater (N Am only)

SAFETY AND SECURITY

360° visibility

UNDERCARRIAGE AND STRUCTURES

16.00-25 single solid rubber tires

23.5-R25 single pneumatic tires

12.00-20 dual solid rubber tires

Hitch towing

Product Specifications for MH3040 - Tier 4 / Stage V

Download Print

Engine

Engine Model	Cat C7.1 Cat C7.1
Net Power - ISO 9249	202 hp 151 kW
Net Power - ISO 9249 (DIN)	205 hp (metric) 205 hp (metric)
Engine Power - ISO 14396:2002	201 hp 150 kW
Engine Power - ISO 14396 (DIN)	204 hp (metric) 204 hp (metric)
Bore	4 in 105 mm
Stroke	5 in 135 mm
Displacement	428 in³ 7 l
Biodiesel Capability	Up to B20¹ Up to B20¹
Emissions	Meets U.S. EPA Tier 4 Final and EU Stage V emission standards. Meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
Note (1)	Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system, and alternator with engine speed at 2,200 rpm. Advertised power is tested per the specified standard in effect at the time of manufacture. Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system, and alternator with engine speed at 2,200 rpm. Advertised power is tested per the specified standard in effect at the time of manufacture.
Note (2)	¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. ¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels* up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). *Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels.

Transmission

Maximum Travel Speed	11.2 mile/h 18 km/h
Drawbar Pull	34621 lbf 154 kN
Maximum Gradeability	44% 44%

Hydraulic System

Maximum Pressure - Implements	5076 psi 35000 kPa
Maximum Pressure - Swing	4061 psi 28400 kPa
Maximum Pressure - Travel	5076 psi 35000 kPa

Swing Mechanism

Swing Speed	7 r/min 7 r/min
Maximum Swing Torque	60628 lbf·ft 82 kN·m

Weights

Operating Weight	85310 lb 38700 kg
Note	Operating weight includes full fuel tank, 75 kg (165 lb) operator, grapple 2000 kg (4,410 lb) and single tires. Weight varies depending on configuration. Operating weight includes full fuel tank, 75 kg (165 lb) operator, grapple 2000 kg (4,410 lb) and single tires. Weight varies depending on configuration.

Service Refill Capacities

Fuel Tank Capacity	125.2 gal (US) 474 l
Cooling System	6.6 gal (US) 25 l
Engine Oil	6.6 gal (US) 25 l
Rear Axle - Housing (Differential)	9 gal (US) 34.2 l
Final Drive	2 gal (US) 7.4 l
Powershift Transmission	0.8 gal (US) 3 l
Hydraulic System - Including Tank	86.9 gal (US) 329 l
Hydraulic Tank	38.8 gal (US) 147 l
Diesel Exhaust Fluid (DEF) Tank	10.8 gal (US) 41 l

Dimensions

Boom	MH 9.3 m (30'6") MH 9.3 m (30'6")
Stick	Industrial 7.1 m (23'3") Industrial 7.1 m (23'3")
Shipping Length	42 ft 12800 mm
Machine Length	20.8 ft 6330 mm
Tail Swing Radius	10.3 ft 3130 mm
Counterweight Clearance	5.7 ft 1740 mm
Cab Height- Lowered	12 ft 3660 mm
Cab Height-Lowered with OPG	12.5 ft 3805 mm
Cab Height-Raised	20.5 ft 6255 mm
Cab Height-Raised with OPG	21 ft 6400 mm
Wheel Base	10.5 ft 3210 mm
Shipping Width	9.8 ft 3000 mm
Ground Clearance	0.9 ft 265 mm
Undercarriage Length	20.4 ft 6225 mm

Working Ranges

Maximum Reach	50.8 ft 15490 mm
Boom	MH 9.3 m (30'6") MH 9.3 m (30'6")
Stick	Industrial 7.1 m (23'3") Industrial 7.1 m (23'3")
Maximum Height	57.4 ft 17510 mm
Maximum Dump Height	17.9 ft 5445 mm
Maximum Depth	17.3 ft 5265 mm
Boom Pin Height	40 ft 12195 mm

Air Conditioning System

Note (1)

Sustainability

Recyclability

95% 95%

MH3040 - Tier 4 / Stage V Standard Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

CAB

Advanced sound suppressed Tip Over Protective Structure (TOPS) certified cab with rubber mounts

High-resolution 254 mm (10") LCD touch screen monitor

Automatic bi-level air conditioner

Jog dial and shortcut keys for monitor control

Keyless push-to-start engine control

Tilt-up left-side console

Heated seat with air suspension (Deluxe cab)

Heated and ventilated seat with air suspension (Premium cab)

CAT TECHNOLOGY

VisionLink®

Remote Flash and Remote Troubleshoot

Cat Payload

ELECTRICAL SYSTEM

Maintenance-free battery

LED chassis light, left-hand/right-hand boom lights, cab lights - 1800 lumens

Centralized electrical disconnect switch

Programmable time delay LED working lights after engine shutdown

ENGINE

Cat C7.1 diesel engine

Three selectable modes: Power, Smart, Eco

Up to 4500 m (14,760 ft) altitude capability with engine power derate above 3000 m (9,840 ft)

Cold start capability -18°C (0°F)

Reversible electric cooling fans

Cold start, ether start (N Am and Aus-NZ only)

HYDRAULIC SYSTEM

Boom and stick lowering control check valves

Boom and stick regeneration circuits

Electronic main control valve

Automatic hydraulic oil warm up

Heavy lift mode

SAFETY AND SECURITY

Rear and right-hand-sideview cameras

Caterpillar One Key Security System

Travel alarm

Ground-level accessible secondary engine shutoff switch in cab

Signal/warning horn

2D E-fence

Cab Avoidance

Swing Assist

Rear window emergency exit

SERVICE AND MAINTENANCE

Grouped location for engine oil and fuel filters

Scheduled Oil Sampling (S·O·S℠) ports

Automatic lubrication system for implement and swing system

UNDERCARRIAGE AND STRUCTURES

All wheel drive

Automatic brake/axle lock

Creeper speed

Electronic swing and travel lock

Heavy-duty axles, advanced disc brake system, and travel motor with adjustable braking force

Lockable, oscillating front axle with remote greasing point

Two speed hydrostatic transmission

Counterweight 7700 kg (16,975 lb)

MH3040 - Tier 4 / Stage V Optional Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

BOOM AND STICKS

10.4 m (34'9") Material Handler boom

9.3 m (30'6") Material Handler boom

9.9 m (32' 6") Barge boom

6.8 m (22'4") Log Loader boom (N Am only)

7.5 m (24'7") Industrial stick

7.1 m (23'3") Industrial stick

5.7 m (18'8") Industrial stick

6.4 m (21'0") Straight stick

4.1 m (13'3") Over/Under Log Loader stick (N Am only)

CAB

Fixed one-piece front window and skylight (P5A classified)

Fixed two-piece front window and skylight (P8B classified)

Operator Protective Guards (OPG)

ELECTRICAL SYSTEM

Generator, 20 kW with wiring to stick nose

ENGINE

Cold start, block heater (N Am only)

SAFETY AND SECURITY

360° visibility

UNDERCARRIAGE AND STRUCTURES

16.00-25 single solid rubber tires

23.5-R25 single pneumatic tires

12.00-20 dual solid rubber tires

Hitch towing

Compatible Technology and Services

Leverage Caterpillar connected data and security principles to improve efficiencies, increase productivity and make your business more profitable.

Equipment Management

Payload

Productivity

Cat PL161 Attachment Tracker

The Cat PL161 Attachment Tracker is the most advanced OEM integrated solution for attachment tracking. The PL161 mounts easily to your attachments or anything else you want to track.

Explore Technology
Cat Remote Flash

Remote Flash sends an alert from your Cat dealer, prompting you to update the software on your machine. To minimize downtime, updates can be deployed while on the jobsite without having to wait for a dealer technician to arrive. Remote flash decreases maintenance time and keeps your asset running with maximum efficiency.

Explore Technology
Cat Remote Troubleshooting

Remote Troubleshoot allows your Cat dealer to run testing while the machine is operating. Once the problem is identified, a technician can fix it with the correct parts and tools the first time, saving time and money. Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency.

Explore Technology
VisionLink®

VisionLink® is a cloud-based software application that takes the guesswork out of fleet management with key insights to maximize performance - regardless of fleet size or equipment manufacturer. Receive equipment data seamlessly to your desktop or mobile device, all from a convenient centralized solution to make informed decisions at every turn.

Explore Technology

1 - 8 of 9 Items items

Previous Next

The Cat PL161 Attachment Tracker is the most advanced OEM integrated solution for attachment tracking. The PL161 mounts easily to your attachments or anything else you want to track.

Explore Technology

Remote Flash sends an alert from your Cat dealer, prompting you to update the software on your machine. To minimize downtime, updates can be deployed while on the jobsite without having to wait for a dealer technician to arrive. Remote flash decreases maintenance time and keeps your asset running with maximum efficiency.

Explore Technology

Remote Troubleshoot allows your Cat dealer to run testing while the machine is operating. Once the problem is identified, a technician can fix it with the correct parts and tools the first time, saving time and money. Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency.

Explore Technology

VisionLink® is a cloud-based software application that takes the guesswork out of fleet management with key insights to maximize performance - regardless of fleet size or equipment manufacturer. Receive equipment data seamlessly to your desktop or mobile device, all from a convenient centralized solution to make informed decisions at every turn.

Explore Technology

Cat Payload for Material Handlers

Next generation material handlers take on all kinds of tasks - loading, sorting, stockpiling, and more. Cat® Payload technology provides on-the-go weighing to help operators hit exact targets every time and avoid overloading, underloading, or misloading materials.

Explore Technology

1 - 8 of 9 Items items

Previous Next

Next generation material handlers take on all kinds of tasks - loading, sorting, stockpiling, and more. Cat® Payload technology provides on-the-go weighing to help operators hit exact targets every time and avoid overloading, underloading, or misloading materials.

Explore Technology

VisionLink® Productivity

VisionLink® Productivity is an easy-to-use cloud-based platform that gathers and summarizes machine telematics and jobsite data from all your equipment. Actionable performance data is transmitted to the web platform for users to access anywhere, anytime via a mobile, tablet, or desktop device - on or off the jobsite.

Explore Technology

1 - 8 of 9 Items items

Previous Next

VisionLink® Productivity is an easy-to-use cloud-based platform that gathers and summarizes machine telematics and jobsite data from all your equipment. Actionable performance data is transmitted to the web platform for users to access anywhere, anytime via a mobile, tablet, or desktop device - on or off the jobsite.

Explore Technology

See how MH3040 - Tier 4 / Stage V compares against frequently compared products.

Material Handlers

Selected

MH3040 - Tier 4 / Stage V Tier 4 / Stage V

Engine Model: Cat C7.1; Cat C7.1
Operating Weight: 85310 lb; 38700 kg
Maximum Reach: 50.8 ft; 15490 mm

Material Handlers

MH3050 - Tier 4 / Stage V Tier 4 / Stage V

Engine Model: Cat C9.3B; Cat C9.3B
Operating Weight: 110250 lb; 50000 kg
Maximum Reach: 59.3 ft; 18060 mm

View Details

Material Handlers

MH3032 - Tier 4 / Stage V Tier 4 / Stage V

Engine Model: Cat® C7.1; Cat® C7.1
Operating Weight: 78950 lb; 35800 kg
Maximum Reach: 46.2 ft; 14080 mm

View Details

Tools And Expert Help At Every Turn

Product Brochures and More Are Ready to Download!

Caterpillar product brochures and other informational documents are available for your growing business.

Media Gallery

Photos

Videos

360 View

MH3040 Material Handler

MH3040 Forestry Configuration

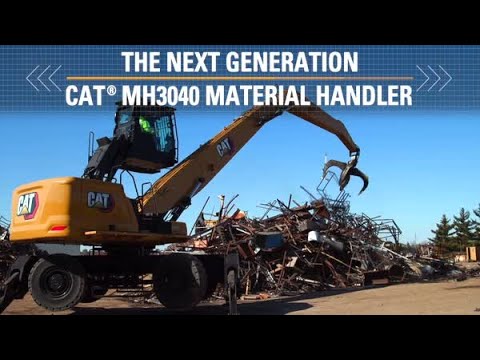

Discover The Cat® MH3040 Material Handler

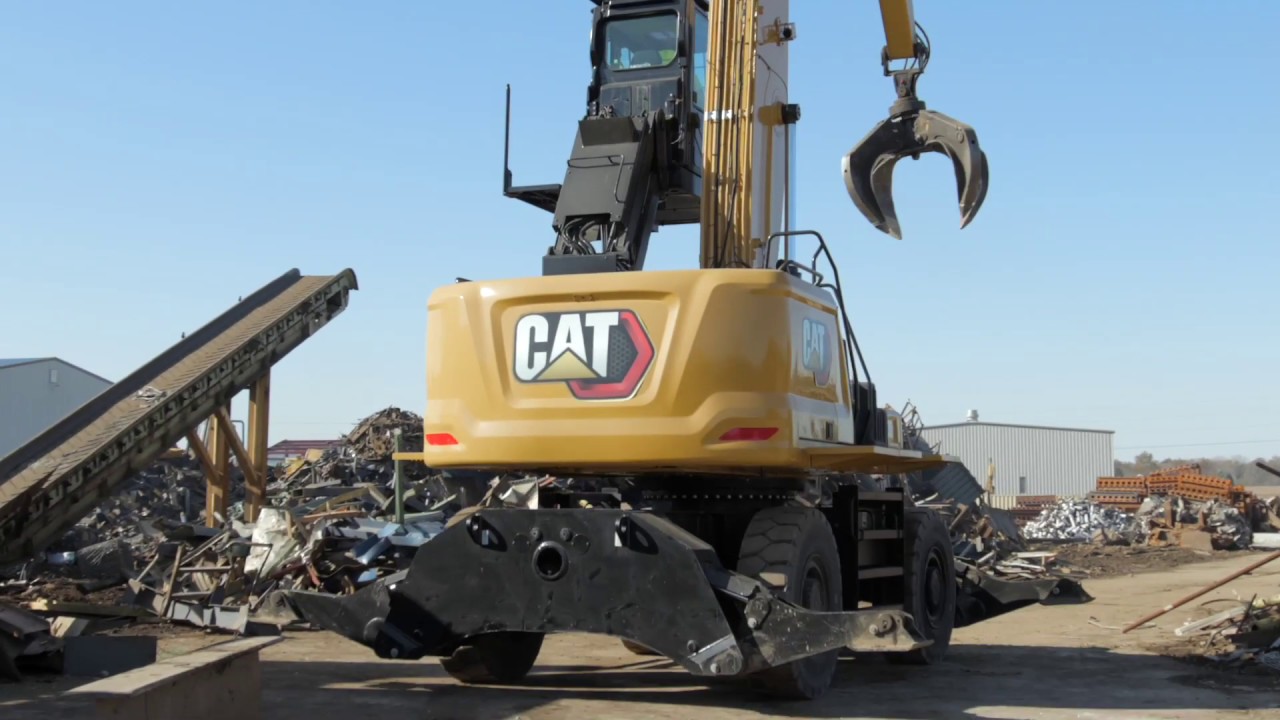

MH3040 Customer Testimonial - Hitchcock Scrap Yard

MH3040 Walk Around

Wheel Material Handlers MH3040 - Tier 4 / Stage V

Overview

Proven Reliability

Benefits

Proven Reliability

Low Fuel Consumption

Low Maintenance Costs

Less CO₂ Emissions

Features At A Glance

Product Specifications for MH3040 - Tier 4 / Stage V

Engine

Transmission

Hydraulic System

Swing Mechanism

Weights

Service Refill Capacities

Dimensions

Working Ranges

Air Conditioning System

Sustainability

MH3040 - Tier 4 / Stage V Standard Equipment

NOTE

CAB

CAT TECHNOLOGY

ELECTRICAL SYSTEM

ENGINE

HYDRAULIC SYSTEM

SAFETY AND SECURITY

SERVICE AND MAINTENANCE

UNDERCARRIAGE AND STRUCTURES

MH3040 - Tier 4 / Stage V Optional Equipment

NOTE

BOOM AND STICKS

CAB

ELECTRICAL SYSTEM

ENGINE

SAFETY AND SECURITY

UNDERCARRIAGE AND STRUCTURES

Product Specifications for MH3040 - Tier 4 / Stage V

Engine

Transmission

Hydraulic System

Swing Mechanism

Weights

Service Refill Capacities

Dimensions

Working Ranges

Air Conditioning System

Sustainability

MH3040 - Tier 4 / Stage V Standard Equipment

NOTE

CAB

CAT TECHNOLOGY

ELECTRICAL SYSTEM

ENGINE

HYDRAULIC SYSTEM

SAFETY AND SECURITY

SERVICE AND MAINTENANCE

UNDERCARRIAGE AND STRUCTURES

MH3040 - Tier 4 / Stage V Optional Equipment

NOTE

BOOM AND STICKS

CAB

ELECTRICAL SYSTEM

ENGINE

SAFETY AND SECURITY

UNDERCARRIAGE AND STRUCTURES

Compatible Technology and Services

Cat PL161 Attachment Tracker

Cat Remote Flash

Cat Remote Troubleshooting

VisionLink®

Cat Payload for Material Handlers

VisionLink® Productivity

See how MH3040 - Tier 4 / Stage V compares against frequently compared products.

Tools And Expert Help At Every Turn

Find Dealer

Payment Calculator

Current Offers

Rental Options

Product Brochures and More Are Ready to Download!
