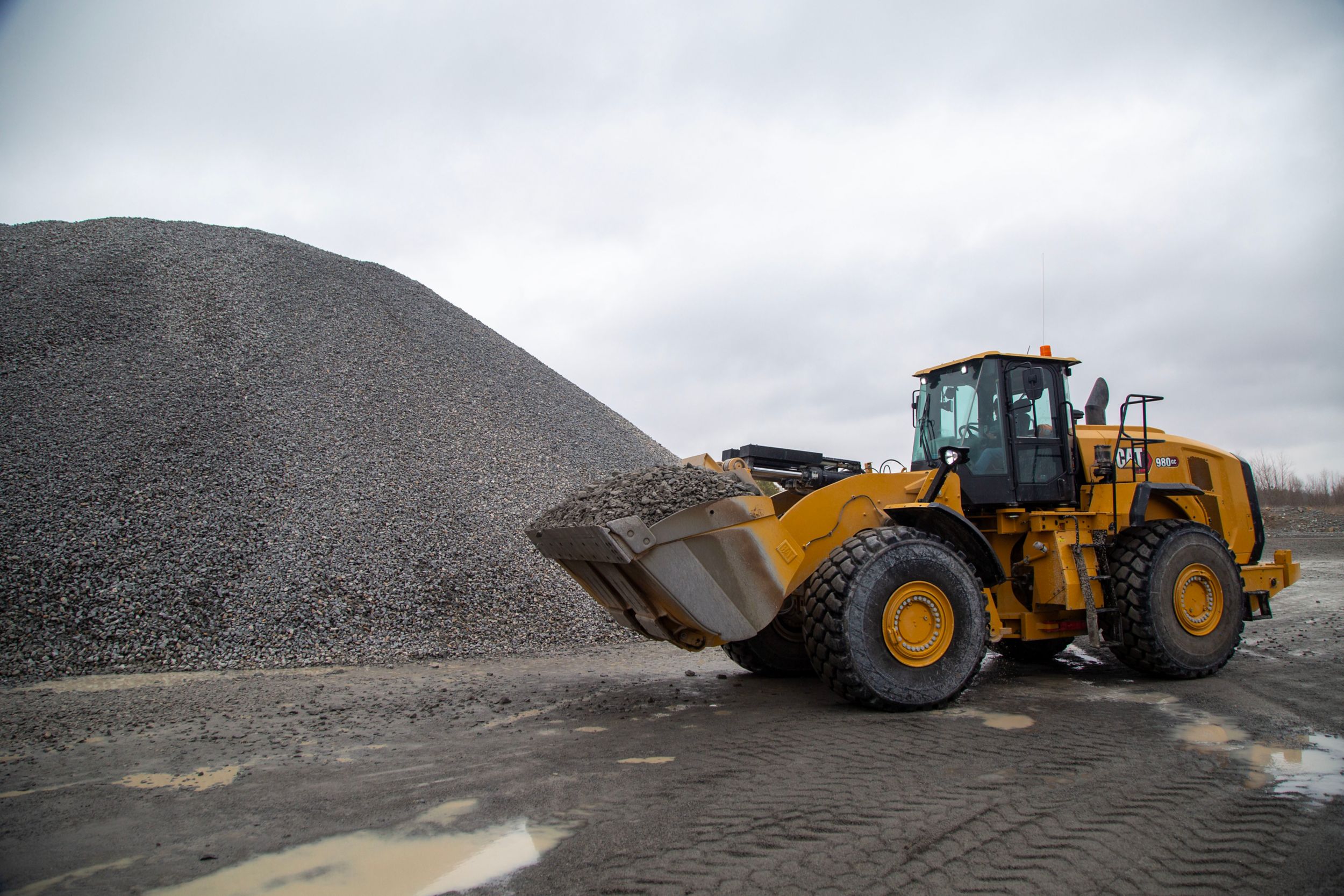

980 GC Wheel Loader is simple to operate and built to last

Medium Wheel Loaders 980 GC Wheel Loader

Request A Price Find Dealer

Key Specs

Net Power @ 1,700 rpm – ISO 9249:2007, SAE J1349:2011: 393 hp; 293 kW

Operating Weight*: 65610 lb; 29760 kg

Bucket Capacities: 4.3 - 5.8 m³ (5.75 - 7.5 yd³); 4.3 - 5.8 m³ (5.75 - 7.5 yd³)

980 GC Wheel Loader
Change model

Overview

SIMPLE TO OPERATE AND BUILT TO LAST

The Cat® 980 GC Wheel Loader is easy to own and operate. It offers low fuel consumption with an on-demand fan, load-sensing hydraulics, intuitive controls, and Performance Series Buckets. This machine is built to be just the right machine for a broad range of applications. Great machine performance combined with the low owning and operating costs makes the 980 GC the right choice for your business.

Benefits

Easy to Own

Efficient fuel usage, outstanding productivity, and versatile machine capabilities ensure your tasks are completed effectively and economically.

Simple Operation

Intuitive controls, simple user interface, and clear visibility to the job site provide a comfortable working environment for efficient all day operation. Pilot-operated hydraulic implement controls help to deliver low-effort and multi-movement operation.

Reliable Performance

Heavy-duty design, proven reliable components, and Cat Performance Series Buckets contribute to outstanding machine performance.

Features At A Glance

Cat C13A engine offers high power density with a combination of proven electronic, fuel, and air systems and meets emission standards.
High power density and fuel efficiency set our engines apart. Our engines feature Cat electronics, fuel injection, and air-management systems.
Thorough component choice, design, and machine validation processes result in excellent reliability and uptime.

The proven Cat Z-bar linkage geometry with Performance Series Buckets offer excellent penetration into the pile and material retention, less dig time and high breakout forces. This results in low fuel consumption and maximum production capabilities.
Caterpillar designed, electronically controlled automatic powershift heavy-duty planetary transmission with manual downshift to 1st gear delivers efficiency, durability, and smooth gear changes.
The optional ride control system improves smoothness over rough terrain, increasing confidence and efficiency and ensuring excellent material retention.
Ground engaging tools (GET) to boost your performance, Advansys™ system features stronger adapters; tips with a new shape to better protect the adapter and an integrated retainer and new single bevel edge.
Increased traction in poor underfoot conditions with the optional limited slip differential (LSD). This traction aid is activated automatically, with no operator intervention required.
An optional Axle Oil Cooler (AOC) is available for high energy applications.

The Engine Idle Management System (EIMS) lowers idle RPM and fuel consumption, while the Engine Idle Shutdown feature turns off the engine after a preset duration.
Variable speed fan adjusts to meet the varying cooling requirements of the machine resulting in a reduced average fan speed and lowered fuel consumption, noise levels, and radiator plugging.
Load-sensing hydraulics produce flow and pressure for the implement system upon demand and only in amounts necessary to perform the needed work functions.

Intuitive, Comfortable Operator Environment

The spacious cab features easy, intuitive controls, simple user interface and clear visibility to the job site which provides a comfortable working environment for efficient operation.
A comfortable cloth covered suspension (mechanical) seat is standard, an optional air suspended high-back seat is available.
Pilot-operated hydraulic implement controls deliver comfortable, low-effort operation. Two single-axis levers or one joystick are available. Both arrangements are equipped with remote transmission kick-down switches (Tier 4 machines only).
Unmatched viewing area with a wide, flat, and distortion-free front windshield.
Glass stretches to the floor of the cab for excellent visibility to the bucket and front tires.
Sliding side windows on both sides allow natural ventilation and easy communication to ground staff.
The cab roof has channels which direct rain off the corners of the cab, keeping windows clear.
Air conditioning and heating systems are standard. Ten louvered vents allow the operator to direct the air flow to remain productive and efficient all shift long.
Optional windshield guard to protect glass from impacts.

Ladders are standard on both sides of the machine; the main cab access features a 15-degree angle to easily access the operator environment.
Steps are equipped with hand and/or guardrails to safely access the cab and maintenance points of the machine.
The main cab door opens to the front and provides wide access to the operator environment.
An optional front window cleaning platform is available for enhanced access to the windshield. Front and back wipers ensure that a clear view is maintained.
External rearview mirrors with integrated spot mirrors are standard.
A rear vision camera is standard to enhance visibility behind the machine. Optional rreversing strobes are available for enhanced awareness on the jobsite visibility.

One-piece tilting hood makes engine compartment access and serviceability fast and easy.
Daily maintenance is simplified with grouped service points and sight gauges.
Electrical service center, along with additional key serviceability features, helps make servicing and in-field component exchange quick, easy, and efficient.
A rear swing-up grill gives easy cleaning access to the swing-out cooling cores.
Hinged wheel guards are easy to remove/re-install providing wide access to all maintenance points and to the engine compartment.
Optional power train bottom guard protects the machine against damage to reduce downtime.
Optional Cat Autolube system provides an integrated lube system with monitoring function. One-button control, including fault flash function.
Caterpillar design and manufacturing techniques assure outstanding service life.

On-the-go weighing* for precise load targets with proven accuracy, flexible installation, and easy calibration and setup.
Brings payload weighing to the cab so operators can work more productively and deliver consistently accurate loads.
Increases productivity, weighing while lifting with no interruptions in loading cycle.
Enhances safety by ensuring that trucks are not overloaded.
Improves efficiency with less rework; save time, labor, fuel, and costs.

*Not legal for trade

Specifications Standard Equipment Optional Equipment

Product Specifications for 980 GC Wheel Loader

Engine

Net Power @ 1,700 rpm – ISO 9249:2007, SAE J1349:2011	393 hp 293 kW
ISO 9249:2007 (DIN)	398 hp (metric) 398 hp (metric)
Engine Power @ 1,700 rpm – ISO 14396:2002	420 hp 313 kW
ISO 14396:2002 (DIN)	426 hp (metric) 426 hp (metric)
Gross Power @ 1,700 rpm – SAE J1995:2014	425 hp 317 kW
Engine Model	Cat C13A Cat C13A
Engine Torque @ 1,200 rpm - ISO 14396:2002	1612 ft·lbf 2185 N·m
Gross Torque @ 1,200 rpm – SAE J1995:2014	1627 ft·lbf 2206 N·m
Net Torque @ 1,200 rpm - ISO 9249:2007, SAE J1349:2011	1539 ft·lbf 2086 N·m
Bore	5.12 in 130 mm
Stroke	6.18 in 157 mm
Displacement	763 in³ 12.5 l
Note (1)	Cat engine meets U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V, China Nonroad Stage IV, and Japan 2014 (Tier 4 Final) emission standards. Cat engine meets U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V, China Nonroad Stage IV, and Japan 2014 (Tier 4 Final) emission standards.
Note (2)	The net power advertised is the power available at the flywheel when the engine is equipped with fan, alternator, air cleaner, and aftertreatment. The net power advertised is the power available at the flywheel when the engine is equipped with fan, alternator, air cleaner, and aftertreatment.
Note (3)	Cat engines are compatible with the following renewable, alternative, and biodiesel* fuels that reduce greenhouse gases on a lifecycle basis: • Up to B20 biodiesel (FAME) ** • Up to 100% HVO and GTL renewable fuels Cat engines are compatible with the following renewable, alternative, and biodiesel* fuels that reduce greenhouse gases on a lifecycle basis: • Up to B20 biodiesel (FAME) ** • Up to 100% HVO and GTL renewable fuels

Weights

Operating Weight*

65610 lb 29760 kg

Note (1)

*Weight based on a machine configuration with standard ambient cooling, open differential axles, Maxam MS405 L4 tires, standard counterweight, full fluids, operator and 5.5 m³ (7.2 yd³) bucket with BOCE. *Weight based on a machine configuration with standard ambient cooling, open differential axles, Maxam MS405 L4 tires, standard counterweight, full fluids, operator and 5.5 m³ (7.2 yd³) bucket with BOCE.

Buckets

Bucket Capacities

4.3 - 5.8 m³ (5.75 - 7.5 yd³) 4.3 - 5.8 m³ (5.75 - 7.5 yd³)

Hydraulic System

Implement Pump Type	Variable Displacement Piston, Load Sensing Variable Displacement Piston, Load Sensing
Implement System – Maximum Flow @ 2,250 rpm	110 gal(US)/min 415 l/min
Implement System - Maximum Operating Pressure	4090 psi 28200 kPa
Implement System - Maximum Flow 3rd Function	66 gal/min 250 l/min
Implement System - Maximum Operating Pressure 3rd Function	3000 psi 20680 kPa
Hydraulic Cycle Time - Raise from Carry Position	5.3 s 5.3 s
Hydraulic Cycle Time – Dump at Maximum Raise	1.7 s 1.7 s
Hydraulic Cycle Time - Lower, Empty, Float Down	3.1 s 3.1 s
Hydraulic Cycle Time - Total Cycle Time	10.1 s 10.1 s

Operating Specifications

Static Tipping Load - Full 40° Turn - With Tire Deflection	42441 lb 19251 kg
Static Tipping Load - Full 40° Turn - No Tire Deflection	45089 lb 20452 kg
Breakout Force	47660 lbf 212 kN
Note (1)	* For a machine configuration as defined under "Weight". * For a machine configuration as defined under "Weight".
Note (2)	* Full compliance to ISO 14397-1:2007 Sections 1 thru 6, which requires 2% verification between calculations and testing. * Full compliance to ISO 14397-1:2007 Sections 1 thru 6, which requires 2% verification between calculations and testing.

Sound

Operator Sound Pressure Level - ISO 6396:2008	74 dB(A) 74 dB(A)
Exterior Sound Power Level - ISO 6395:2008	112 dB(A) 112 dB(A)
Operator Sound Pressure Level - ISO 6396:2008 ¹	74 dB(A) 74 dB(A)
Exterior Sound Power Level - ISO 6395:2008²	109 dB(A) 109 dB(A)
Note (1)	Including countries that adopt the EU and UK Directives Including countries that adopt the EU and UK Directives
Note (2)	EU Noise Directive 2000/14/EC and UK Noise Regulation 2001 No. 1701 EU Noise Directive 2000/14/EC and UK Noise Regulation 2001 No. 1701

Transmission

Forward - 1	4.1 mile/h 6.6 km/h
Reverse - 1	4.7 mile/h 7.6 km/h
Forward - 2	7.9 mile/h 12.7 km/h
Reverse - 2	9 mile/h 14.5 km/h
Forward - 3	14 mile/h 22.5 km/h
Reverse - 3	16 mile/h 25.7 km/h
Forward - 4	24.7 mile/h 39.8 km/h
Reverse - 4	24.7 mile/h 39.8 km/h
Note	Maximum travel speed in standard vehicle with empty bucket and standard L4 tires with 913 mm (36 in) roll radius. Maximum travel speed in standard vehicle with empty bucket and standard L4 tires with 913 mm (36 in) roll radius.

Service Refill Capacities

Fuel Tank	112.5 gal (US) 426 l
DEF Tank	5.6 gal (US) 21 l
Cooling System	13.7 gal (US) 52 l
Crankcase	9.8 gal (US) 37 l
Transmission	20.3 gal (US) 77 l
Differential - Final Drives - Front	22.2 gal (US) 84 l
Differential - Final Drives - Rear	22.2 gal (US) 84 l
Hydraulic Tank	40.4 gal (US) 153 l

Air Conditioning System

Air Conditioning

The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. *If equipped with R134a (Global Warning Potential = 1430), the system contains 1.5 kg of refrigerant which has a CO2 equivalent of 2,145 metric tonnes (2,365 tons). *If equipped with R1234yf (Global Warning Potential = 0.501) the system contains 1476 g of refrigerant which has a CO2 equivalent of 0.001 metric tonnes. The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. *If equipped with R134a (Global Warning Potential = 1430), the system contains 1.5 kg of refrigerant which has a CO2 equivalent of 2,145 metric tonnes (2,365 tons). *If equipped with R1234yf (Global Warning Potential = 0.501) the system contains 1476 g of refrigerant which has a CO2 equivalent of 0.001 metric tonnes.

Dimensions - Standard Lift

Rack Back at Ground

292 292

980 GC Wheel Loader Standard Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

OPERATOR ENVIRONMENT

Air conditioning (HVAC) with 10 vents and filter unit located outside of cab

Bucket/work tool function lockout

Cab, pressurized and sound suppressed

Camera, rearview

Computerized monitoring system

Mirrors, rearview external

Pilot hydraulic controls, lift and tilt function; two (2) single axis levers or joystick

12V power port (10A)

Radio ready

ROPS/FOPS structure

Seat, Cat Comfort (cloth), mechanical suspension

Steering column, adjustable angle

Switch, transmission neutralizer (adjustable) lockout

Window, sliding (left and right sides)

Wipers/washers (front and rear)

POWER TRAIN

Axles, Open/Open differentials

Brakes, full hydraulic enclosed wet-disc

Cat C13A engine

EIMS (Engine Idle Management System)

AIS (Auto Idle Shutdown)

Fan, radiator, electronically controlled, hydraulically driven, temperature sensing, on demand

Filter, fuel primary/secondary

Fuel priming pump (electric)

Fuel/water separator

Radiator, unit core (9 fpi) with ATAAC

Torque converter

Transmission, powershift (4F/4R), automatic (2-4) with kick-down 2-1 manual

LINKAGE

Lift and bucket return-to-dig kickouts (electro-magnetic), mechanical adjustment

Z-bar, cast tilt lever

HYDRAULICS

Dedicated brake and fan pump

Dedicated load sensing steering pump

Load sensing implement system pilot operated

S O S ℠ oil sampling valves

ELECTRICAL

Alarm, back-up variable/main disconnect switch

Alternator (115-amp, brush type)

Batteries, maintenance free (2 x 1,400 CCA)

Ignition key; start/stop

Lighting system: 4 halogen work lights, cab mounted

Lights: LED taillights

Roading lights with high/low beam and F and R turn signals

Starter, electric (heavy duty)

Starting and charging system, 24V

ADDITIONAL EQUIPMENT

Hood, engine enclosure tilting

Radial or bias ply tires

Variable backup alarm (3dB above ambient noise)

Product Link™ ready

980 GC Wheel Loader Optional Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

OPERATOR ENVIRONMENT

CB radio ready

Radio: DAB+/AM/FM/BT

Seat, high-back, air suspended

Seat, air suspended, heated

Steering, secondary, electrical (standard where mandated)

POWER TRAIN

Axles, limited slip differential(s)

Axles, oil cooler

Fan, reversing automatic and manual control

LINKAGE

Quick coupler control

HYDRAULICS

Ride control

3rd function with additional dedicated single axis lever

ELECTRICAL

Lighting system: 8 halogen work lights, cab mounted

Lighting system: 4 or 8 LED work lights, cab mounted

Lights: warning beacon

ADDITIONAL EQUIPMENT

Autolube system

Camera, front view

Cat Payload

Cold weather starting

Fender rear extensions or roading

Tires, choice of L3, L4 or L5

Power train guard

Precleaner, strata tubes with screen

Reverse Stobes

Tilt cylinder guard

Toolbox

Windshield guard

Product Specifications for 980 GC Wheel Loader

Download Print

Engine

Net Power @ 1,700 rpm – ISO 9249:2007, SAE J1349:2011	393 hp 293 kW
ISO 9249:2007 (DIN)	398 hp (metric) 398 hp (metric)
Engine Power @ 1,700 rpm – ISO 14396:2002	420 hp 313 kW
ISO 14396:2002 (DIN)	426 hp (metric) 426 hp (metric)
Gross Power @ 1,700 rpm – SAE J1995:2014	425 hp 317 kW
Engine Model	Cat C13A Cat C13A
Engine Torque @ 1,200 rpm - ISO 14396:2002	1612 ft·lbf 2185 N·m
Gross Torque @ 1,200 rpm – SAE J1995:2014	1627 ft·lbf 2206 N·m
Net Torque @ 1,200 rpm - ISO 9249:2007, SAE J1349:2011	1539 ft·lbf 2086 N·m
Bore	5.12 in 130 mm
Stroke	6.18 in 157 mm
Displacement	763 in³ 12.5 l
Note (1)	Cat engine meets U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V, China Nonroad Stage IV, and Japan 2014 (Tier 4 Final) emission standards. Cat engine meets U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V, China Nonroad Stage IV, and Japan 2014 (Tier 4 Final) emission standards.
Note (2)	The net power advertised is the power available at the flywheel when the engine is equipped with fan, alternator, air cleaner, and aftertreatment. The net power advertised is the power available at the flywheel when the engine is equipped with fan, alternator, air cleaner, and aftertreatment.
Note (3)	Cat engines are compatible with the following renewable, alternative, and biodiesel* fuels that reduce greenhouse gases on a lifecycle basis: • Up to B20 biodiesel (FAME) ** • Up to 100% HVO and GTL renewable fuels Cat engines are compatible with the following renewable, alternative, and biodiesel* fuels that reduce greenhouse gases on a lifecycle basis: • Up to B20 biodiesel (FAME) ** • Up to 100% HVO and GTL renewable fuels

Weights

Operating Weight*

65610 lb 29760 kg

Note (1)

Buckets

Bucket Capacities

4.3 - 5.8 m³ (5.75 - 7.5 yd³) 4.3 - 5.8 m³ (5.75 - 7.5 yd³)

Hydraulic System

Implement Pump Type	Variable Displacement Piston, Load Sensing Variable Displacement Piston, Load Sensing
Implement System – Maximum Flow @ 2,250 rpm	110 gal(US)/min 415 l/min
Implement System - Maximum Operating Pressure	4090 psi 28200 kPa
Implement System - Maximum Flow 3rd Function	66 gal/min 250 l/min
Implement System - Maximum Operating Pressure 3rd Function	3000 psi 20680 kPa
Hydraulic Cycle Time - Raise from Carry Position	5.3 s 5.3 s
Hydraulic Cycle Time – Dump at Maximum Raise	1.7 s 1.7 s
Hydraulic Cycle Time - Lower, Empty, Float Down	3.1 s 3.1 s
Hydraulic Cycle Time - Total Cycle Time	10.1 s 10.1 s

Operating Specifications

Static Tipping Load - Full 40° Turn - With Tire Deflection	42441 lb 19251 kg
Static Tipping Load - Full 40° Turn - No Tire Deflection	45089 lb 20452 kg
Breakout Force	47660 lbf 212 kN
Note (1)	* For a machine configuration as defined under "Weight". * For a machine configuration as defined under "Weight".
Note (2)	* Full compliance to ISO 14397-1:2007 Sections 1 thru 6, which requires 2% verification between calculations and testing. * Full compliance to ISO 14397-1:2007 Sections 1 thru 6, which requires 2% verification between calculations and testing.

Sound

Operator Sound Pressure Level - ISO 6396:2008	74 dB(A) 74 dB(A)
Exterior Sound Power Level - ISO 6395:2008	112 dB(A) 112 dB(A)
Operator Sound Pressure Level - ISO 6396:2008 ¹	74 dB(A) 74 dB(A)
Exterior Sound Power Level - ISO 6395:2008²	109 dB(A) 109 dB(A)
Note (1)	Including countries that adopt the EU and UK Directives Including countries that adopt the EU and UK Directives
Note (2)	EU Noise Directive 2000/14/EC and UK Noise Regulation 2001 No. 1701 EU Noise Directive 2000/14/EC and UK Noise Regulation 2001 No. 1701

Transmission

Forward - 1	4.1 mile/h 6.6 km/h
Reverse - 1	4.7 mile/h 7.6 km/h
Forward - 2	7.9 mile/h 12.7 km/h
Reverse - 2	9 mile/h 14.5 km/h
Forward - 3	14 mile/h 22.5 km/h
Reverse - 3	16 mile/h 25.7 km/h
Forward - 4	24.7 mile/h 39.8 km/h
Reverse - 4	24.7 mile/h 39.8 km/h
Note	Maximum travel speed in standard vehicle with empty bucket and standard L4 tires with 913 mm (36 in) roll radius. Maximum travel speed in standard vehicle with empty bucket and standard L4 tires with 913 mm (36 in) roll radius.

Service Refill Capacities

Fuel Tank	112.5 gal (US) 426 l
DEF Tank	5.6 gal (US) 21 l
Cooling System	13.7 gal (US) 52 l
Crankcase	9.8 gal (US) 37 l
Transmission	20.3 gal (US) 77 l
Differential - Final Drives - Front	22.2 gal (US) 84 l
Differential - Final Drives - Rear	22.2 gal (US) 84 l
Hydraulic Tank	40.4 gal (US) 153 l

Air Conditioning System

Air Conditioning

Dimensions - Standard Lift

Rack Back at Ground

292 292

980 GC Wheel Loader Standard Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

OPERATOR ENVIRONMENT

Air conditioning (HVAC) with 10 vents and filter unit located outside of cab

Bucket/work tool function lockout

Cab, pressurized and sound suppressed

Camera, rearview

Computerized monitoring system

Mirrors, rearview external

Pilot hydraulic controls, lift and tilt function; two (2) single axis levers or joystick

12V power port (10A)

Radio ready

ROPS/FOPS structure

Seat, Cat Comfort (cloth), mechanical suspension

Steering column, adjustable angle

Switch, transmission neutralizer (adjustable) lockout

Window, sliding (left and right sides)

Wipers/washers (front and rear)

POWER TRAIN

Axles, Open/Open differentials

Brakes, full hydraulic enclosed wet-disc

Cat C13A engine

EIMS (Engine Idle Management System)

AIS (Auto Idle Shutdown)

Fan, radiator, electronically controlled, hydraulically driven, temperature sensing, on demand

Filter, fuel primary/secondary

Fuel priming pump (electric)

Fuel/water separator

Radiator, unit core (9 fpi) with ATAAC

Torque converter

Transmission, powershift (4F/4R), automatic (2-4) with kick-down 2-1 manual

LINKAGE

Lift and bucket return-to-dig kickouts (electro-magnetic), mechanical adjustment

Z-bar, cast tilt lever

HYDRAULICS

Dedicated brake and fan pump

Dedicated load sensing steering pump

Load sensing implement system pilot operated

S O S ℠ oil sampling valves

ELECTRICAL

Alarm, back-up variable/main disconnect switch

Alternator (115-amp, brush type)

Batteries, maintenance free (2 x 1,400 CCA)

Ignition key; start/stop

Lighting system: 4 halogen work lights, cab mounted

Lights: LED taillights

Roading lights with high/low beam and F and R turn signals

Starter, electric (heavy duty)

Starting and charging system, 24V

ADDITIONAL EQUIPMENT

Hood, engine enclosure tilting

Radial or bias ply tires

Variable backup alarm (3dB above ambient noise)

Product Link™ ready

980 GC Wheel Loader Optional Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

OPERATOR ENVIRONMENT

CB radio ready

Radio: DAB+/AM/FM/BT

Seat, high-back, air suspended

Seat, air suspended, heated

Steering, secondary, electrical (standard where mandated)

POWER TRAIN

Axles, limited slip differential(s)

Axles, oil cooler

Fan, reversing automatic and manual control

LINKAGE

Quick coupler control

HYDRAULICS

Ride control

3rd function with additional dedicated single axis lever

ELECTRICAL

Lighting system: 8 halogen work lights, cab mounted

Lighting system: 4 or 8 LED work lights, cab mounted

Lights: warning beacon

ADDITIONAL EQUIPMENT

Autolube system

Camera, front view

Cat Payload

Cold weather starting

Fender rear extensions or roading

Tires, choice of L3, L4 or L5

Power train guard

Precleaner, strata tubes with screen

Reverse Stobes

Tilt cylinder guard

Toolbox

Windshield guard

Compatible Technology and Services

Leverage Caterpillar connected data and security principles to improve efficiencies, increase productivity and make your business more profitable.

Equipment Management

Payload

Cat Product Link

Technology Cookies are required
To enable this feature, you must accept the use of targeting, functional, and performance cookies.
Cookie Settings

Cat® Product Link™ wirelessly connects you to your equipment giving you valuable insight into how your machine or fleet is performing. Information such as location, hours, fuel usage, productivity, idle time, and diagnostic codes are made available through online web applications so that you can make timely, fact-based decisions to maximize efficiency, improve productivity, and lower the cost of owning and operating your fleet. Available with satellite or cellular connectivity.

Explore Technology
VisionLink®

Technology Cookies are required
To enable this feature, you must accept the use of targeting, functional, and performance cookies.
Cookie Settings

VisionLink® is a cloud-based software application that takes the guesswork out of fleet management with key insights to maximize performance - regardless of fleet size or equipment manufacturer. Receive equipment data seamlessly to your desktop or mobile device, all from a convenient centralized solution to make informed decisions at every turn.

Explore Technology

1 - 8 of 9 Items items

Previous Next

Cat® Product Link™ wirelessly connects you to your equipment giving you valuable insight into how your machine or fleet is performing. Information such as location, hours, fuel usage, productivity, idle time, and diagnostic codes are made available through online web applications so that you can make timely, fact-based decisions to maximize efficiency, improve productivity, and lower the cost of owning and operating your fleet. Available with satellite or cellular connectivity.

Explore Technology

VisionLink® is a cloud-based software application that takes the guesswork out of fleet management with key insights to maximize performance - regardless of fleet size or equipment manufacturer. Receive equipment data seamlessly to your desktop or mobile device, all from a convenient centralized solution to make informed decisions at every turn.

Explore Technology

Cat Payload for Next Generation Wheel Loaders

Technology Cookies are required
To enable this feature, you must accept the use of targeting, functional, and performance cookies.
Cookie Settings

Cat® Payload technologies provide on-the-go weighing to help operators hit exact targets, everytime and avoid overloading, underloading or misloading materials.

Explore Technology

1 - 8 of 9 Items items

Previous Next

Cat® Payload technologies provide on-the-go weighing to help operators hit exact targets, everytime and avoid overloading, underloading or misloading materials.

Explore Technology

See how 980 GC Wheel Loader compares against frequently compared products.

Wheel Loaders

Selected

980 GC Wheel Loader

Net Power @ 1,700 rpm – ISO 9249:2007, SAE J1349:2011: 393 hp; 293 kW
Operating Weight*: 65610 lb; 29760 kg
Bucket Capacities: 4.3 - 5.8 m³ (5.75 - 7.5 yd³); 4.3 - 5.8 m³ (5.75 - 7.5 yd³)

Wheel Loaders

982 XE

Engine Power - 1,700 rpm ISO 14396:2002: 432 hp; 322 kW
Operating Weight: 78264 lb; 35510 kg
Engine Power - 1,700 rpm ISO 14396:2002: 438 hp (metric); 438 hp (metric)

View Details

Wheel Loaders

982

Engine Power - 1,700 rpm ISO 14396:2002: 432 hp; 322 kW
Operating Weight: 78264 lb; 35510 kg
Engine Power - 1,700 rpm ISO 14396:2002: 438 hp (metric); 438 hp (metric)

View Details

Tools And Expert Help At Every Turn

Product Brochures and More Are Ready to Download!

Caterpillar product brochures and other informational documents are available for your growing business.

980 GC Wheel Loader - Product Brochure (N Am, Europe, Japan, China, S. Korea, Turkey, Chile, Colombia) Downloadable PDF Opens in a New Tab

Find Dealer

Medium Wheel Loaders 980 GC Wheel Loader

Overview

SIMPLE TO OPERATE AND BUILT TO LAST

Benefits

Easy to Own

Simple Operation

Reliable Performance

Features At A Glance

Product Specifications for 980 GC Wheel Loader

Engine

Weights

Buckets

Hydraulic System

Operating Specifications

Sound

Transmission

Service Refill Capacities

Air Conditioning System

Dimensions - Standard Lift

980 GC Wheel Loader Standard Equipment

NOTE

OPERATOR ENVIRONMENT

POWER TRAIN

LINKAGE

HYDRAULICS

ELECTRICAL

ADDITIONAL EQUIPMENT

980 GC Wheel Loader Optional Equipment

NOTE

OPERATOR ENVIRONMENT

POWER TRAIN

LINKAGE

HYDRAULICS

ELECTRICAL

ADDITIONAL EQUIPMENT

Product Specifications for 980 GC Wheel Loader

Engine

Weights

Buckets

Hydraulic System

Operating Specifications

Sound

Transmission

Service Refill Capacities

Air Conditioning System

Dimensions - Standard Lift

980 GC Wheel Loader Standard Equipment

NOTE

OPERATOR ENVIRONMENT

POWER TRAIN

LINKAGE

HYDRAULICS

ELECTRICAL

ADDITIONAL EQUIPMENT

980 GC Wheel Loader Optional Equipment

NOTE

OPERATOR ENVIRONMENT

POWER TRAIN

LINKAGE

HYDRAULICS

ELECTRICAL

ADDITIONAL EQUIPMENT

Compatible Technology and Services

Cat Product Link

VisionLink®

Cat Payload for Next Generation Wheel Loaders

See how 980 GC Wheel Loader compares against frequently compared products.

Tools And Expert Help At Every Turn

Find Dealer

Payment Calculator

Current Offers

Rental Options

Used Options

assignment Product Brochures and More Are Ready to Download!

Media Gallery

360 View

Related Products

Buckets - Loader

Flat Floor Buckets - Performance Series

Product Brochures and More Are Ready to Download!
