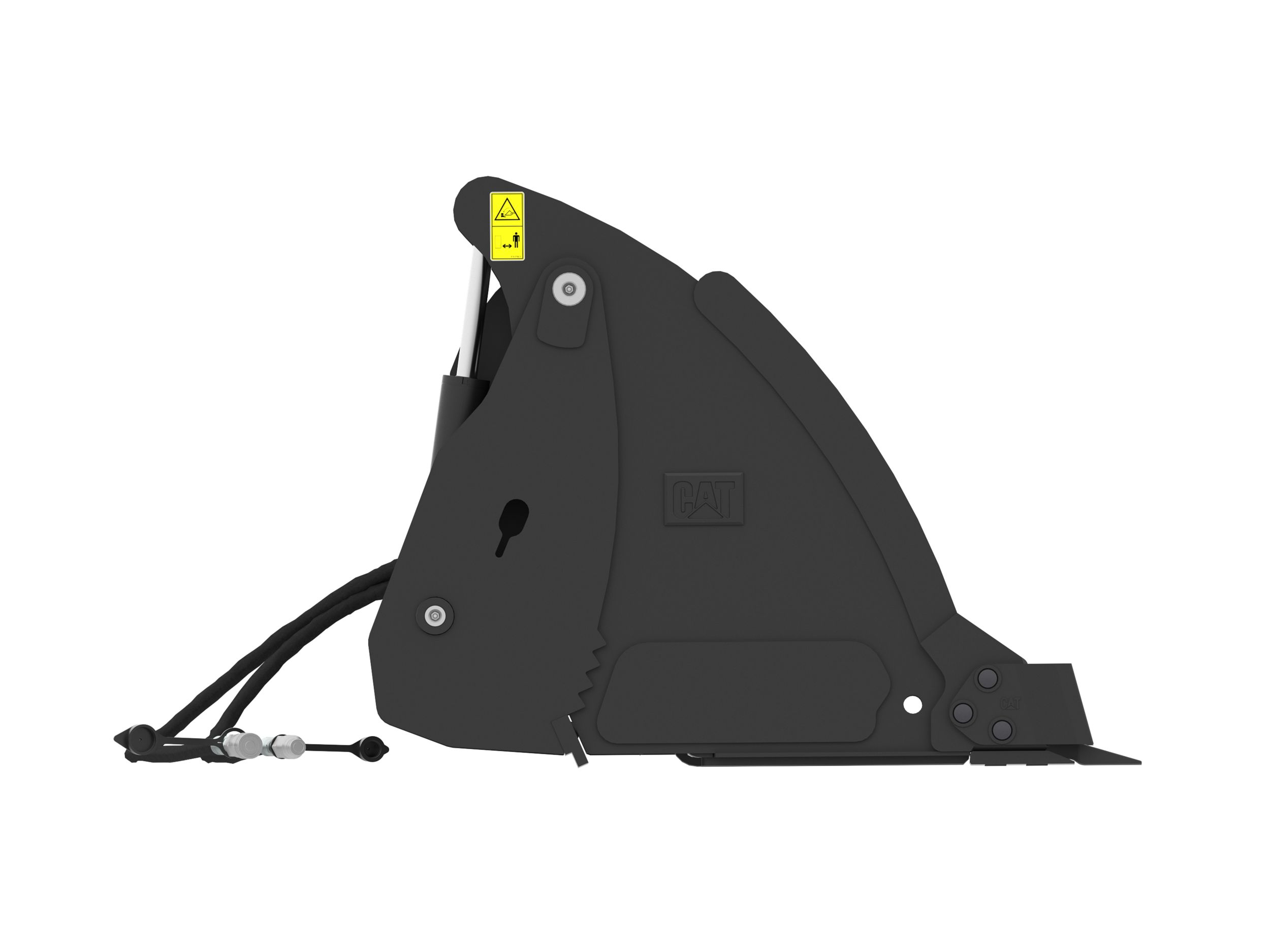

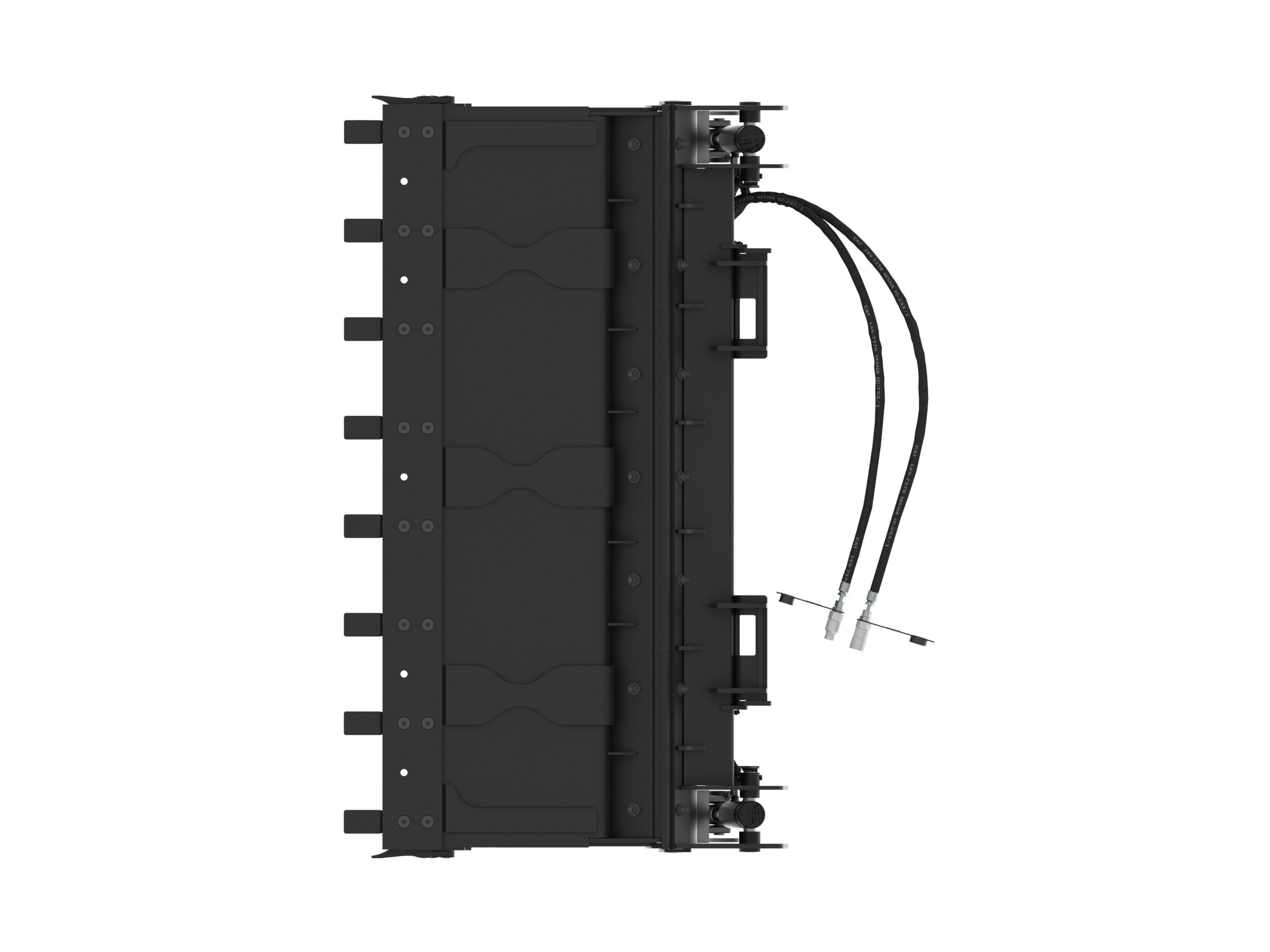

Heavy Duty Multi-Purpose Buckets 1883 mm (74 in), Bolt-On Teeth

Request A Price Shop Now

Key Specs

Width: 74 in; 1883 mm

Capacity: 0.69 yd³; 0.53 m³

Weight: 1309.5 lb; 594 kg

1883 mm (74 in), Bolt-On Teeth
Change model

Overview

Increased clamping forces over the standard Multi-Purpose Bucket allows larger irregular shaped objects to be moved securely with ease.

Features At A Glance

Ideal for digging, dozing, clamping, back dragging, grading and leveling in construction, landscaping, industrial and demolition applications. Rugged design provides improved performance with todays larger, more powerful machines.

Provides a tie down location for use with standard chain for use during transportation.

Reinforced side plates designed to increase bucket life in the toughest digging conditions.

Serrated edges on the clam and the dozer allows for better retention of materials when clamping irregular shaped objects.

Reversable, bolt-on cutting edges at the rear of the bucket as well as the front, help to extend the life of the bucket.

Serrated steps provide safe ingress and egress from machine cab.

The performance side profile provides up to a 21% increased capacity versus the standard multi-purpose bucket.

Standard replaceable side cutters help cut through denser material without comprising the life of the bucket.

Tool mounted and sealed from the elements, this holder includes all the operation manuals and maintenance (OMM) guides required for proper operation of the multi-purpose bucket.

Product Specifications for 1883 mm (74 in), Bolt-On Teeth

Width	74 in 1883 mm
Capacity	0.69 yd³ 0.53 m³
Weight	1309.5 lb 594 kg
Length	44.3 in 1124 mm
Base Edge Thickness	0.7 in 19 mm
Operating Pressure	3480.9 psi 24000 kPa
Jaw Opening	29.7 in 755 mm
Clam Angle	69 degrees 69 degrees
Interface Type	Skid Steer Coupler Skid Steer Coupler
