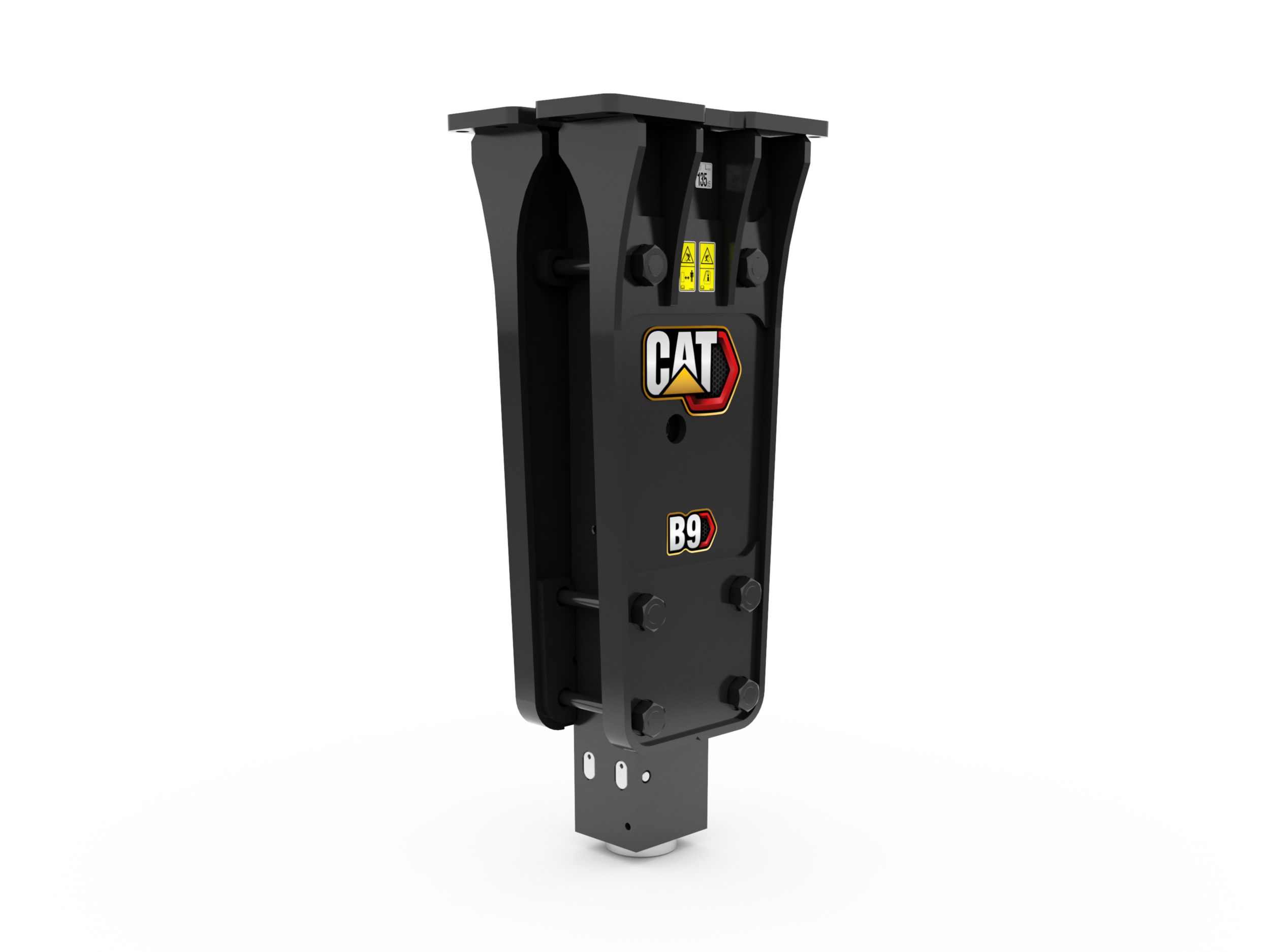

Hammers B9

Request A Price Click for Price

Key Specs

Operating Weight - With Tool
1166.2 lb
529 kg
Energy Class
958.8 ft·lbf
1300 J
Machine Class
7-10 Ton Mini Excavators, 415-450 Backhoe Loaders (no side shift)
7-10 Ton Mini Excavators, 415-450 Backhoe Loaders (no side shift)

Overview

Used for demolition and construction applications.

Product Specifications for B9

Operating Weight - With Tool 1166.2 lb 529 kg
Energy Class 958.8 ft·lbf 1300 J
Machine Class 7-10 Ton Mini Excavators, 415-450 Backhoe Loaders (no side shift) 7-10 Ton Mini Excavators, 415-450 Backhoe Loaders (no side shift)
Tool Shaft Diameter 3.3 in 85 mm
Impact Frequency 400-800 bpm 400-800 bpm
Minimum Operating Pressure 1846 psi 12728 kPa
Minimum Carrier Weight 18150.6 lb 8233 kg
Optimal Hydraulic Flow 60-100 lpm (15.9-26.4 gpm) 60-100 lpm (15.9-26.4 gpm)
Overall Width 15.7 in 400 mm
Overall Length 20.9 in 530 mm
Overall Height 69 in 1753 mm
Height - Without Tool 51.1 in 1298 mm
Sound Level 135 dB 135 dB
Mounting Bracket Size Extra Large Extra Large

See how B9 compares against frequently compared products.
