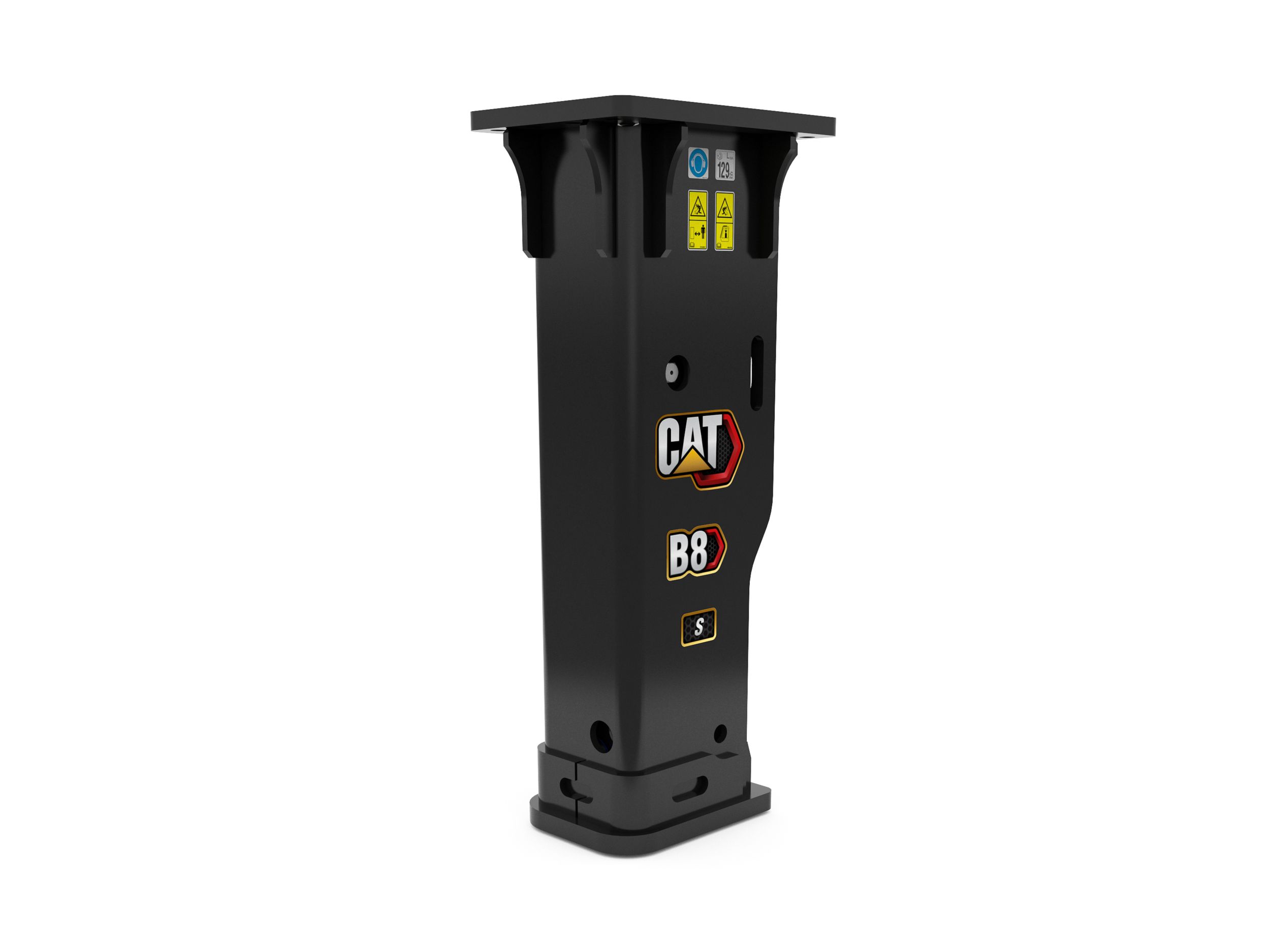

Studio Shot

Hammers B8s

Request A Price Click for Price

Key Specs

Operating Weight - With Tool
758.4 lb
344 kg
Energy Class
848.2 ft·lbf
1150 J
Machine Class
6-9 Ton Mini Excavators, 216-299 Skid Steer/Compact Track Loaders, 415-444 Backhoe Loaders
6-9 Ton Mini Excavators, 216-299 Skid Steer/Compact Track Loaders, 415-444 Backhoe Loaders

Overview

Used for demolition and construction applications.

Product Specifications for B8s

Operating Weight - With Tool 758.4 lb 344 kg
Energy Class 848.2 ft·lbf 1150 J
Machine Class 6-9 Ton Mini Excavators, 216-299 Skid Steer/Compact Track Loaders, 415-444 Backhoe Loaders 6-9 Ton Mini Excavators, 216-299 Skid Steer/Compact Track Loaders, 415-444 Backhoe Loaders
Tool Shaft Diameter 3 in 75 mm
Impact Frequency 400-800 bpm 400-800 bpm
Minimum Operating Pressure 1704.1 psi 11749 kPa
Minimum Carrier Weight 13999.3 lb 6350 kg
Optimal Hydraulic Flow 50-90 lpm (13.2-23.8 gpm) 50-90 lpm (13.2-23.8 gpm)
Overall Width 12.4 in 316 mm
Overall Length 17.3 in 440 mm
Overall Height 55.2 in 1402 mm
Height - Without Tool 41.1 in 1044 mm
Sound Level 129 dB 129 dB
Mounting Bracket Size Large Large
