Key Specs

Operating Weight - With Tool: 610.7 lb; 277 kg

Energy Class: 501.5 ft·lbf; 680 J

Machine Class: 4-9 Ton Mini Excavators, 216-299 Skid Steer/Compact Track Loaders, 415-444 Backhoe Loaders; 4-9 Ton Mini Excavators, 216-299 Skid Steer/Compact Track Loaders, 415-444 Backhoe Loaders

B6s
Change model

Overview

Used for demolition and construction applications.

Features At A Glance

Cat® B Hammers are suitable for use in a wide range of construction and light demolition applications - such as breaking concrete sidewalks and driveways, pavement, roads, masonry, site prep and landscaping, and breaking frozen ground for utility repairs.

Ergonomically positioned hydraulic lines are designed to optimize serviceability, are easily accessible and require no special tools. Housing has been positioned to protect against force and dirt during impact but allow for wrench access. Hydraulic lines and back head pressure can be checked and charged while breaker is mounted to machine, allowing quick monitoring of breaker's condition.

Gas fired design delivers consistently high production over time making the breaker reliable in applications such as concrete, asphalt, rock and light trenching.

Flat top/top-mount style provides a larger work area and excellent operator visibility with a common footprint and hole pattern for optimum versatility. Top-mount style increases impact power by keeping breaker force and stick force in line. A top-mount bracket will transfer back significantly less recoil and bending stress into the end of the stick, resulting in reduced impact on machine structures. Full complement of mounting brackets is available to suite coupler or pin-on preference.

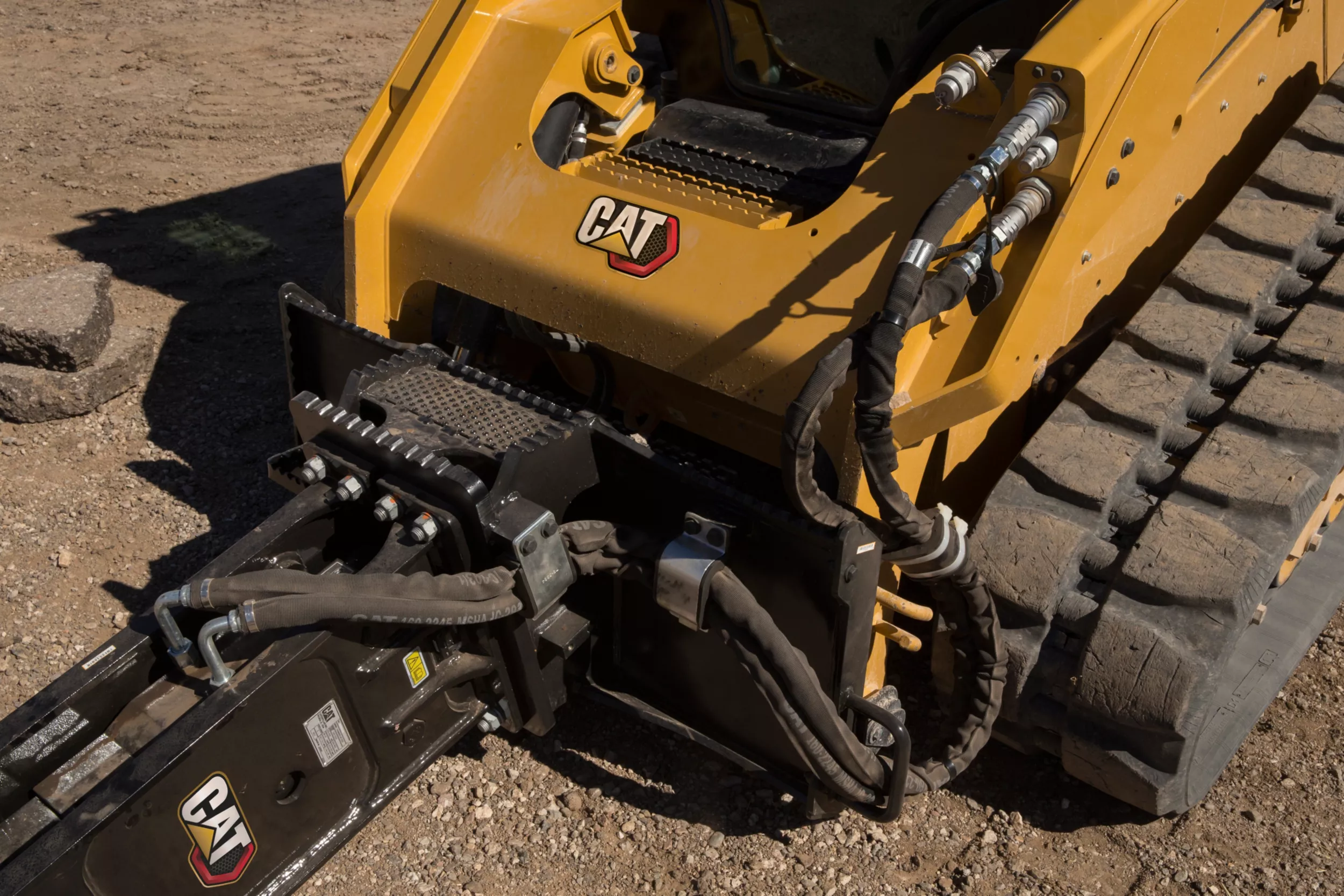

Newly designed skid steer loader mounting bracket features enhanced hose routing and improved ingress/egress with new bolt-on step and updated central step. Brackets are compatible with H Model Hammers, E Series Hammers and the CVP16 and CVP40 Vibratory Plate Compactors.

Slip fit bushings are field replaceable and easy to maintain due to one locking pin, extending wear life and reducing owning and operating costs. Upper bushing rotates 360°, lower bushing has two positions and can be rotated 90°.

Tool Mounted Operation and Maintenance Manual (OMM) Holder

Tool mounted OMM holder is sealed from the elements and includes all operation manuals and maintenance guides required for proper operation of the hammer (Skid Steer Loader bracket only).

Every B Series Hammer comes with:

Tool Kit w/Storage Box
2 Tools (1 x Conical and 1 x Transverse Chisel)
Maintenance Kit

Product Specifications for B6s

Operating Weight - With Tool	610.7 lb 277 kg
Energy Class	501.5 ft·lbf 680 J
Machine Class	4-9 Ton Mini Excavators, 216-299 Skid Steer/Compact Track Loaders, 415-444 Backhoe Loaders 4-9 Ton Mini Excavators, 216-299 Skid Steer/Compact Track Loaders, 415-444 Backhoe Loaders
Tool Shaft Diameter	2.7 in 68 mm
Impact Frequency	500-900 bpm 500-900 bpm
Minimum Operating Pressure	1775 psi 12238 kPa
Minimum Carrier Weight	8000.6 lb 3629 kg
Optimal Hydraulic Flow	40-70 lpm (10.6-18.5 gpm) 40-70 lpm (10.6-18.5 gpm)
Overall Width	12.4 in 316 mm
Overall Length	17.3 in 440 mm
Overall Height	53.9 in 1370 mm
Height - Without Tool	39.1 in 993 mm
Sound Level	124 dB 124 dB
Mounting Bracket Size	Large Large
