Cold Planers PC408

Starting MSRP*

$30,472.00 USD

Request A Price Click for Price

Key Specs

Working Width
29.5 in
750 mm
Maximum Cutting Depth
6.7 in
170 mm
Required Hydraulics
XHP / XE
XHP / XE

Overview

High speed drum and conical bits quickly remove asphalt and concrete prior to resurfacing.

Product Specifications for PC408

Working Width 29.5 in 750 mm
Maximum Cutting Depth 6.7 in 170 mm
Required Hydraulics XHP / XE XHP / XE
Overall Width 73.1 in 1858 mm
Overall Length 50 in 1270 mm
Overall Height 37.4 in 951 mm
Weight 2303.8 lb 1045 kg
Optimal Hydraulic Flow 136-150 L/min (36-40 gpm) 136-150 L/min (36-40 gpm)
Optimal Hydraulic Pressure 250-280 bar (3630-4000 psi) 250-280 bar (3630-4000 psi)
Drum Speed 133 rpm 133 rpm
Tilt Angle Range +/- 6.5 degrees 6.5 degrees
Side Shift Travel 25.6 in 650 mm
Conical Bits 60 60
Standard Bit Type All Purpose All Purpose

See how PC408 compares against frequently compared products.

Product Brochures and More Are Ready to Download!

Media Gallery

Studio Shot

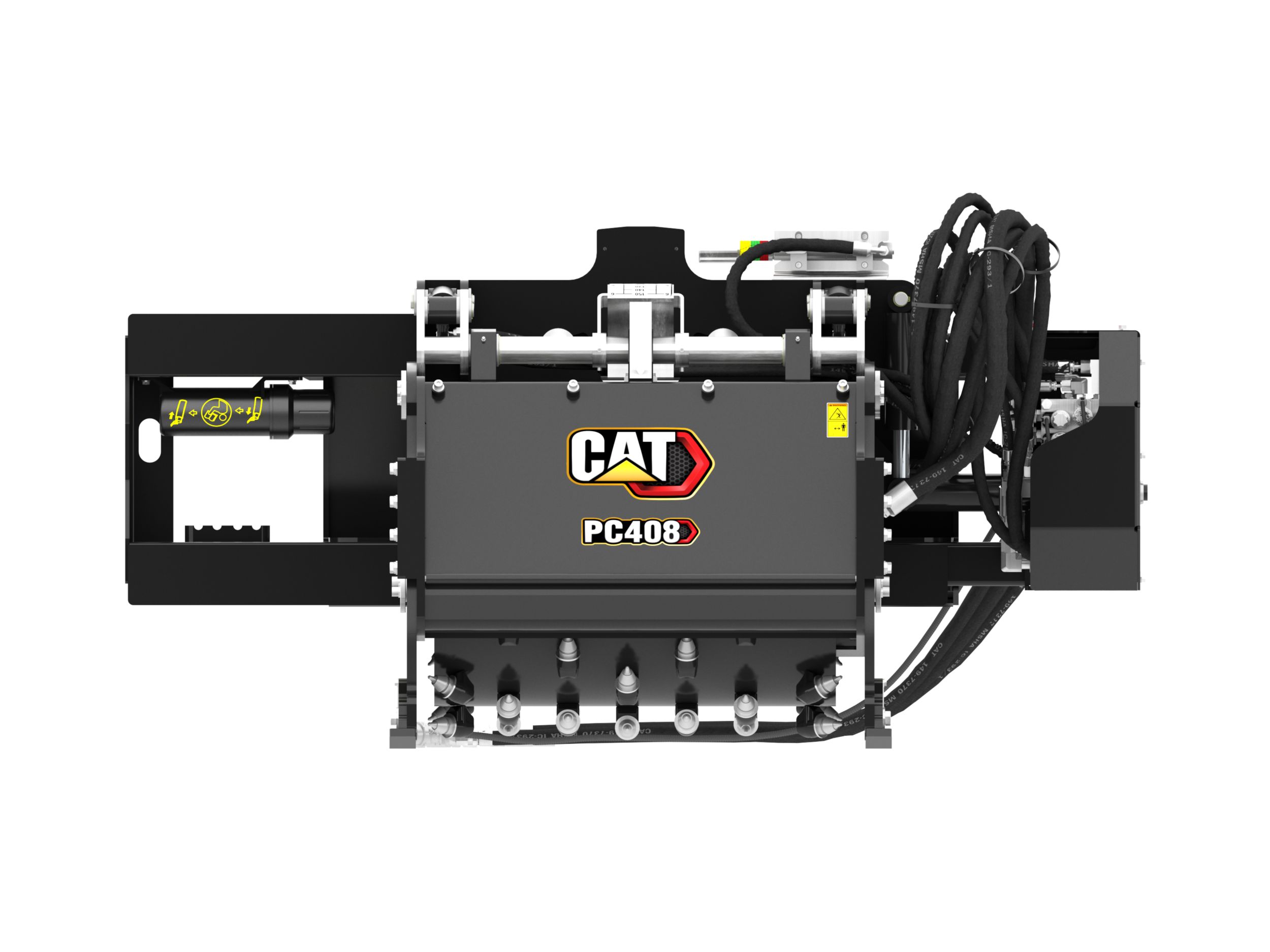

Front View

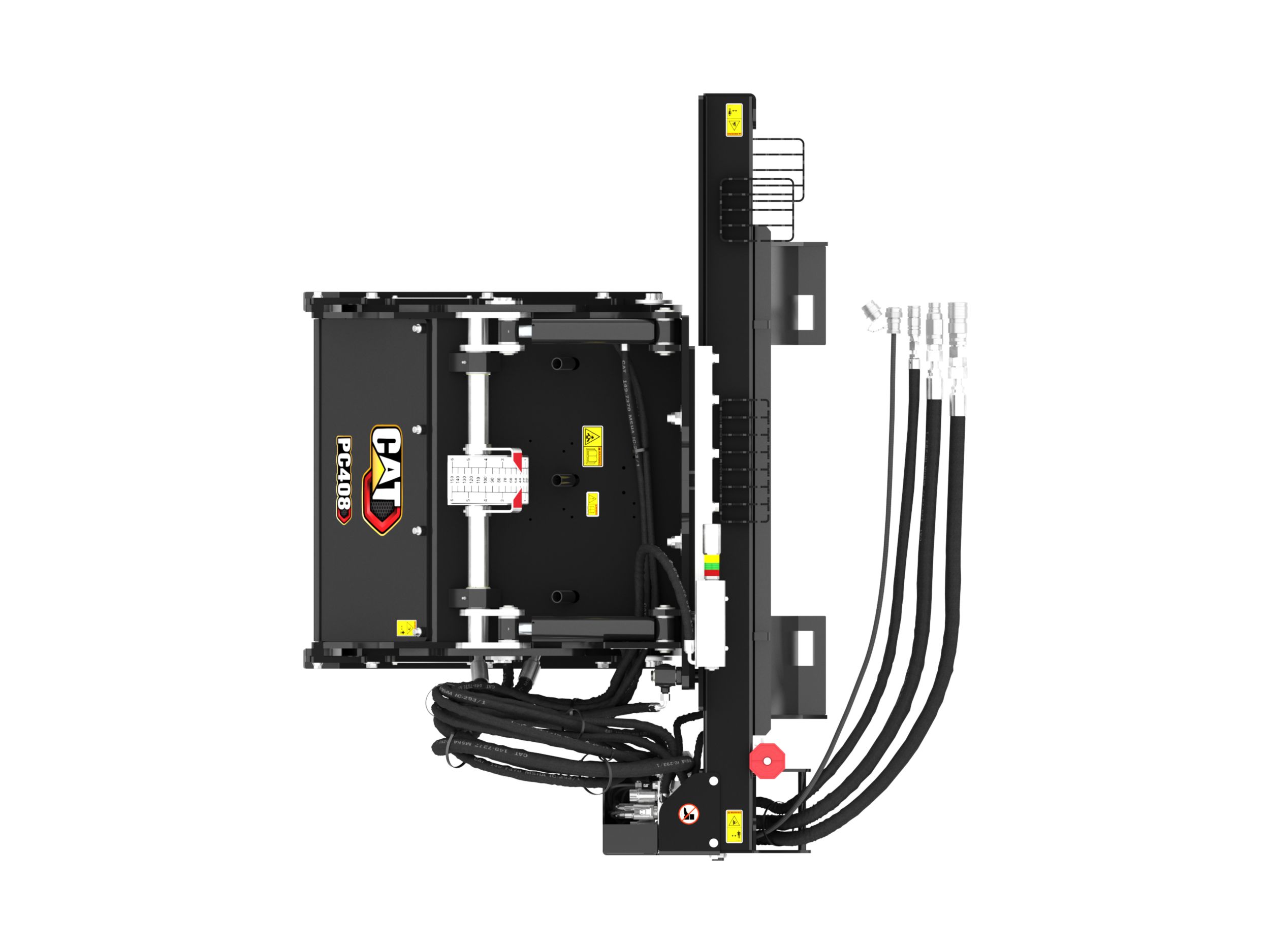

Top View

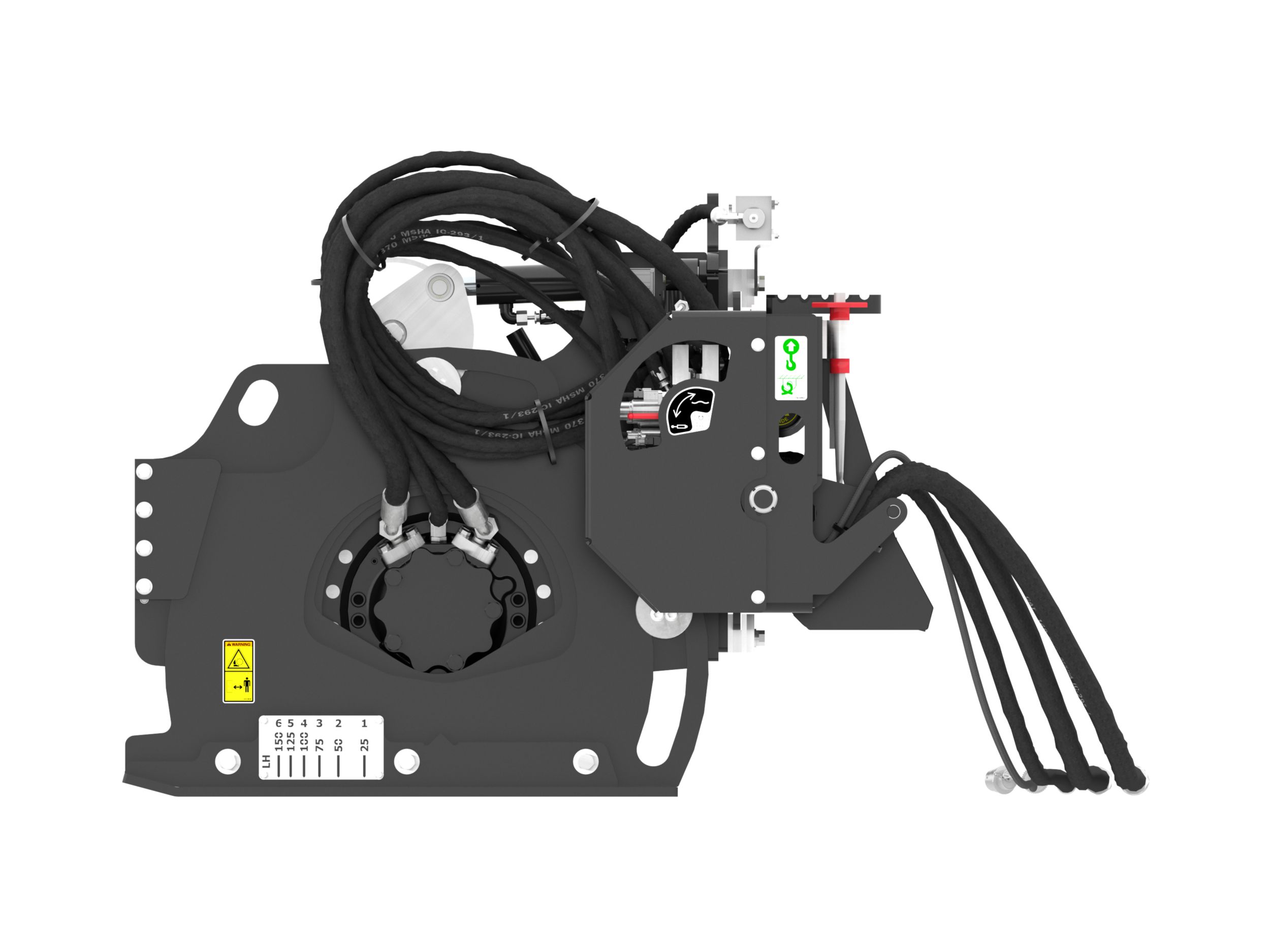

Left View

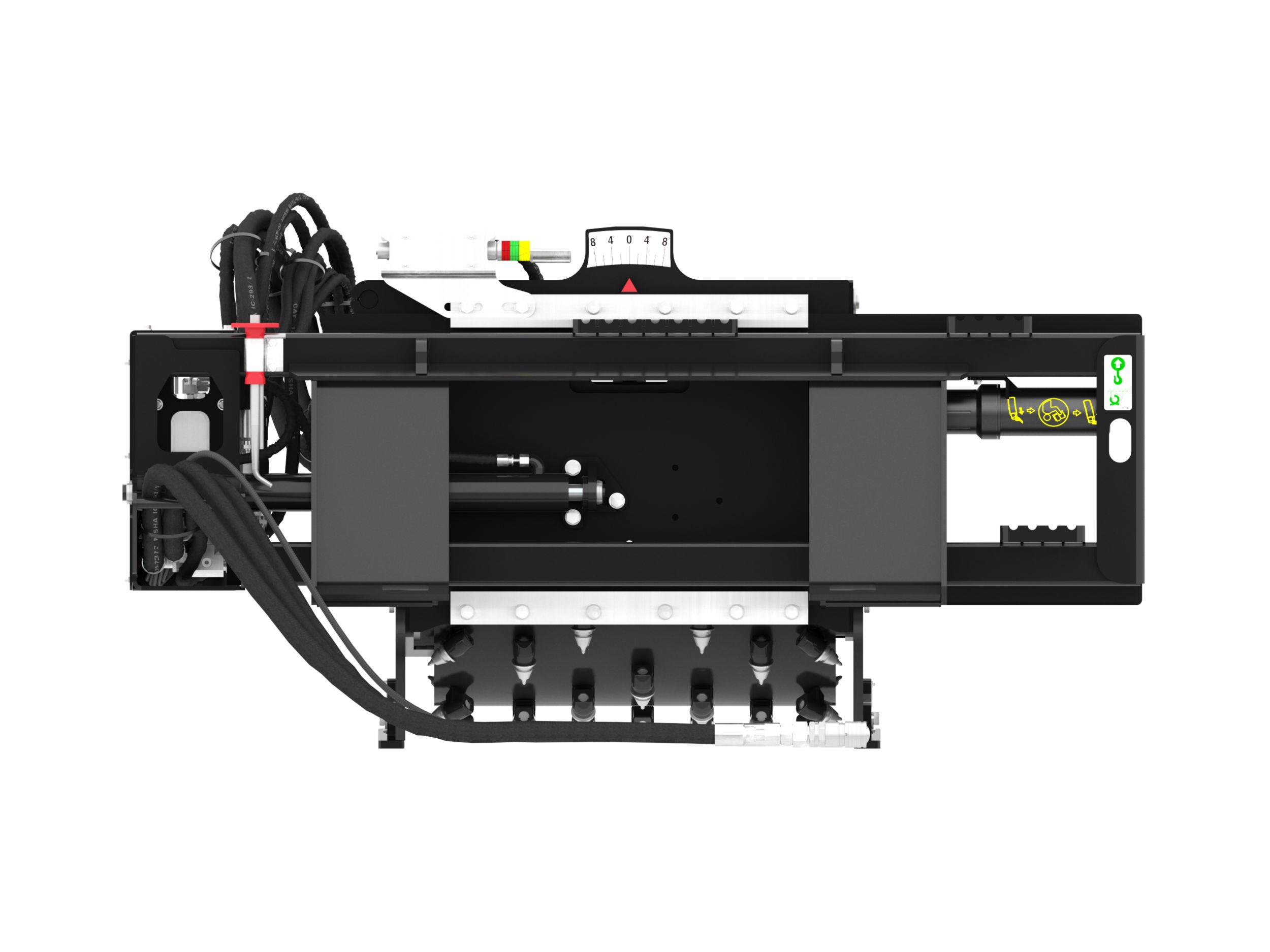

Rear View

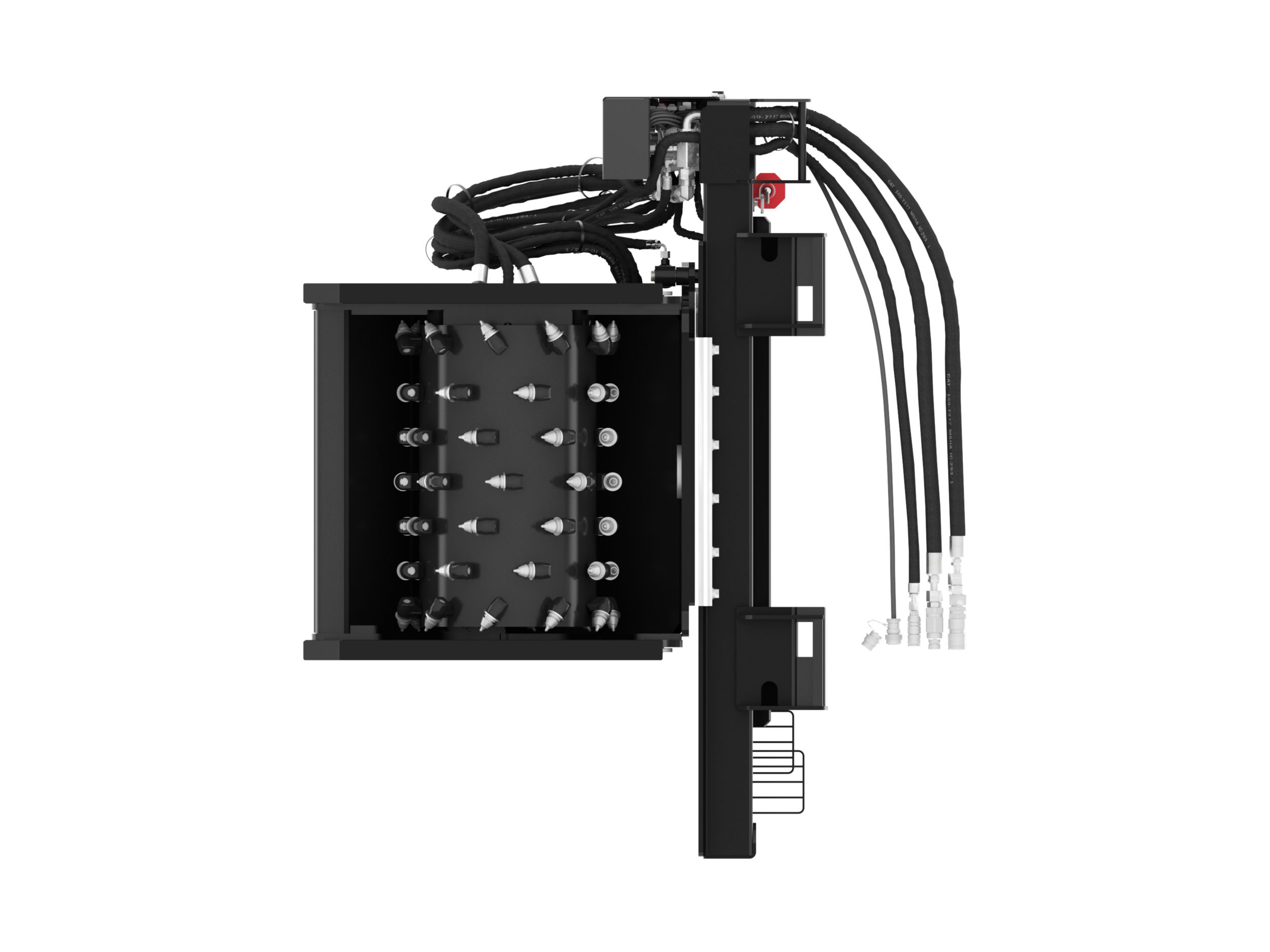

Bottom View

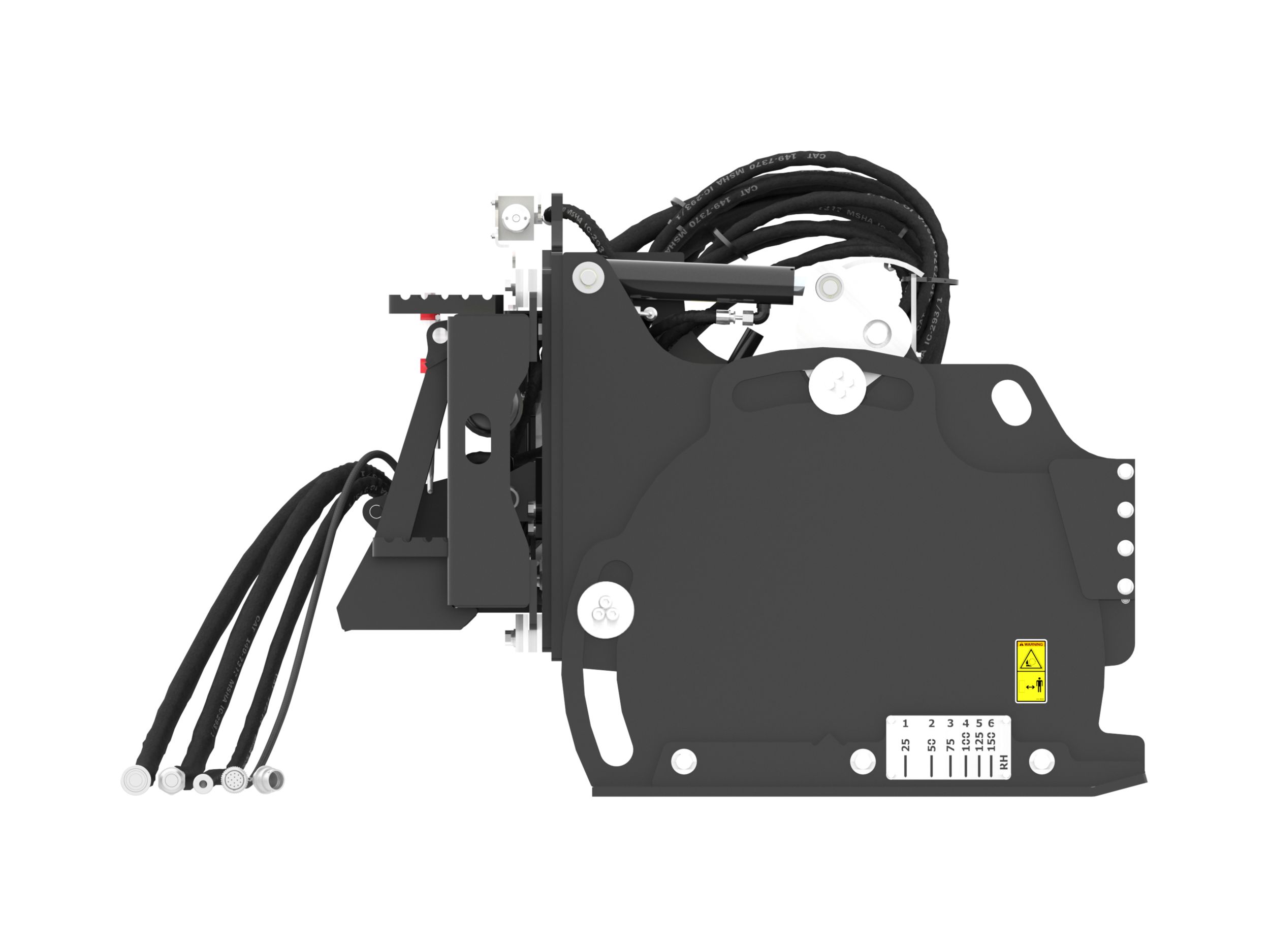

Right View
