Overview

High Performance Circle

The High Performance Circle for Cat® Motor Graders improves machine performance, efficiency, and uptime through increased service intervals and longer life. Meeting grade elevation tolerance on your jobsite is important to reduce rework on the job. With the High Performance Circle installed on Motor Graders, operators have greater confidence in meeting grade elevation tolerance due to reduced wear between circle and drawbar.

Benefits

Long Service Life

Less downtime for service and maintenance so operators spend more time in the dirt.

Banked Grease Point

Maintenance is easier as you access the entire circle from one grease point with common, everyday tools. Its ergonomic location eliminates crawling under the machine.

Integrated Teeth and Segmented Ring

The enclosed design of the High Performance circle reduces wear on teeth and cuts down on the number of components to service.

Features At A Glance

Displaying 1-6 of 4

Introducing the High Performance Circle for Cat® Motor Graders

INTRODUCTION

The High Performance Circle helps to eliminate hours of monthly planned maintenance for frequent inspection, wear strip replacement and circle shoe adjustments associated with conventional circles. Advantages include increased circle torque, performance, and improved durability. It provides a smooth, effortless rotation of blade and assists in meeting jobsite elevation tolerance.

Proven Design for Motor Graders

PROVEN DESIGN

The heavy duty drive system design has been adopted from the Cat® Excavator swing drive and Cat® 14 Motor Grader worm drive. Fully-sealed bearing design replaces the open circle and drawbar reducing operator touchpoints and increasing service intervals and machine uptime.

Increased Service Intervals with Easier Accessibility

INCREASED SERVICE INTERVALS

Wear life between circle and drawbar is significantly increased

Reduced likelihood of excessive clearance between circle and drawbar surface

Less frequent inspections

Centrally-located grease bank provides quick and easy servicing

Easily accessible ring gear for quicker inspection and maintenance

Circle ring can be rotated for extended replacement intervals

Reductions Provide Increased Output

INCREASED OUTPUT

Lower owning and operating costs through increased service intervals
Reduced machine downtime
No more circle shoe adjustments
No more adjustments or replacement of drawbar and circle wear strips

Wear life between circle and drawbar is significantly increased

Reduced likelihood of excessive clearance between circle and drawbar surface

Less frequent inspections

Centrally-located grease bank provides quick and easy servicing

Easily accessible ring gear for quicker inspection and maintenance

Circle ring can be rotated for extended replacement intervals

Lower owning and operating costs through increased service intervals
Reduced machine downtime
No more circle shoe adjustments
No more adjustments or replacement of drawbar and circle wear strips

Tools And Expert Help At Every Turn

Product Brochures and More Are Ready to Download!

Caterpillar product brochures and other informational documents are available for your growing business.

Media Gallery

Photos

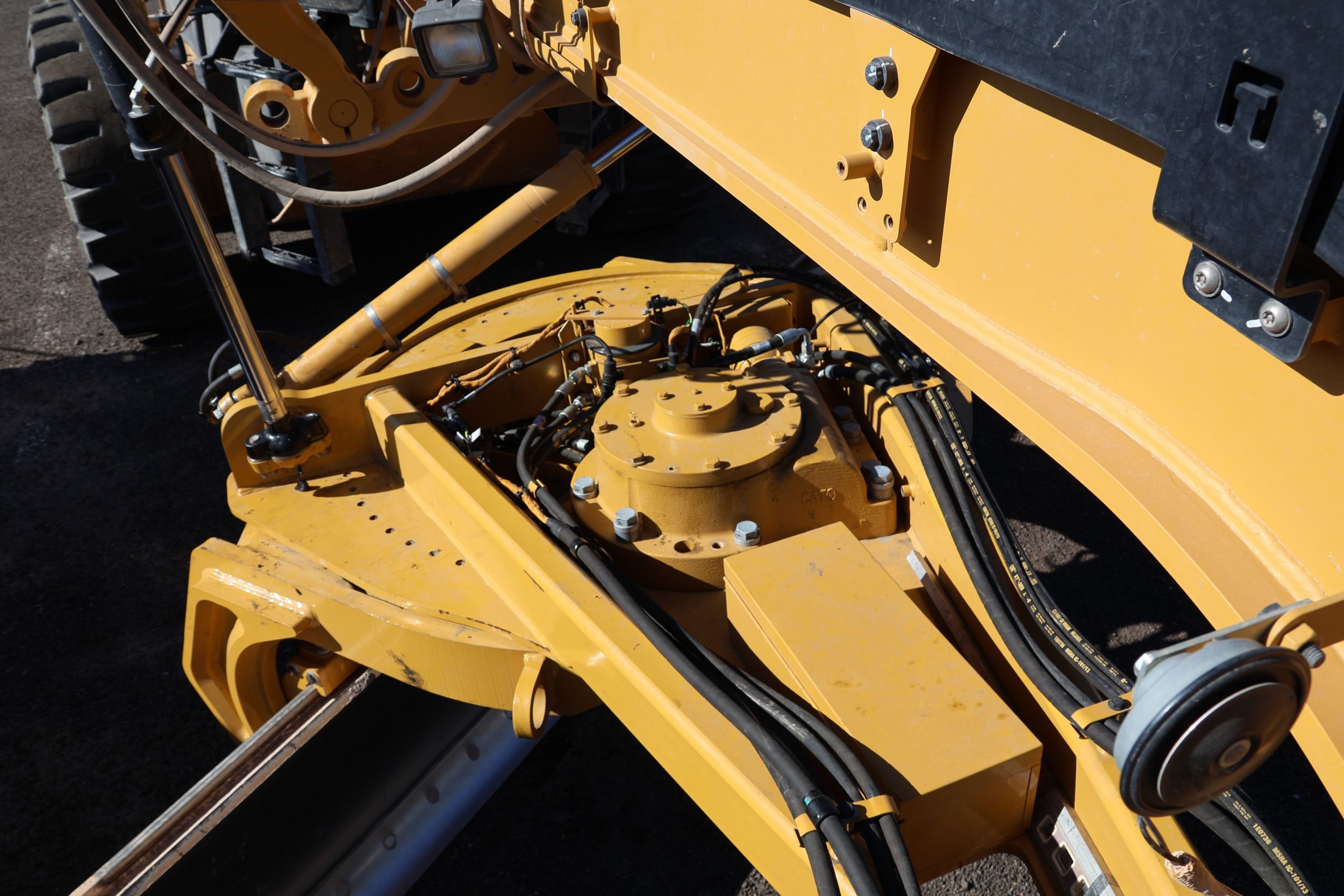

High Performance Circle
