160 Motor Grader

Motor Graders 160 / 160 AWD JOY

Request A Price Find Dealer

Key Specs

Operating Weight - Typically Equipped
45547 lb
20660 kg
Blade Width
14 ft
4.2 m
Engine Model
Cat® C9.3
Cat® C9.3

Overview

High-Performance Grading and Efficiency

The Cat® 160/160 AWD Motor Grader delivers power, efficiency, and operating finesse to the job. Joystick controls provide ergonomic comfort for the operator. This high-performance machine minimizes emissions with the latest control technologies, without loss of productivity.

Benefits

Integrated Technologies

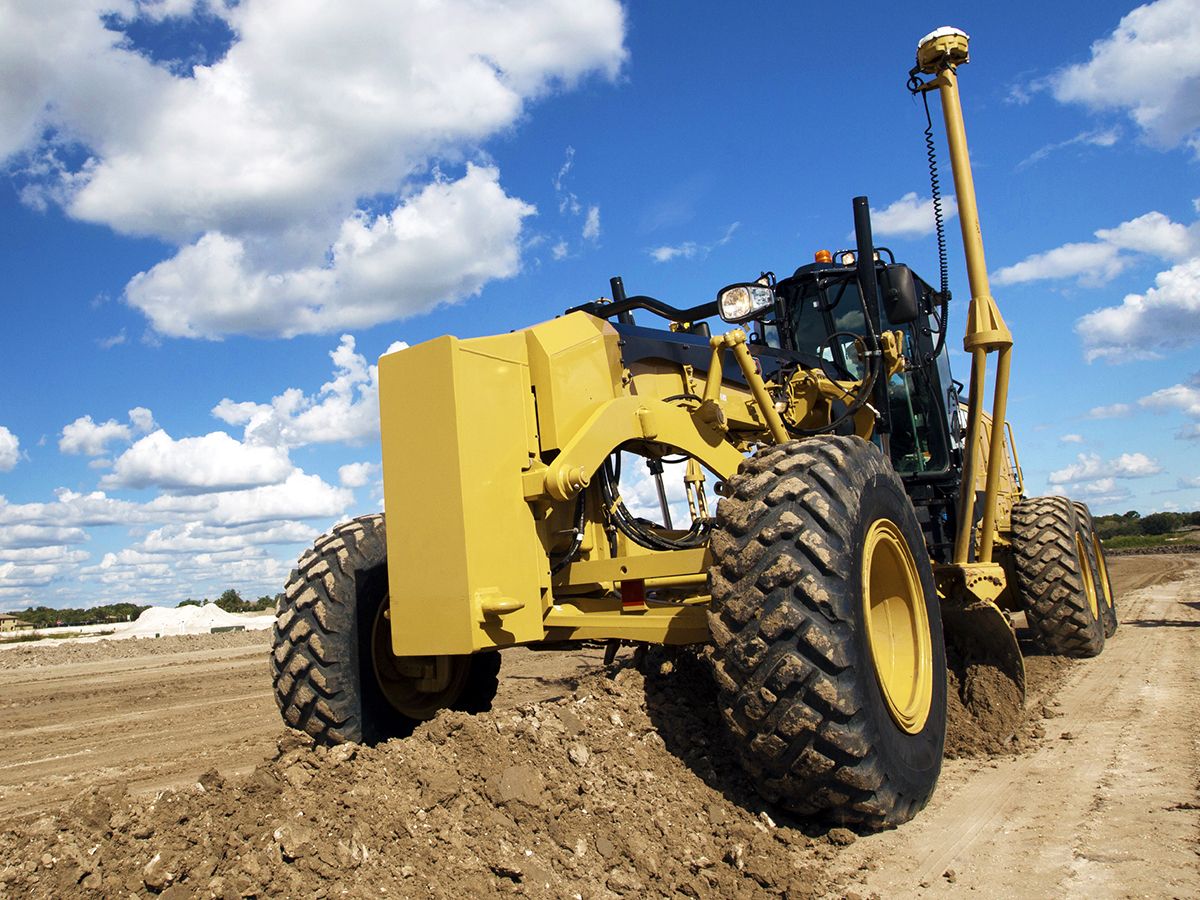

Using Cat Grade technologies can increase your overall productivity with better accuracy, reduced rework, and lower costs.

Up To 10% Fuel savings

While using Eco mode without loss of productivity.

More traction on slopes

All-wheel drive (AWD) option assists with traction and maneuvering the machine, so you can work in any environment.

Product Specifications for 160 / 160 AWD JOY

Engine Model Cat® C9.3 Cat® C9.3
Emissions U.S. EPA Tier 4 Final/EU Stage V U.S. EPA Tier 4 Final/EU Stage V
Bore 4.5 in 115 mm
Displacement 567.5 in³ 9.3 l
Stroke 5.9 in 149 mm
Number of Cylinders 6 6
Torque Rise 39% 39%
Maximum Torque - VHP Plus 1000 lb/ft 1355 N·m
Derating Altitude 10000 ft 3050 m
Operating Weight - Typically Equipped 45547 lb 20660 kg
Blade Width 14 ft 4.2 m
Cutting Edge Thickness 0.6 in 16 mm
Cutting Edge Width 6 in 152 mm
End Bit - Thickness 0.6 in 16 mm
End Bit - Width 6 in 152 mm
Moldboard - Blade Width 14 ft 4.2 m
Moldboard - Height 24 in 610 mm
Moldboard - Thickness 0.87 in 22 mm
Throat Clearance 6.5 in 166 mm
Blade Down Pressure - Base GVW 17004 lb 7713 kg
Blade Down Pressure - Maximum GVW 29308 lb 13294 kg
Blade Pull - Base GVW 25931 lb 11762 kg
Blade Pull - Maximum GVW 34262 lb 15541 kg
Arc Radius 16.3 in 413 mm
Height - Top of Cab 130 in 3308 mm
Length - Counterweight to Ripper 399 in 10136 mm
Ground Clearance - Rear Axle 13.3 in 339 mm
Maximum Lift Above Ground 17.8 in 452 mm
Maximum Depth of Cut 29.5 in 750 mm
Maximum Blade Position Angle 90 90
Maximum Shoulder Reach Outside of Tires - Left 82.3 in 2090 mm
Maximum Shoulder Reach Outside of Tires - Right 89.7 in 2278 mm
Moldboard Sideshift - Left 20.1 in 510 mm
Moldboard Sideshift - Right 26 in 660 mm
Blade Tip Range - Backward 5 5
Blade Tip Range - Forward 40 40
Circle Centershift - Left 27.4 in 695 mm
Circle Centershift - Right 28.7 in 728 mm
Front Frame Structure - Height 12.6 in 321 mm
Front Frame Structure - Width 12 in 305 mm
Front Axle - Height to Center 23.5 in 596 mm
Front Axle - Total Oscillation per Side 32 32
Front Axle - Wheel Lean - Left/Right 18 18
Front-Top/Bottom Plate - Thickness 0.87 in 22 mm
Front-Top/Bottom Plate - Width 12 in 305 mm
Drawbar - Height 6 in 152 mm
Drawbar - Thickness 0.5 in 12.7 mm
Drawbar - Width 3 in 76.2 mm
Circle - Blade Beam Thickness 1.6 in 40 mm
Circle - Diameter 61.1 in 1553 mm
Circle - Height 6.3 in 160 mm
Air Conditioning The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. - If equipped with R134a (Global Warming Potential = 1430), the system contains 1.9 kg (4.2 lb) of refrigerant which has a CO2 equivalent of 2.717 metric tonnes (2.994 tons). The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. - If equipped with R134a (Global Warming Potential = 1430), the system contains 1.9 kg (4.2 lb) of refrigerant which has a CO2 equivalent of 2.717 metric tonnes (2.994 tons).
Transmission APECS, Direct Drive, Powershift APECS, Direct Drive, Powershift
Forward/Reverse Gears 8 Forward/6 Reverse 8 Forward/6 Reverse
Brakes - Service - Surface Area 3565 in² 23000 cm²
Brakes - Service Multiple Oil Disc Multiple Oil Disc
Brakes - Parking Multiple Oil Disc Multiple Oil Disc
Brakes - Secondary Dual Circuit Control Dual Circuit Control
Fuel Capacity 104 gal (US) 394 l
Diesel Exhaust Fluid 5.8 gal (US) 22 l
Circle Drive Housing 1.8 gal (US) 7 l
Cooling System 15 gal (US) 57 l
Hydraulic System - Total 26.4 gal (US) 100 l
Hydraulic System - Tank 16.9 gal (US) 64 l
Transmission - Differential - Final Drives 18.5 gal (US) 70 l
Tandem Housing - Each 22.9 gal (US) 87 l
Engine Oil 7.9 gal (US) 30 l
Front Wheel Spindle Bearing Housing 0.13 gal (US) 0.5 l
Ripping Depth - Maximum 16.8 in 426 mm
Ripper Shank Holders 5 5
Ripper Shank Holder Spacing 21 in 533 mm
Machine Length Increase, Beam Raised 40.6 in 1031 mm
Penetration Force 20812 lb 9440 kg
Pry-Out Force 28493 lb 12924 kg
Mid, V-Type - Working Width 46.6 in 1184 mm
Mid, V-Type - Scarifier Shank Holders 11 11
Mid, V-Type - Scarifier Shank Holder Spacing 4.6 in 116 mm
Mid, V-Type - Scarifying Depth, Maximum 11.5 in 292 mm
Rear - Scarifier Shank Holders 9 9
Rear - Scarifier Shank Holder Spacing 10.5 in 267 mm
Rear - Scarifying Depth, Maximum 16.8 in 426 mm
Rear - Working Width 84 in 2133 mm
Front, V-Type - Working Width 47.4 in 1205 mm
Front, V-Type, 5 or 11 Tooth - Scarifier Shank Holders 5 or 11 5 or 11
Front, V-Type, 5 or 11 Tooth - Scarifier Shank Holder Spacing 4.6 in 116 mm
Front, V-Type, 5 or 11 Tooth - Scarifying Depth, Maximum 18.4 in 467 mm
Front, V-Type, 5 or 11 Tooth - Working Width 40.6 in 1031 mm
Top Speed - Forward 29.5 mile/h 47.4 km/h
Top Speed - Reverse 23.3 mile/h 37.4 km/h
Articulation Angle - Left/Right 20° 20°
Steering Range - Left/Right 50° 50°
Turning Radius - Outside Front Tires 25.59 ft 7.8 m

160 / 160 AWD JOY Standard Equipment

NOTE

  • Standard and optional equipment may vary. Consult your Cat dealer for details.

Powertrain

  • Air cleaner, dual stage, dry type, diesel, with automatic engine derate and automatic dust ejector, service indicator through Cat Messenger
  • Air-to-air after cooler (ATAAC)
  • Belt, serpentine, automatic tensioner
  • Brakes, oil disc, four-wheel, hydraulic
  • Demand fan, hydraulic, swing-out
  • Diesel exhaust fluid tank, 22.0 L (5.8 gal) ground level access, and sediment drain
  • Differential lock/unlock, automatic
  • Drain, engine oil, ecology
  • Eco mode
  • Electronic over-speed protection
  • Engine, C9.3 U.S. EPA Tier 4 Final/EU Stage V emission standards
  • Fuel tank, 394 L (104 gal), ground level access and sediment drain
  • Parking brake - multi-disc, sealed, oil-cooled
  • Priming pump, fuel
  • Rear axle, modular
  • Sediment drain, fuel tank
  • Tandem drive
  • Transmission, 8F/6R, powershift, direct drive, Advanced Productivity Electronic Control Strategy (APECS)

Electrical

  • Alarm, back up
  • Alternator, sealed 150 ampere
  • Batteries, maintenance free, heavy duty, 1125 CCA
  • Breaker panel, ground accessible
  • Cab harness and electrical hydraulic valves
  • Electrical system, 24V
  • Grade Control Ready, cab harness, software, electrical hydraulic valves, bosses and brackets
  • Lights, roof-mounted roading, reversing, LED stop, and tail
  • Product Link
  • Starter, electric

Operator Environment

  • Accelerator
  • Air conditioning with heater
  • Arm and wrist rest, electronically adjustable
  • Articulation, automatic return-to-center
  • Cat Messenger operator information system
  • Centershift pin indicator
  • Coat hook
  • Cup holder
  • Display, digital speed and gear
  • Doors, left and right side with wiper
  • Gauge, machine level
  • Gauge cluster (analog) - fuel, articulation, engine coolant temp, engine RPM, hydraulic oil temp, regen, DEF
  • Hour meter, digital
  • Joystick hydraulic controls right/left blade lift with float position, circle drive, blade sideshift and tip, centershift, front wheel lean, articulation and power steering
  • Joystick, adjustable armrests
  • Joystick gear selection
  • Joystick hydraulic power steering
  • Ladders, cab, left and right side
  • Lights, night time cab
  • Mirror, inside rearview, wide angle
  • Power port, 12V
  • Radio ready, entertainment
  • ROPS cab, sound suppressed 70 dB(A)
  • Seat, cloth-covered, comfort suspension
  • Seat belt, retractable 76 mm (3 in)
  • Storage area for cooler/lunchbox
  • Throttle control, electronic
  • Windows, laminated glass: - fixed front with intermittent wiper - door with intermittent wipers (3)
  • Windows, tempered - left and right side wipers, rear and intermittent wiper

Fluids

  • Antifreeze
  • Extended lifecoolant to -35° C (-30° F)

Tires, Rims, Wheels

  • Partial allowance for tires on 254 - 607 mm (10 - 24 in) multi-piece rims is included in the base machine price and weight

Other

  • Accumulators, brake, dual certified
  • Anti-glare paint
  • Bumper, rear, integrated with hitch
  • CD ROM parts book
  • Clutch, circle drive slip
  • Cutting edges: - 152 16 mm (6 5/8 in) - curved DH-2 steel - 19 mm (3/4 in) mounting bolts
  • Doors (3), engine compartment, locking
  • Drawbar, 6 shoes, replaceable wear strips
  • Electrical hydraulic valves, hydraulic lines for base 8 functions
  • Endbits, - 16 mm (5/8 in) DH-2 steel - 19 mm (3/4 in) mounting bolts
  • Fluid check, ground level
  • Frame, articulated, with safety lock
  • Engine shutdown, ground level
  • Hammer (emergency exit)
  • Horn, electric
  • Hydraulic lines for base functions
  • Lockout, hydraulic implement (for roading and servicing)
  • Moldboard
  • Mounting, cab roof accessories
  • Pump, hydraulic, high capacity
  • Radiator, cleanout access (both sides with swing doors)
  • Secondary steering
  • Serviceability, left side
  • Scheduled Oil Sampling (S·O·SSM) ports: engine, hydraulic, transmission, coolant, fuel
  • Tandem walkway/guards
  • Tool box

160 / 160 AWD JOY Optional Equipment

NOTE

  • Standard and optional equipment may vary. Consult your Cat dealer for details.

Electrical

  • Alternator, 280 ampere
  • Batteries, extreme duty, 1,400 CCA
  • Lights, high headlights
  • Lights, low headlights
  • Lights, working lights, basic
  • Lights, working lights, plus, LED
  • Lights warning, beacon or strobe
  • Lights, mounting for warning light

Guards

  • Articulation guard
  • Fenders, front
  • Fenders, rear
  • Front axle guard
  • Sound suppression (bottom)
  • Sound suppression (enclosure)
  • Transmission

Operator Environment

  • Mirrors, outside heated 24V
  • Mirrors, outside mounted
  • Comfort plus arrangement
  • Comfort premium arrangement

Powertrain

  • All-wheel drive
  • Precleaner, snow
  • Starter, extreme duty, 1,000 amps
  • Transmission, autoshift

Other

  • Attachment Ready Option (ARO)
  • Integrated cross slope
  • Accumulators, blade lift
  • Camera, rearview
  • Drain, ecology, engine Wiggins
  • Heater, engine coolant: 120V
  • Heater, engine coolant: 240V
  • Hydraulic arrangements with one or more additional hydraulic valves available for rear ripper, dozer, snow plow and snow wing
  • Snow wing mounting, frame ready
  • Starting aid, ether
  • Reversing fan, automatic or manual
  • Cat Grade with 3D

Attachments

  • Blade extension, left, 610 mm (2 ft)
  • Blade extension, right hand, 610 mm (2 ft)
  • Counterweight
  • Cutting edges, curved
  • Endbits, overlay
  • Front lift group, mounting
  • Front lift group, mechanical
  • Grader bit, narrow and super penetration
  • Mid-mount scarifier, package
  • Moldboard: 4267 mm x 610 mm x 22 mm (14 ft x 24 in x 7/8 in)
  • Moldboard: 4267 mm x 686 mm x 25 mm (14 ft x 27 in x 1 in)
  • Moldboard: 4877 mm x 686 mm x 25 mm (16 ft x 27 in x 1 in)
  • Push plate
  • Ripper, rear
  • Ripper tooth
  • Scarifier, front
  • Snow arrangement
  • Snow wing ready package
  • Tow hitch
