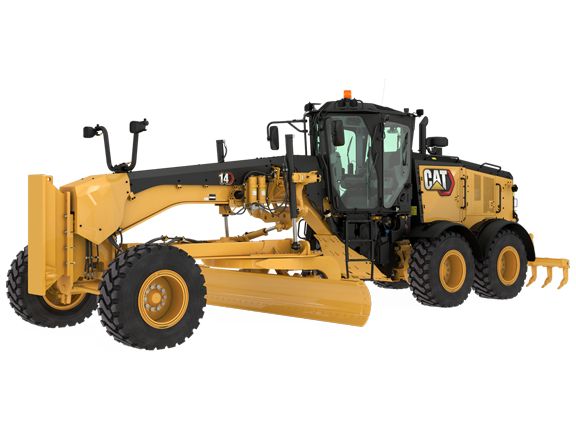

Motor Graders 14 Loaded With Power, Technology and Operator Features

Product Specifications for 14

Engine

Frame

Moldboard

Blade Range

Weights

Air Conditioning System

14 Standard Equipment

OPERATOR ENVIRONMENT

  • Joystick, power adjustable armrests
  • Air conditioner with heater
  • Centershift pin indicator
  • Coat hook
  • Cup holder
  • Display, digital speed and gear
  • Doors, left and right side with wiper
  • Gauges (analog) inside cab (includes fuel, articulation, engine coolant temp, engine rpm, and hydraulic oil temp)
  • Gauges, machine level
  • Message display
  • Joystick gear selection
  • Joystick hydraulic controls for implements, steering, transmission
  • Ladders, cab, left and right side
  • Lights, left and right side lights
  • Lights, night time cab, LED
  • Meter, hour, digital
  • Mirror, inside rearview, wide angle
  • Power port, 12V
  • Radio ready, entertainment
  • ROPS cab, sound suppressed, less than 73 dB(A) ISO 6394 (70% fan speed)
  • Seat, mechanical suspension, cloth
  • Storage compartments
  • Throttle control, electronic

POWER TRAIN

  • Air cleaner, dual stage, dry-type radial seal with service indicator through messenger and dust ejector
  • Articulation, automatic Return-to-Center
  • Air-to-Air After Cooler (ATAAC)
  • Auto Diff Lock
  • Brake wear indication
  • Brakes, oil disc, four-wheel, hydraulic
  • Consistent power to ground
  • Monitoring system
  • Clutch, circle drive slip
  • Differential, lock/unlock*
  • Drain, engine oil, ecology
  • Demand fan, hydraulic
  • Engine ECO Mode
  • Ether starting aid
  • Fuel tank, ground level
  • Fuel-water separator
  • Hydraulic demand fan
  • Muffler, under hood (China Nonroad Stage III and Tier 3/Stage IIIA/Tier 2/Stage II equivalent)
  • Optimized VHP
  • Parking brake - multi disc, sealed, oil-cooled
  • Priming pump, fuel
  • Sediment drain, fuel tank
  • Three variations of the C13 engine. One meets Tier 4 Final/Stage V emission standards and is required for higher regulated countries. One meets Tier 3/Stage IIIA/China Nonroad Stage III standards, depending on emission standards of the specific country. One meets Tier 2/Stage II equivalent emission standards and is available for lesser or non-regulated countries, depending on standards of the specific country.
  • Transmission, 8F/6R, power shift, direct drive

ELECTRICAL

  • Alternator, 150 ampere, sealed
  • Batteries, maintenance free, HD, 1,125 CCA
  • Breaker panel
  • Electrical system, 24V*
  • Belt, serpentine, automatic tensioner
  • Lights: reversing (LED), roof-mounted roading, stop and tail (LED)
  • Product Link
  • Starter, electric
  • Service lights, enclosure, rear, LED

SAFETY

  • Alarm, back up
  • Ground level engine shutdown
  • Hammer (emergency exit)
  • Horn, electric
  • Lockout, hydraulic implement for roading
  • Operator Not Present Monitoring system
  • Paint, glare reducing - top of front frame, rear enclosure and ripper cylinders
  • Seat belt, retractable 76 mm (3 in)
  • Secondary steering
  • Windows, laminated glass: Fixed front with intermittent wiper; Side and rear wipers (3)

14 Optional Equipment

OPERATOR ENVIRONMENT

  • Air horn
  • Heated door
  • Mirrors high visibility
  • Mirrors, outside heated 24V
  • Mirrors, outside mounted
  • Seat, heated
  • Seat, heated/ventilated
  • Rearview camera
  • Seat belt indicator

POWER TRAIN

  • Transmission, autoshift
  • Engine, compression brake

TECHNOLOGY

  • Cat GRADE with Cross Slope
  • Stable Blade
  • Advanced Control Joysticks
  • Auto Articulation

GUARDS

  • Debris guard
  • Front axle cylinder guards
  • Rear fenders
  • Sound suppression, engine enclosure and transmission
  • Transmission guard
  • Accumulators, blade lift
  • Fast fill fuel, 378.5 L/min (100 gal/min)
  • Metallic DCM wear strips

ELECTRICAL

  • Light, LED, warning strobe
  • Lights, front headlights high
  • Lights, front headlights low
  • Mounting, for warning light
  • Working lights halogen
  • Working lights LED

SAFETY

  • Additional rearview camera and monitor
  • Machine security system key

OTHER ATTACHMENTS

  • Moldboard, 4.9 m (16 ft)
  • Heater, engine coolant, 120V
  • Heater, engine coolant, 240V
  • Hydraulic arrangements with additional hydraulic valves: Base +1, Base +3, Base +4, Base +5, Base +6
  • Product Link satellite, cellular
  • Rim, 431.8 mm x 635 mm (17 in x 25 in) MP (spare)
  • Snow wing, mounting frame ready
  • Fast fill

WORK TOOLS/G.E.T.

  • 4.9 m (16 ft) blade with flat cutting edge 254 mm x 35 mm (10in x 1 3/8 in )
  • Push block, counterweight
  • Ripper, rear
  • Tooth, ripper

FLUIDS

  • Coolant, -51 degrees C (-60 degrees F)
