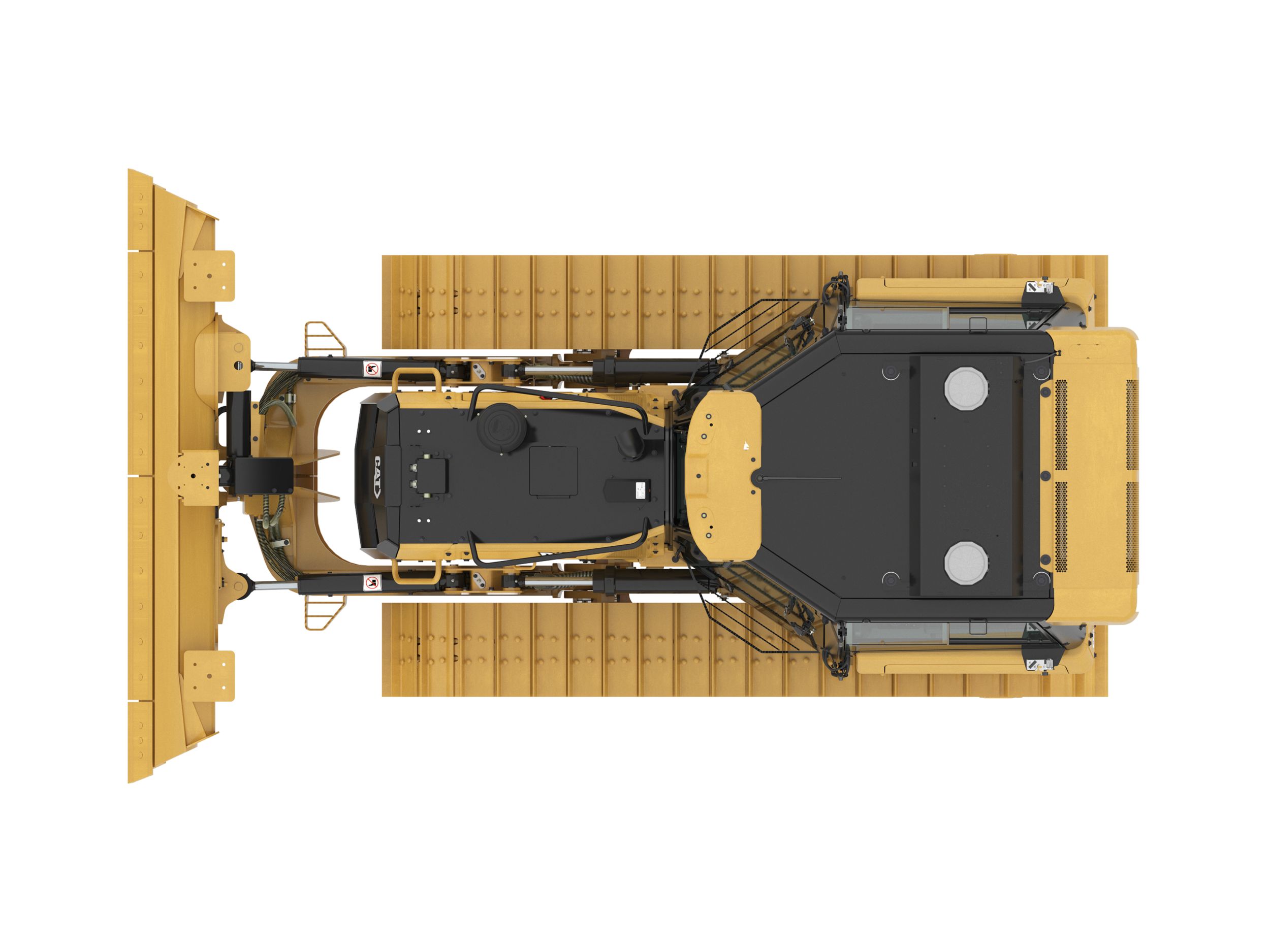

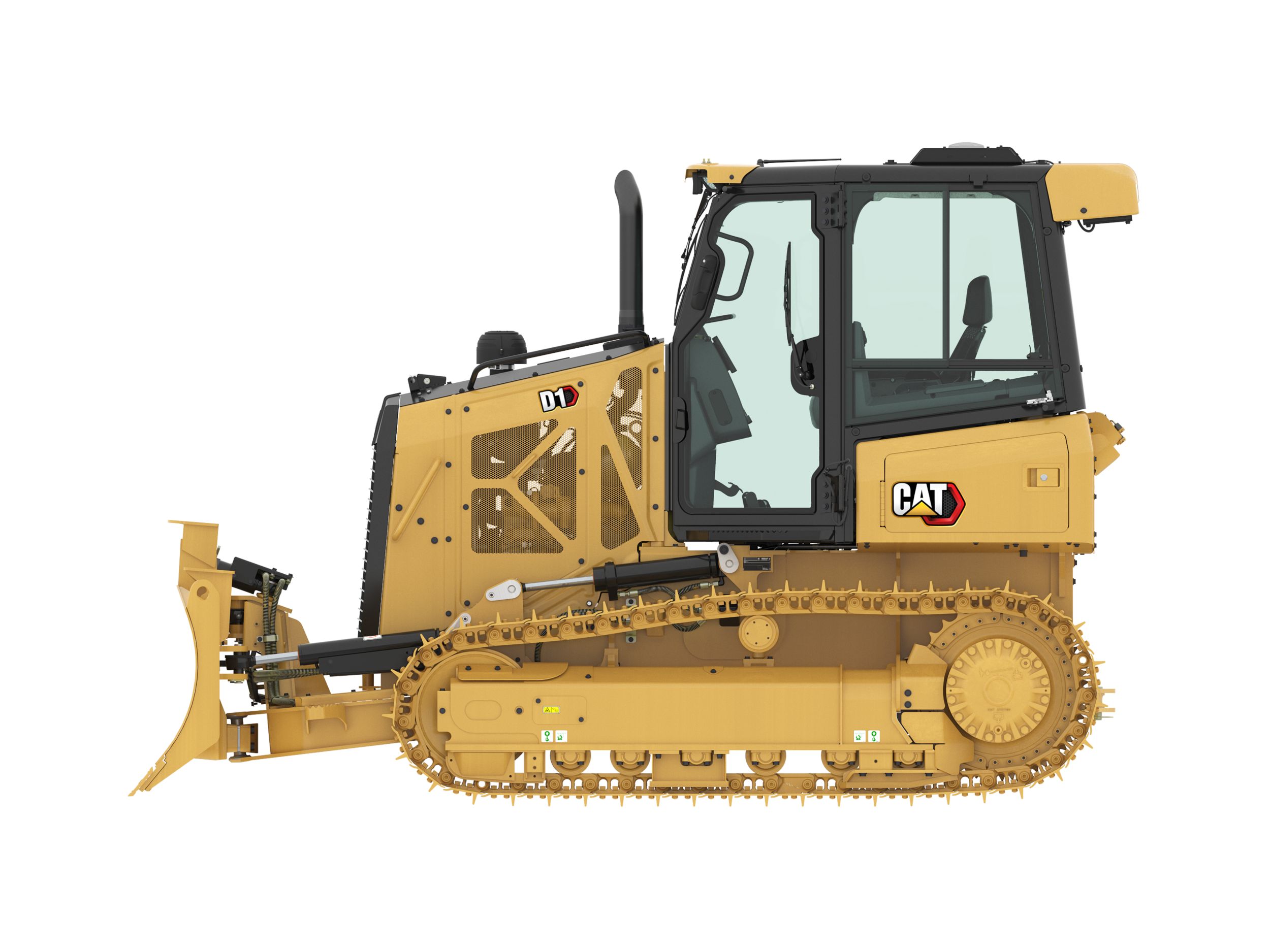

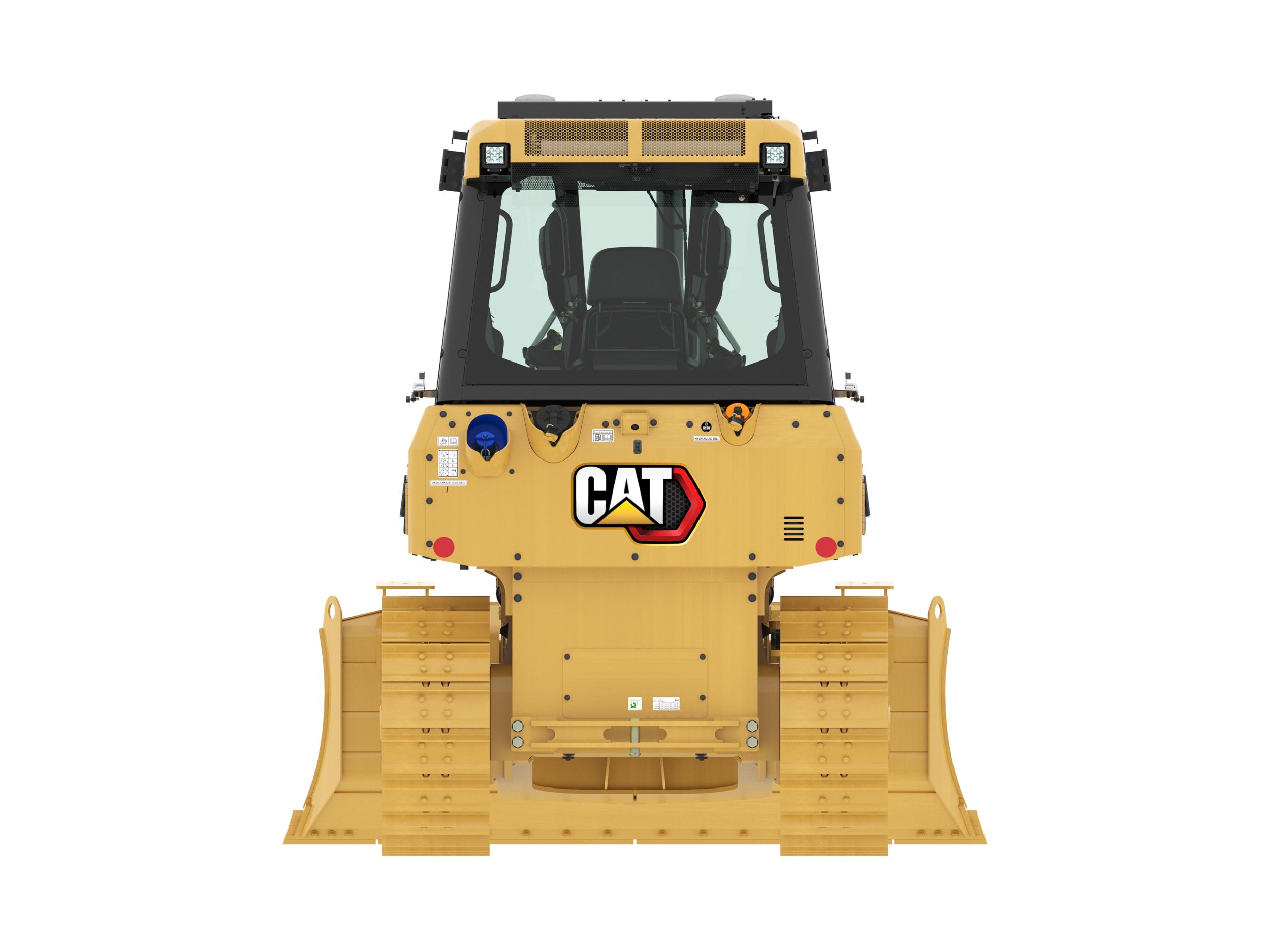

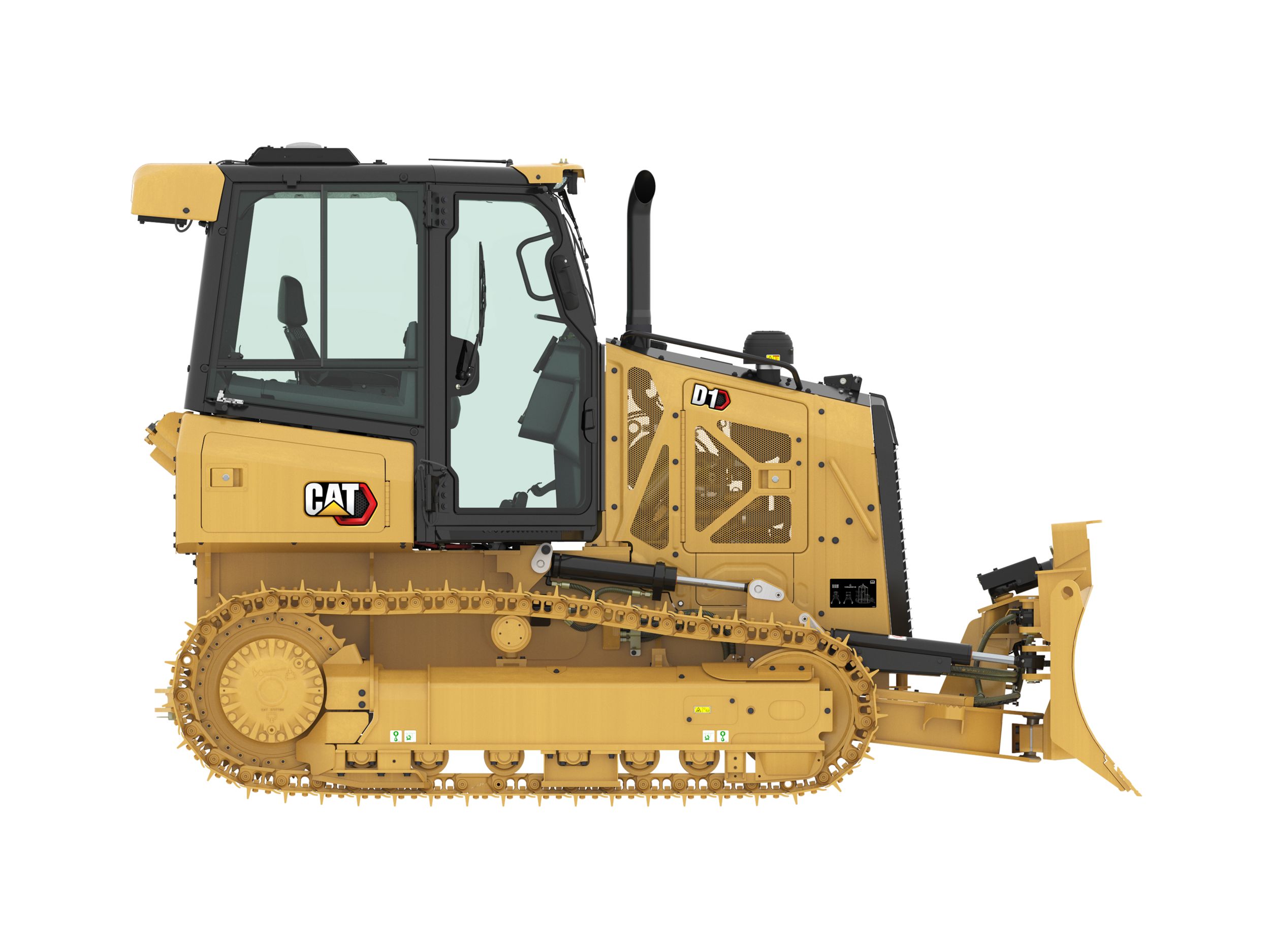

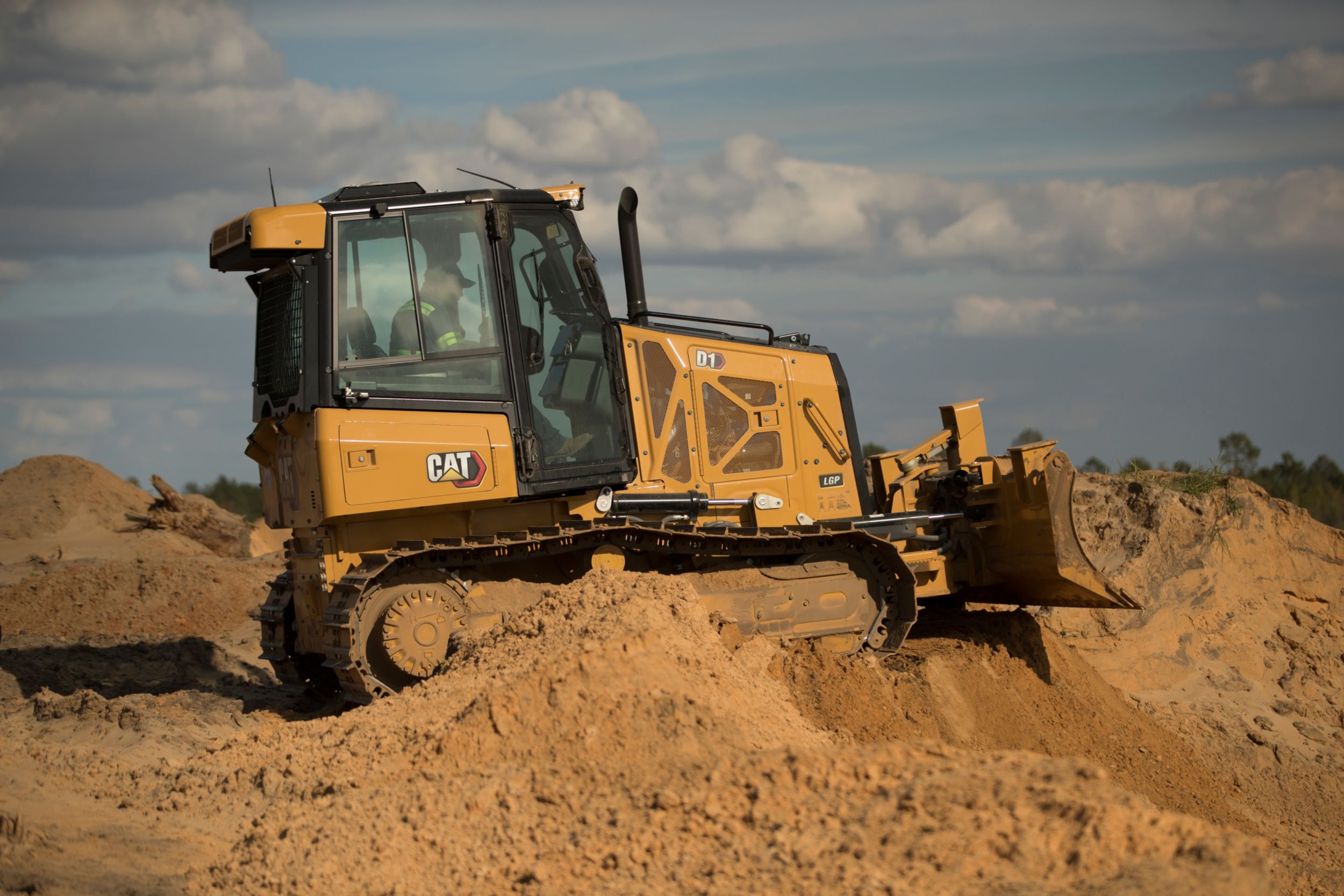

D1 Small Dozers | Cat

Engine

Engine Model	Cat C3.6 Cat C3.6
Power - Net	80 HP 59.7 kW
Displacement	220 in³ 3.6 l
Net Power - 2,200 rpm - SAE J1349	80 HP 59.7 kW
Net Power - 2,200 rpm - ISO 9249/EEC 80/1269	80 HP 59.7 kW
Note (1)	Net power is tested per ISO 9249:2007 and SAE J1349:2011 and as advertised is the power available at the ﬂywheel when the engine is equipped with fan, air intake system, exhaust system and alternator. Net power is tested per ISO 9249:2007 and SAE J1349:2011 and as advertised is the power available at the ﬂywheel when the engine is equipped with fan, air intake system, exhaust system and alternator.
Note (2)	All non-road U.S. EPA Tier 4 Final, EU Stage V, Japan 2014 (Tier 4 Final) and Korea Tier 4 Final diesel engines are required to use only Ultra Low Sulfur Diesel (ULSD) fuels containing 15 ppm EPA/10 ppm EU (mg/kg) sulfur or less. All non-road U.S. EPA Tier 4 Final, EU Stage V, Japan 2014 (Tier 4 Final) and Korea Tier 4 Final diesel engines are required to use only Ultra Low Sulfur Diesel (ULSD) fuels containing 15 ppm EPA/10 ppm EU (mg/kg) sulfur or less.

Engine

Power Train

Hydrostatic Hydrostatic

Weights

Operating Weight

17855 lb 8099 kg

Weights

Operating Weight - LGP	18839 lb 8545 kg
Note (1)	Specifications shown are for machine equipped with dozer blade, EROPS cab, back-up alarm, operator, coolant, lubricants and full fuel tank. Specifications shown are for machine equipped with dozer blade, EROPS cab, back-up alarm, operator, coolant, lubricants and full fuel tank.
Operating Weight - LGP, 762 mm/30 in	19295 lb 8752 kg
Note (2)	For machine with ripper, add 554 kg (1,222 lb). For machine with ripper, add 554 kg (1,222 lb).

Cab

FOPS	ISO 3449:2005 Level II ISO 3449:2005 Level II
ROPS	ISO 3471:2008 ISO 3471:2008

Transmission

Drive Pumps	1 1
Maximum Travel Speed - Reverse	6.2 mile/h 10 km/h
Relief Valve Settings	7033 psi 48500 kPa
Maximum Travel Speed - Forward	5.6 mile/h 9 km/h
Track Motors	2 2

Undercarriage

Length - Track on Ground - LGP, 762 mm (30 in)	89 in 2248 mm
Length - Track on Ground - LGP	89 in 2248 mm
Track Gauge - LGP	68 in 1725 mm
Shoe Width - LGP, 762 mm (30 in)	30 in 762 mm
Track Gauge - LGP, 762 mm (30 in)	73 in 1860 mm
Shoe Width - LGP	25 in 635 mm
Track Gauge	59 in 1495 mm
Shoe Width - Standard	16 in 406 mm
Ground Pressure - LGP	4.3 psi 29.9 kPa
Ground Pressure - LGP, 762 mm (30 in)	3.7 psi 25.5 kPa
Number of Shoes - Each Side - Sealed and Lubricated Track (SALT) Undercarriage	43 43
Number of Rollers - Each Side	6 6

Undercarriage

Length of Track on Ground	89 in 2248 mm
Number of Shoes - Each Side - Abrasion Undercarriage	38 38
Ground Pressure	6.45 psi 44.5 kPa

Service Refill Capacities

Final Drive - Each - LGP	2.6 gal (US) 10 l
Cooling System	4.2 gal (US) 19 l
Diesel Exhaust Fluid (DEF) Tank	4.9 gal (US) 19 l
Transmission - Hydraulic Tank	23.8 gal (US) 90 l
Crankcase - With Filter	2.8 gal (US) 10.5 l
Fuel Tank	51.5 gal (US) 195 l

Service Refill Capacities

Final Drives - Each Side

2.6 gal (US) 10 l

Hydraulic Controls

Pump Output	17.2 gal/min 65 l/min
Relief Valve Settings	2988 psi 20600 kPa

Ripper

Type	Parallelogram Parallelogram
Number of Shanks	3 3
Height	6.5 in 165 mm
Weight	1222 lb 554 kg
Maximum Ground Clearance Under Tip	17.6 in 448 mm
Maximum Digging Depth	13.3 in 337.5 mm
Overall Width	67.3 in 1710 mm
Maximum Reach - Ground Line	30.2 in 766 mm

Winch

Weight	1345 lb 610 kg
Winch Drive	Hydrostatic Hydrostatic
Control	Hydraulic Hydraulic
Speed	Variable Variable
Drum Capacity - Optional Cable	256 ft 78 m
Maximum Line Speed - Full Drum	207 ft/min 63 m/min
Rope Diameter - Optional	0.75 in 19 mm
Maximum Line Pull - Full Drum	25000 lb 11340 kg
Maximum Line Speed - Bare Drum	131 ft/min 40 m/min
Rope Diameter - Recommended	0.63 in 16 mm
Drum Width	10.8 in 274 mm
Drum Capacity - Recommended Cable	371 ft 113 m
Maximum Line Pull - Bare Drum	40000 lb 18144 kg
Drum Diameter	10 in 254 mm
Winch Length	27.76 in 705 mm
Throat Clearance	6.75 in 171.5 mm
Overall Width	29.2 in 741 mm

Air Conditioning System

Air Conditioning

The air conditioning system on this machine contains the ﬂuorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.8 kg of refrigerant which has a CO2 equivalent of 2.574 metric tonnes. The air conditioning system on this machine contains the ﬂuorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.8 kg of refrigerant which has a CO2 equivalent of 2.574 metric tonnes.

Dimensions

BLADE: Blade Capacity (SAE) - LGP	2.17 yd³ 1.99 m³
BLADE: Blade Lift Height - LGP	28.7 in 730 mm
BLADE: Maximum Tilt - LGP	17.2 in 438 mm
BLADE: Blade Width - LGP	124 in 3149 mm
Ground Clearance - LGP	13 in 332 mm
BLADE: Blade Width at Maximum Angle - LGP	113.1 in 2874 mm
BLADE: Digging Depth - LGP	23 in 583 mm
Track Gauge - LGP	67.9 in 1725 mm
Ground Clearance - LGP, 762 mm (30 in)	13 in 332 mm
BLADE: Blade Height - LGP	33.8 in 860 mm
Overall Length - With Blade - LGP, 762 mm (30 in)	167.8 in 4262 mm
Track Gauge - LGP, 762 mm (30 in)	73 in 1860 mm
BLADE: Blade Cutting Edge Angle, Adjustable - LGP	52° to 58° 52° to 58°
BLADE: Maximum Angle (either side) - LGP	25° 25°
Overall Length - With Blade - LGP	167.8 in 4262 mm
Note	Abrasion Undercarriage Abrasion Undercarriage
Length of Basic Dozer (without blade) - LGP, 762 mm (30 in)	129.6 in 3291 mm
Width of Dozer (standard shoes, no blade) - Standard	74.8 in 1900 mm
Length of Basic Dozer (without blade) - Standard	129.6 in 3291 mm
Length of Basic Dozer (without blade) - LGP	129.6 in 3291 mm
Width of Dozer (standard shoes, no blade) - LGP, 762 mm (30 in)	94.9 in 2411 mm
Dozer Height - LGP	108.9 in 2765 mm
Width of Dozer (standard shoes, no blade) - LGP	92.9 in 2360 mm
Dozer Height - LGP, 762 mm (30 in)	108.9 in 2765 mm
Dozer Height - Standard	108.9 in 2765 mm

Dimensions

BLADE: Blade Width at Maximum Angle - Standard	95.2 in 2417 mm
BLADE: Digging Depth - Standard	23.2 in 589 mm
BLADE: Blade Width - Standard	104.2 in 2646 mm
BLADE: Blade Lift Height - Standard	28.7 in 730 mm
Ground Clearance - Standard	13 in 332 mm
BLADE: Blade Cutting Edge Angle, Adjustable - Standard	52° to 58° 52° to 58°
BLADE: Maximum Angle (either side) - Standard	25° 25°
BLADE: Maximum Tilt - Standard	14.5 in 368 mm
BLADE: Blade Capacity (SAE) - Standard	1.99 yd³ 1.52 m³
Track Gauge - Standard	58.9 in 1495 mm
BLADE: Blade Height - Standard	35.8 in 910 mm
Overall Length - With Blade - Standard	168 in 4273 mm
Note	With Ripper Attachment (add to Length of Basic Dozer) - 1177 mm (46.3 in) With Ripper Attachment (add to Length of Basic Dozer) - 1177 mm (46.3 in)
