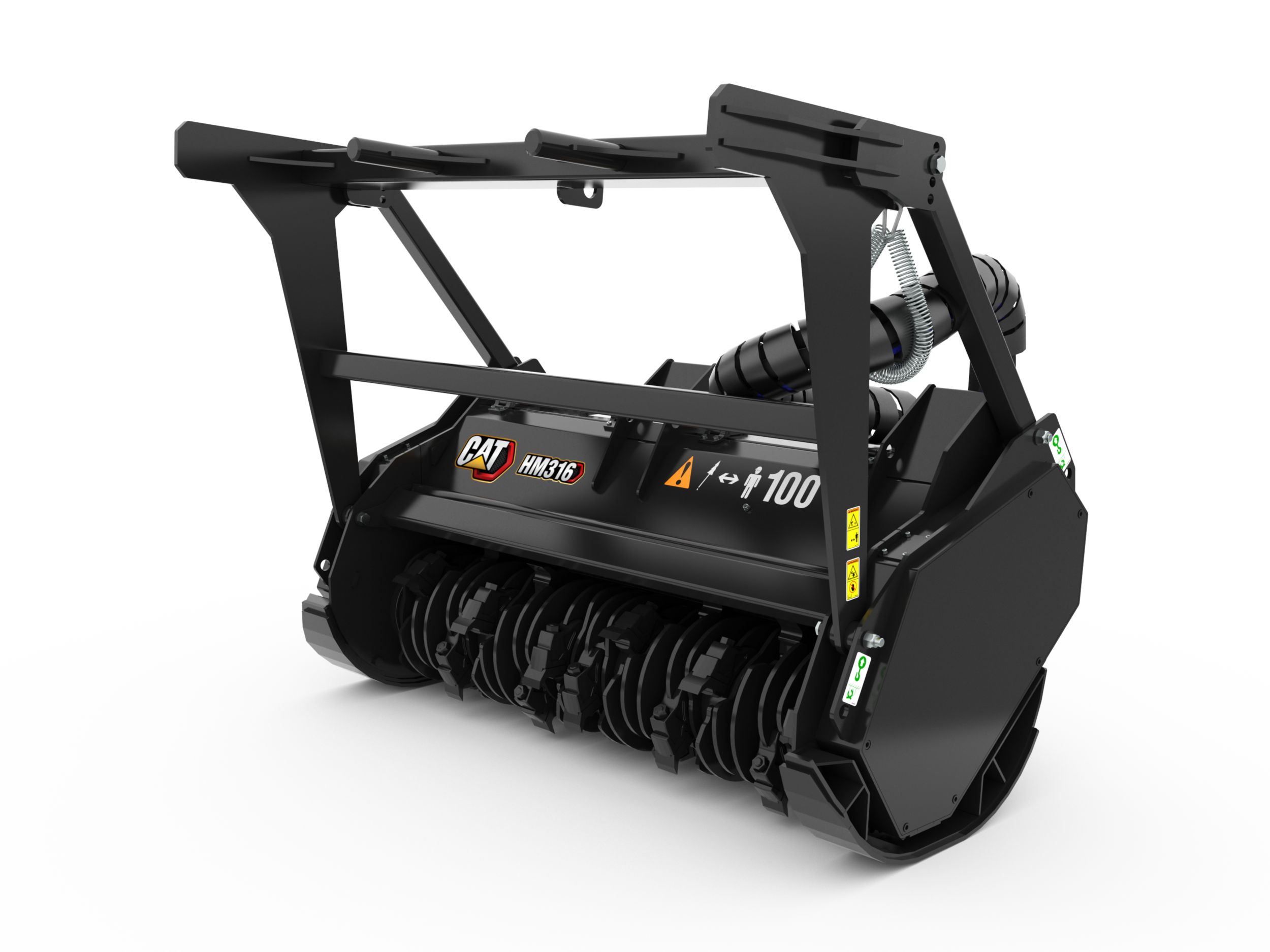

Mulchers HM316 Bite Limiter

Request A Price Click for Price

Key Specs

Overall Width: 74.1 in; 1882 mm

Working Width: 62.3 in; 1582 mm

Length: 53.3 in; 1354 mm

HM316 Bite Limiter
Change model

Overview

High-performance cutting and mulching of vegetation and overgrowth.

Features At A Glance

Use Mulchers for brush clearing, vegetation management, reclaiming untitled land, environmental maintenance, shredding pruned material and organic waste for biomass production.

Designed for high-performance cutting, and mulching vegetation and undergrowth from typical wooded terrain. Reduces saplings, shrubs and trees into mulched material.

Rugged mulching head processes trees up to 200 mm (8 in) diameter for effective land clearing applications.

Dual speed, axial piston motor provides smooth, efficient performance while delivering optimal torque under changing material loads.

Standard adjustable push frame allows for control of trees for optimal cutting and efficiency. Low profile design improves operator visibility and pin-style segments provide the opportunity to control which section of teeth are cutting, improving tooth life.

Color-coded pressure gauge is standard equipment that provides operator feedback in order to maximize productivity. With green, yellow, and red regions, the operator has indication of the load being applied to the mulcher and if adjustments can be made to maximize productivity in changing material loads.

Rear chain guard protection reduces spread of material.

Serrated steps allow for safe and easy access in and out of the cab.

Hinged and lockable service panel allows easy access to hoses. Lockable with your Cat® key, the service panel allows easy access to drive train components during service and inspection.

Adjustable and replaceable skid shoes allow operator to control the ground height to accommodate different types of terrain.

Provide a consistent cut and consistent finished product.

Product Specifications for HM316 Bite Limiter

Overall Width	74.1 in 1882 mm
Working Width	62.3 in 1582 mm
Length	53.3 in 1354 mm
Overall Height	58.3 in 1480 mm
Weight	3053.4 lb 1385 kg
Drive Method	Polychain Belt Polychain Belt
Motor	Axial Piston Dual Speed Axial Piston Dual Speed
Required Hydraulics	High Flow XPS High Flow XPS
Optimal Hydraulic Flow	120-125 L/min (31-33 gpm) 120-125 L/min (31-33 gpm)
Optimal Hydraulic Pressure	200-278 bar (2900-4061 psi) 200-278 bar (2900-4061 psi)
Drum Speed	2576-2683 rpm 2576-2683 rpm
Fixed Teeth per Drum	26 26
Maximum Cutting Diameter	7.9 in 200 mm
Maximum Cutting Depth	1 in 26 mm
