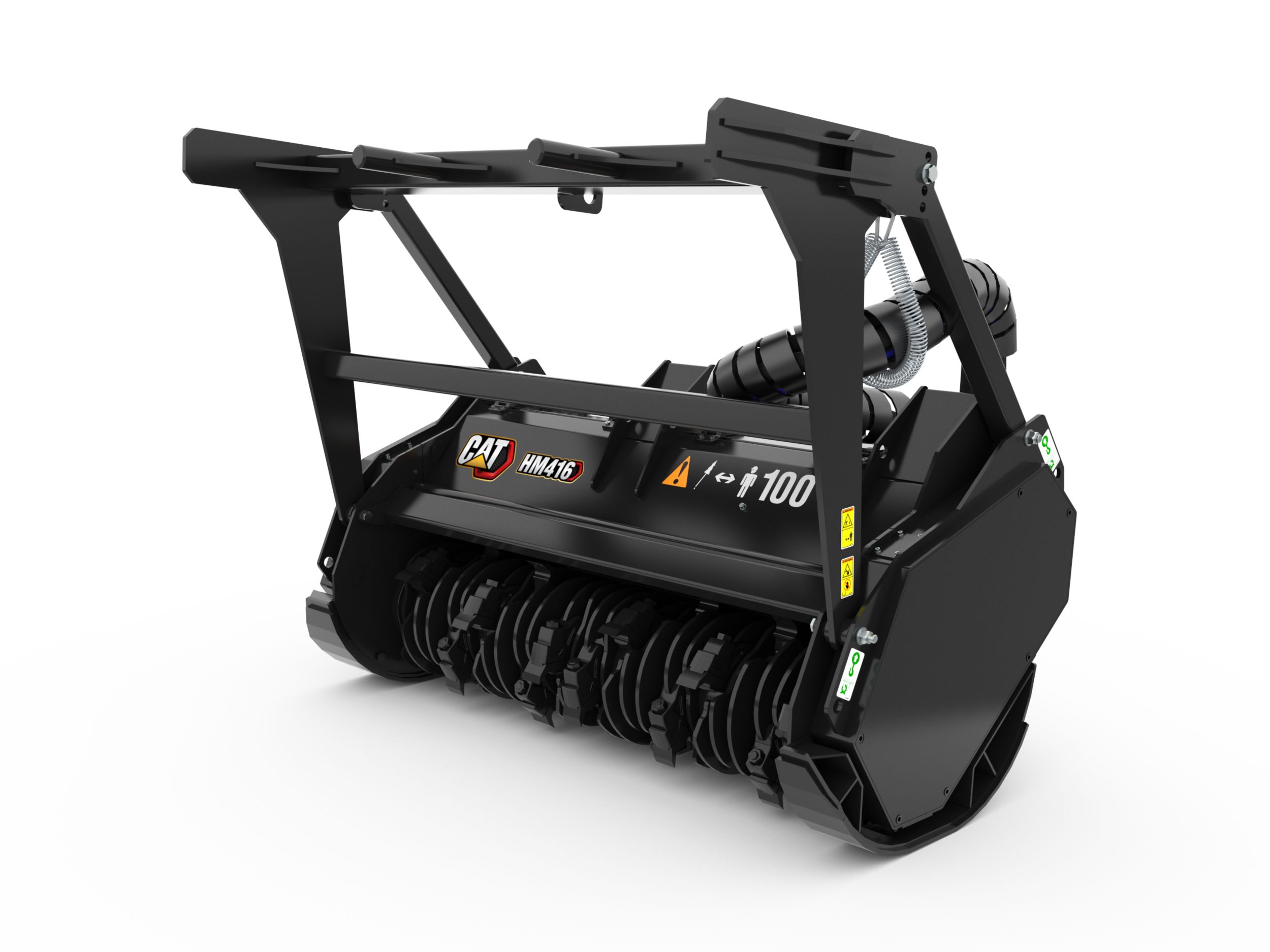

Studio Shot

Mulchers HM416 Bite Limiter

Request A Price Click for Price

Key Specs

Overall Width
74.1 in
1882 mm
Working Width
62.3 in
1582 mm
Length
53.3 in
1354 mm

Overview

High-performance cutting and mulching of vegetation and overgrowth.

Product Specifications for HM416 Bite Limiter

Overall Width 74.1 in 1882 mm
Working Width 62.3 in 1582 mm
Length 53.3 in 1354 mm
Overall Height 58.3 in 1480 mm
Weight 3020.3 lb 1370 kg
Drive Method Polychain Belt Polychain Belt
Motor Axial Piston Dual Speed Axial Piston Dual Speed
Required Hydraulics XHP / XE XHP / XE
Optimal Hydraulic Flow 150-155 L/min (40-41 gpm) 150-155 L/min (40-41 gpm)
Optimal Hydraulic Pressure 200-278 bar (2900-4061 psi) 200-278 bar (2900-4061 psi)
Drum Speed 2673-2762 rpm 2673-2762 rpm
Fixed Teeth per Drum 26 26
Maximum Cutting Diameter 7.9 in 200 mm
Maximum Cutting Depth 1 in 26 mm

See how HM416 Bite Limiter compares against frequently compared products.
