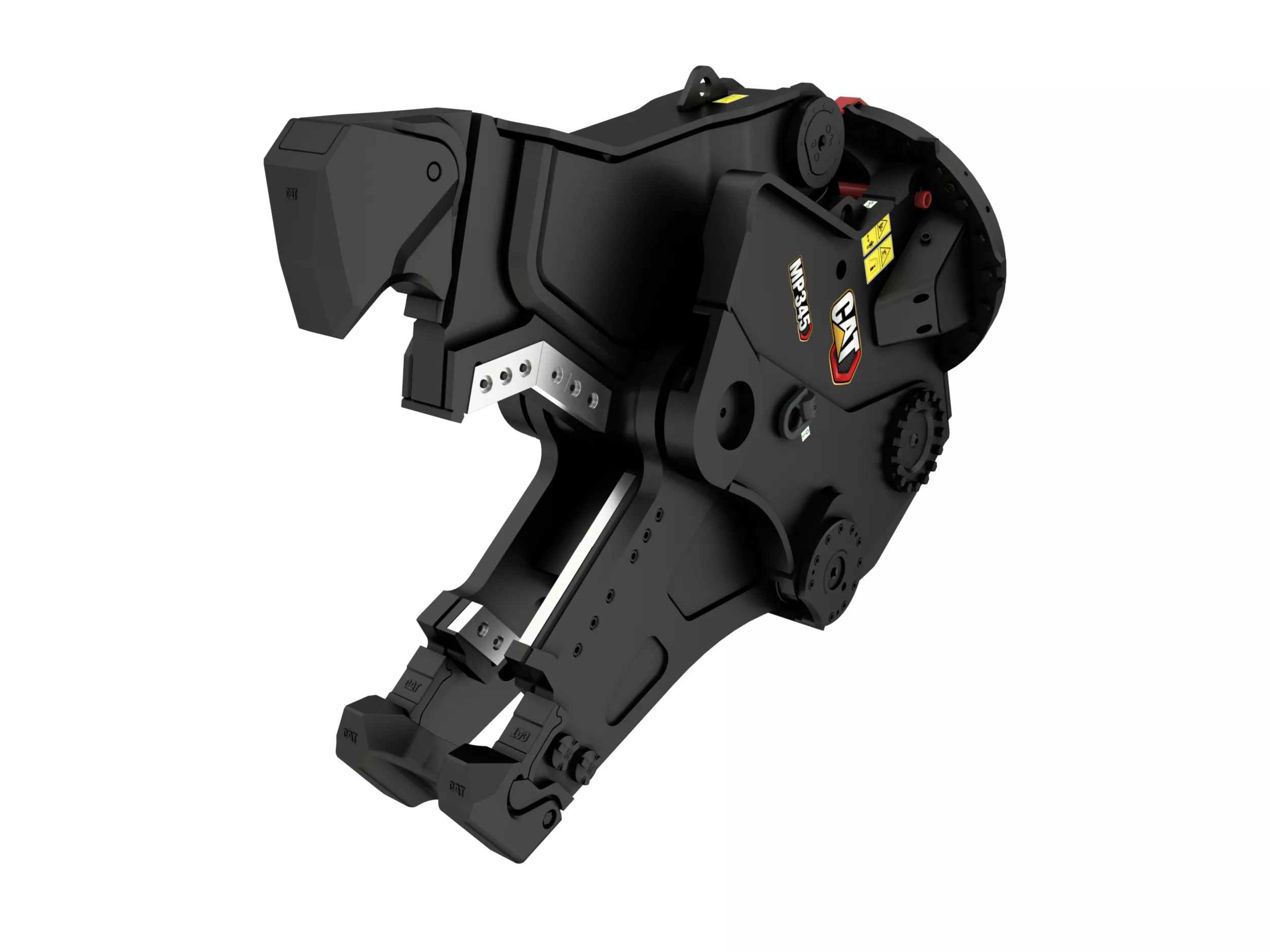

MP345 with Concrete Cutter Jaw

Multi-Processor with Concrete Cutter Jaws MP345 Concrete Cutter Jaw

Request A Price Find Dealer

Key Specs

Cycle Time - Open
1.9 s
1.9 s
Excavator Minimum
45 tons
45 tons
Cycle Time - Close
1.3 s
1.3 s


Cat® Multi-Processors accept multiple interchangeable jaws for a wide range of demolition tasks. Faster cycle times get your jobs done quicker. Greater power means taking on bigger jobs. Quick jaw change gives you the right tool for the task at hand, without slowing you down. All built on a durable, easy to maintain platform.

Product Specifications for MP345 Concrete Cutter Jaw

Cycle Time - Open 1.9 s 1.9 s
Cycle Time - Close 1.3 s 1.3 s
Crushing Force - Primary Cutter 573 Sh Ton 5102 kN
Crushing Force - Cutter Tip 268 Sh Ton 2382 kN
Crushing Force - Tooth Tip 188 Sh Ton 1670 kN
Jaw Circuit - Max. Oil Pressure 350 bar 5076 psi
Jaw Circuit - Max. Oil Flow 360 l/min 95 gal/min
Rotation Circuit - Max. Oil Pressure 2321 psi 160 bar
Rotation Circuit - Max. Oil Flow 50 l/min 13 gal/min
Jaw Depth 36 in 913 mm
Cutter Length 20 in 501 mm
Jaw Opening - Maximum 40.3 in 1023 mm
Jaw Width - Fixed 509 mm 20 in
Jaw Width - Moveable 7.4 in 187 mm
Weight - Housing, Jaw and Bracket 4316 kg 9515 lb
Weight - Jaw Only 1971 kg 4345 lb
Excavator Minimum 45 tons 45 tons
Excavator Maximum 65 tons 65 tons

See how MP345 Concrete Cutter Jaw compares against frequently compared products.
