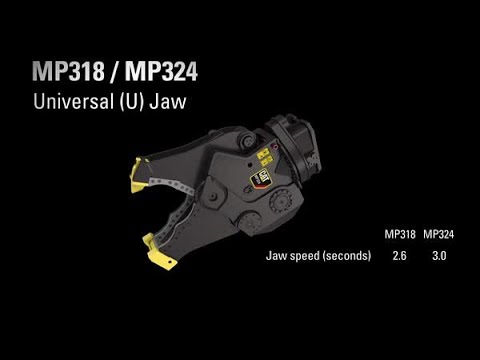

MP324 Universal Jaw

< Back

View Product Downloads
Yes, I would like to receive future marketing communications (such as email) from Caterpillar Inc., its affiliates and subsidiaries worldwide and the Caterpillar dealer network. Regardless of whether you decide to receive these marketing communications, Caterpillar will continue to send service/transactional messages, including those that have to do with any accounts that you may have with us.

Overview

MP324 Universal Jaw

Dimensions - Jaw

Units:
Jaw Depth 27.0 in 6.8 mm Less
Cutter Length 21.0 in 5.26 mm Less
Jaw Opening - Maximum 25.0 in 6.42 mm Less
Jaw Width - Fixed 18.0 in 4.54 mm Less
Jaw Width - Moveable 9.0 in 2.35 mm Less

Dimensions - Housing + Jaw

Length 86.0 in 21.94 mm Less
Height 58.0 in 14.64 mm Less
Width 31.0 in 7.93 mm Less

Weight

Weight - Housing, Jaw and Bracket 60.17 lb 2735.0 kg Less
Weight - Jaw 24.4 lb 1109.0 kg Less

Performance

Cycle Time - Open 0.012 s 0.018 s Less
Cycle Time - Close 0.012 s 0.018 s Less
Crushing Force - Primary Cutter 4.1 Sh Ton 3646.0 kN Less
Crushing Force - Cutter Tip 2.21 Sh Ton 1964.0 kN Less
Crushing Force - Tooth Tip 1.33 Sh Ton 1180.0 kN Less

Universal Jaw

50% Faster Cycle Time

Upto 19% More Force

15-minute Jaw Change

Durable and Maintainable
