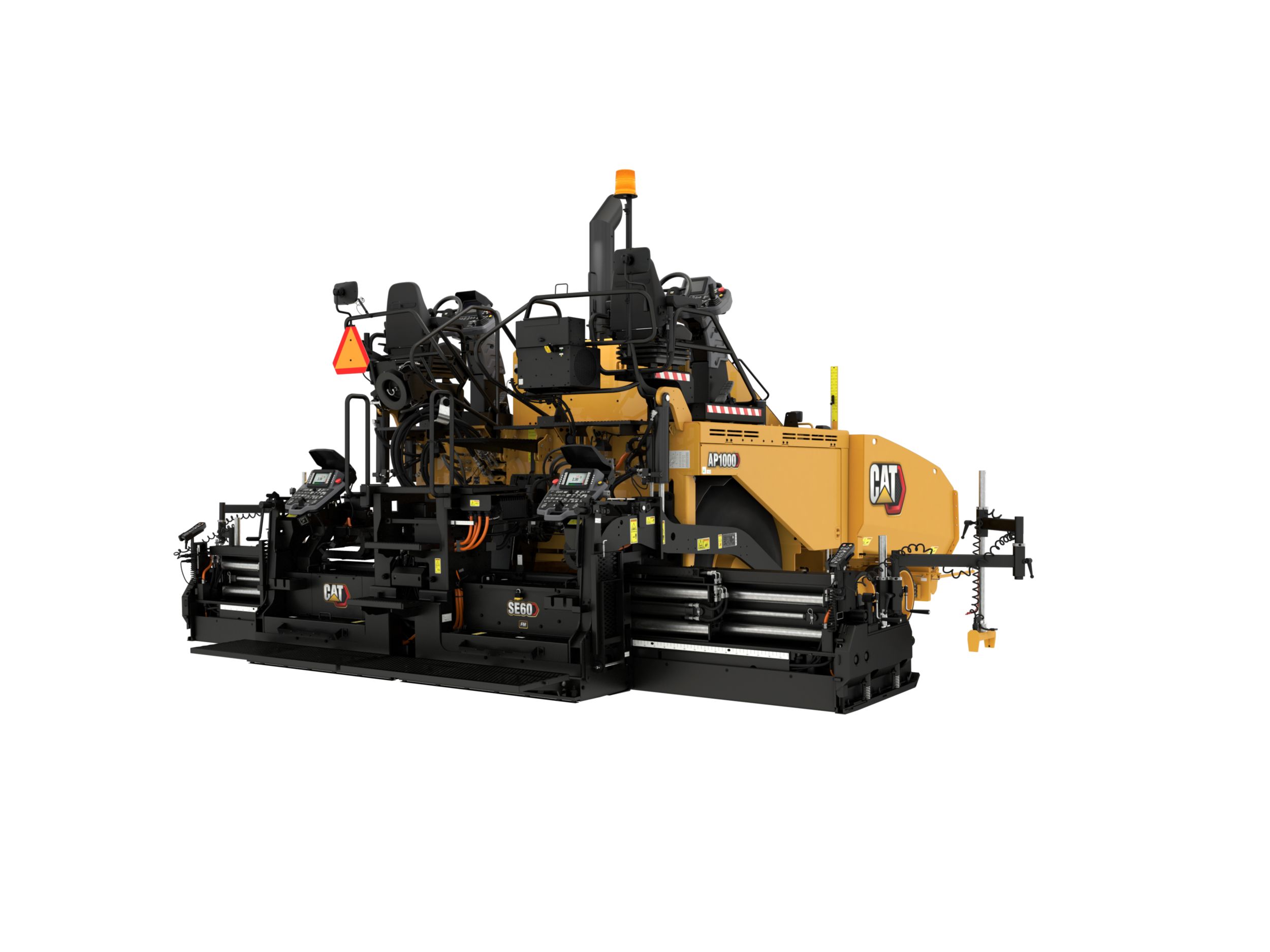

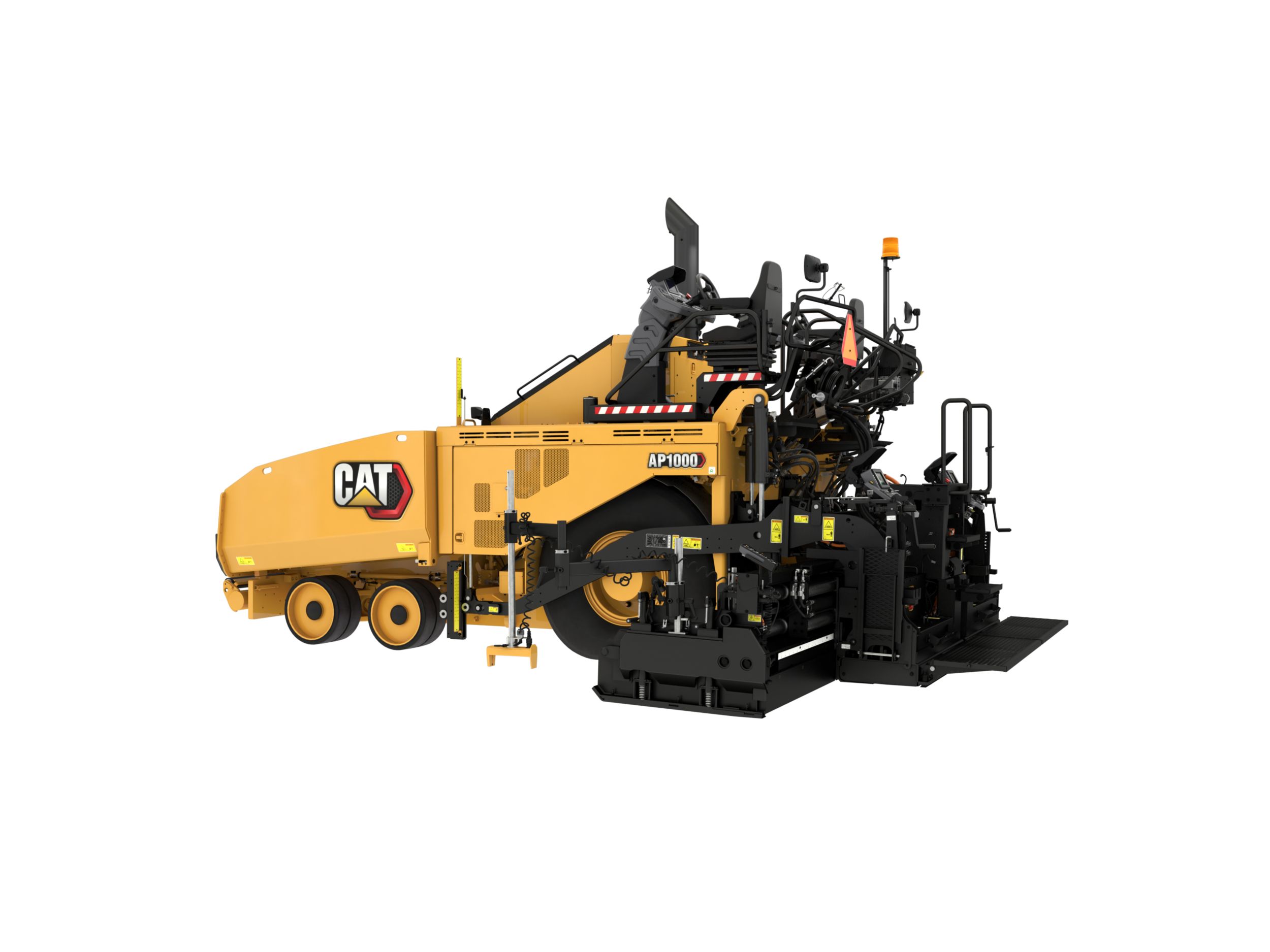

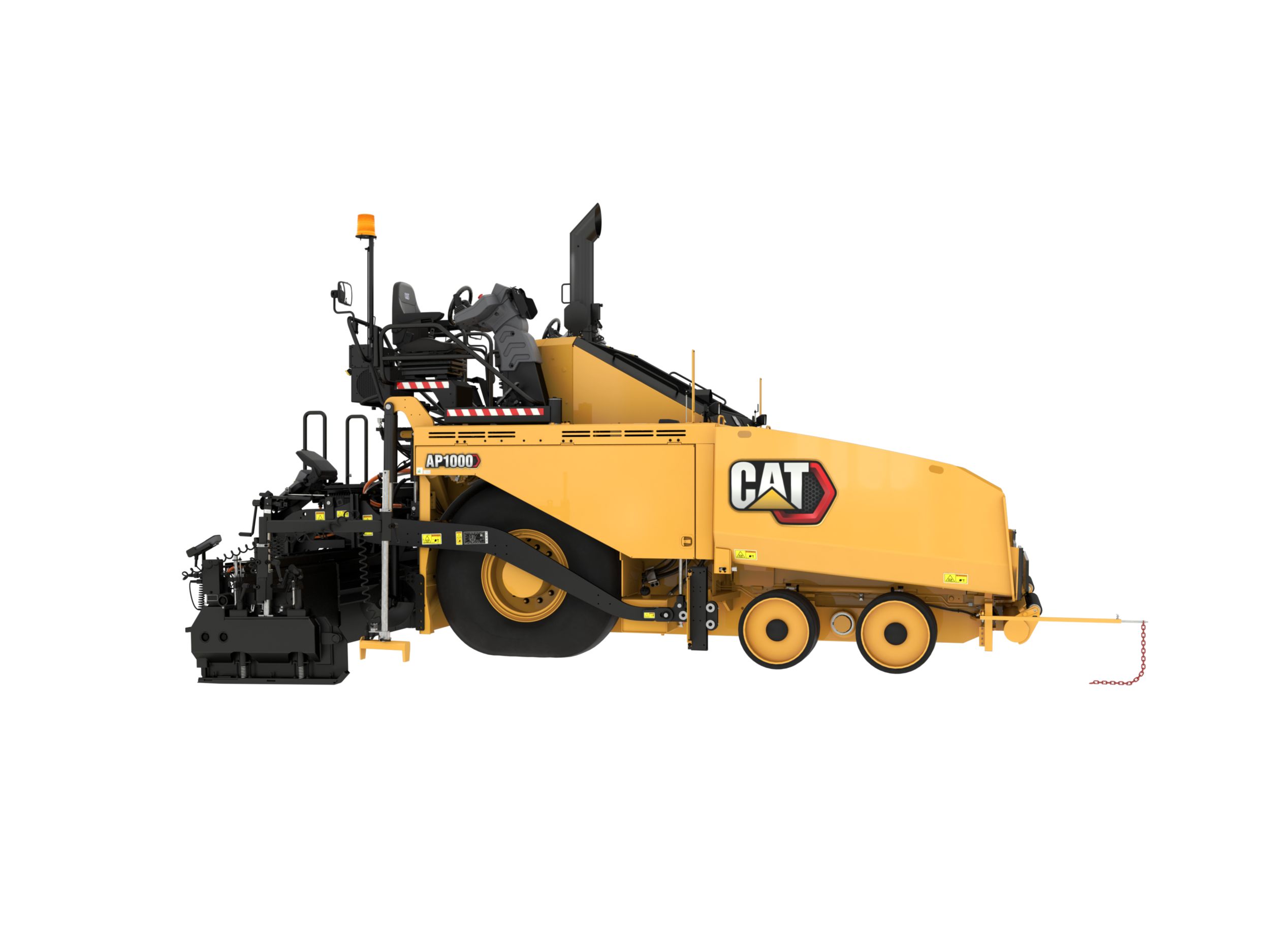

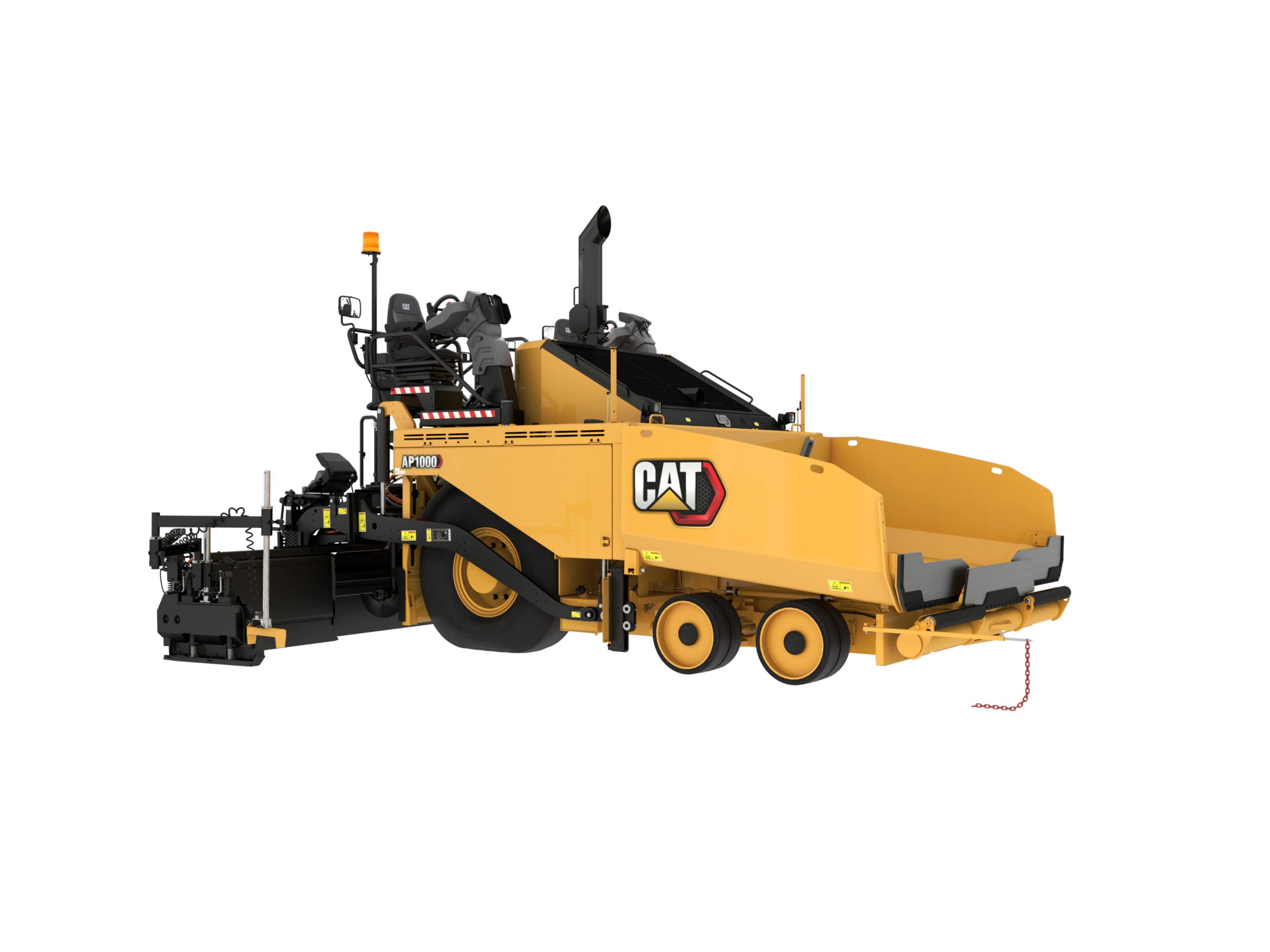

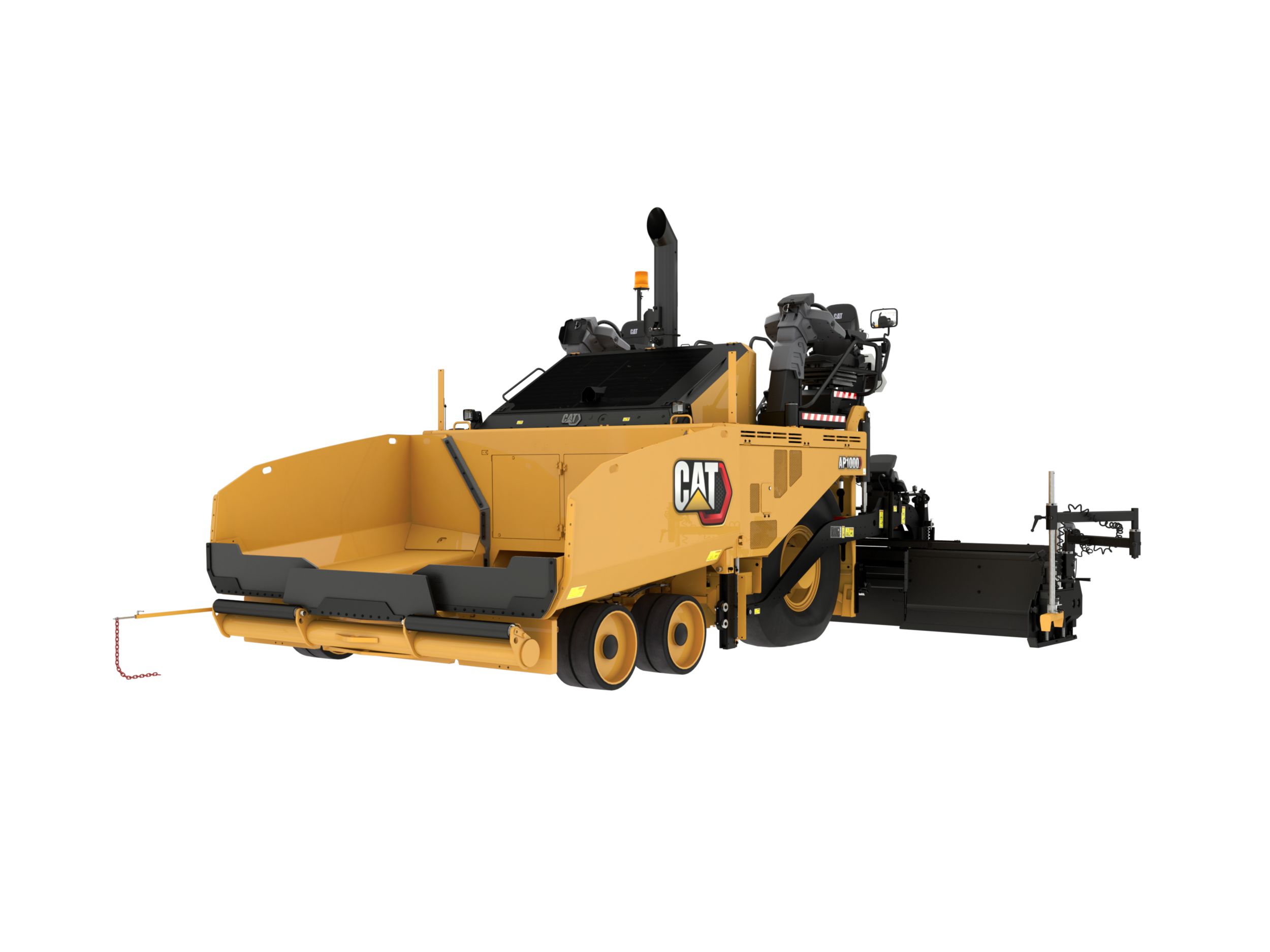

Wheel Asphalt Pavers AP1000

Request A Price Find Dealer

Key Specs

Gross Power
225 HP
168 kW
Paving Range with SE60 FM
3 m - 7.8 m (10' - 25' 6")
3 m - 7.8 m (10' - 25' 6")
Operating weight with SE60 FM
42620 lb
19332 kg

Overview

Simple, Mobile, Productive

The Cat  AP1000 asphalt paver is a wheel paver that delivers a high-return on investment with its fast-heating screed system, low fuel consumption, durable components, and easy to use technology. A variety of screed choices offer versatility and provide high-quality results on interstates, highways, airports, and parking lots.

Benefits

Advanced Technology

with pave start assistant, thermal mapping and hopper level sensors

Up to 15% More Fuel Efficient

with advanced Eco-mode and integrated generator design.

Simple and Quiet Operation

with intuitive touch-screen displays and ultra-low sound levels.

Product Specifications for AP1000

Gross Power 225 HP 168 kW
Engine Model Cat C7.1 Cat C7.1
Maximum Travel Speed 12 mile/h 19.9 km/h
Maximum Paving Speed 250 ft/min 76 m/min
Maximum Paving Speed - With Tamper Bar Screed 82 ft/min 25 m/min
Inside Turn Radius 4.5 ft 1.5 m
Maximum Throughput Capacity 1766 tonnes/hr 1602 tonnes/hr
Paving Range with SE60 FM 3 m - 7.8 m (10' - 25' 6") 3 m - 7.8 m (10' - 25' 6")
Paving Range with SE60 V 3 m - 7.65 m (9' 10" - 25') 3 m - 7.65 m (9' 10" - 25')
Paving Range with SE60 V XW 3 m - 7.5 m (10' - 24' 6") 3 m - 7.5 m (10' - 24' 6")
Paving Range with SE60 VT XW 3 m - 6 m (10' - 19' 6") 3 m - 6 m (10' - 19' 6")
Operating Length 22.3 ft 6.8 m
Operating Width 10.8 ft 3.3 m
Overall Height 12.3 ft 3.8 m
Transport Length 20.9 ft 6.4 m
Transport Width 11.9 ft 3.6 m
Transport Height 9.8 ft 3 m
Operating weight with SE60 FM 42620 lb 19332 kg
Operating weight with SE60 V 42360 lb 19214 kg
Operating weight with SE60 V XW 43848 lb 19889 kg
Shipping Weight - Paver Only 34228 lb 15526 kg
Fuel Tank Capacity 92 gal (US) 348 l
DEF Tank 5 gal (US) 19.1 l
Cooling System - Total 12 gal (US) 45 l
Hydraulic Oil Tank 58 gal (US) 219 l
Washdown Spray Tank 7.9 gal (US) 30 l

AP1000 Standard Equipment

Electrical system

  • 70 kW generator
  • Cat Electronic Technician
  • Machine security system
  • Remote jump start receptacle
  • Automotive type fuse system
  • 12-volt power receptacle
  • 100 amp alternator
  • 1000 CCA batteries

Material Delivery

  • Contact-type material feed sensors
  • Adjustable push-roller

Service and Maintenance

  • Extended-life coolant
  • Remote access drains
  • Scheduled Oil sampling ports
  • Sight gauges

Safety

  • Back-up alarm
  • Horn
  • Working lights
  • Mirror package
  • Vandal covers

Operating Environment

  • Dual operating stations
  • Steering guide
  • Ventilation System

Technology

  • Product Link™ Elite 641_cellular

Powertrain

  • Automatic engine speed control
  • Cat C7.1 Engine
  • Variable speed cooling fan
  • Eco-mode
  • Extended life hydraulic oil

AP1000 Optional Equipment

Technology

  • Cat Grade Control
  • Hopper level and material height sensor
  • Pave start assistant
  • Product Link™ Elite 631_satellite
  • Thermal mapping

Powertrain

  • All wheel drive
  • Ballast_front weights
  • Front wheel assist
  • Radial drive tires
  • Sand rib drive tires

Electrical System

  • Auxiliary power panel_6.6 kW

Operating Environment

  • Air-ride seat
  • Windshield
  • Hard top canopy
  • Deceleration pedal
  • Heated seats
  • Side shields
  • Towpoint indicator (2nd)
  • Umbrella
  • Ventilation system
  • Screen visor

Material Delivery

  • Auger extension
  • Leveling devices
  • Mainframe extensions_manual
  • Mainframe extensions_power
  • Sonic feed sensors
  • Power folding front apron
  • Truck hitch
  • Washdown pump and reel
  • Washdown tank
  • Wide width paving packages

Service and Maintenance

  • Service repair kits
  • Uptime kits

Grade References

  • Sonic Averaging Beam
  • Rigid Ski, 9.15 m (30') and 12.2 m (40')

Screed Choices

  • SE60 V XW Screed
  • SE5 VT XW Screed
  • SE60 V Screed
  • SE60 FM Screed
  • SE60 FM Screed
