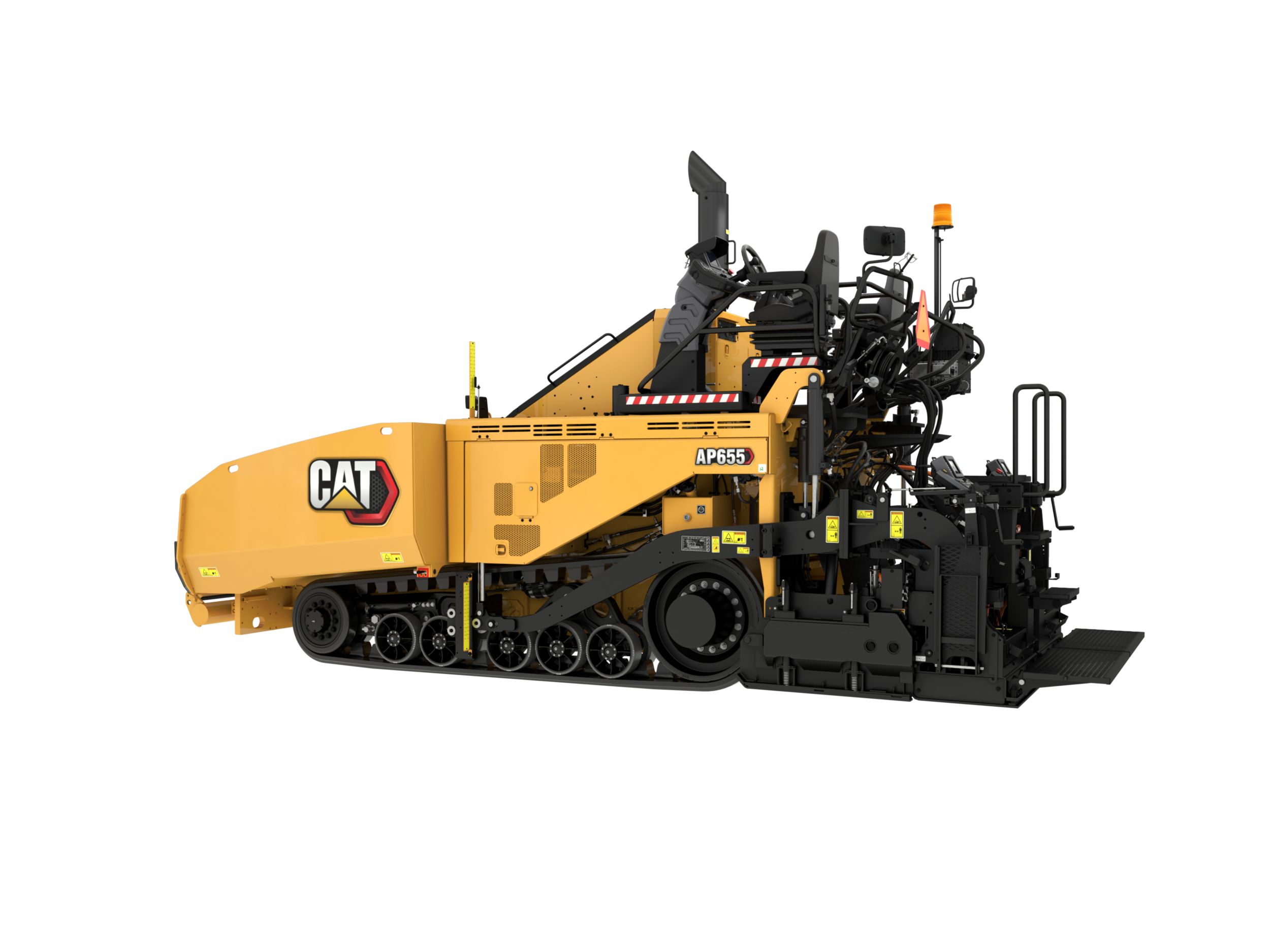

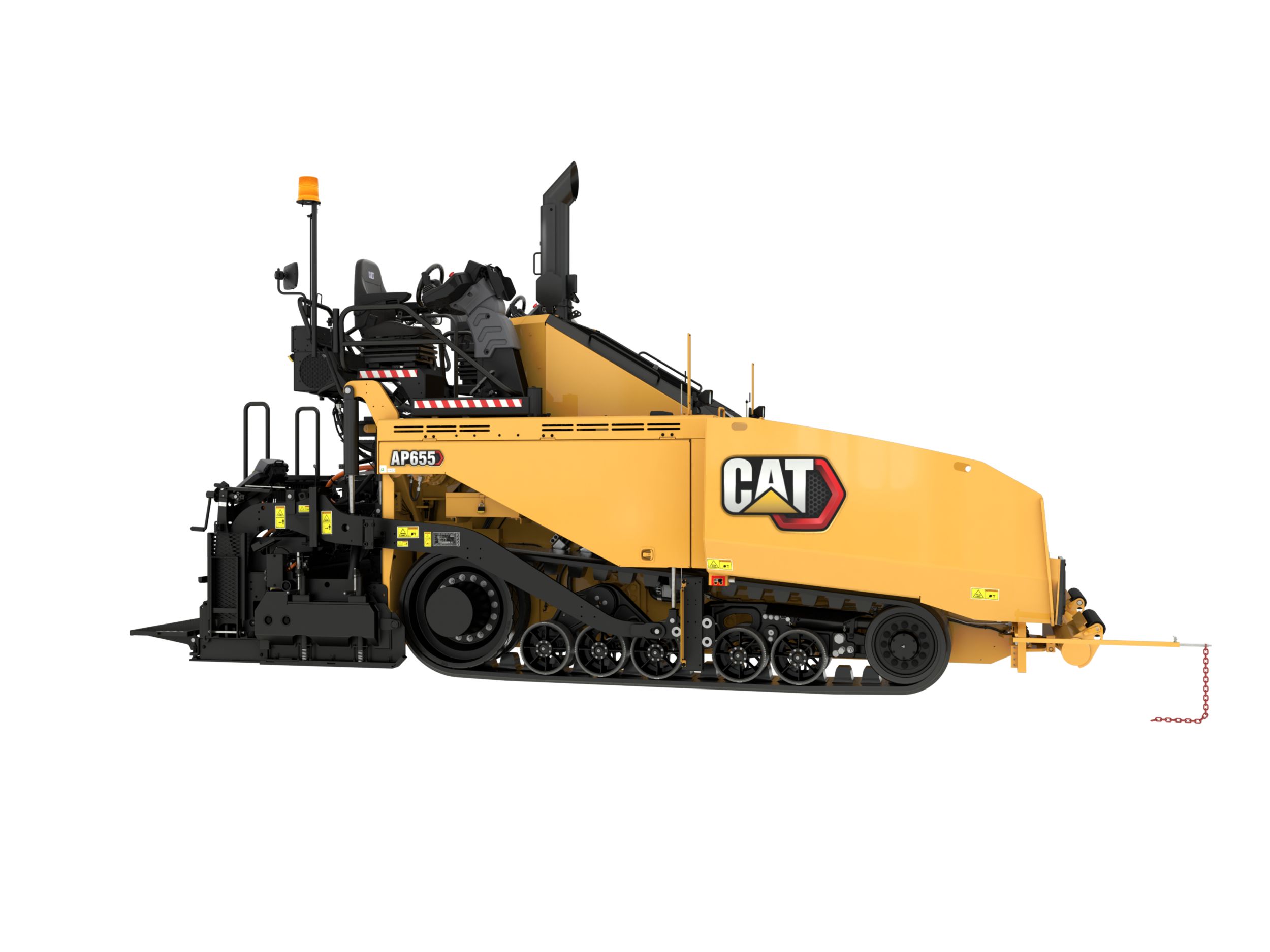

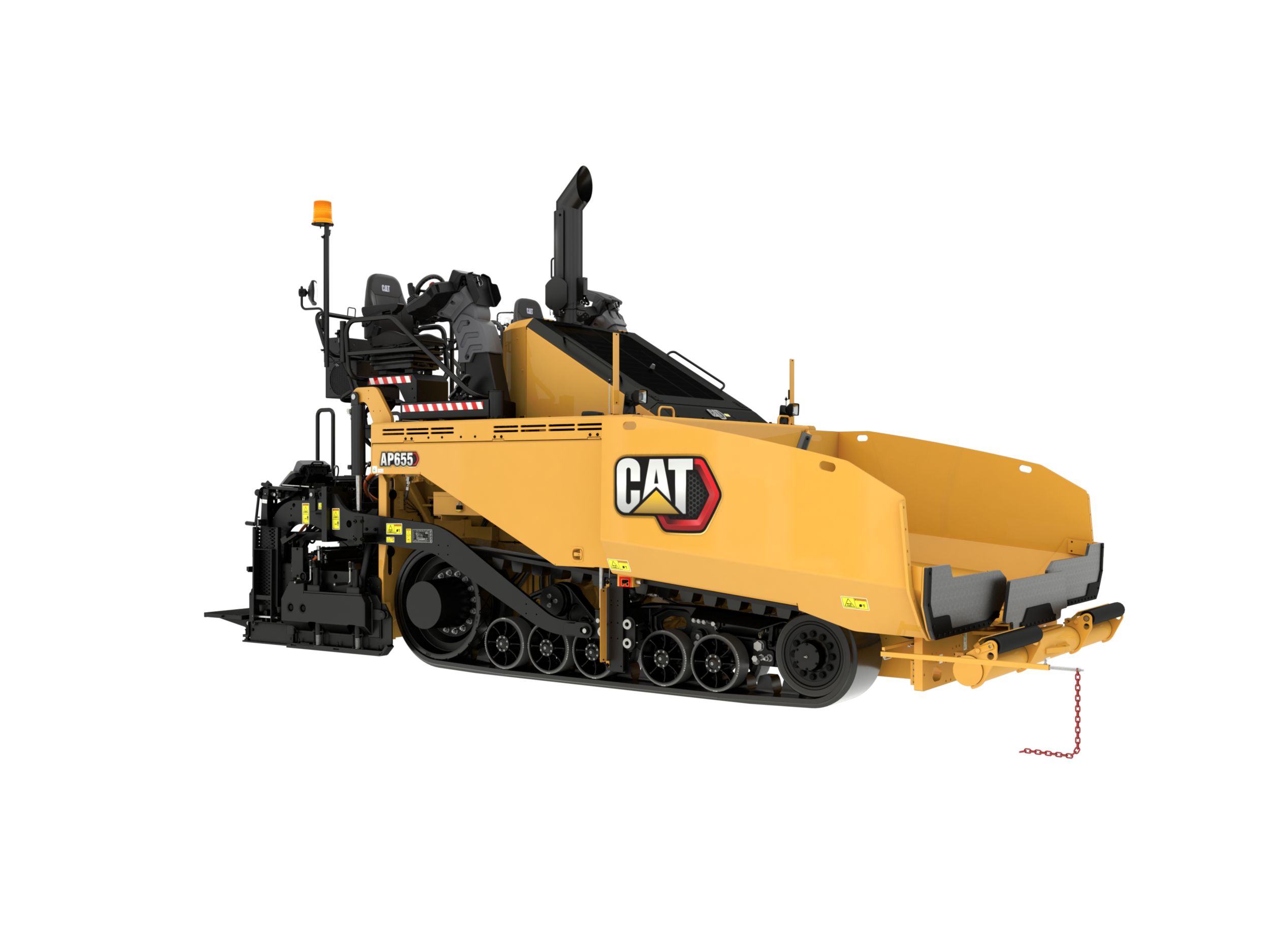

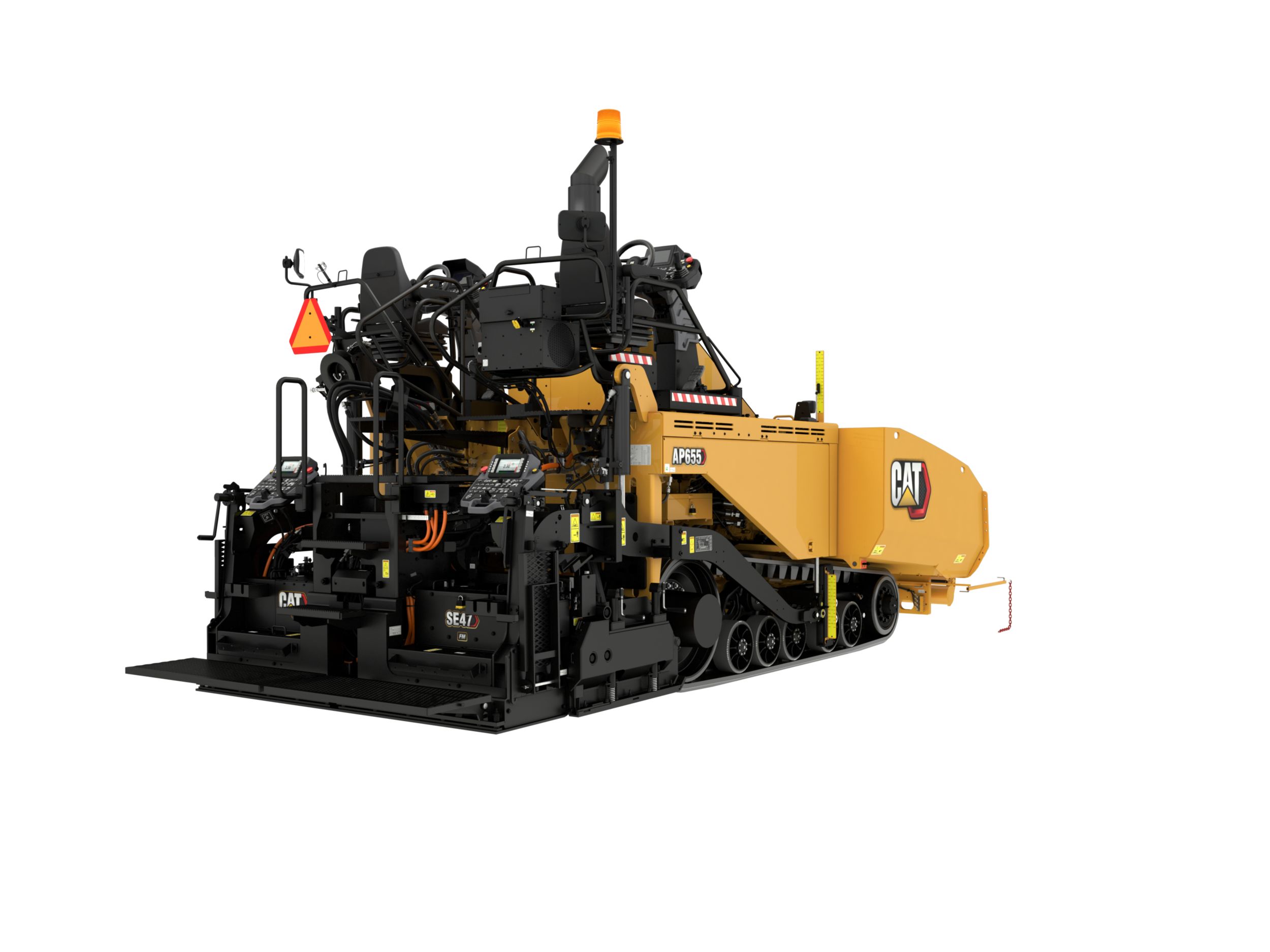

Track Asphalt Pavers AP655

Request A Price Find Dealer

Key Specs

Gross Power
173 HP
129 kW
Paving Range with SE47 FM
2.44 - 6.25 m (8' - 20' 6")
2.44 - 6.25 m (8' - 20' 6")
Operating weight with SE47 FM
40560 lb
18397 kg

Overview

Proven, Reliable Performance

The AP655 asphalt paver is a rubber track paver that delivers a high-return on investment. This high-production paver offers a fast heating screed system, durable components, and easy to use technology, while consuming less fuel. A variety of screed choices provide versatility and high-quality results on interstates, highways, airports, and parking lots.

Benefits

Advanced Technology

Integrated generator is designed for the life of the paver.

Up To 15% More Fuel Efficient

More fuel efficient with integrated generator and advanced eco-mode.

Fast and Simple Operation

with multiple fuel saving enhancements.

Product Specifications for AP655

Gross Power 173 HP 129 kW
Engine Model Cat C4.4 Cat C4.4
Maximum Travel Speed 9 mile/h 14.5 km/h
Maximum Paving Speed 210 ft/min 64 m/min
Inside Turn Radius 1.5 ft 0.5 m
Maximum Throughput Capacity 1433 tonnes/hr 1300 tonnes/hr
Paving Range with SE47 FM 2.44 - 6.25 m (8' - 20' 6") 2.44 - 6.25 m (8' - 20' 6")
Paving Range with SE50 V 2.55 - 6.5 m (8' 4" - 21' 4") 2.55 - 6.5 m (8' 4" - 21' 4")
Paving Range with SE60 V 3 m - 7.65 m (9' 10" - 25') 3 m - 7.65 m (9' 10" - 25')
Paving Range with SE60 FM 3 m - 7.8 m (10' - 25' 6") 3 m - 7.8 m (10' - 25' 6")
Operating Length 21.75 ft 6.6 m
Operating Width 10.8 ft 3.3 m
Overall Height 12.3 ft 3.7 m
Transport Length 20.9 ft 6.4 m
Transport Width 9.8 ft 3 m
Transport Height 9.7 ft 2.9 m
Operating weight with SE47 FM 40560 lb 18397 kg
Operating weight with SE50 V 41597 lb 18868 kg
Operating weight with SE60 FM 42150 lb 19119 kg
Operating weight with SE60 V 41890 lb 19001 kg
Shipping Weight - Paver Only 33730 lb 15292 kg
Fuel Tank Capacity 73 gal (US) 278 l
DEF Tank 5 gal (US) 19.1 l
Cooling System 8 gal (US) 31 l
Hydraulic Oil Tank 58 gal (US) 219 l
Washdown Tank 7.9 gal (US) 30 l

AP655 Standard Equipment

Operating Environment

  • Dual operating stations
  • Steering guide
  • Ventilation System

Technology

  • Product Link™ Elite 641_cellular

Powertrain

  • Automatic engine speed control
  • Cat C4.4 Engine
  • Variable speed cooling fan
  • Eco-mode
  • Extended life hydraulic oil

Electrical system

  • 70 kW generator
  • Cat Electronic Technician
  • Machine security system
  • Remote jump start receptacle
  • Automotive type fuse system
  • 12-volt power receptacle
  • 100 amp alternator
  • 1000 CCA batteries

Material Delivery

  • Contact-type material feed sensors
  • Adjustable push-roller

Service and Maintenance

  • Extended-life coolant
  • Remote access drains
  • Scheduled Oil sampling ports
  • Sight gauges
  • Engine coolant heater

Safety

  • Back-up alarm
  • Horn
  • Working lights
  • Mirror package
  • Vandal covers

AP655 Optional Equipment

Technology

  • Cat Grade Control
  • Hopper level and material height sensor
  • Pave start assistant
  • Product Link™ Elite 631_satellite
  • Thermal mapping

Operating Environment

  • Air-ride seat
  • Hard top canopy
  • Deceleration pedal
  • Friction steering
  • Heated seats
  • Side shields
  • Towpoint indicator (2nd)
  • Umbrella
  • Screen visor
  • Windshield

Powertrain

  • Ballast_front weights
  • Mobil-trac belt - smooth
  • Mobil-trac belt - tread bar

Electrical System

  • Auxiliary power panel_6.6 kW

Material Delivery

  • Auger extension
  • Leveling devices
  • Mainframe extensions_manual
  • Mainframe extensions_power
  • Sonic feed sensors
  • Power folding front apron
  • Truck hitch
  • Washdown pump and reel
  • Washdown tank
  • Wide width paving packages

Service and Maintenance

  • Service repair kits
  • Uptime kits

Screed Choices

  • SE47 FM Screed
  • SE50 V Screed
  • SE60 V Screed
  • SE60 FM Screed

Grade References

  • Rigid Ski, 9.15 m (30') and 12.2 m (40')
  • Sonic Averaging Beam
