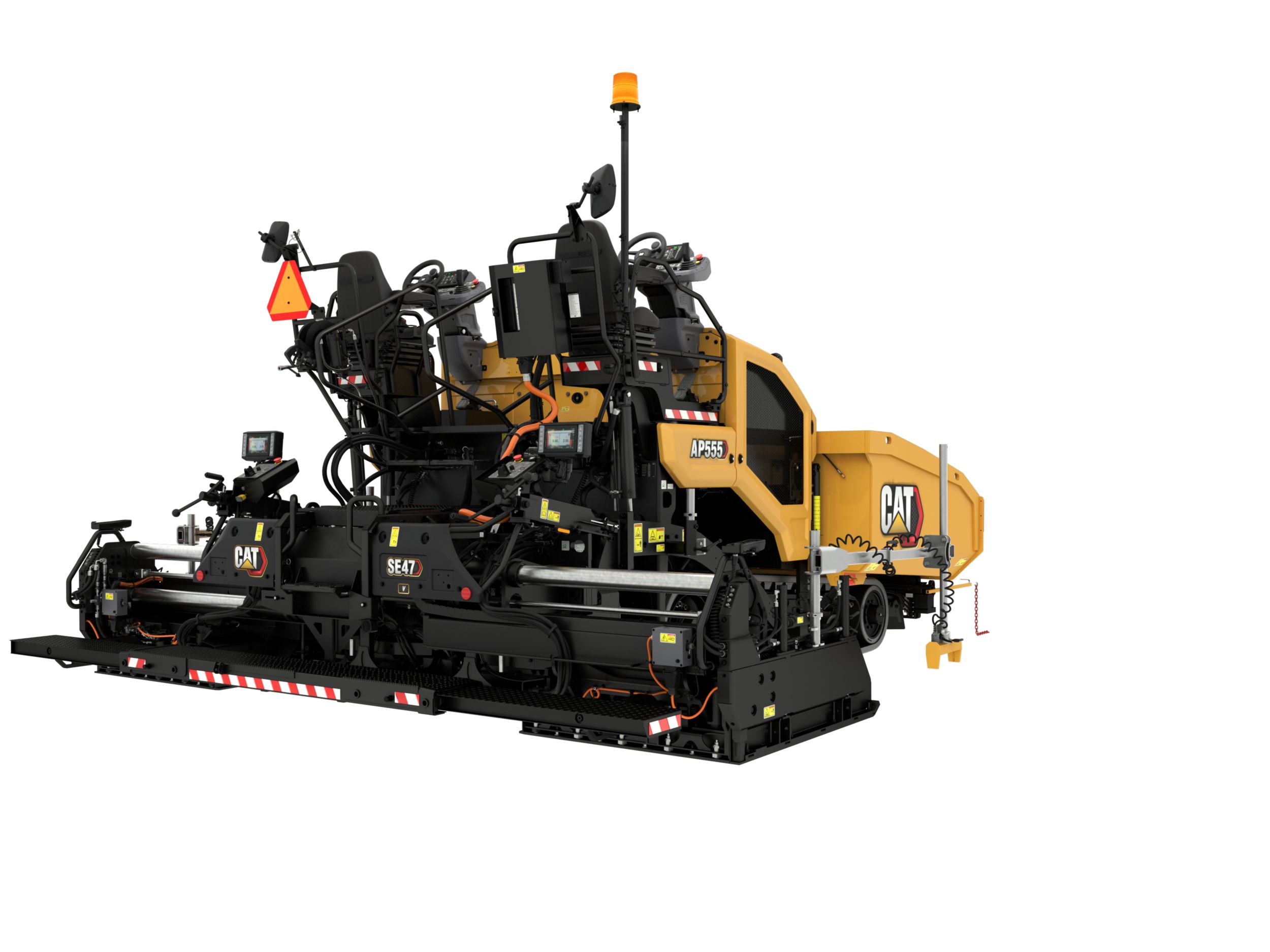

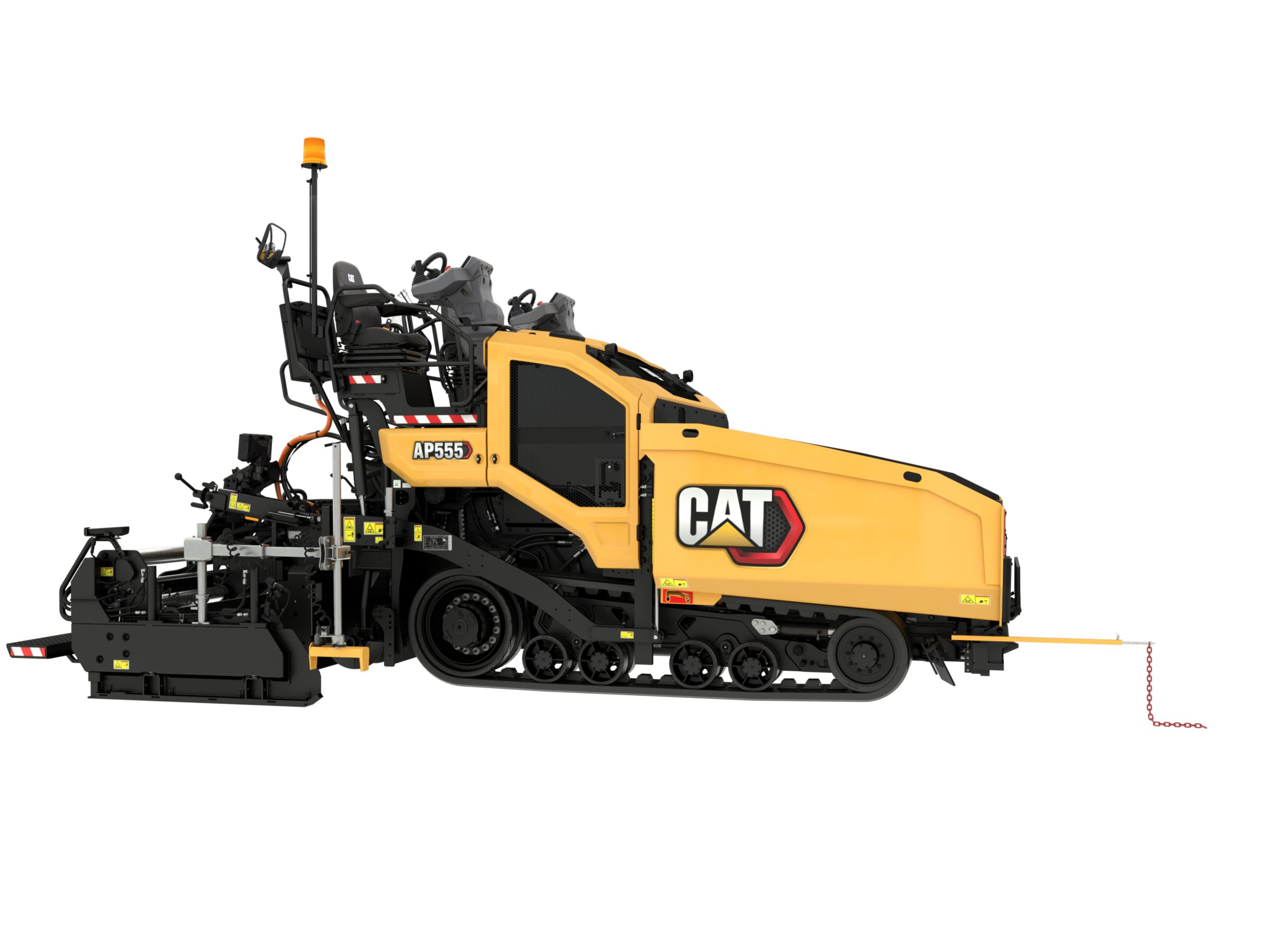

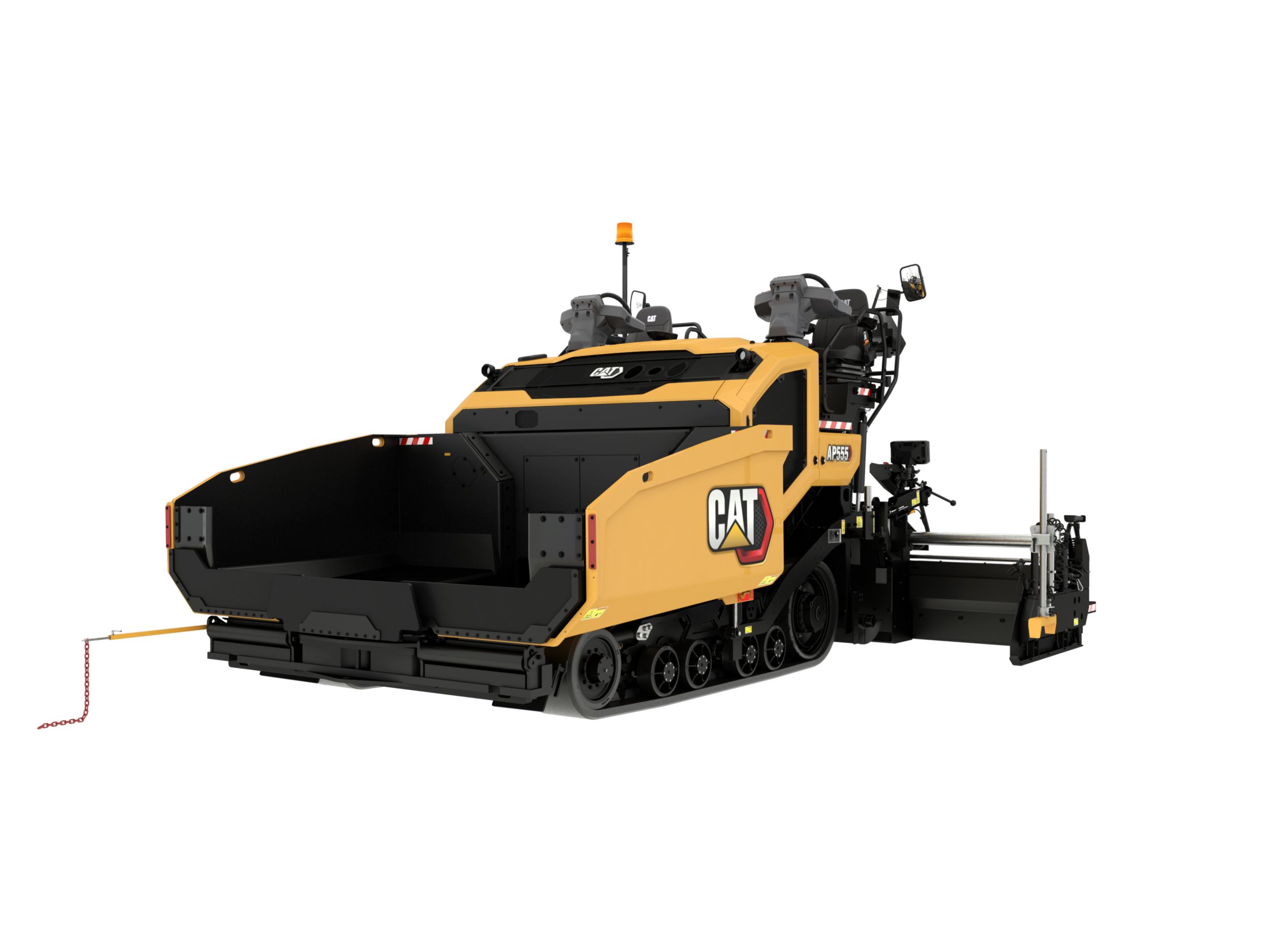

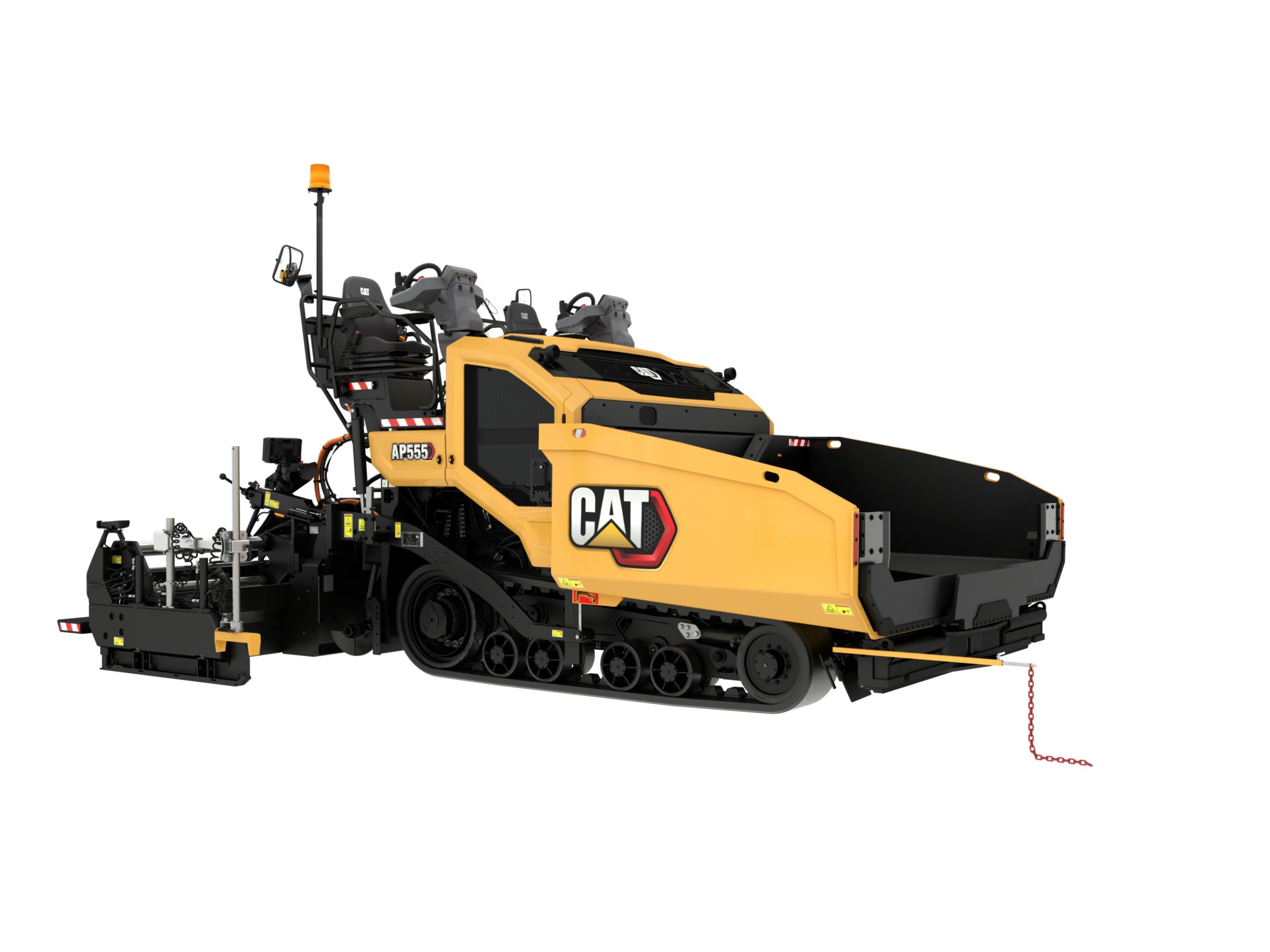

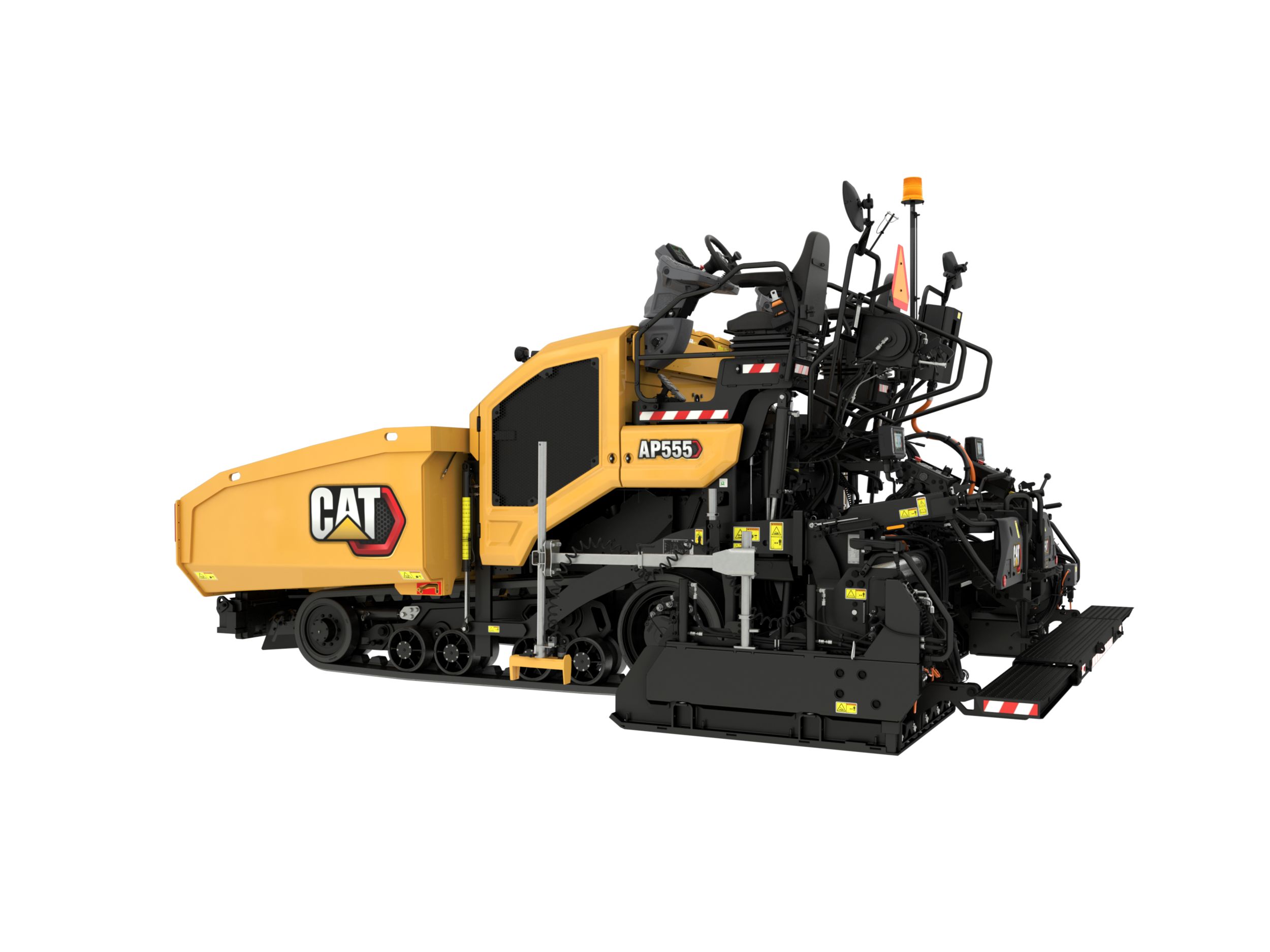

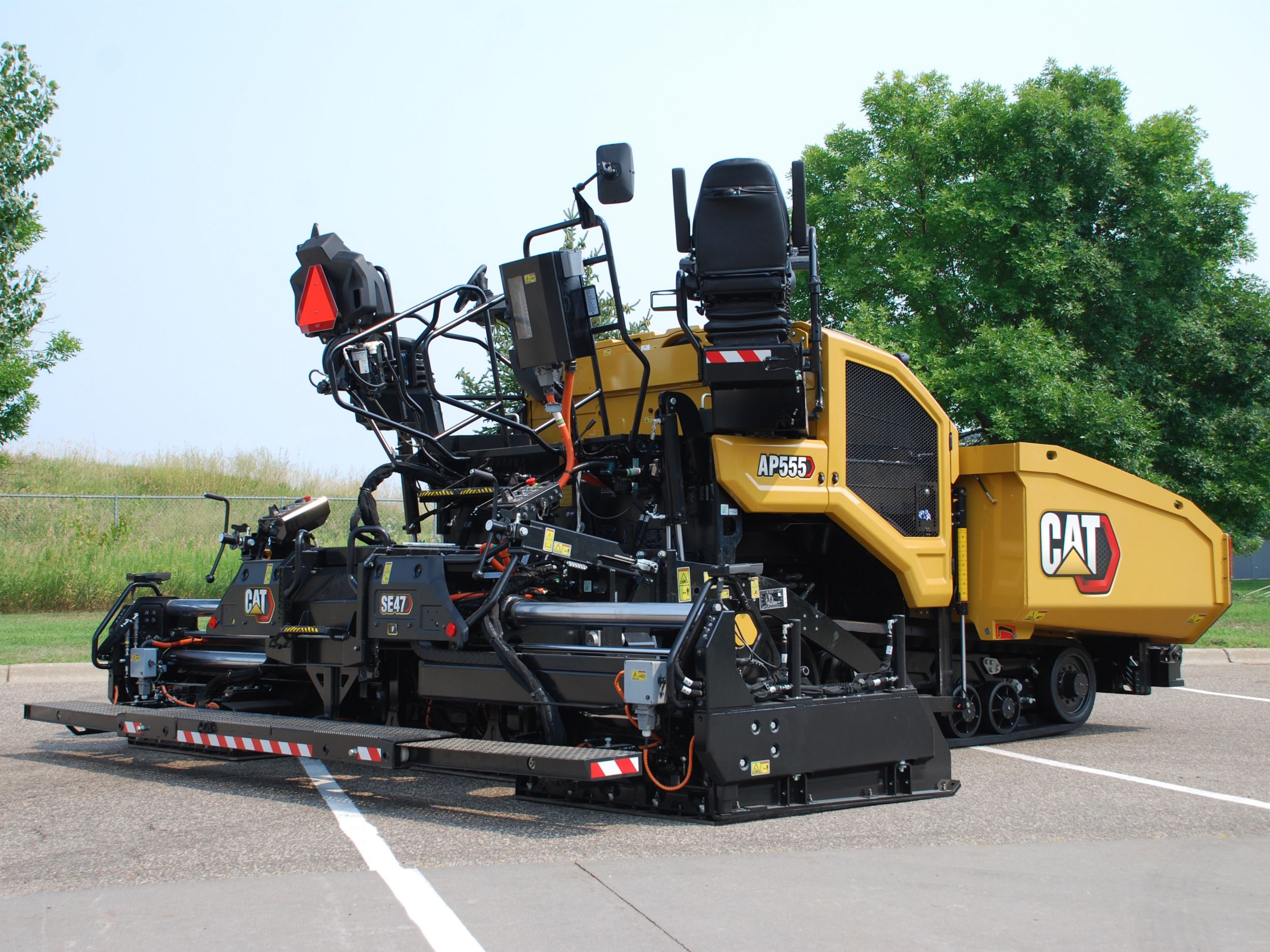

AP555

Track Asphalt Pavers AP555

Request A Price Find Dealer

Key Specs

Gross Power
148 HP
110 kW
Paving Range with SE47 FM
2.4 m - 6.1 m (8' - 20')
2.4 m - 6.1 m (8' - 20')
Operating weight with SE47 V
33448 lb
15172 kg

Overview

More Flexibility

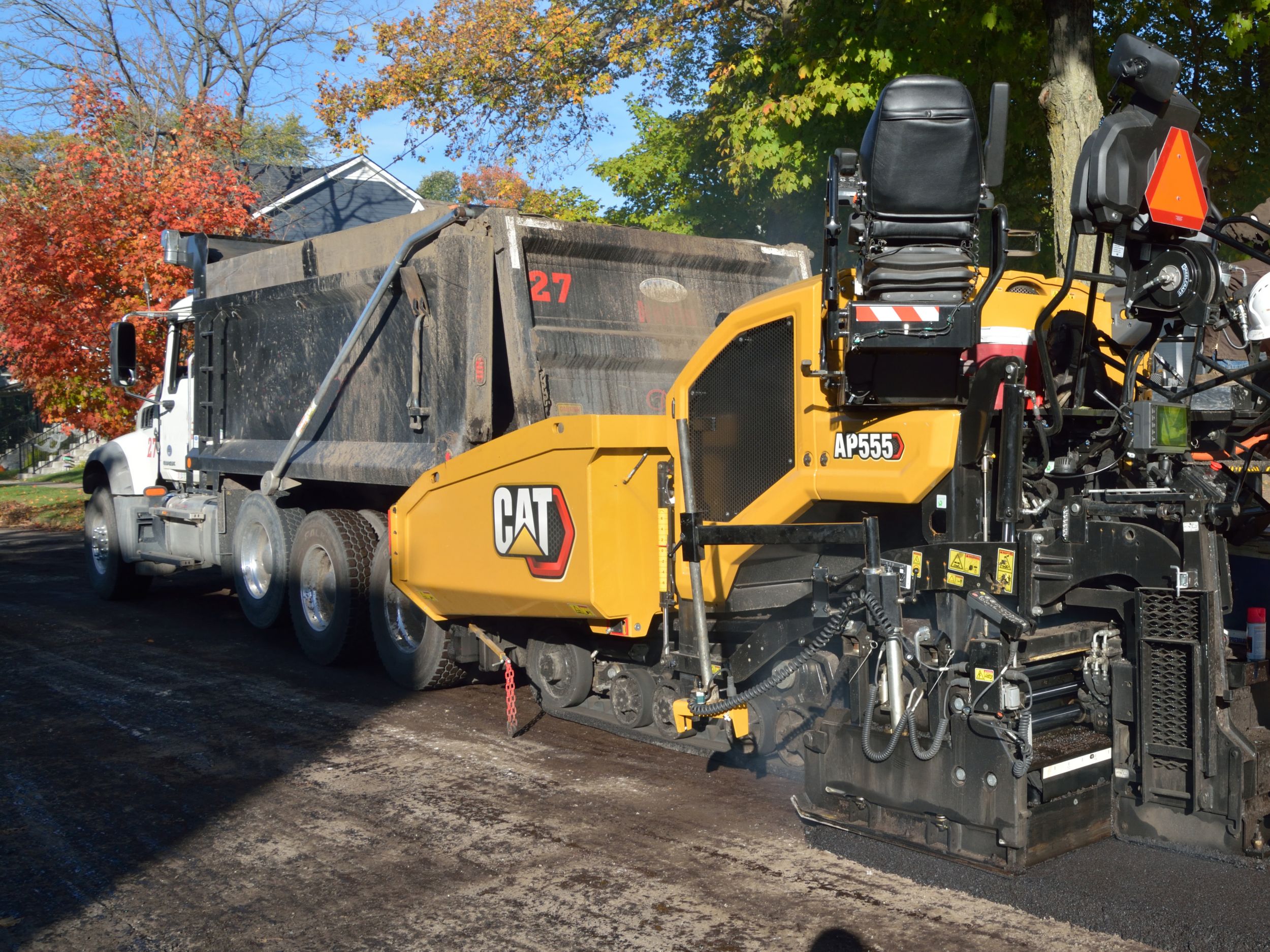

The AP555 Mobil-trac™ asphalt paver is sized right for both urban and rural applications. It delivers excellent traction and mobility as-well-as easy set-up, and a wide paving range making it the perfect fit for urban streets, parking lots, rural roads and many other small to intermediate-type applications.

Benefits

Simple Operation

The dual sliding stations, easy-viewing display, and unobstructed visibility to the hopper combine to simplify operation.

Increased Performance

More performance is delivered with increased feeder system capability, more power, and hopper insert capability

More Flexibility

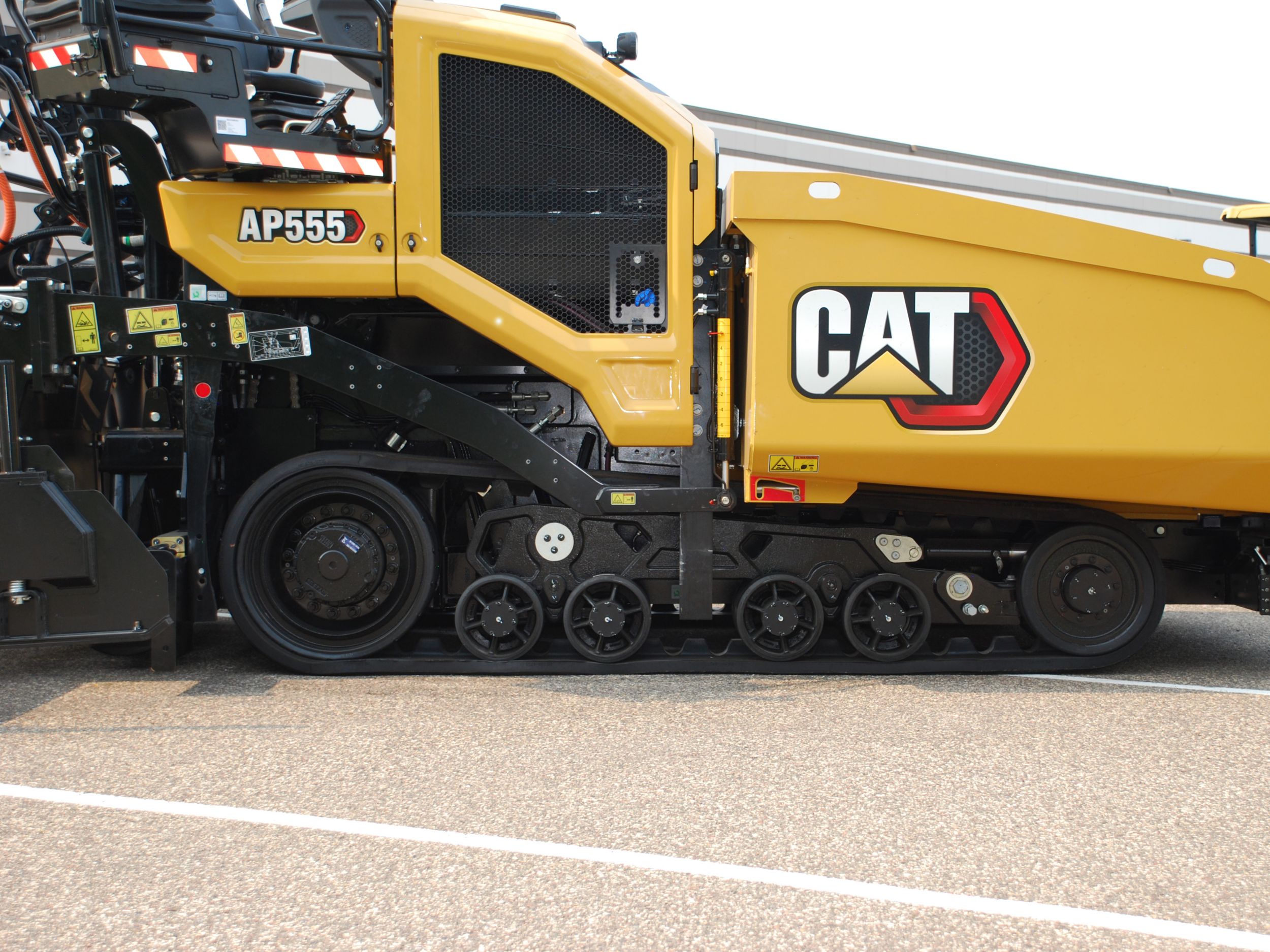

Configurable screed designs, optimized weight and width, and the mobil-trac undercarriage design provides contractors with excellent flexibiity.

Product Specifications for AP555

Gross Power 148 HP 110 kW
Engine Model Cat C4.4 Cat C4.4
Maximum Paving Speed 200 ft/min 61 m/min
Maximum Throughput Capacity 1100 ton (US) 1000 t
Maximum Travel Speed 7 mile/h 11 km/h
Paving Range with SE47 FM 2.4 m - 6.1 m (8' - 20') 2.4 m - 6.1 m (8' - 20')
Paving Range with SE47 V 2.4 m - 6.2 m (8' - 20' 6") 2.4 m - 6.2 m (8' - 20' 6")
Truck Entry Height 22 in 567 mm
Operating Length 19.25 ft 5.9 m
Operating Width 10.75 ft 3.3 m
Overall Height 10.75 ft 3.2 m
Transport Length 18.5 ft 5.6 m
Transport Width 8.5 ft 2.5 m
Transport Height 825 ft 2.5 m
Operating weight with SE47 V 33448 lb 15172 kg
Operating weight with SE47 FM 33689 lb 15281 kg
Shipping Weight - Paver Only 26993 lb 12244 kg
Fuel Tank 53 gal (US) 200 l
DEF Tank 5 gal (US) 19 l
Cooling System - Total 6.3 gal (US) 24 l
Hydraulic Oil Tank 32 gal (US) 121 l
Washdown Spray Tank 8.5 gal (US) 32 l

AP555 Standard Equipment

Operating Environment

  • Dual operating stations
  • Steering guide
  • Steering, spring return
  • Ventilation system

Technology

  • Product Link™ Elite 643 (cellular)

Powertrain

  • Cooling fan, variable speed
  • Mobil-trac, smooth belt

Electrical System

  • 1400 CCA battery
  • 150-amp alternator
  • 12-volt charging system
  • Automotive-type fuse system
  • Auto-reset breaker for material sensors
  • Battery, maintenance-free
  • Cat Electronic Technician (Cat ET)
  • Remote start receptacle

Material Delivery

  • Auger extensions, 0.15 m (6")
  • Material feed sensors, contact
  • Push-roller, adjustable

Service and Maintenance

  • Hydraulic oil, Cat HYDO Advanced
  • Remote access drains
  • Remote flash
  • Service repair kits
  • Sampling ports for Scheduled Oil Sampling
  • Sight Gauges, engine coolant, hydraulic oil

Safety

  • Mirror package
  • Alarm, back-up
  • Horn, warning (front & rear)
  • Lights, LED Working

AP555 Optional Equipment

Operating Environment

  • Canopy
  • Deceleration pedal
  • Heated seat
  • Friction Steering
  • Umbrella
  • Side shields
  • Windshield

Technology

  • Cat Grade Control
  • Basic Grade Control
  • Product Link™ Elite 683 Cellular/Satellite

Powertrain

  • Ballast - front weights

Material Delivery

  • Auger extensions, 0.46 m (1.5')
  • Mainframe extensions, power
  • Mainframe extensions, manual
  • Material feed sensors, sonic
  • Truck hitch
  • Wash-down pump and reel

Safety

  • Lights, LED Roading
  • Warning beacon, LED
  • Lights, LED Roading
  • Warning beacon, LED
  • Mirror package
