Screeds SE47 FM (4B5) Vibratory Screed

Request A Price Find Dealer

Key Specs

Standard Weight: 6073 lb; 2755 kg

Standard Paving Range: 2.4 - 4.7 m (8' - 15' 6"); 2.4 - 4.7 m (8' - 15' 6")

Maximum Paving Width: 20.5 ft; 6.25 m

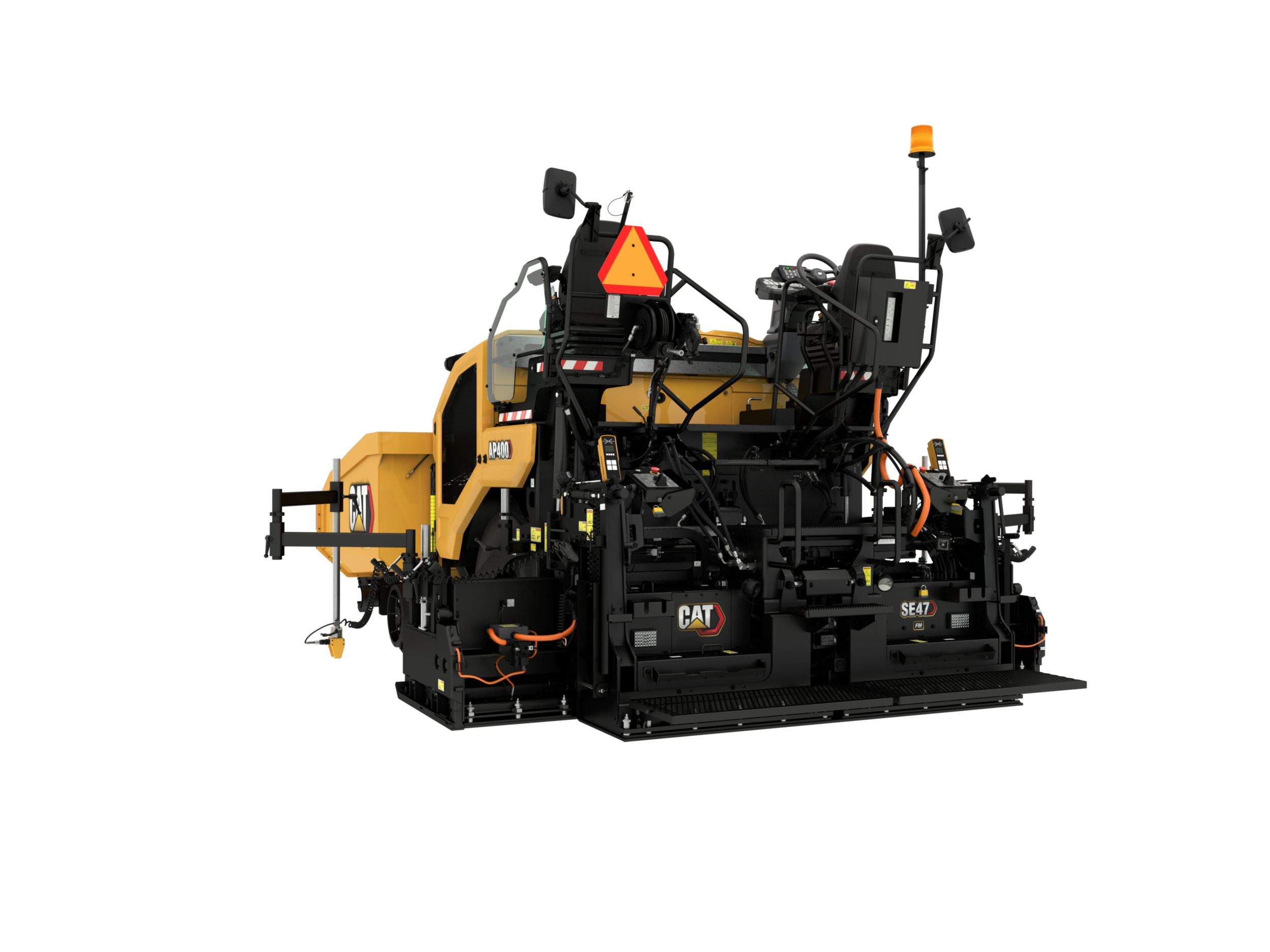

SE47 FM (4B5) Vibratory Screed
Change model

Overview

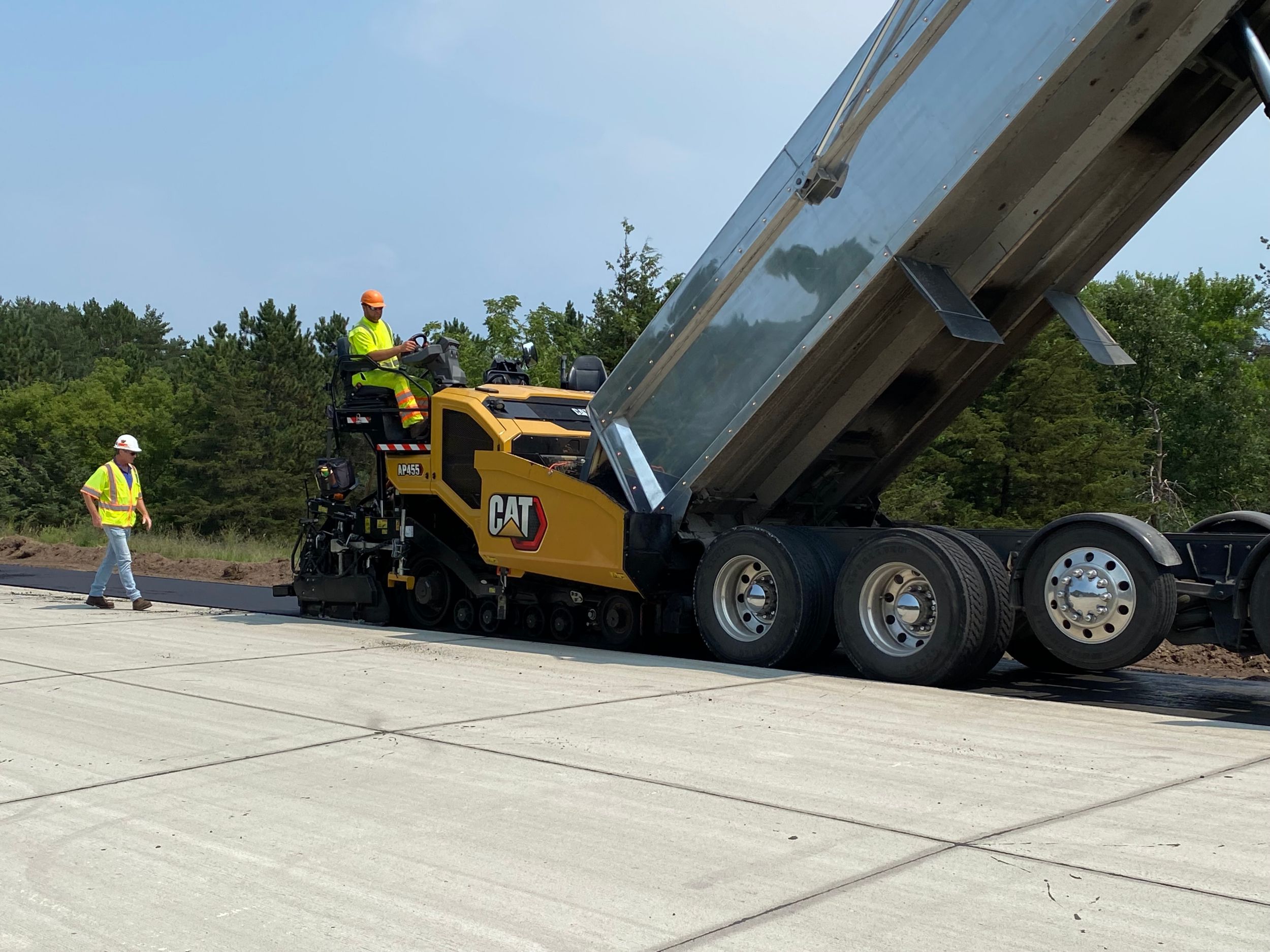

Application Versatility

The Cat® SE47 FM screed provides application versatility with mutiple berm options and a small foot print for starting next to curbs and obstacles. This screed is a perfect match for urban streets, parking lots, rural roads and many other variable width paving applications.

Benefits

High Quaity Results

Front-mounted extenders enable quick width adjustments, while the rigid extenders and optional heated end gates provide tight mat textures and clean joints.

Simple Operation

Simple operation with intuitive, easy-to-use control panels and remote pendent option located on the extenders.

More Versatile

Small footprint and versatile design for urban and highway paving includes berm options

Features At A Glance

Displaying 1-6 of 8

Application Versatility

The standard paving range of 2.44 m - 4.7 m (8' - 15' 6") and maximum width of 6.25 m (20' 6") provides a balance between urban and highway paving applications.
Common applications include parking lots, urban and rural roads, subdivision streets, and highways
Front-mounted extenders make maneuvering around abstacles easy by providing the ability to retract without first clearing material from the extender
Power berm options provide the ability to create a 305 mm (12") or 457 mm (18") wide berms with a variable height up to 102 mm (4")

Quick Adjustment

Screed operating consoles are equipped with mix height adjustment for the augers, providing the ability to modify material flow. When equipped with Cat® Grade Control, conveyor ratio adjustment or conveyor material height can be performed through the display
Exclusive trailing edge screed plate adjusters help maintain an even plane across the width of the screed in order to improve paving quaility and extend screed plate life
Extender angle of attack is easily accessible from the top of the extender frame
Inner and outer strike-off adjustments are connected to provide single point modification that ensures equal adjustment across the width of the screed
Slope stops help maintain performance

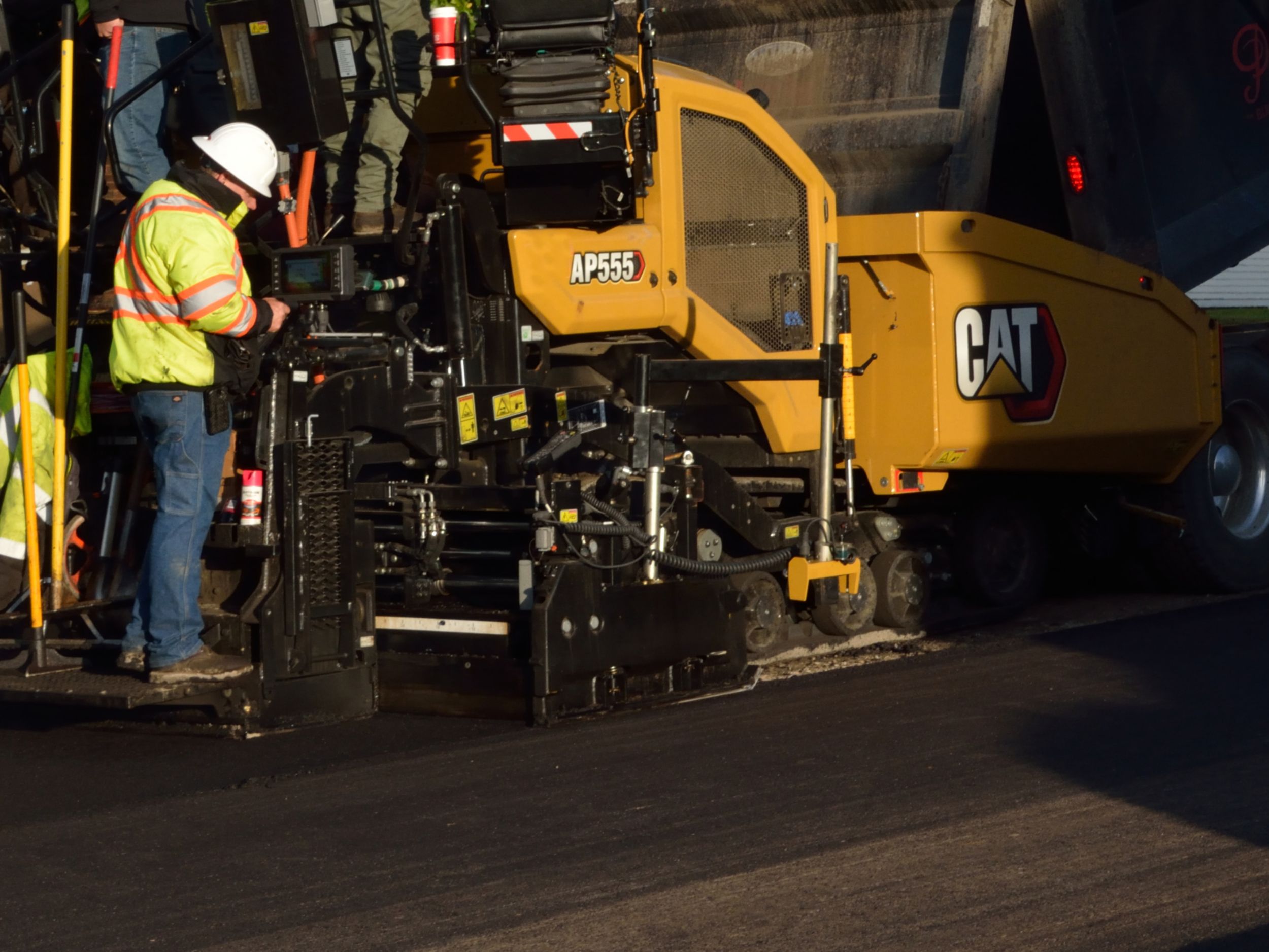

Smooth Material Flow

Screed plate widths of 610 mm (24") on the main and 210 mm (9") on the extenders provide smooth flow
Heated end gate option improves material flow for enhanced longitudinal joints
The in-line extension cylinders and rigid frame design reduces deflection in the extenders for better mat quality

Quick Heat, Even Distribution

Screed plate heating in as little as 25 minutes to 130º C (266º F)
Exclusive zone monitoring allows heating to continue in the event of a temperature sensor failure
Durable heating elements combined with zone monitoring helps ensure even heat distribution and smooth asphalt textures

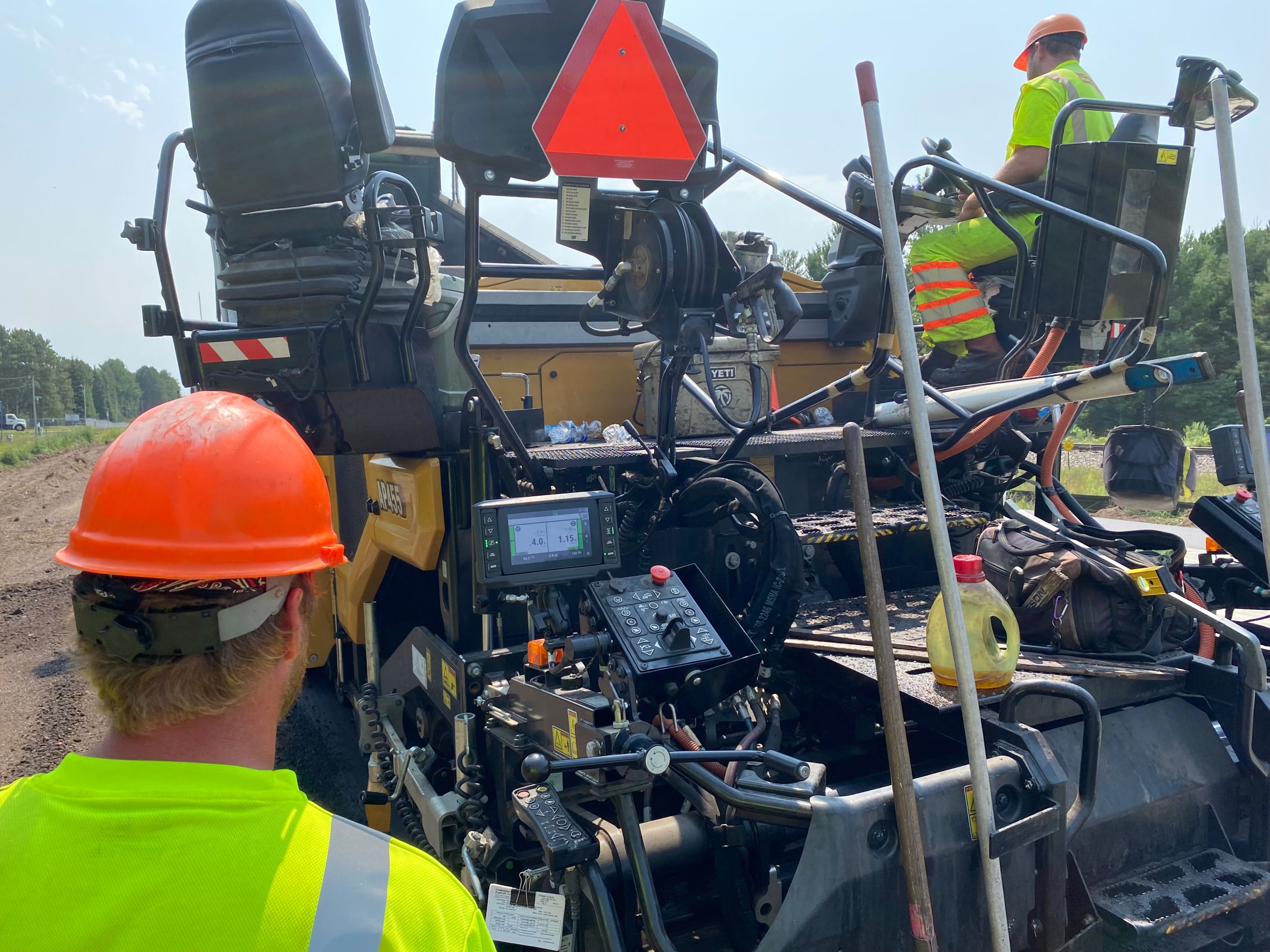

Simple Operation

Proportional extender control provides smooth adjustment when transitioning paving widths
Screed operating consoles are equipped with mix height dial for the augers and conveyors, providing the ability to modify material flow
Power controls for extender slope and height enables operators to quickly manage mat angles and surface textures

Pendent Control (Option)

Independent feeder system control includes manual and pause functions for each auger and conveyor
Emergency engine stop feature
Simple tow-point and berm attachment adjustments can be easily made with good visibility from the remote position

The standard paving range of 2.44 m - 4.7 m (8' - 15' 6") and maximum width of 6.25 m (20' 6") provides a balance between urban and highway paving applications.
Common applications include parking lots, urban and rural roads, subdivision streets, and highways
Front-mounted extenders make maneuvering around abstacles easy by providing the ability to retract without first clearing material from the extender
Power berm options provide the ability to create a 305 mm (12") or 457 mm (18") wide berms with a variable height up to 102 mm (4")

Screed operating consoles are equipped with mix height adjustment for the augers, providing the ability to modify material flow. When equipped with Cat® Grade Control, conveyor ratio adjustment or conveyor material height can be performed through the display
Exclusive trailing edge screed plate adjusters help maintain an even plane across the width of the screed in order to improve paving quaility and extend screed plate life
Extender angle of attack is easily accessible from the top of the extender frame
Inner and outer strike-off adjustments are connected to provide single point modification that ensures equal adjustment across the width of the screed
Slope stops help maintain performance

Screed plate widths of 610 mm (24") on the main and 210 mm (9") on the extenders provide smooth flow
Heated end gate option improves material flow for enhanced longitudinal joints
The in-line extension cylinders and rigid frame design reduces deflection in the extenders for better mat quality

Screed plate heating in as little as 25 minutes to 130º C (266º F)
Exclusive zone monitoring allows heating to continue in the event of a temperature sensor failure
Durable heating elements combined with zone monitoring helps ensure even heat distribution and smooth asphalt textures

Proportional extender control provides smooth adjustment when transitioning paving widths
Screed operating consoles are equipped with mix height dial for the augers and conveyors, providing the ability to modify material flow
Power controls for extender slope and height enables operators to quickly manage mat angles and surface textures

Independent feeder system control includes manual and pause functions for each auger and conveyor
Emergency engine stop feature
Simple tow-point and berm attachment adjustments can be easily made with good visibility from the remote position

Factory-integrated guidance system that helps remove irregularities from the surface and control mat thickness for increased production, lower operating costs, and higher profitability
User-friendly system with text-based displays, split screen-mode, and on-the-go sensor selection
Precise control driven by 10-point auto-calibration, true averaging with 5 transducers in each sensor, and cross-coupling feature that maintains elevation with height adjustment

Paver and screed service and repair kits include the parts necessary to complete specific repairs
Cat genuine parts are manufactured to precise specifications and designed for optimal performance and maximum uptime
Repair kits are identified by a single part number to make ordering easy
Select kits are available to be packaged as a kit by the dealer for over the counter purchases or through the dealer service shop

Specifications Standard Equipment Optional Equipment

Product Specifications for SE47 FM (4B5) Vibratory Screed

Weights

Standard Weight

6073 lb 2755 kg

Operating Specifications

Standard Paving Range	2.4 - 4.7 m (8' - 15' 6") 2.4 - 4.7 m (8' - 15' 6")
Maximum Paving Width	20.5 ft 6.25 m
Maximum Paving Depth	10 in 250 mm
Heating Time - Maximum Width	25 minutes 25 minutes
Heating Time - Standard Width	15 minutes 15 minutes
Crown Range	-5% to +10% -5% to +10%
Vibratory Speed Range	0 to 3000 vpm 0 to 3000 vpm
Extender Height Range	-41 mm to +6.25 mm -41 mm to +6.25 mm
Extender Slope Range	0% to 9% 0% to 9%

Dimensions

Minimum Width - Endgates Attached	102 in 2590 mm
Transport Length - Tractor and Screed	18.1 ft 5505 mm
Screed Plates Width, Front to Back, Main Screed	24 in 616 mm
Screed Plates Width, Front to Back, Extenders	9 in 228 mm
Length - Front to Back, Endgates Attached	86 in 2191 mm
Length - Front to Back, Endgates Removed	59 in 1509 mm

SE47 FM (4B5) Vibratory Screed Standard Equipment

Material Delivery

Thickness screws _ clockwise or counterclockwise

End gate_manual

Operating Environment

Level holder

Lockable storage

Shovel holder

Power Controls

Crown

Slope

Extender height

Service and Repair

Service repair kits

Safety

Horn

SE47 FM (4B5) Vibratory Screed Optional Equipment

Operating Environment

Pendent control

Visor _ LCD display

Technology

Cat Grade Control

Safety

Lights_roading

Material Delivery

Berm attachments

Cutoff shoe

Drop arm spacer

End gate_heated

End gate shoe_safety edge

ExtensionsExtension _ 100 mm (4") high angle of attack

Extension _ 305 mm (12")

Extension _ 457 mm (18")

Extension _ 610 mm (24")

Screed plate _ dove tail

Tapered notch extension with 457 mm (18")

Vibratory sled _ utilized with tapered notch

Product Specifications for SE47 FM (4B5) Vibratory Screed

Download Print

Weights

Standard Weight

6073 lb 2755 kg

Operating Specifications

Standard Paving Range	2.4 - 4.7 m (8' - 15' 6") 2.4 - 4.7 m (8' - 15' 6")
Maximum Paving Width	20.5 ft 6.25 m
Maximum Paving Depth	10 in 250 mm
Heating Time - Maximum Width	25 minutes 25 minutes
Heating Time - Standard Width	15 minutes 15 minutes
Crown Range	-5% to +10% -5% to +10%
Vibratory Speed Range	0 to 3000 vpm 0 to 3000 vpm
Extender Height Range	-41 mm to +6.25 mm -41 mm to +6.25 mm
Extender Slope Range	0% to 9% 0% to 9%

Dimensions

Minimum Width - Endgates Attached	102 in 2590 mm
Transport Length - Tractor and Screed	18.1 ft 5505 mm
Screed Plates Width, Front to Back, Main Screed	24 in 616 mm
Screed Plates Width, Front to Back, Extenders	9 in 228 mm
Length - Front to Back, Endgates Attached	86 in 2191 mm
Length - Front to Back, Endgates Removed	59 in 1509 mm

SE47 FM (4B5) Vibratory Screed Standard Equipment

Material Delivery

Thickness screws _ clockwise or counterclockwise

End gate_manual

Operating Environment

Level holder

Lockable storage

Shovel holder

Power Controls

Crown

Slope

Extender height

Service and Repair

Service repair kits

Safety

Horn

SE47 FM (4B5) Vibratory Screed Optional Equipment

Operating Environment

Pendent control

Visor _ LCD display

Technology

Cat Grade Control

Safety

Lights_roading

Material Delivery

Berm attachments

Cutoff shoe

Drop arm spacer

End gate_heated

End gate shoe_safety edge

ExtensionsExtension _ 100 mm (4") high angle of attack

Extension _ 305 mm (12")

Extension _ 457 mm (18")

Extension _ 610 mm (24")

Screed plate _ dove tail

Tapered notch extension with 457 mm (18")

Vibratory sled _ utilized with tapered notch
