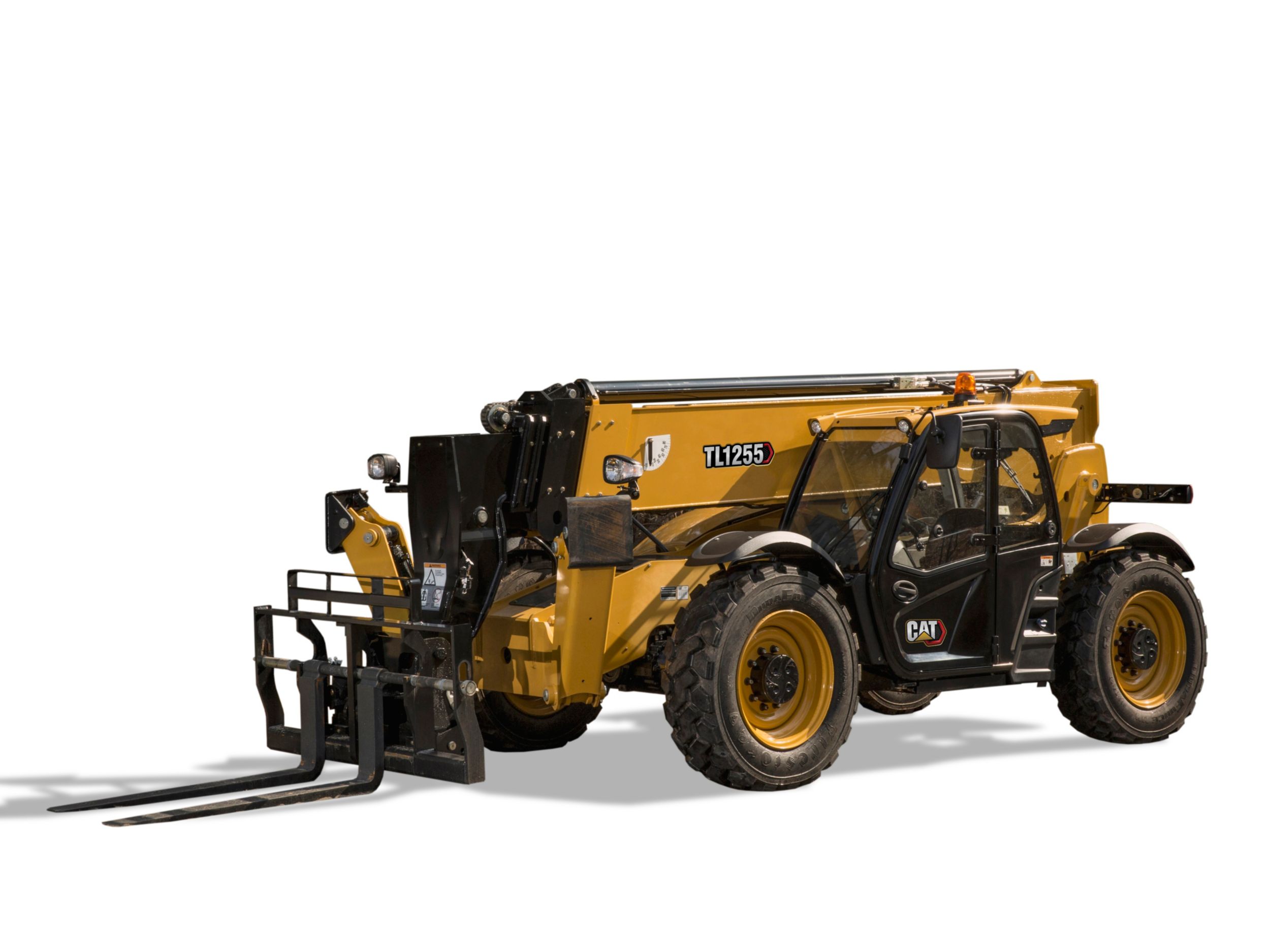

Telehandlers TL1255
Request A Price Find DealerKey Specs
- Rated Load Capacity
- 12000 lb
- 5443 kg
- Maximum Lift Height
- 54.9 ft
- 16.7 m
- Engine Model
- Cat® C3.6L*
- Cat® C3.6L*
Overview
CONFIGURED FOR SUCCESS
The TL1255 is precision engineered to handle any task, offering stability, maneuverability, speed and power in any application.
Benefits
EFFICIENTLY POWERFUL
Ground level servicing for easily accessible daily checks
ALL DAY COMFORT
Superior stability and powerful hydraulics
DEFIANTLY DURABLE
Exceptional all-round visibility
Features At A Glance
Intuitive Control Layout
All day operator comfort and efficiency is ensured through our simple, logical control layout.Easier Access
Cab entry and exit is both easier and more convenient due to the well placed handholds.Operator Protection
The machine provides full operator security with OROPS or EROPS protection.Enhanced Visibility
The TL-Series cab has improved visibility due to the use of advanced virtual design techniques.
Joystick Control
The joystick allows three simultaneous boom functions and operates the auxiliary hydraulic function. It allows the option of a second auxiliary service for the use of work tools that require more than one hydraulic service.Flow Sharing
Three simultaneous hydraulic functions are achieved using a full flow sharing hydraulic valve. A load sensing variable displacement pump allows full hydraulic power even at low revs.
Lift Height
The TL1255 can effectively pick and place materials to a maximum height of 54.9 ft. (16.7 m).Reach
Job site obstacles present challenges demanding a machine to place loads at greater distances - the TL1255 delivers.Maneuverability
The TL1255 offers improved maneuverability, allowing it to work productively in confined areas.Steering Modes
The TL1255 offers three steering modes (two wheel, crab and circle steer) to allow an operator to more easily position the machine. Steering modes are selected by a single three-position rocker switch. Steering position sensors are fitted as standard to all steering modes to be changed while moving.Transmission
The TL1255 features a Cat PG145 power-shift transmission.Quick Coupler
A manual IT quick coupler is standard on the TL-Series machines. For optimum versatility, an optional hydraulic quick coupler is available, allowing the operator to more easily change non-hydraulic work tools without leaving the cab.Work Tools
A wide range of work tools are available to meet most job site applications. Caterpillar Telehandler Work Tools extend the versatility of the machine. Built for performance and durability, these work tools deliver high productivity, long life and excellent value.- General Purpose Bucket (1.0 m3/1.3 yd3)
- Light Materials Bucket (2.0 m3/2.6 yd3, 2.5 m3/3.25 yd3, 3.0 m3/3.90 yd3)
- Material Handling Bucket (1.5 m3/1.95 yd3)
- Multi Purpose Bucket (1.0 m3/1.3 yd3)
- Grapple Bucket (0.85 m3/1.1 yd3)
- Fixed Carriage
- Rotate Carriage
- Sideshift Carriage
- Pallet Forks
- Block Forks
- Lift Hook
- Truss Boom
- Self-tipping Hopper
- Material Handling Arm
Tires
A wide range of tire options enables the machine to be configured to achieve optimum job site performance, including foam-filled and non-marking tires.Ease of Access
Cost of ownership starts with ease of service. All Cat Telehandler service points are accessible and major components are at ground level due to overall machine design.Daily Maintenance
Routine daily maintenance is now reduced to checking fluid levels and a walkaround inspection.Service Intervals
Engine oil, filter changes and routine lubrication are now only required every 500 hours.Reduced Componentry
With the reduction in the number of filters and extended service intervals, operating costs are the lowest in the industry.Equipment Protection Plan
Designed to enhance your telehandler ownership experience with comprehensive coverage and peace of mind.Access
All Cat Telehandler service points are accessible and major components are at ground level due to the overall machine design. A cab mounted service point allows access to the fuel fill, hydraulic oil fill, washer bottle, fuse box and cab air filter for routine checks.Selection
Make detailed comparisons before you buy. Your Cat Dealer can give you precise answers to your questions.Purchase
Look at the value that the TL1255 telehandler will offer you. Consider all the flexible financing options your Cat Dealer offers as well as day to day operating costs.Operation
Improving operating techniques can boost your profits. Your Cat Dealer has literature and other tools to help increase your productivity.Replacement
Repair, rebuild or replace? Your Cat Dealer can help you evaluate the cost involved so you can make the right choice.Product Support
You will find high availability of parts at our Dealer parts counter. Cat Dealers utilize a worldwide computer network to find in-stock parts to minimize machine downtime. Additionally, Caterpillar offers a line of genuine remanufactured components which can help lower repair costs.Easy Financing
Your Cat Dealer can provide a financing package to meet your needs.Product Specifications for TL1255
Operating Specifications
| Rated Load Capacity | 12000 lb 5443 kg |
| Maximum Lift Height | 54.9 ft 16.7 m |
| Maximum Forward Reach | 42 ft 12.8 m |
| Top Travel Speed | 21 mile/h 33.8 km/h |
| Maximum Lift Height (o/r Down) | 54.9 ft 16.7 m |
| Drawbar Pull - Loaded | 26510 lb 117.9 kN |
| Turning Radius - Over Tires | 14.1 ft 4.3 m |
| Capacity at Maximum Height (o/r Down) | 5000 lb 2268 kg |
| Capacity at Maximum Reach (o/r Down) | 3500 lb 1587 kg |
| Frame Leveling | 10° 10° |
| Operating Weight | 34182 lb 15505 kg |
| Maximum Rated Load Capacity | 12000 lb 5443 kg |
Hydraulic System
| Pump Type | Variable displacement load sensing axial piston pump Variable displacement load sensing axial piston pump |
| Auxiliary Hydraulic Flow | 25 gal/min 95 l/min |
| Auxiliary Hydraulic Pressure | 3307 psi 228 bar |
Service Refill Capacities
| Fuel Tank | 38 gal (US) 145 l |
| Diesel Exhaust Fluid (DEF) Tank | 5.7 gal (US) 21.5 l |
| Hydraulic System | 50 gal (US) 189 l |
Axles
| Types (1) | Trunnion mounted planetary 55-degree steer axles Trunnion mounted planetary 55-degree steer axles |
| Types (2) | High bias limited slip differential on front axle High bias limited slip differential on front axle |
Braking System
| Parking Brakes | Wet disc, spring applied hydraulic release on front axle Wet disc, spring applied hydraulic release on front axle |
| Service Brakes | Inboard wet disc brakes on front and rear axles Inboard wet disc brakes on front and rear axles |
Transmission Speeds
| Forward | 4 Speeds 4 Speeds |
| Reverse | 3 Speeds 3 Speeds |
Tires
| Standard | 400/75-28 Duraforce Air 400/75-28 Duraforce Air |
| Optional | 400/75-28 Duraforce Foam; 360/85-28 Telemaster Solid; 17.5 × 25 16PR Air; 17.5 × 25 12PR Foam; 400/75-28 Non-Marking Air; 400/75-28 Non-Marking Foam 400/75-28 Duraforce Foam; 360/85-28 Telemaster Solid; 17.5 × 25 16PR Air; 17.5 × 25 12PR Foam; 400/75-28 Non-Marking Air; 400/75-28 Non-Marking Foam |
Boom Performance
| Boom Up | 17 s 17 s |
| Boom Down | 14.4 s 14.4 s |
| Tele In | 15.3 s 15.3 s |
| Tele Out | 19.7 s 19.7 s |
Optional Work Tool Attachments
| Carriages: Standard Tilt - Option 1 | 50 in 1270 mm |
| Truss with Winch - Option 1 | 3 ft 0.9 m |
| Carriages: Swing, 100° | 72 in 1829 mm |
| Carriages: Dual Hydraulic Fork Positioner - Option 2 | 72 in 1829 mm |
| Carriages: Dual Hydraulic Fork Positioner - Option 1 | 50 in 1270 mm |
| Buckets: General Purpose - Option 1 | 1.3 yd³ 1 m³ |
| Truss Booms - Option 1 | 12 ft 3.7 m |
| Carriages: Standard Tilt - Option 3 | 72 in 1829 mm |
| Buckets: Multi Purpose | 1.3 yd³ 1 m³ |
| Forks: Pallet - Option 2 | 60 in 1525 mm |
| Note | *For use with 1525 mm (60 in) forks or larger *For use with 1525 mm (60 in) forks or larger |
| Buckets: General Purpose - Option 2 | 2 yd³ 1.5 m³ |
| Fork Extensions* | 90 in 2286 mm |
| Forks: Pallet - Option 1 | 48 in 1220 mm |
| Coupler | Hydraulic IT Coupler (Includes Auxiliary Electronics) Hydraulic IT Coupler (Includes Auxiliary Electronics) |
| Material Handling Arm | Adjustable 2-4 m (Adjustable 6.7-13.2 ft) Adjustable 2-4 m (Adjustable 6.7-13.2 ft) |
| Forks: Pallet - Option 3 | 72 in 1829 mm |
| Carriages: Side Tilt - Option 2 | 72 in 1829 mm |
| Forks: Block/Cubing | 48 in 1220 mm |
| Truss with Winch - Option 2 | 12 ft 3.7 m |
| Fork Mounted - Hook | Lifting Hook Lifting Hook |
| Carriages: Side Shift | 48 in 1220 mm |
| Truss Booms - Option 2 | 15 ft 4.6 m |
| Buckets: Grapple | 1.7 yd³ 1.3 m³ |
| Fork Mounted - Hopper | Trash Hopper Trash Hopper |
| Carriages: Side Tilt - Option 1 | 50 in 1270 mm |
| Carriages: Standard Tilt - Option 2 | 60 in 1524 mm |
| Fork Mounted - Truss Boom | Adjustable 2.1-3.6 m (Adjustable 7-12 ft) Adjustable 2.1-3.6 m (Adjustable 7-12 ft) |
| Fork Mounted - Work Platform | 1220 mm × 2438 mm (4 ft × 8 ft) 1220 mm × 2438 mm (4 ft × 8 ft) |
TL1255 Standard Equipment
TELESCOPIC BOOM
- Boom angle indicator
ELECTRICAL
- Alternator, 60 amp, 12 volt
- Battery, 12 volt, 1000 CCA
- Horn
- Alarm, backup
OPERATOR STATION
- Canopy, ROPS/FOPS
- Joystick, single electronic
- Adjustable joystick wristrest
- Grab bars for easy entry
- Seat - vinyl, suspension with Cat logo
- Steering wheel spinner knob
- Floor mat - heavy duty
- Left side rear view mirror
- Service door, cab air intake filter, fuel fill, hydraulic fill, level indicator, fuse panel and washer fill
- Instruments - volt meter, hourmeter, engine oil pressure gauge, water temperature gauge. All gauges protected by clear acrylic cover.
- Park Brake with indicator light
- Steering Wheel with Cat logo
- Cat keys and locks
- Brakes - wet disc service
- Belt, seat - 3" wide
POWER TRAIN
- Engine, Cat C3.6L - 100 kW (134 hp) gross horsepower
- Thermal starting aid
- Transmission, Cat PG145 6 speed Power-shift, 4-speed forward, 3-speed reverse
- Cat filters, hoses and couplings
- Axles - Dana
- Steering - 4 wheel
- Drive - 4 wheel
STRUCTURE
- Chassis, frame level up to 10 degrees when operating in rough, uneven terrain
- Cat IT Coupler
ANTI-FREEZE
- Coolant - Anti-freeze, 50/50 Mix
TIRES
- Tires - 370/75-28 Duraforce Air
OTHER EQUIPMENT
- Integrated lift and tie down points
- Standard Cat color paint
- Auxillary hydraulics for auxillary attachments (one function)
TL1255 Optional Equipment
TELESCOPIC BOOM
- Hydraulic IT Coupler (includes Auxiliary Electrics)
ELECTRICAL
- Work Light Group: 3 Cab mounted Lights -- 2 forward, 1 rearward; 1 reversing light; 2 Boom mounted Lights, 1 rotating beacon
- Engine heater block
- Heater - open cab
- Road Light Group -- Headlights, Brake Lights, Turn Signals
OPERATOR STATION
- Air conditioning
- Single Joystick - with Rocker Switch
- EROPS - Cab Enclosure (Door, Safety Glass Windows, Front Windshield Wiper, Heater & Defroster Fan)
- Skylight Wiper
- Brick guard - Front and top.
TIRES
- Tires - 370/75-28 Duraforce Foam Fill
- Tires - 315/95-28 Telemaster Solid
- Tire - 14.00-24 16PR Air
- Tire - 14.00-24 12 PR Foam
- Tires - 370/75-28 Non-Marking Air
OTHER EQUIPMENT
- Fenders
- Tow Hook - Pintle Type
- Artic package - Package includes: 2400 AMP starter, 1000 watt hydraulic reservoir heater, 500 watt engine oil-pan heater, Dual maintenance free, 1375 CCA gel cell batteries, 160 watt battery heating blanket, 1000 watt engine block heater
WORK TOOLS
- Carriage - side shift, 50 in. (available from factory)
- Lifting Hook - fork mounted (available from factory)
- Truss Broom
- Carriage - standard tilt, 50 in. (available from factory)
- Carriage - standard rotate, 50 in. (available from factory)
- Carriage - swing, 72 in., 100 degrees, 9,000 lb. capacity, 5,000 lb. swung (available from factory)
- Pallet Forks - two 60 in, 2 in x 6 in, 9,000 lb. capacity per pair (available from factory)
- Pallet Forks - two 48 in, 2.36 in x 4 in, 9,000 lb. capacity per pair (available from factory)
- Cubing Forks - two 48 in, 2 in x 2 in, 3,800 lb. capacity per pair (available from factory)
- Bucket - General Purpose 1.3 Cu. Yd.
- Bucket - Material Handling 1.95 Cu. Yd.
- Bucket - Multi-Purpose, 1.3 Cu. Yd.
- Work Platform -- 8 ft x 4 ft with maximum capacity of 1,000 lbs. Includes enclosed fork pockets, side entry/exit gate, removable front rail and wire mesh floor
