| Rated Capacity | 6.58 yd³ 5.03 m³ |
| Weight | 6174 lb 2800 kg |
| Upper Jaw Width | 62 in 1581 mm |
| Lower Jaw Width | 80 in 2038 mm |
| Maximum Jaw Opening | 124 in 3161 mm |
| Outside Jaw Dimension - Closed | 13 in 338 mm |
| Outside Jaw Dimension - Open | 130 in 3290 mm |
| Tip Radius | 66 in 1679 mm |
| Jaw Depth | 17 in 430 mm |
| Tip Thickness | 0.98 in 25 mm |
| Wear Plate Thickness | 0.47 in 12 mm |
| Wrapper Thickness | 0.63 in 16 mm |
Trash Grapples TG-TB
Request A Price Find DealerKey Specs
- Rated Capacity
- 6.58 yd³
- 5.03 m³
- Weight
- 6174 lb
- 2800 kg
- Upper Jaw Width
- 62 in
- 1581 mm
Overview

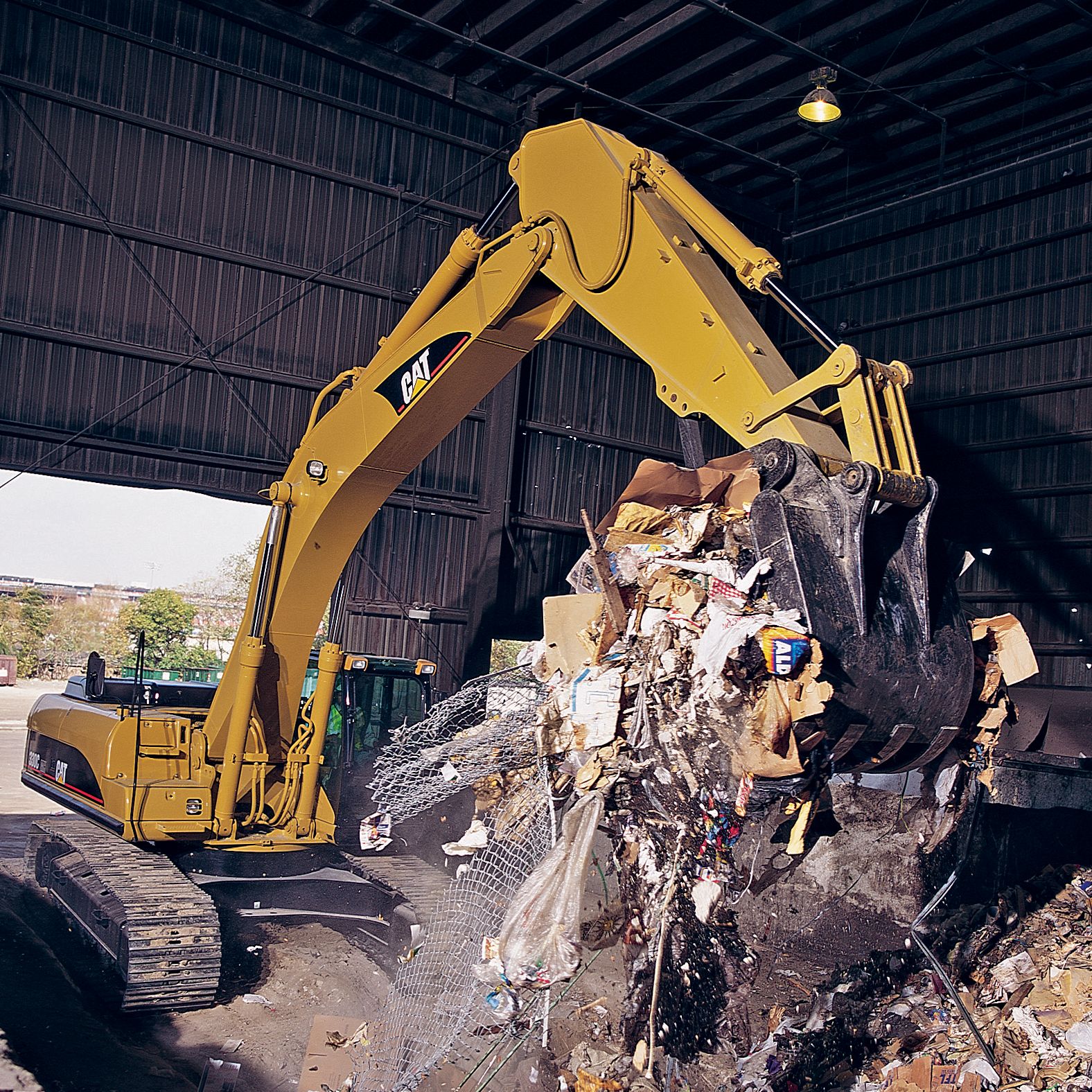

Pin on trash grapple, four tines over five, for 345B hydraulic excavator with F linkage. 7CW.
Product Specifications for TG-TB
See how TG-TB compares against frequently compared products.
Grapples
TG-TB
Selected
- Rated Capacity
- 6.58 yd³
- 5.03 m³
- Weight
- 6174 lb
- 2800 kg
- Upper Jaw Width
- 62 in
- 1581 mm
Grapples
TG-B
- Rated Capacity
- 4.5 yd³
- 3.44 m³
- Weight
- 3069 lb
- 1392 kg
- Upper Jaw Width
- 43 in
- 1100 mm
Grapples
TG-B
- Rated Capacity
- 3.6 yd³
- 2.7 m³
- Weight
- 2840 lb
- 1288 kg
- Upper Jaw Width
- 44 in
- 1118 mm
