| Straight Width | 60 in 1524 mm |
| Angled Width | 53 in 1346 mm |
| Interface Type | Skid Steer Coupler Skid Steer Coupler |
| V-Width - Scoop Mode | 54 in 1372 mm |
| V-Width - Plow Mode | 58.4 in 1483 mm |
| Weight | 639.3 lb 290 kg |
| Blade Height | 29 in 737 mm |
| Overall Height | 32.5 in 826 mm |
| Length | 52 in 1320 mm |
| Hydraulic Angling - Left/Right of Center | ±35 Degrees ±35 Degrees |
| Float | ±5 Degrees ±5 Degrees |
| Optimal Hydraulic Flow | 57-76 lpm (15-20 gpm) 57-76 lpm (15-20 gpm) |
| Optimal Hydraulic Pressure | 150-230 bar (2176-3340 psi) 150-230 bar (2176-3340 psi) |
| Trip Edge Quantity | 2 2 |
| Trip Edge Type | Steel Steel |
| Trip Edge Height | 4 in 101 mm |
| Trip Edge Pivot Height | 3.3 in 83 mm |
| Required Hydraulics | Standard Flow Standard Flow |
My Account
Sign In
Welcome! Sign In to personalize your Cat.com experience
If you already have an existing account with another Cat App, you can use the same account to sign in here
Register Now
One Account. All of Cat.
Your Caterpillar account is the single account you use to log in to select services and applications we offer. Shop for parts and machines online, manage your fleet, go mobile, and more.
Welcome Back!
My Account Dashboard
Account Information
Site Settings
Security
Multi V-Plows 1524 mm (60 in)
Starting MSRP*
$7,597.00 USD
Request A Price Build and PriceKey Specs
- Straight Width
- 60 in
- 1524 mm
- Angled Width
- 53 in
- 1346 mm
- Interface Type
- Skid Steer Coupler
- Skid Steer Coupler
Overview
Two independently operating blades that can hydraulically angle into five different blade configurations to move snow with maximum efficiency and power.
Features At A Glance
Curved Moldboard

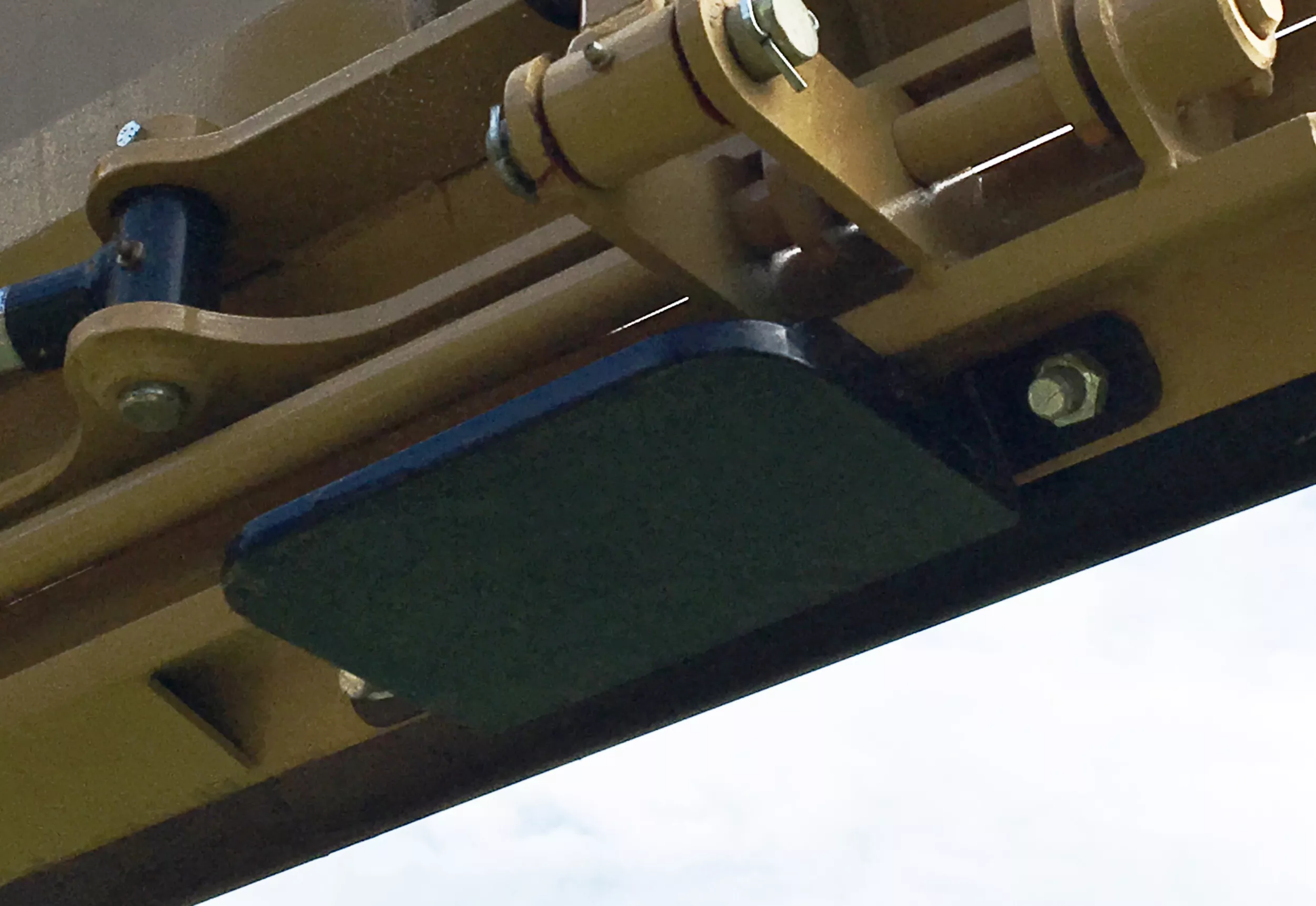

Adjustable Skid Plates
Blade Float
Adjustable Trip Edges
Bolt-On Serrated Step
V (scoop mode) Blade Configuration
V (plow mode) Blade Configuration
Right/Left Angled Blade Configuration

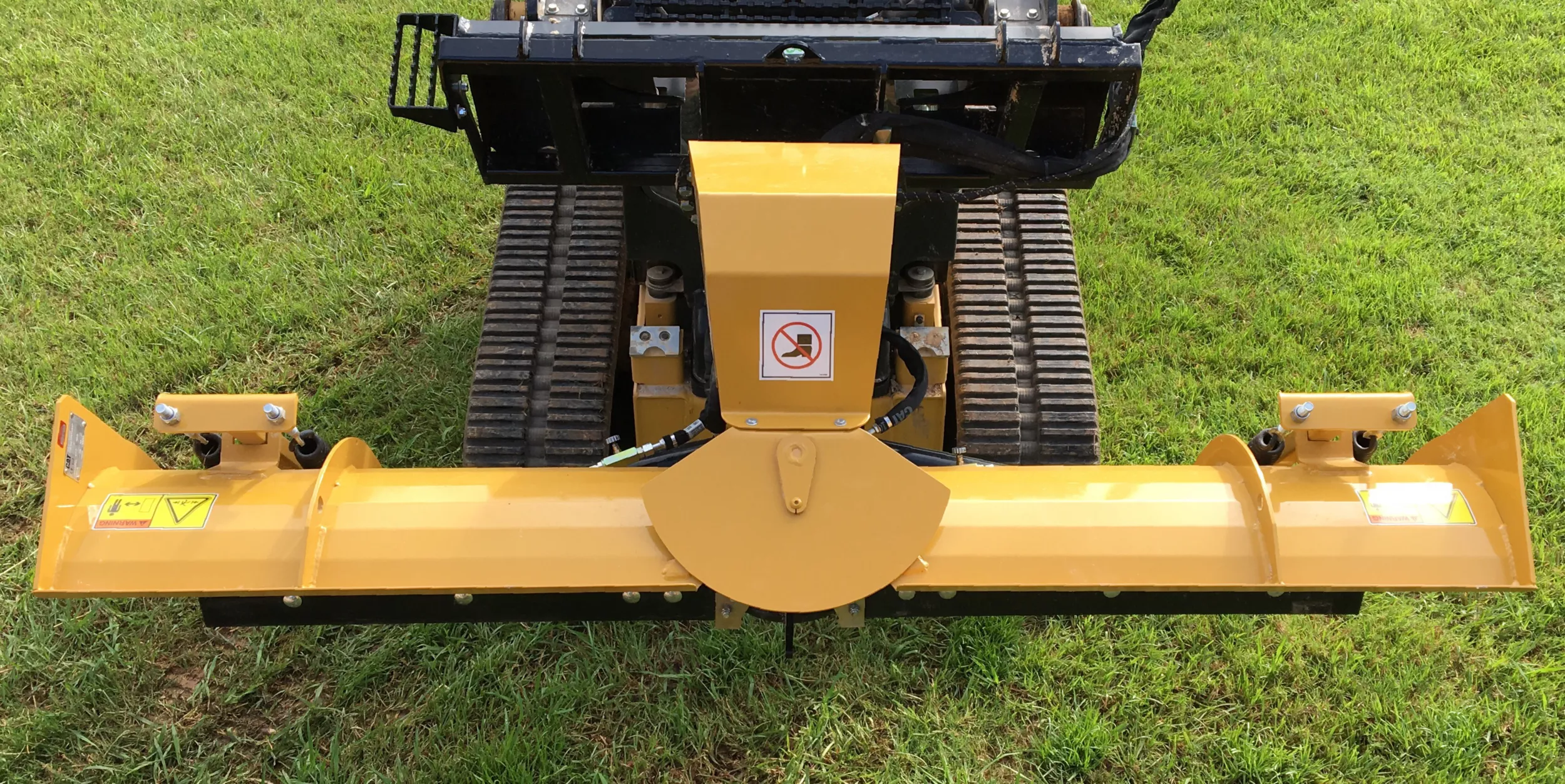

Straight Blade Configuration
Product Specifications for 1524 mm (60 in)
See how 1524 mm (60 in) compares against frequently compared products.
done
Build and Price
Snow Products
1524 mm (60 in)
- Straight Width
- 60 in
- 1524 mm
- Angled Width
- 53 in
- 1346 mm
- Interface Type
- Skid Steer Coupler
- Skid Steer Coupler
Starting MSRP*
$7,597.00
USD
done
Build and Price
Snow Products
2134 mm (84 in)
- Straight Width
- 84 in
- 2134 mm
- Angled Width
- 73 in
- 1854 mm
- Interface Type
- Skid Steer Coupler
- Skid Steer Coupler
Starting MSRP*
$8,694.00
USD
