Dozer Blade Breakdown

Dozer work can change by the hour. One minute you’re carrying loose material, the next you’re cutting through something tougher or trying to clean up a final pass. Blade selection starts with matching your setup to the job.

Here are three factors that drive that decision:

1. Material Type

• Loose or fine material (sand, fill, topsoil) benefits from higher capacity and better carry
• Cohesive material like clay needs more cutting power
• Hard-packed or rocky ground demands tight control and strong penetration

2. Distance and Type of Push

• Long, steady pushes favor high capacity
• Short or intermittent moves favor control
• Slot dozing, cleanup work and final grade each place different demands on the blade

3. Application

• Bulk dozing requires carrying performance
• Cutting or ripping needs penetration
• Finish grading calls for a blade that adjusts quickly and precisely

Once you size up your material, push style and application, the blade choices fall into place.

For long, steady pushes in loose or fine material, a Universal (U) blade gives you the most carry for the least effort. The deep curve and wide wings keep material moving so the dozer doesn’t have to fight it, especially on bulk earthmoving or stockpile jobs.

Strengths:

• Highest capacity
• Superior material retention
• Efficient for straight-line production

Limitations:

• Less precise on rocky or uneven ground
• Not ideal for tight spaces or detailed cutting

If you need one blade that can do a bit of everything, the Semi-Universal often hits the sweet spot. It offers more capacity than a Straight blade and more cutting ability than a U blade, making it a reliable pick for mixed material and changing jobsite conditions.

Strengths:

• Good load carry
• Better penetration than a U blade
• Versatility across different materials

Limitations:

• Less precise than a Straight blade
• Less specialized than a full U blade

When you're working in hard-packed material, against rock or on cutting, shaping and trimming jobs, a Straight (S) blade is often the best fit. With no curvature or wings, it’s designed for precision and penetration — not capacity.

Strengths:

• Excellent penetration
• Great for slot dozing and shaping
• Clear line of sight for fine work

Limitations:

• Lower capacity
• Slower for bulk material movement

A Variable Pitch, Angle, Tilt (VPAT) blade is built for control. Operators can pitch the blade forward or back, angle it left or right and fine-tune adjustments on the fly. That makes it ideal for finish grading, shaping slopes or ditches and any job that requires constant blade changes.

Strengths:

• Unmatched versatility
• Smooth finish quality
• Great for sites with varying contours

Limitations:

• Not built for heavy production
• Smaller capacity than U or Semi-U blades

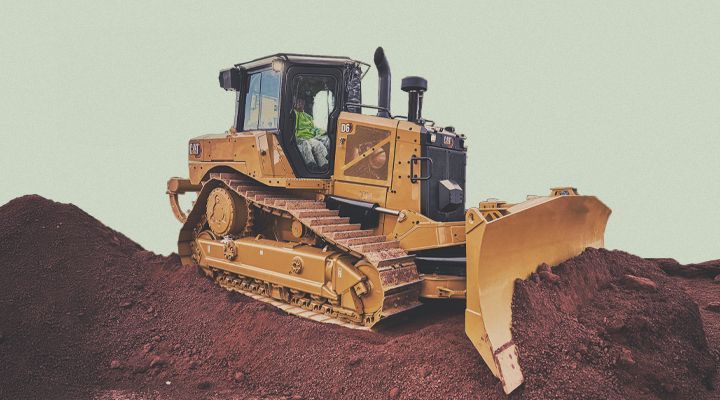

Choosing the right blade matters. But choosing the right dozer behind it multiplies what that blade can do. That’s where the Cat D6 XE stands out.

As the industry’s first high-drive electric drive dozer, the D6 XE changes how power reaches the ground — and that changes how each blade performs in real job conditions. Electric drive delivers continuous, efficient power instead of cycling through gears for:

• Smoother, faster pushes
• Better traction in all ground conditions
• More consistent blade load
• Up to 35% better fuel efficiency

The result is more passes per hour, more material moved per gallon and better response as the jobsite changes.

With a U blade, electric drive keeps material rolling without bogging the machine down, making long pushes faster and more fuel-efficient.

With a Semi-U blade, steady, consistent power lets the D6 XE pull bigger loads through mixed material without lugging — even when conditions change.

With a Straight blade, instant response and smooth modulation give operators cleaner cuts in hard-packed soils and rocky ground.

With a VPAT blade, fine control feels easier and more predictable, helping operators hit grade faster and with less fatigue.

With the D6 XE, the blade you choose performs better because the machine performs better — turning the right blade into an even smarter investment.

The right blade can make your work easier. The right dozer can make that blade even more productive.

When you’re ready to dial in which dozer and blade fit your material and production goals, your local Cat dealer can help you compare options and build the setup that works best for your operation.
