| Drive Shaft Torque at Maximum Pressure | 3038.8 lb/ft 4120 N·m |
| Drive Method | Gerotor Motor - Single Planetary Reduction Gerotor Motor - Single Planetary Reduction |
| Mounting Bracket Design | 5 Ton Mini Excavator Pin On 5 Ton Mini Excavator Pin On |
| Required Hydraulics | Standard Flow Standard Flow |
| Optimal Hydraulic Flow | 42-83 L/min (11-22 gpm) 42-83 L/min (11-22 gpm) |
| Optimal Hydraulic Pressure | 145-235 bar (2100-3400 psi) 145-235 bar (2100-3400 psi) |
| Overall Width - With Bracket | 11.4 in 289 mm |
| Overall Length - With Bracket | 14.2 in 361 mm |
| Overall Height | 34.4 in 875 mm |
| Housing Diameter | 11 in 280 mm |
| Swing Range (fore/aft) | 72 degrees 72 degrees |
| Swing Range (L/R) | 76 degrees 76 degrees |
| Weight | 207.2 lb 94 kg |
| Motor Displacement | 15.26 in³ 250 cm³ |
| Bit Speed at Maximum Flow | 71 rpm 71 rpm |
| Hex Output Shaft Size | 2 in 51 mm |
My Account
Sign In
Welcome! Sign In to personalize your Cat.com experience
If you already have an existing account with another Cat App, you can use the same account to sign in here
Register Now
One Account. All of Cat.
Your Caterpillar account is the single account you use to log in to select services and applications we offer. Shop for parts and machines online, manage your fleet, go mobile, and more.
Welcome Back!
My Account Dashboard
Account Information
Site Settings
Security
Augers A41
Starting MSRP*
$3,542.00 USD
Request A Price Build and PriceKey Specs
- Drive Shaft Torque at Maximum Pressure
- 3038.8 lb/ft
- 4120 N·m
- Drive Method
- Gerotor Motor - Single Planetary Reduction
- Gerotor Motor - Single Planetary Reduction
- Mounting Bracket Design
- 5 Ton Mini Excavator Pin On
- 5 Ton Mini Excavator Pin On
Overview

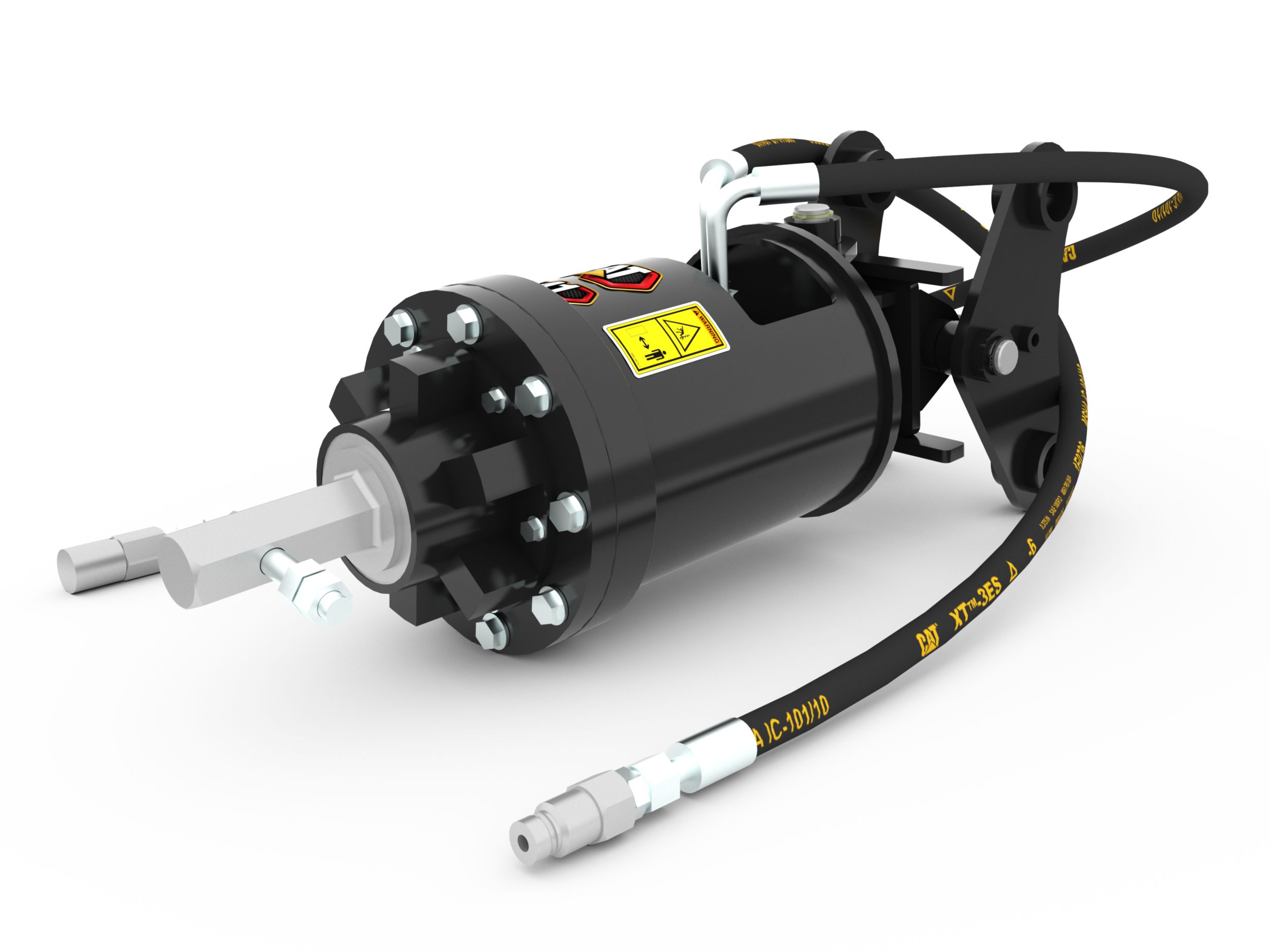

Cat® Augers are used to drill holes for footings, fencing, sign posts, trees and shrubs in construction, agricultural and landscaping applications.
Features At A Glance
Application
Multiple Drive Systems
- A23 feature a variable speed, bi-directional, gerotor style hydraulic motor that generates optimal bit speed and output torque for light to moderate duty work.
- A41 features a variable speed, bi-directional, single reduction planetary drive gerotor style hydraulic motor mounted to a planetary gear box for optimal bit speed and output torque for moderate to heavy-duty applications.
- A68 features variable speed, bi-directional, double reduction planetary drive hydraulic gear motor mounted to a planetary gear box for optimal bit speed and output torque for moderate to heavy-duty, high performance drilling requirements.
Rugged Bits for Every Application
Bit Extensions and Adapters
Articulated Joint
Mechanical Swing Stops
Product Specifications for A41
See how A41 compares against frequently compared products.
done
Build and Price
Augers
A41
- Drive Shaft Torque at Maximum Pressure
- 3038.8 lb/ft
- 4120 N·m
- Drive Method
- Gerotor Motor - Single Planetary Reduction
- Gerotor Motor - Single Planetary Reduction
- Mounting Bracket Design
- 5 Ton Mini Excavator Pin On
- 5 Ton Mini Excavator Pin On
Starting MSRP*
$3,542.00
USD
done
Build and Price
Augers
A41
- Drive Shaft Torque at Maximum Pressure
- 3038.8 lb/ft
- 4120 N·m
- Drive Method
- Gerotor Motor - Single Planetary Reduction
- Gerotor Motor - Single Planetary Reduction
- Mounting Bracket Design
- 3 Ton Mini Excavator Pin On
- 3 Ton Mini Excavator Pin On
Starting MSRP*
$3,542.00
USD
done
Build and Price
Augers
A68
- Drive Shaft Torque at Maximum Pressure
- 5034.6 lb/ft
- 6826 N·m
- Drive Method
- Gerotor Motor - Double Planetary Drive
- Gerotor Motor - Double Planetary Drive
- Mounting Bracket Design
- Skid Steer Loader Coupler
- Skid Steer Loader Coupler
Starting MSRP*
$5,694.00
USD
