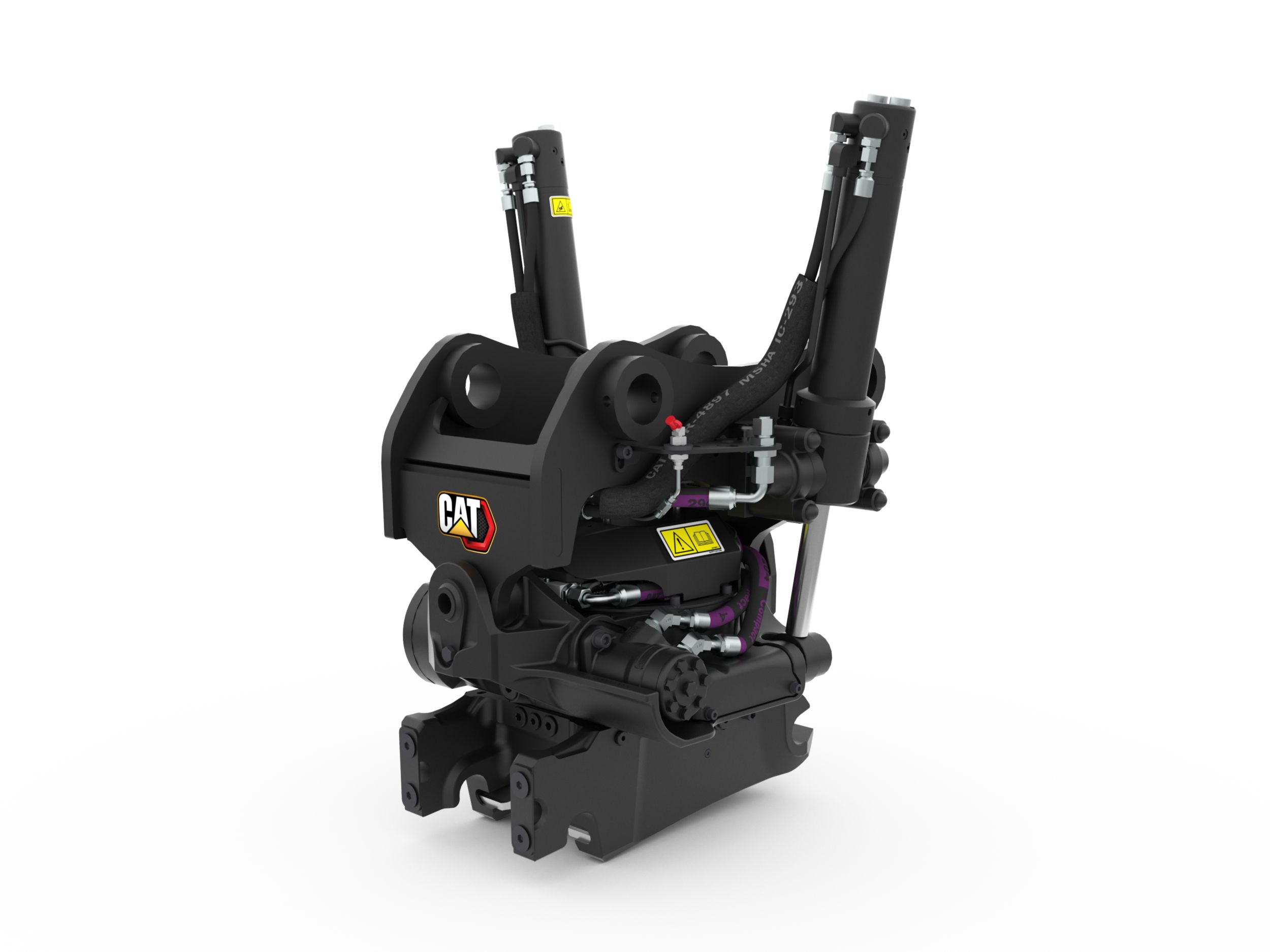

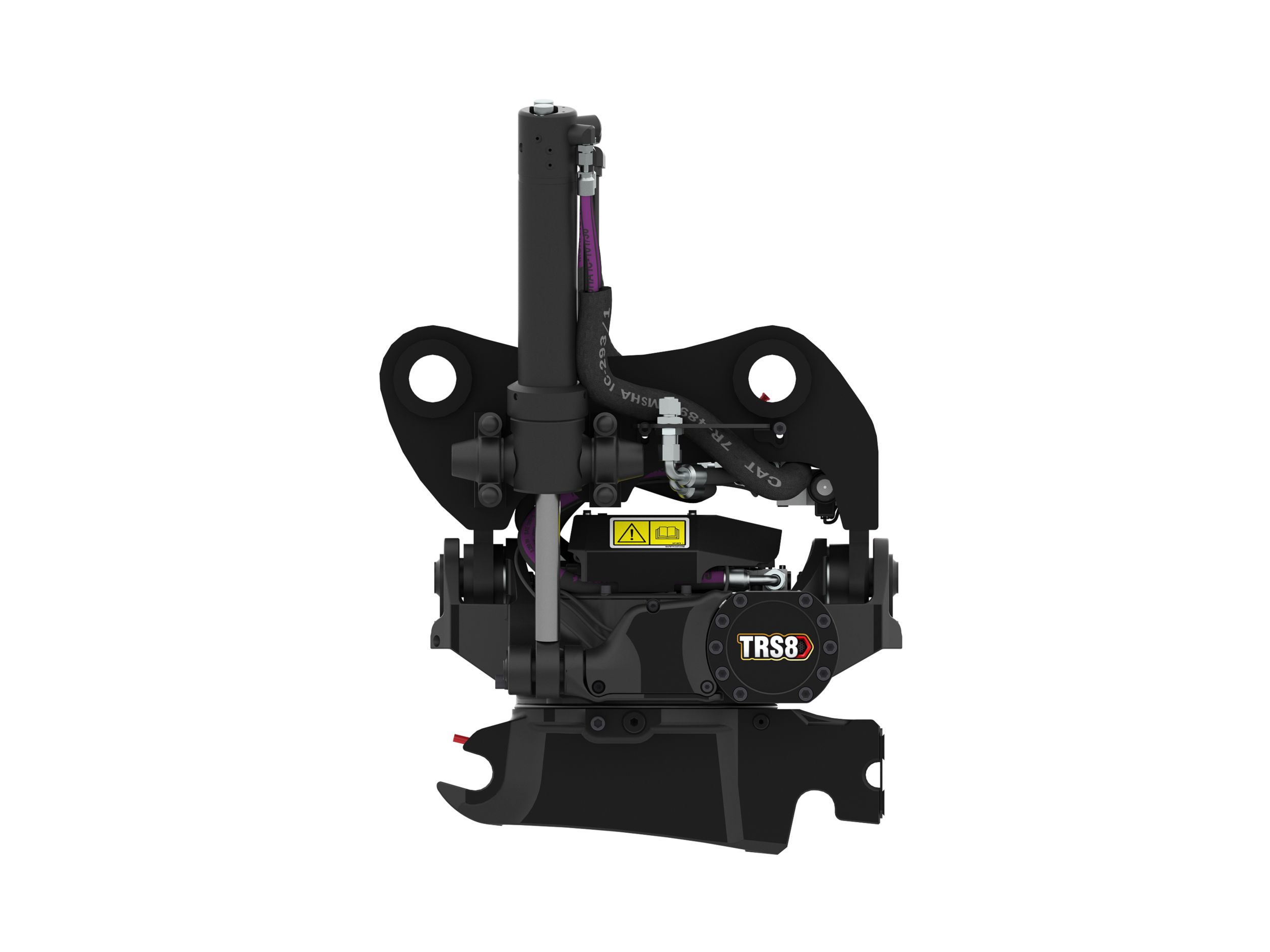

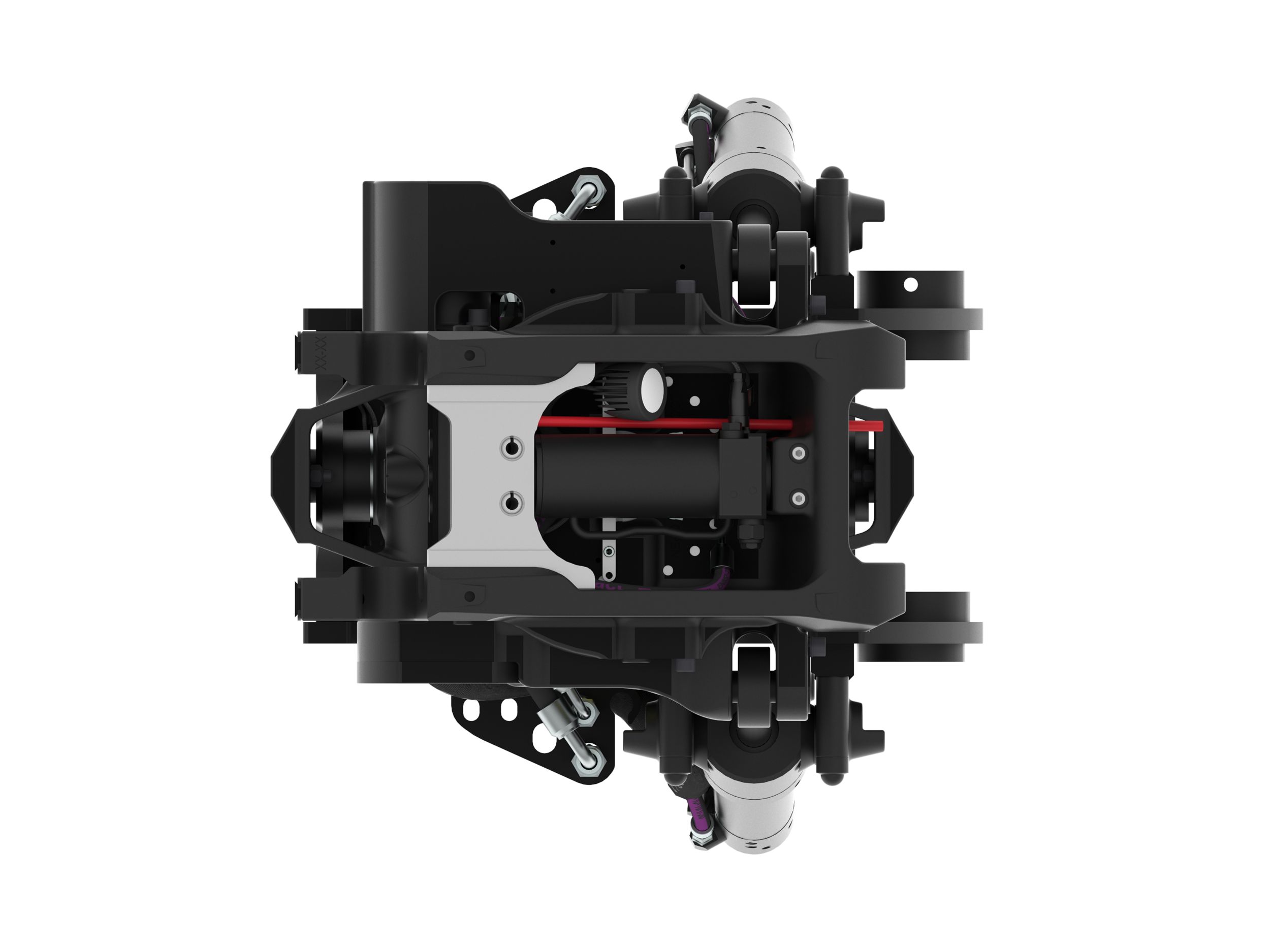

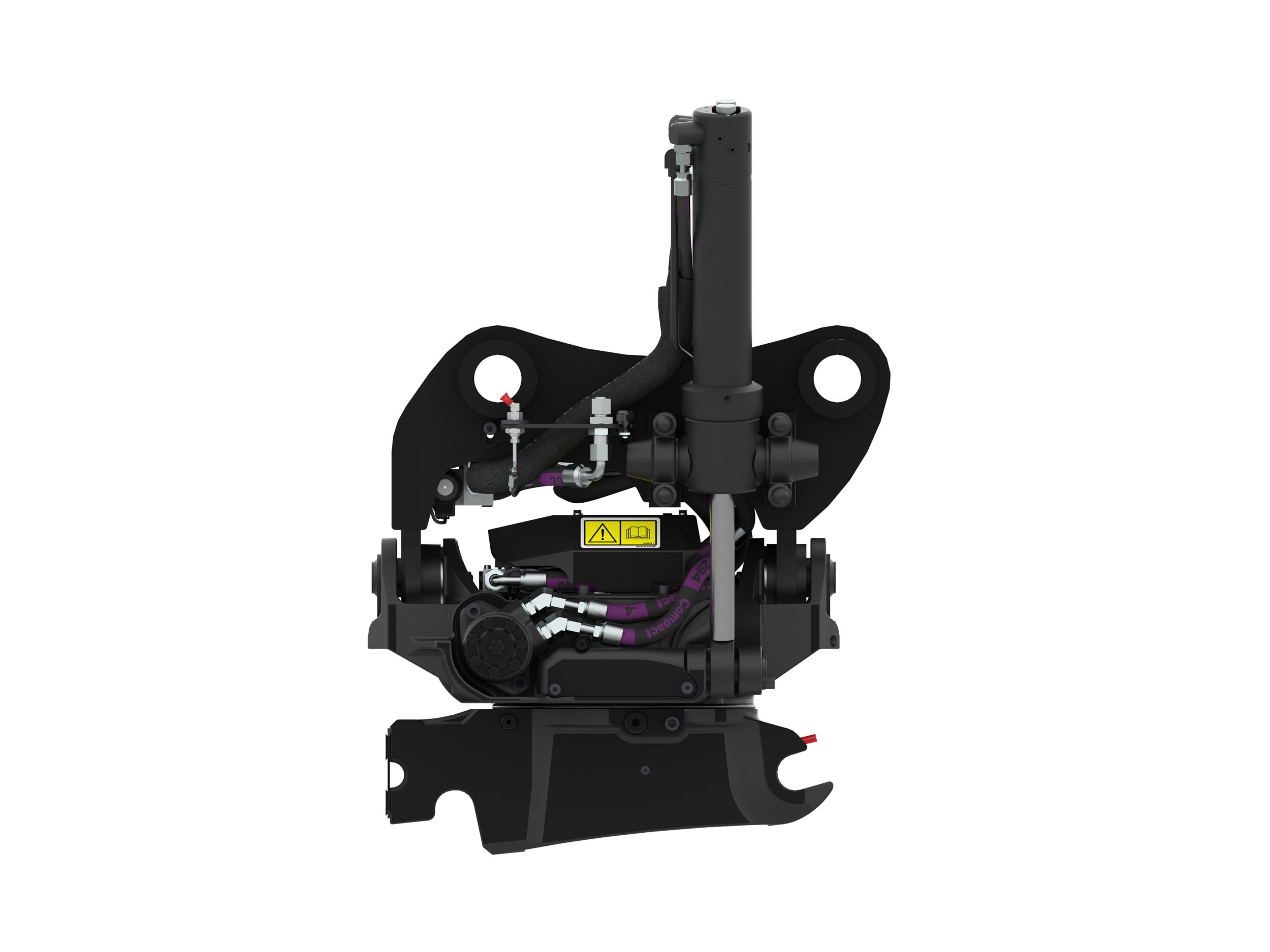

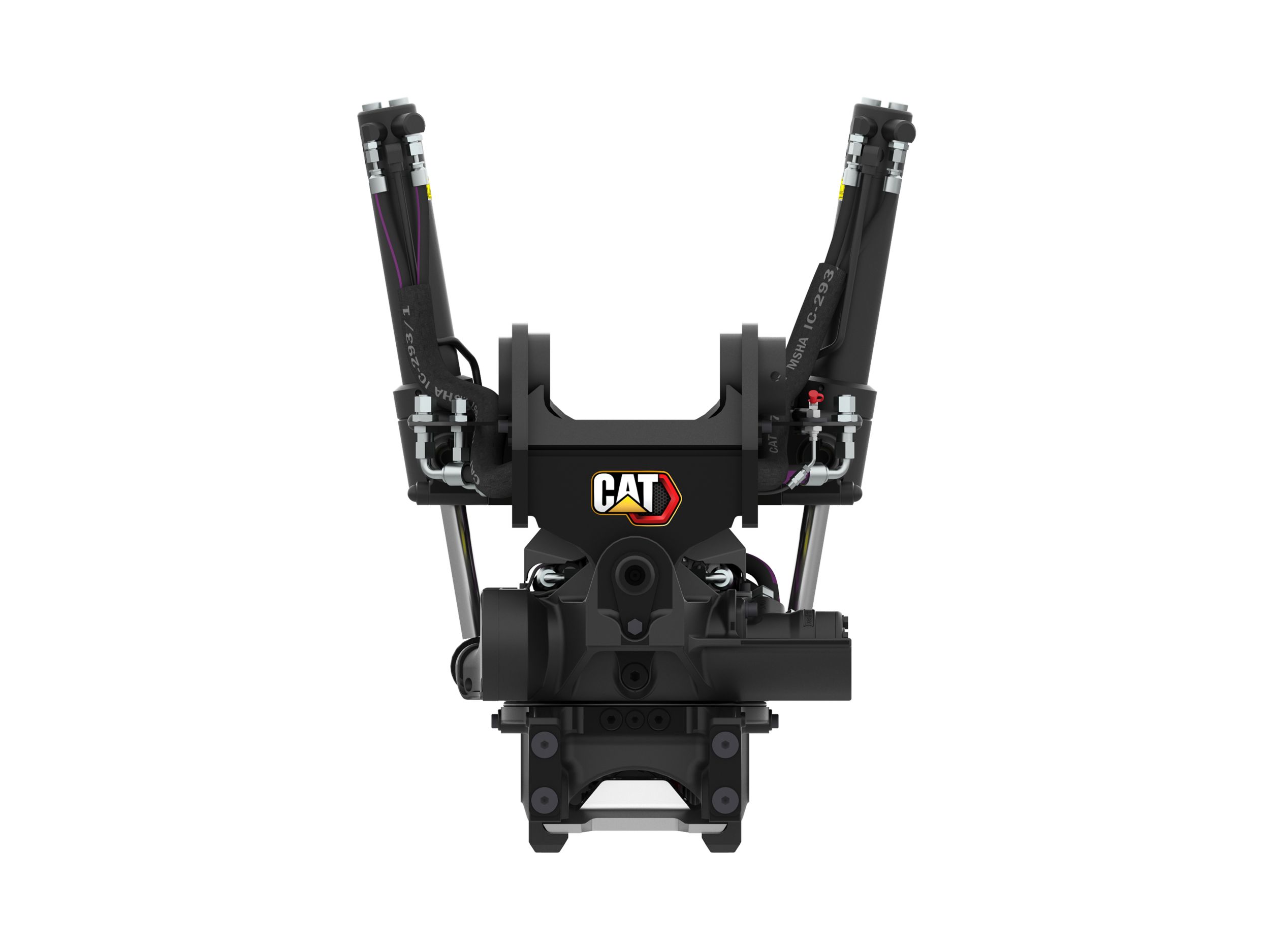

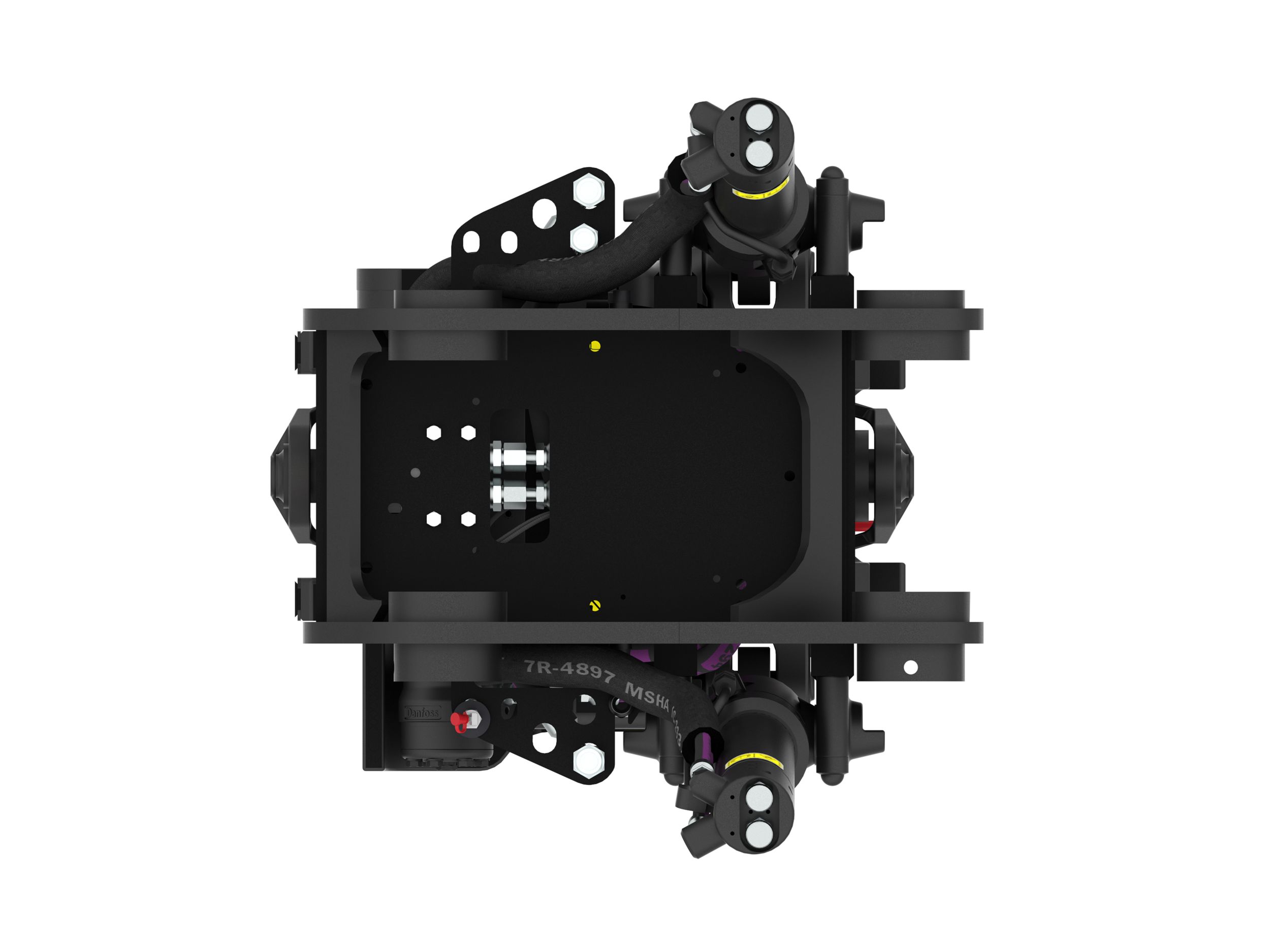

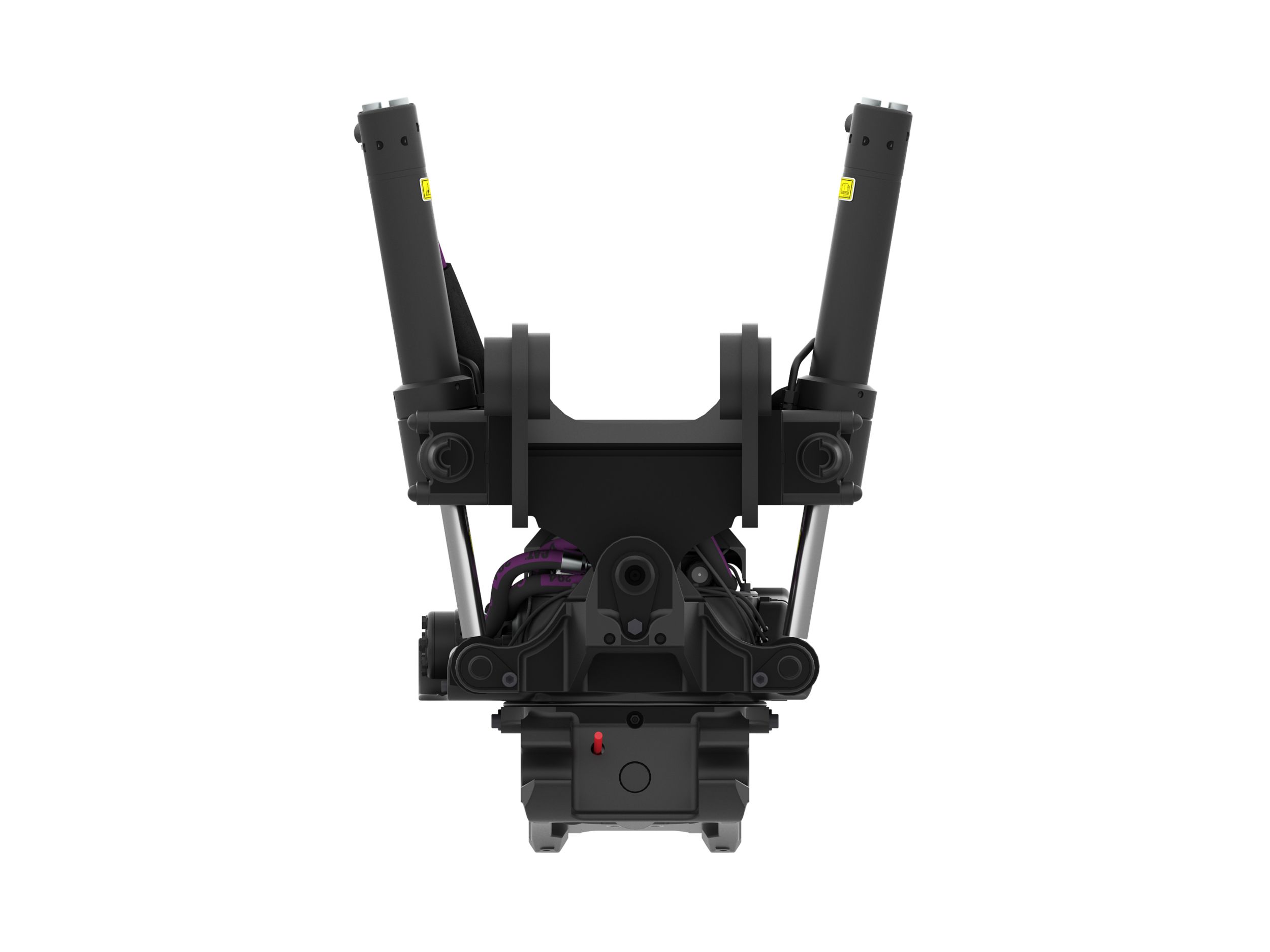

Tilt Rotate Systems TRS8, Pin On (Pin Grabber) / S45, 10 Ton Mini Excavators

Request A Price Shop Now

Key Specs

Machine Class: 10 Ton Mini Excavators; 10 Ton Mini Excavators

Weight: 723.1 lb; 328 kg

Interface Options: Top-Bottom: Pin On (Pin Grabber) Coupler / S45 Coupler; Pin On (Pin Grabber) Coupler / S45 Coupler

TRS8, Pin On (Pin Grabber) / S45, 10 Ton Mini Excavators
Change model

Overview

Cat® Tiltrotators help you maneuver obstacles in your work area without the need for repositioning your machine.

Features At A Glance

Complete 360 Degree Rotation and 40 Degree Angling

Provides optimal control of your work tools to provide greater working flexibility. All tiltrotators include rotation and tilting sensors.

A single point of entry for grease allows the entire unit to be greased quickly and easily.

Compatible with either the standard or advanced machine display, the TRS uses the existing machine display to view position information and to adjust settings. This eliminates the need for additional displays that clutter up the cab of your excavator.

A maintenance free solution that more effectively distributes heat, providing better lubrication than grease.

Worm gear box with high rotation torque and self locking ability allows digging in all directions with full power, allowing the gear to accept the maximum machine forces and split the load through the entire TRS construction.

Double Acting Cylinders with Load Hold Valves

Valves sustain holding pressures and prevent cylinders movement under load constraints required by directives.

The visual verification indicator allows the operator to visibly confirm, from the cab, that the coupler has successfully locked the attachment into place properly.

Used to pick up objects such as pipe and debris. (not compatible with the pin grabber bottom option)

LCS incorporates an electronic position sensor integrated into the quick coupler hydraulic cylinder. This sensor provides precise and reliable input to an electronic processor mounted inside the quick coupler. This microprocessor provides digital communication to the Next Generation MHE machine Electronic Control Module (ECM) by way of an electrical harness. This data is then displayed on the operators display screen, and will provide audible indications when that locking status changes.

Automatically spread material evenly and quickly or release material stuck in bucket.

Return to a rotation and tilt position that has been set by the operator.

Auxiliary hydraulic ports (Aux 1 and Aux 2 on TRS6 and TRS8, Aux 1 on TRS4) allow the use of various accessories that are available for tiltrotators, including grapples.

Grade control systems allow operators to reach finish grade faster with fewer personnel on the ground checking grade. Optional 2D and 3D grade control systems available on all TRS models.

Used for visibility when engaging and disengaging a tool underneath the TRS8. (S type bottom only)

Product Specifications for TRS8, Pin On (Pin Grabber) / S45, 10 Ton Mini Excavators

Machine Class	10 Ton Mini Excavators 10 Ton Mini Excavators
Weight	723.1 lb 328 kg
Interface Options: Top-Bottom	Pin On (Pin Grabber) Coupler / S45 Coupler Pin On (Pin Grabber) Coupler / S45 Coupler
Overall Height	37.5 in 953 mm
Length	26 in 660 mm
Overall Width	27.8 in 705 mm
Rotation Speed	7 Seconds per 1 full rotation 7 Seconds per 1 full rotation
Tilt Angle Range	40° Left/Right 40° Left/Right
Maximum Bucket Capacity	17.7 ft³ 500 l
Maximum Bucket Width	59.1 in 1500 mm
Optimal Hydraulic Flow	45-75 L/min (12-20 gpm) 45-75 L/min (12-20 gpm)
Maximum Operating Pressure	3625.9 psi 25000 kPa
Required Hydraulics	1st Auxiliary 1st Auxiliary
Tilting Torque	19545.4 lb/ft 26500 N·m
Turning Torque	4499.1 lb/ft 6100 N·m

Product Specifications for TRS8, Pin On (Pin Grabber) / S45, 10 Ton Mini Excavators

Download Print

Machine Class	10 Ton Mini Excavators 10 Ton Mini Excavators
Weight	723.1 lb 328 kg
Interface Options: Top-Bottom	Pin On (Pin Grabber) Coupler / S45 Coupler Pin On (Pin Grabber) Coupler / S45 Coupler
Overall Height	37.5 in 953 mm
Length	26 in 660 mm
Overall Width	27.8 in 705 mm
Rotation Speed	7 Seconds per 1 full rotation 7 Seconds per 1 full rotation
Tilt Angle Range	40° Left/Right 40° Left/Right
Maximum Bucket Capacity	17.7 ft³ 500 l
Maximum Bucket Width	59.1 in 1500 mm
Optimal Hydraulic Flow	45-75 L/min (12-20 gpm) 45-75 L/min (12-20 gpm)
Maximum Operating Pressure	3625.9 psi 25000 kPa
Required Hydraulics	1st Auxiliary 1st Auxiliary
Tilting Torque	19545.4 lb/ft 26500 N·m
Turning Torque	4499.1 lb/ft 6100 N·m
