Studio Shot

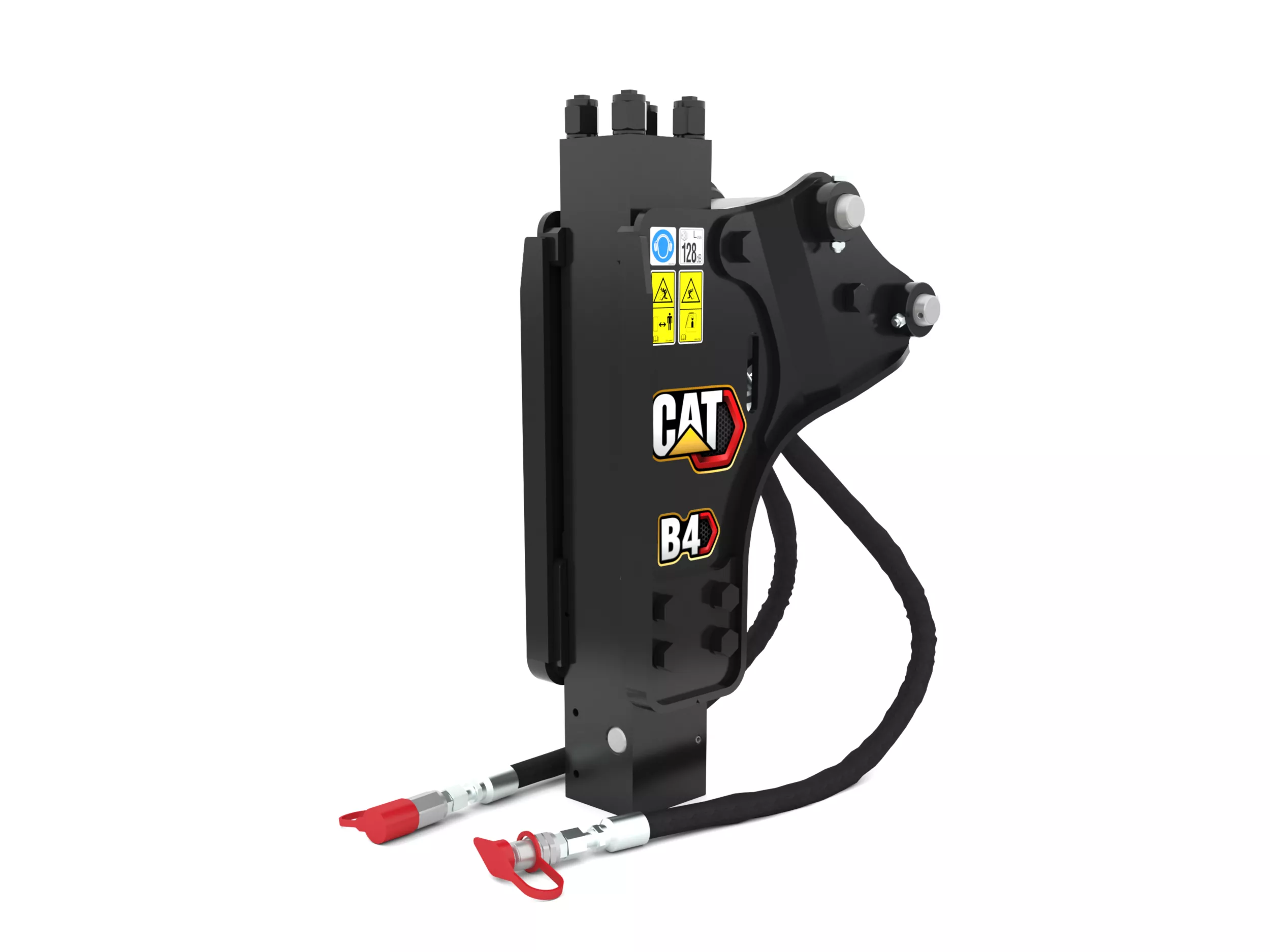

Hammers B4 Side Mount

Request A Price Click for Price

Key Specs

Operating Weight - With Tool
326.3 lb
148 kg
Energy Class
272.9 ft·lbf
370 J
Machine Class
3-4 Ton Mini Excavators
3-4 Ton Mini Excavators

Overview

Used for demolition and construction applications.

Product Specifications for B4 Side Mount

Operating Weight - With Tool 326.3 lb 148 kg
Energy Class 272.9 ft·lbf 370 J
Machine Class 3-4 Ton Mini Excavators 3-4 Ton Mini Excavators
Tool Shaft Diameter 2.1 in 53 mm
Impact Frequency 600-1100 bpm 600-1100 bpm
Minimum Operating Pressure 1491.9 psi 10286 kPa
Minimum Carrier Weight 6613.9 lb 3000 kg
Optimal Hydraulic Flow 25-50 lpm (6.6-13.2 gpm) 25-50 lpm (6.6-13.2 gpm)
Overall Width 10.9 in 277 mm
Overall Length 18.7 in 476 mm
Overall Height 46.5 in 1182 mm
Height - Without Tool 32.4 in 822 mm
Sound Level 128 dB 128 dB
Mounting Bracket Size Pin On Pin On

See how B4 Side Mount compares against frequently compared products.

Product Brochures and More Are Ready to Download!

Media Gallery

Studio Shot

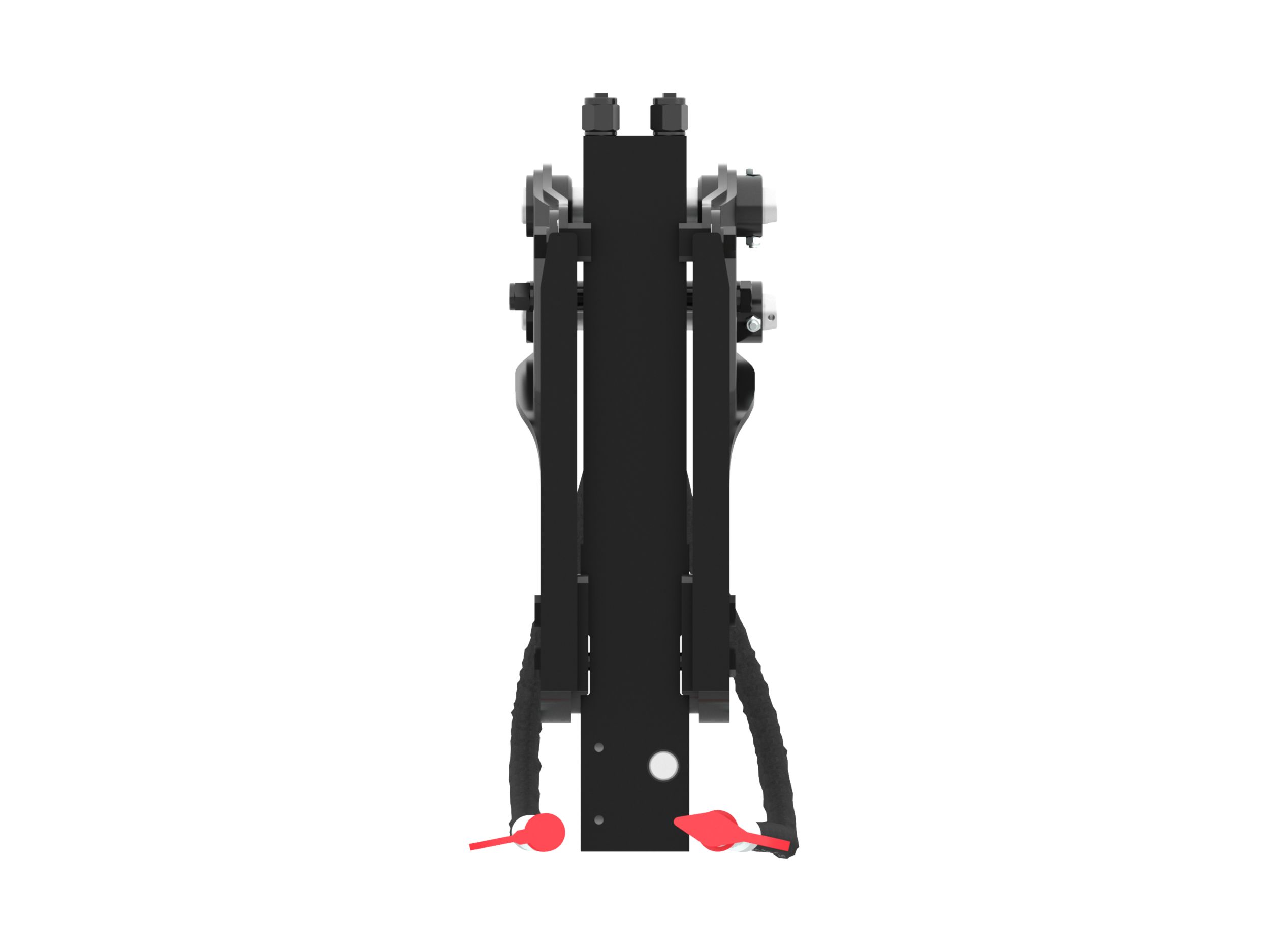

Front View

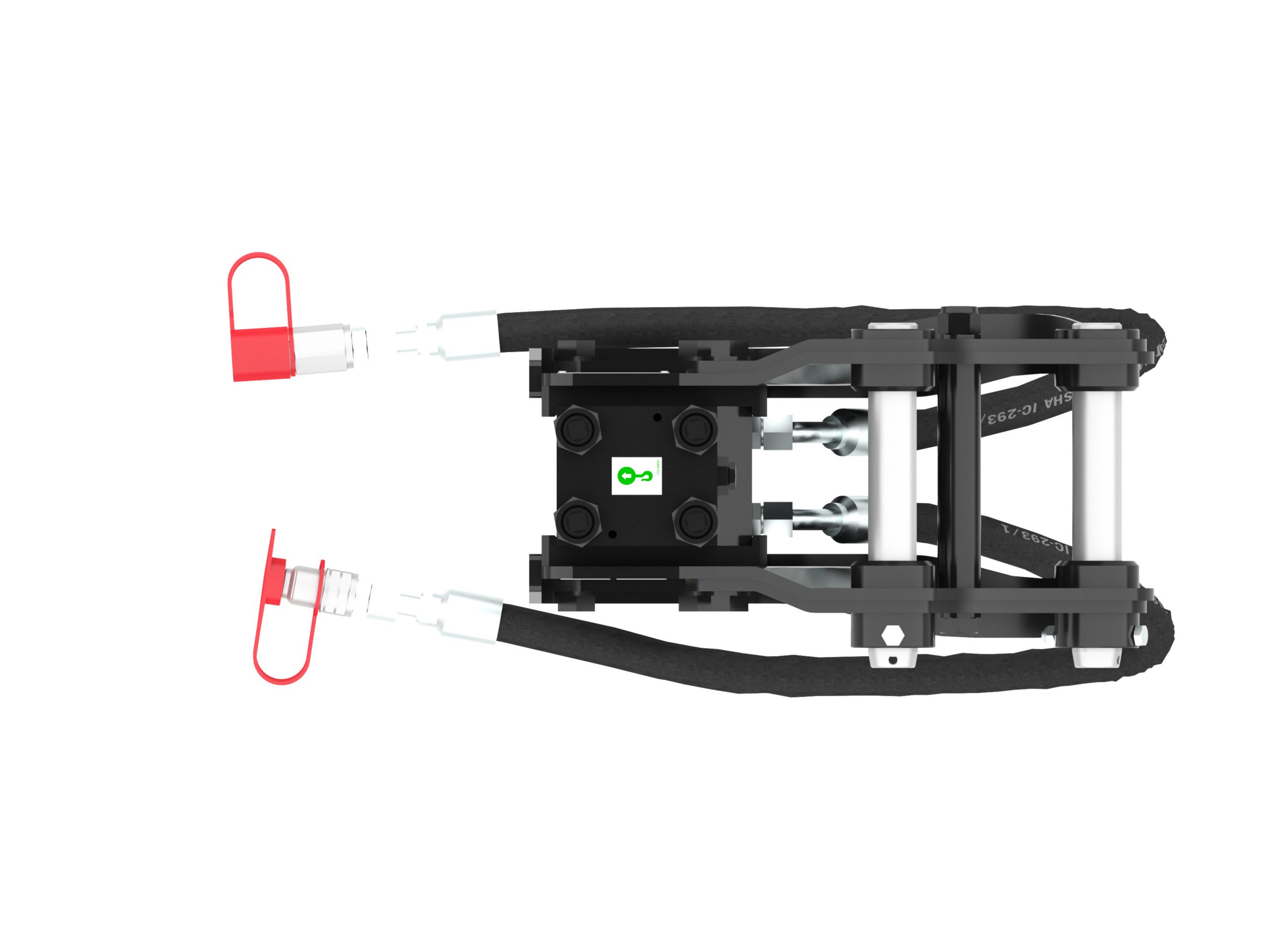

Top View

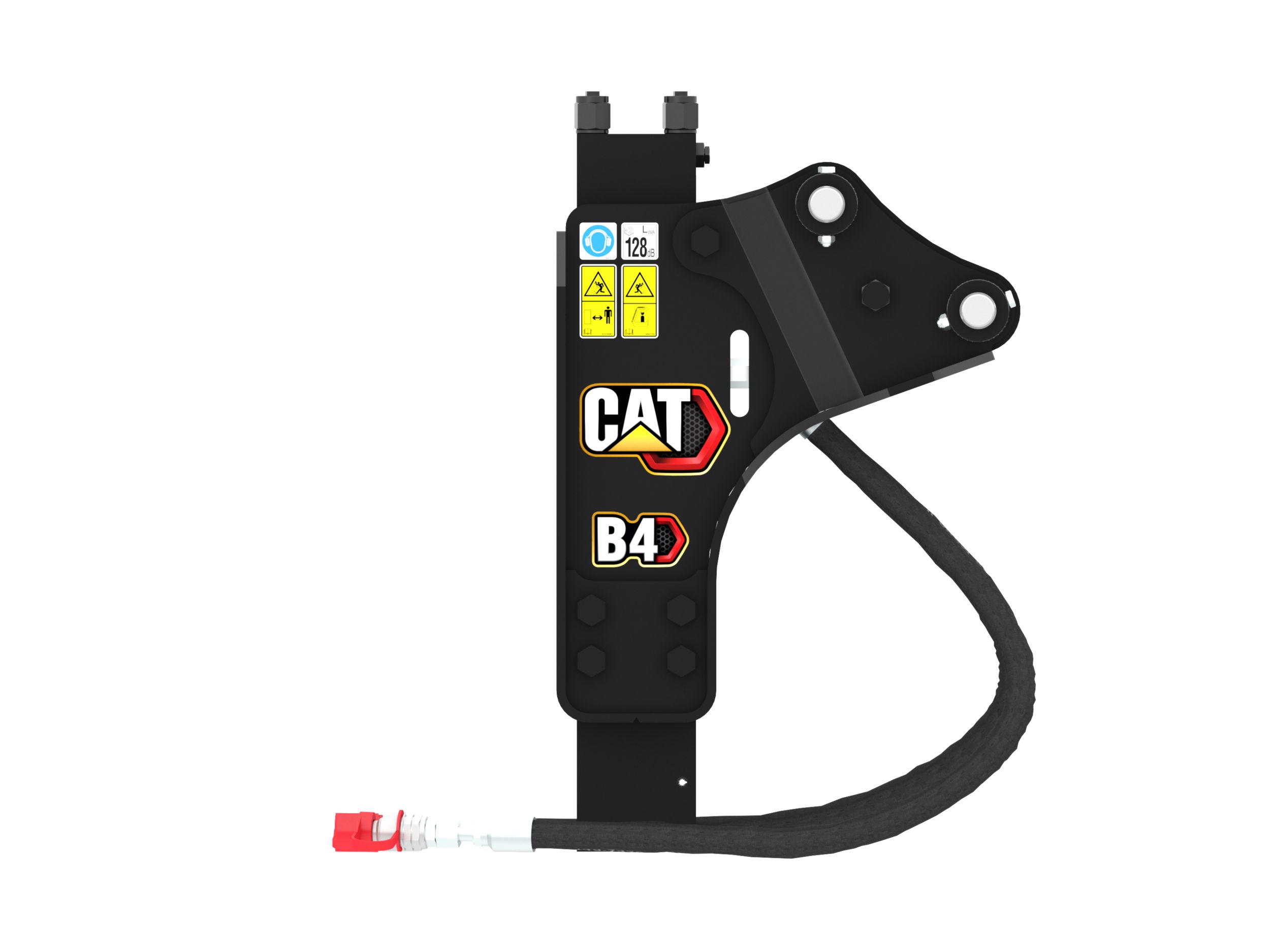

Left View

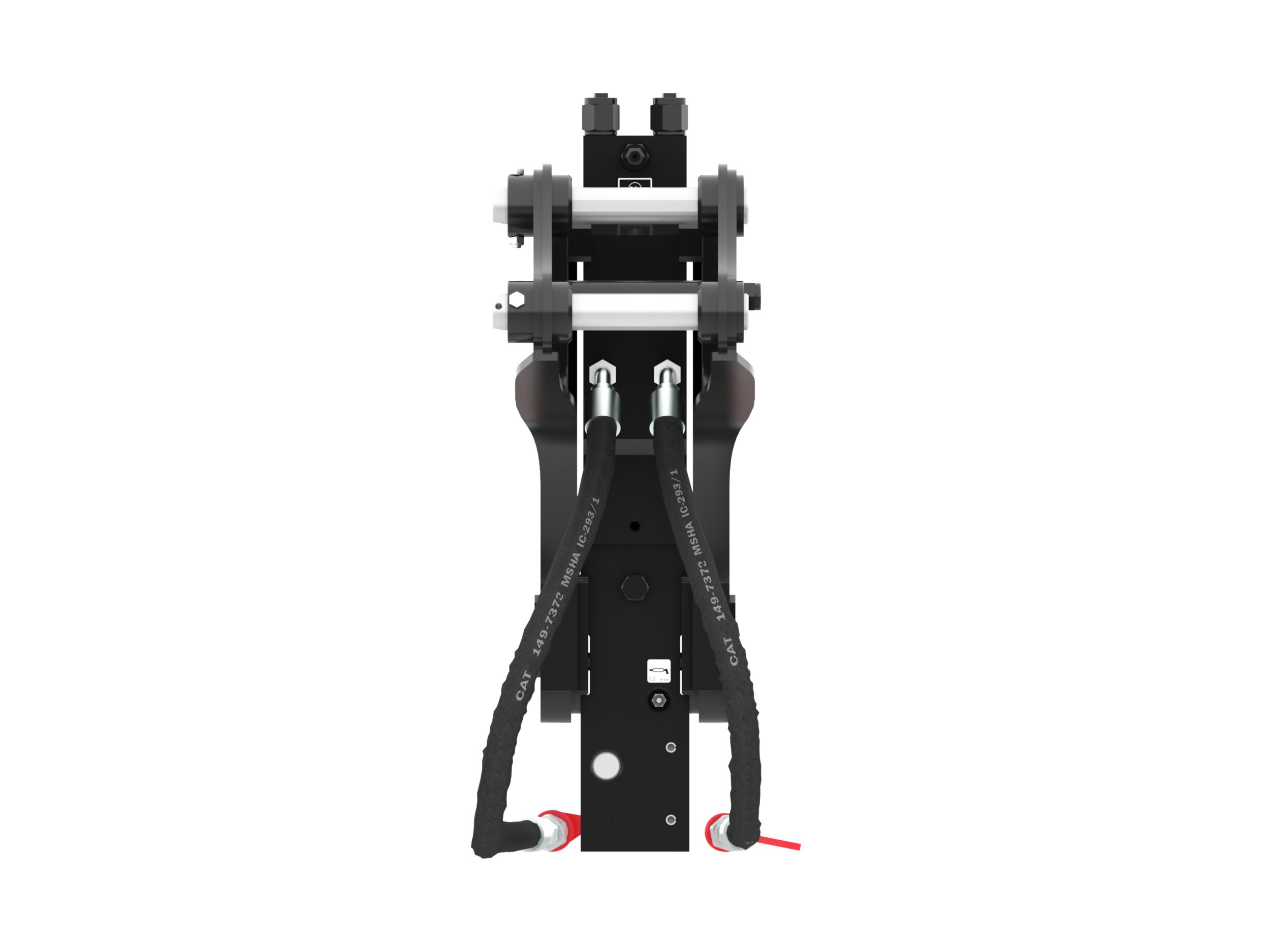

Rear View

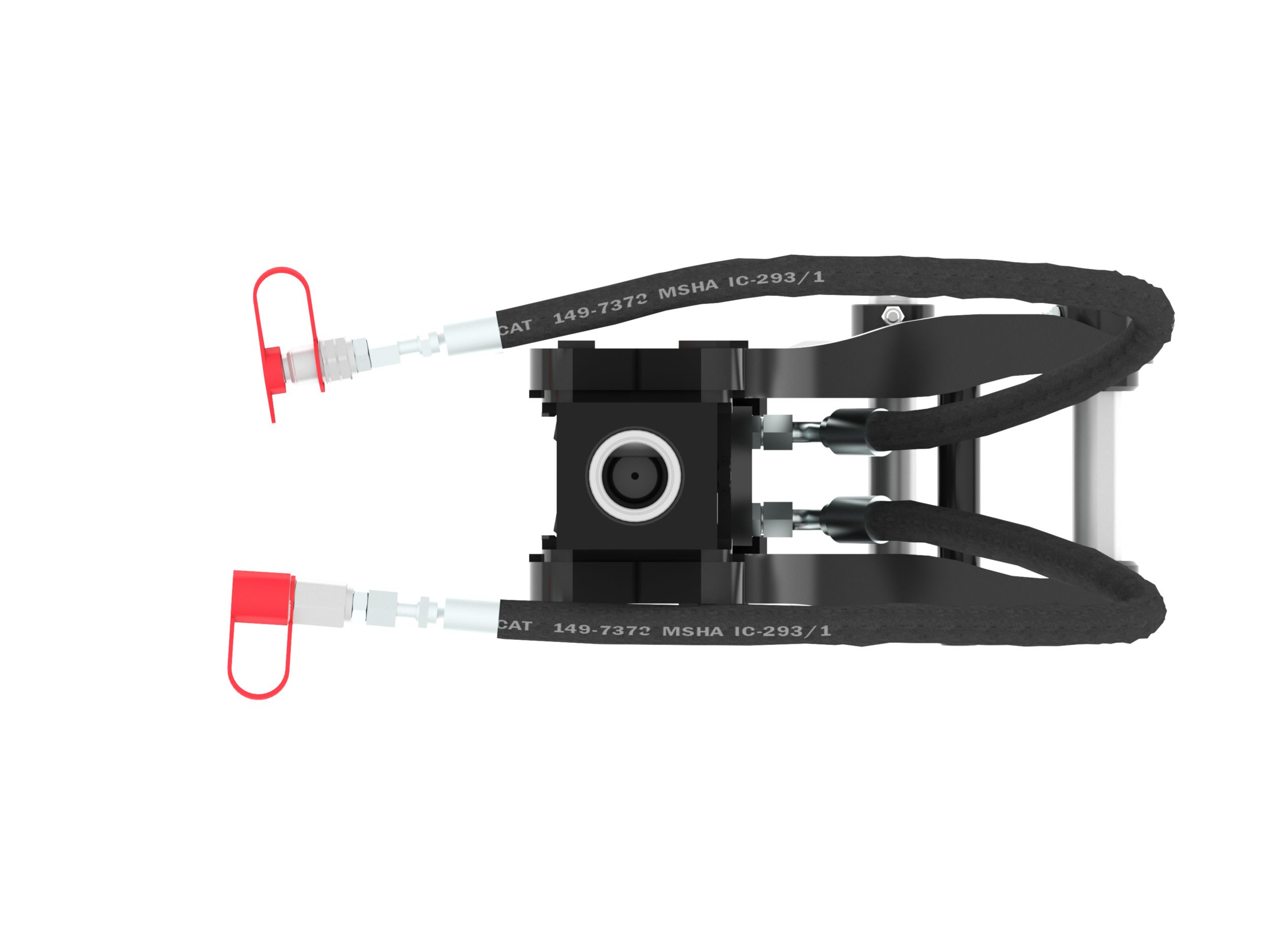

Bottom View

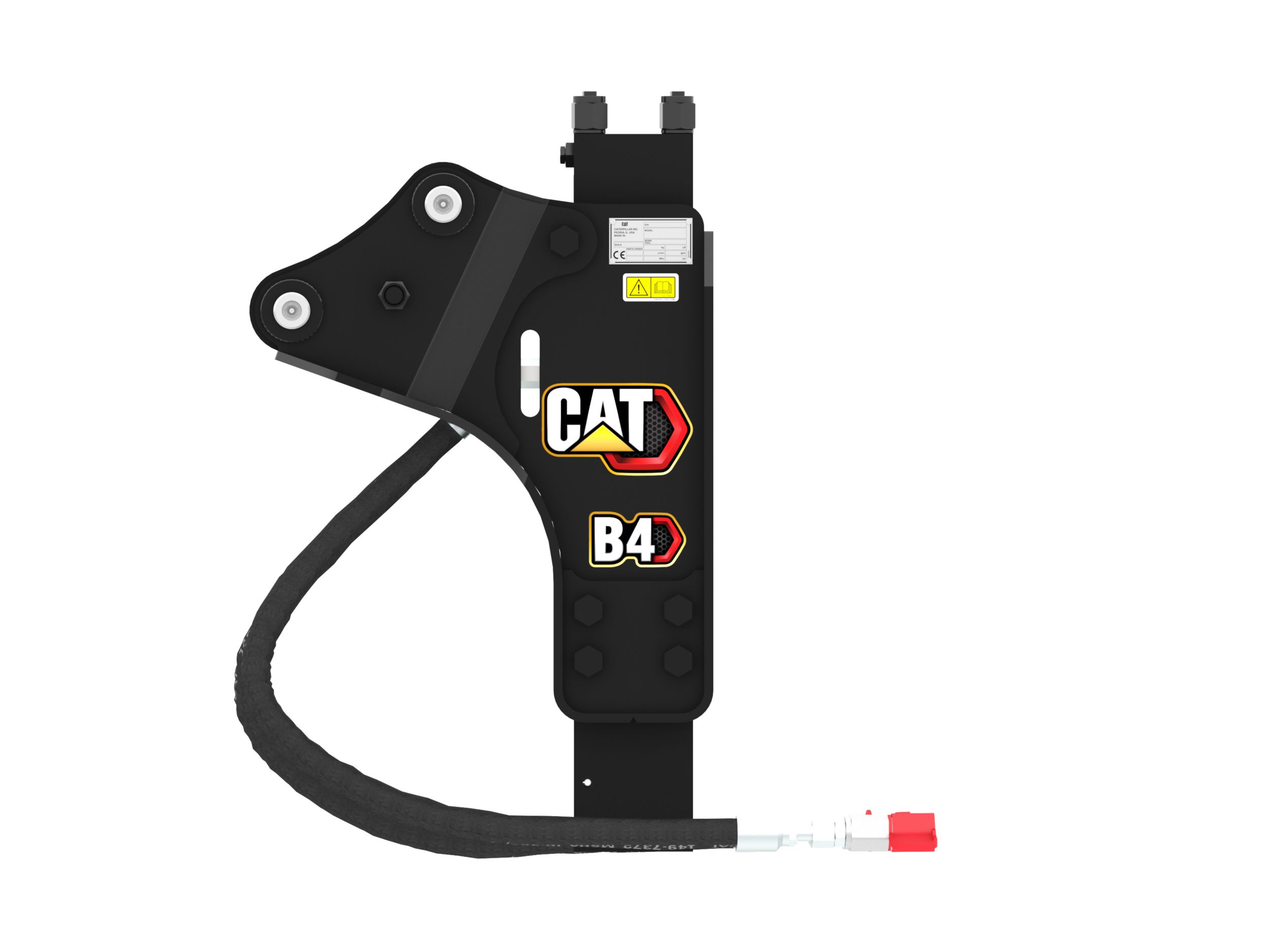

Right View
