Hammers H65s

Request A Price Click for Price

Key Specs

Operating Weight - With Tool: 859.8 lb; 390 kg

Energy Class: 800.3 ft·lbf; 1085 J

Machine Class: 5-9 Ton Mini Excavators, 216-299 Skid Steer/Compact Track Loaders, 415-444 Backhoe Loaders; 5-9 Ton Mini Excavators, 216-299 Skid Steer/Compact Track Loaders, 415-444 Backhoe Loaders

H65s
Change model

Overview

Used for demolition and construction applications.

Features At A Glance

Used in a wide range of construction and light demolition applications - such as breaking concrete sidewalks and driveways, pavement, roads, masonry, site prep and landscaping, and breaking frozen ground for utility repairs.

Fully enclosed, silenced housing lowers overall noise level for a quieter, safer job site. Internal power cell is protected, designed and engineered to eliminate stress points.

Flat top/top-mount style provides a larger work area and excellent operator visibility with a common footprint and hole pattern for optimum versatility. Top-mount style increases impact power by keeping breaker force and stick force in line. A top-mount bracket will transfer back significantly less recoil and bending stress into the end of the stick, resulting in reduced impact on machine structures. Full complement of mounting brackets is available to suite coupler or pin-on preference.

ASO instantly stops the piston when breaking through material, preventing blank firing, a key contributor to hammer wear. Internal stresses are reduced, hammer is protected regardless of operator skill level.

Tri-Suspension system comprises the suspension jacket, the upper and lower buffers. Suspension aligns power cell and gives manageable, smooth performance.

Standing height grease point makes required maintenance comfortable and easy to perform.

Gas ports and valves are easy to check and charge while hammer is mounted to machine.

Improved routing protects against force and dirt during impact, eliminating downtime.

Tools are heat-treated, matched to piston diameter and provide optimum mass to deliver full blow energy.

Product Specifications for H65s

Operating Weight - With Tool	859.8 lb 390 kg
Energy Class	800.3 ft·lbf 1085 J
Machine Class	5-9 Ton Mini Excavators, 216-299 Skid Steer/Compact Track Loaders, 415-444 Backhoe Loaders 5-9 Ton Mini Excavators, 216-299 Skid Steer/Compact Track Loaders, 415-444 Backhoe Loaders
Tool Shaft Diameter	2.7 in 68 mm
Impact Frequency	720-1740 bpm 720-1740 bpm
Minimum Operating Pressure	1450.4 psi 10000 kPa
Minimum Carrier Weight	6600.6 lb 2994 kg
Optimal Hydraulic Flow	40-115 lpm (10-30 gpm) 40-115 lpm (10-30 gpm)
Overall Width	13.6 in 346 mm
Overall Length	17.8 in 451 mm
Overall Height	52.1 in 1324 mm
Height - Without Tool	37.5 in 953 mm
Sound Level	124 dB 124 dB
Mounting Bracket Size	Large Large

Product Specifications for H65s

Download Print

Operating Weight - With Tool	859.8 lb 390 kg
Energy Class	800.3 ft·lbf 1085 J
Machine Class	5-9 Ton Mini Excavators, 216-299 Skid Steer/Compact Track Loaders, 415-444 Backhoe Loaders 5-9 Ton Mini Excavators, 216-299 Skid Steer/Compact Track Loaders, 415-444 Backhoe Loaders
Tool Shaft Diameter	2.7 in 68 mm
Impact Frequency	720-1740 bpm 720-1740 bpm
Minimum Operating Pressure	1450.4 psi 10000 kPa
Minimum Carrier Weight	6600.6 lb 2994 kg
Optimal Hydraulic Flow	40-115 lpm (10-30 gpm) 40-115 lpm (10-30 gpm)
Overall Width	13.6 in 346 mm
Overall Length	17.8 in 451 mm
Overall Height	52.1 in 1324 mm
Height - Without Tool	37.5 in 953 mm
Sound Level	124 dB 124 dB
Mounting Bracket Size	Large Large

See how H65s compares against frequently compared products.

Hammers

Selected

H65s

Operating Weight - With Tool: 859.8 lb; 390 kg
Energy Class: 800.3 ft·lbf; 1085 J
Machine Class: 5-9 Ton Mini Excavators, 216-299 Skid Steer/Compact Track Loaders, 415-444 Backhoe Loaders; 5-9 Ton Mini Excavators, 216-299 Skid Steer/Compact Track Loaders, 415-444 Backhoe Loaders

Hammers

H55s

Operating Weight - With Tool: 760.6 lb; 345 kg
Energy Class: 599.6 ft·lbf; 813 J
Machine Class: 3-6 Ton Mini Excavators, 216-299 Skid Steer/Compact Track Loaders; 3-6 Ton Mini Excavators, 216-299 Skid Steer/Compact Track Loaders

View Details

Hammers

H80s

Operating Weight - With Tool: 937 lb; 425 kg
Energy Class: 1000.1 ft·lbf; 1356 J
Machine Class: 7-9 Ton Mini Excavators, 415-450 Backhoe Loaders; 7-9 Ton Mini Excavators, 415-450 Backhoe Loaders

View Details

Tools And Expert Help At Every Turn

Product Brochures and More Are Ready to Download!

Caterpillar product brochures and other informational documents are available for your growing business.

Media Gallery

Photos

Videos

360 View

Studio Shot

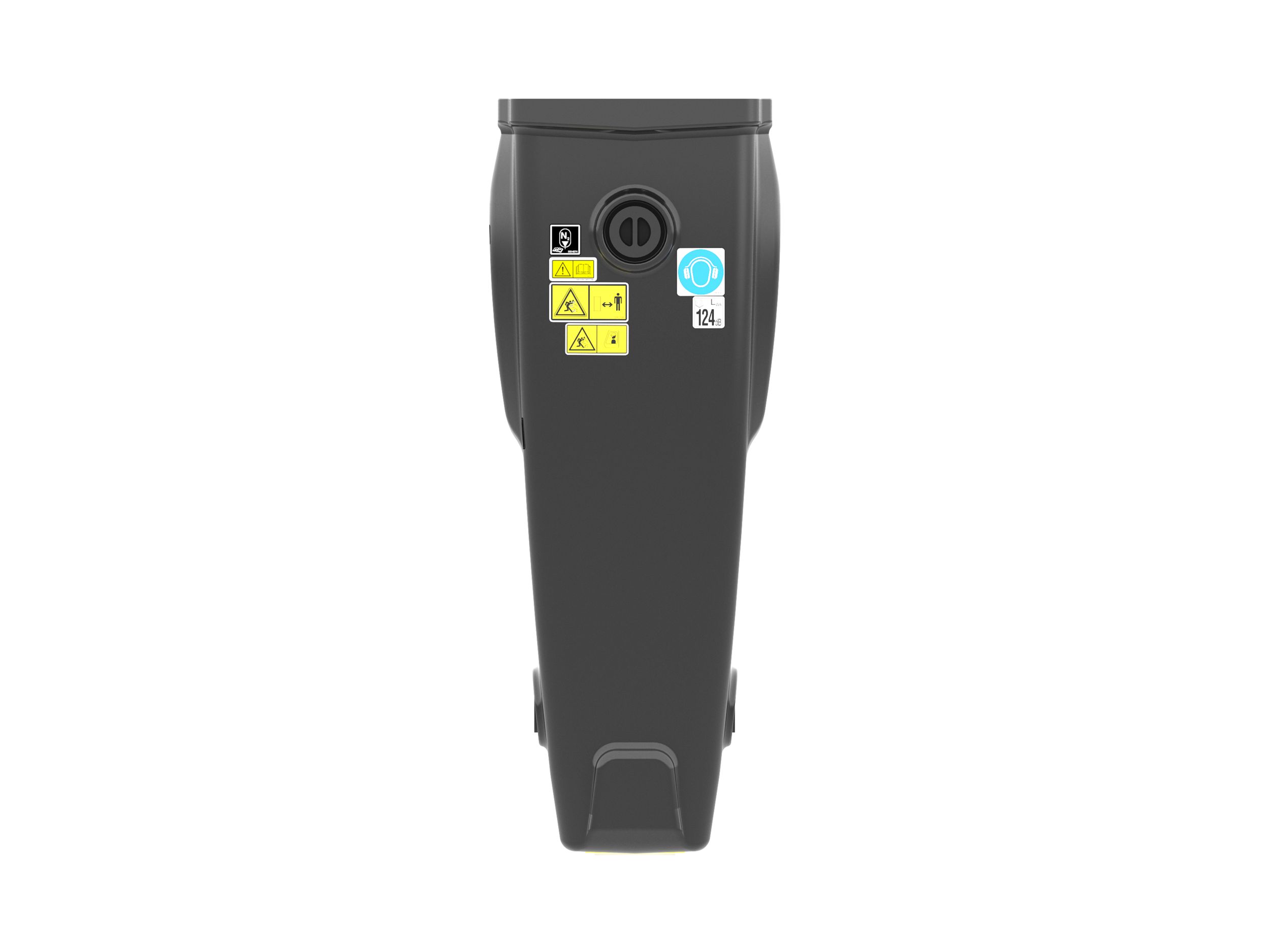

Front View

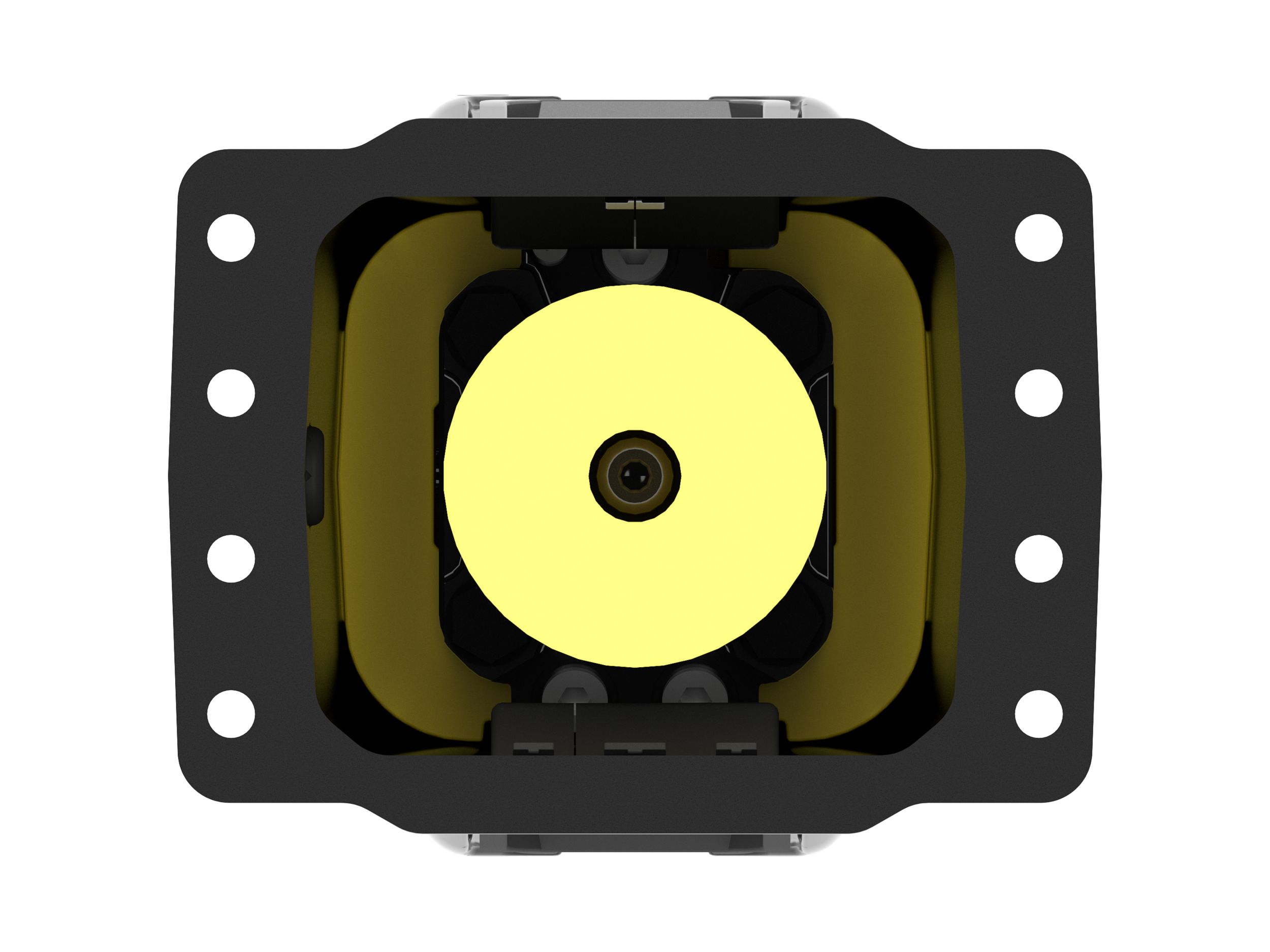

Top View

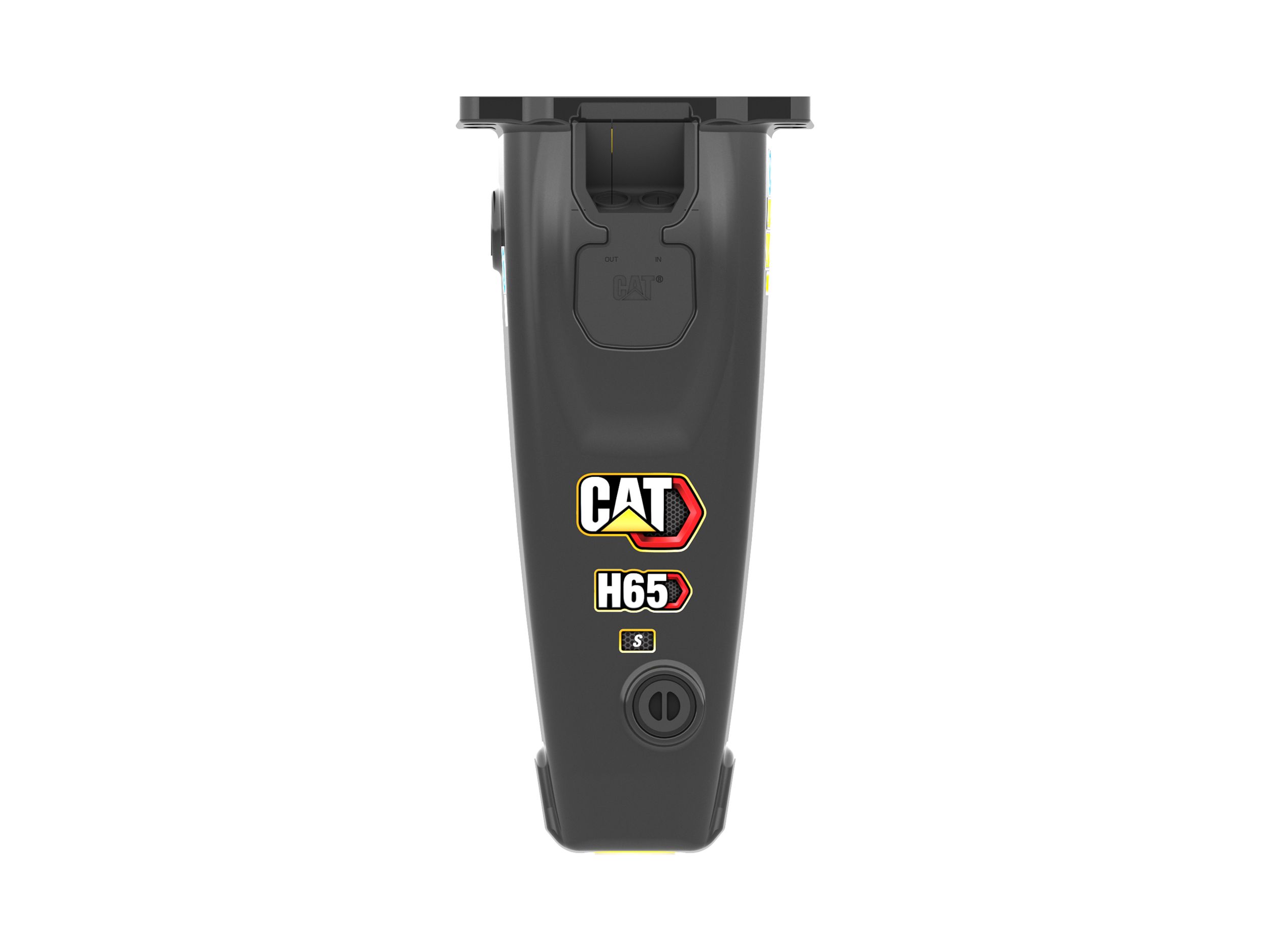

Left View

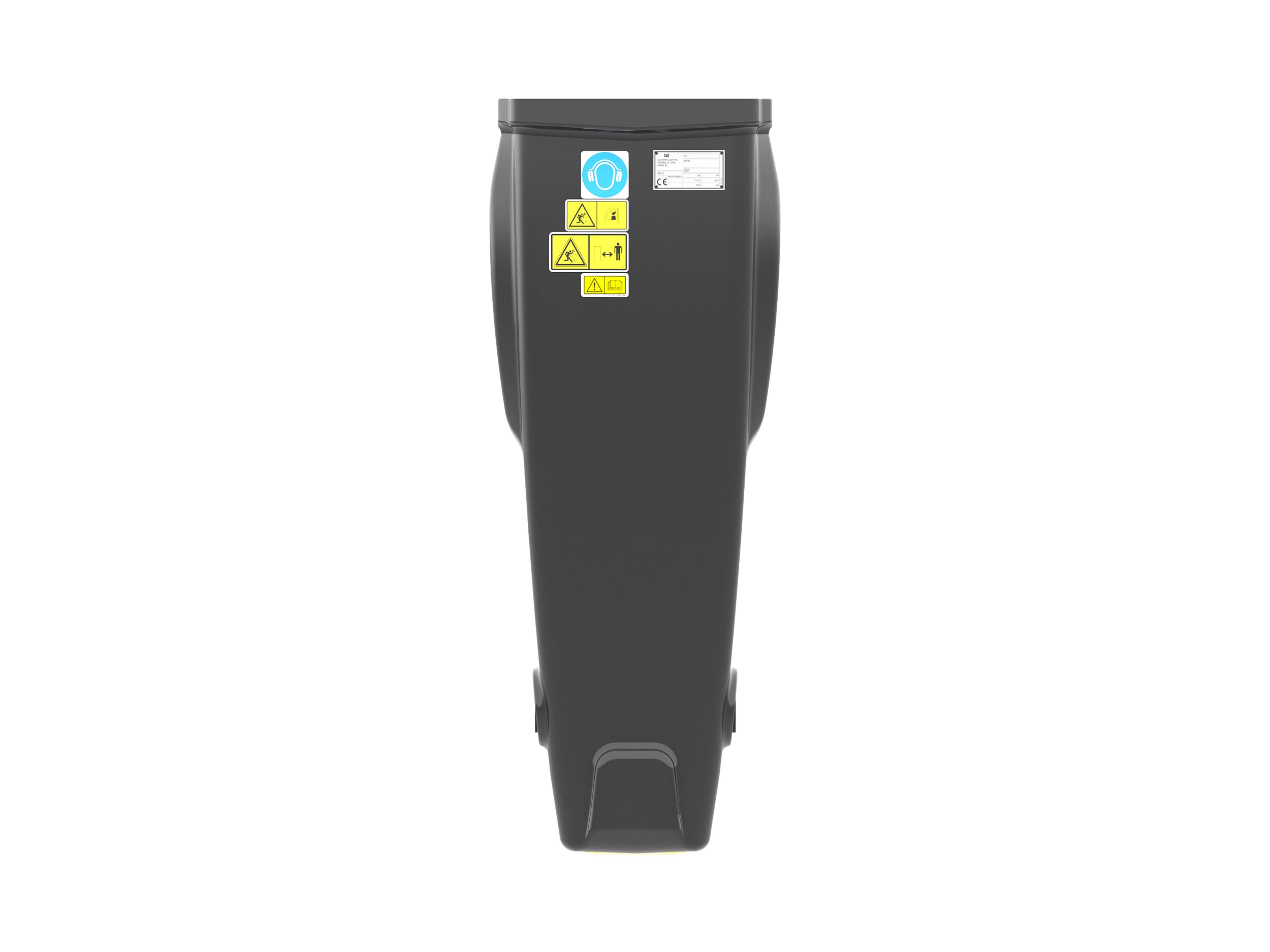

Rear View

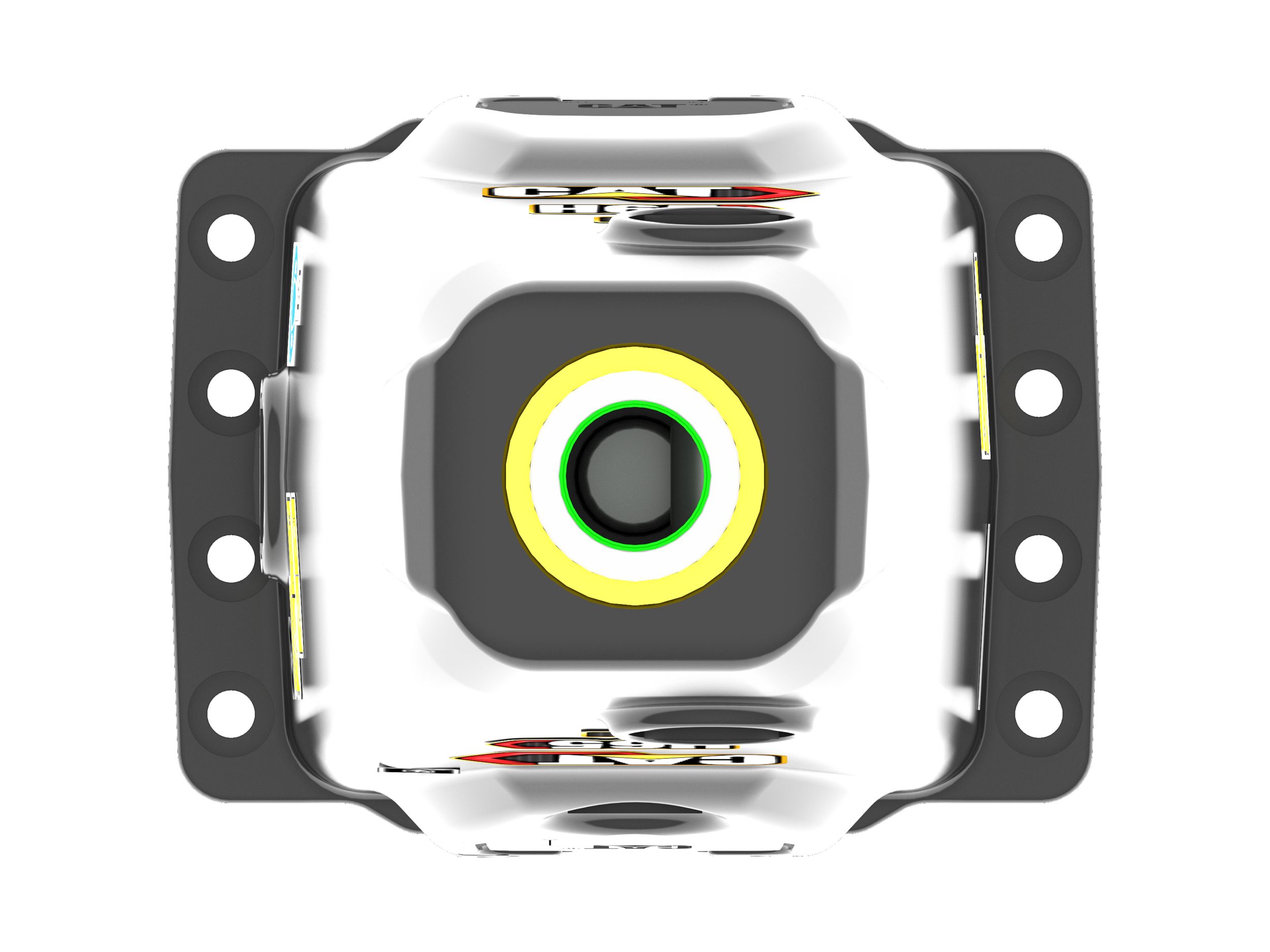

Bottom View

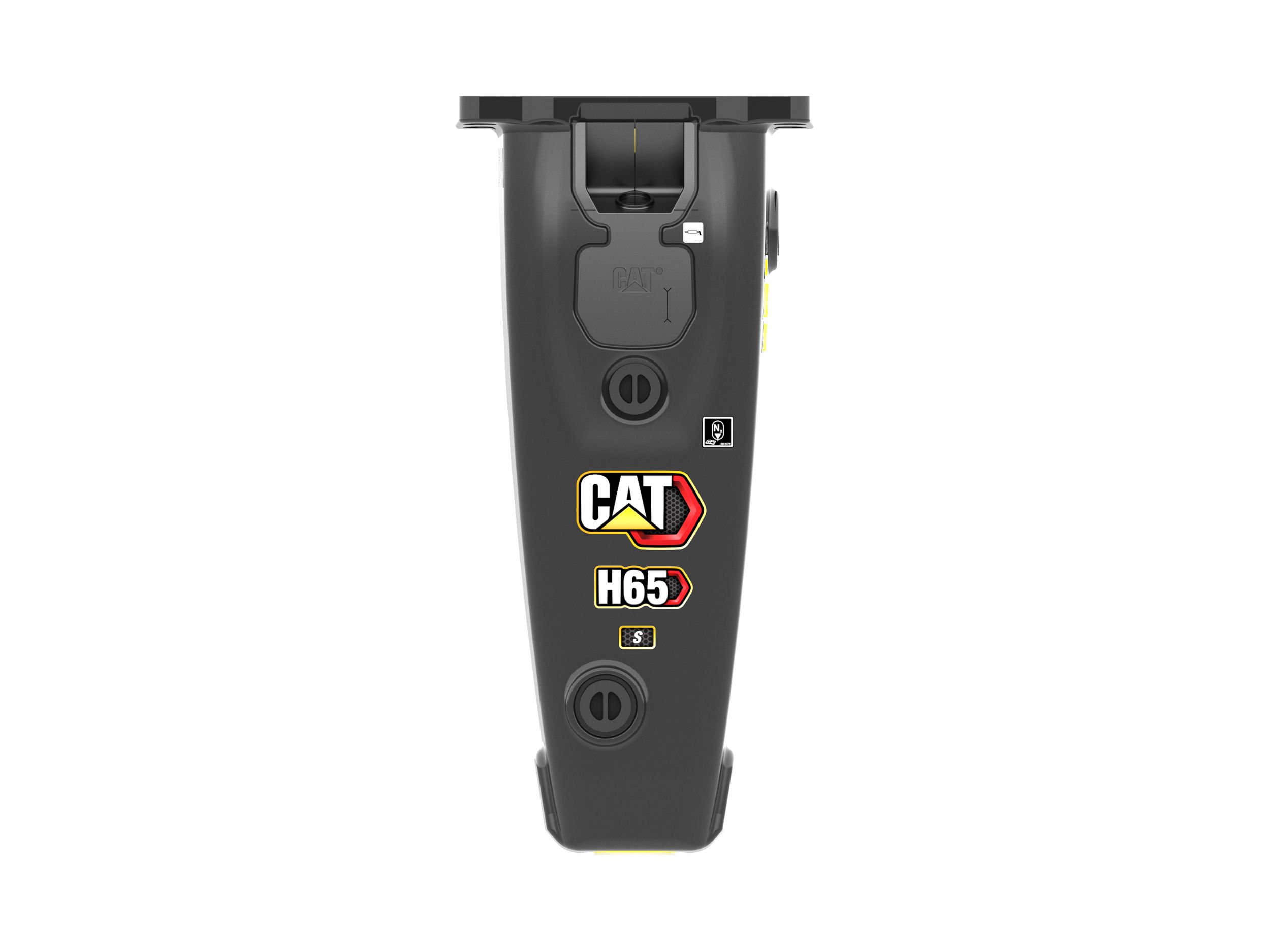

Right View
