Side Shift Backhoe Loaders 428

Name: 428 Backhoe Loader
Brand: Caterpillar

New Used Rental

Request A Price Find Dealer

Key Specs

Maximum Gross Power – SAE J1995: 2014: 55.8 kW (76 hp) / 71.3 kW (97 hp) / 83.1 kW (113 hp); 55.8 kW (76 hp) / 71.3 kW (97 hp) / 83.1 kW (113 hp)

Operating Weight - Nominal: 18232 lb; 8270 kg

Operating Weight - Maximum: 24251 lb; 11000 kg

428
Change model

Overview

IT'S ABOUT YOU

The Cat® 428 Backhoe Loader is built for different applications, economic profiles, affordability and machine utilization.

Benefits

Up To 10% Less Fuel Consumption*

*Compared to F2 Series.

More Technology

• LCD Touchscreen^
• Powershift^
• Programmable Kickouts
• Return to Dig

^Optional.

Up To 20% Better Lifting Performance*

*Compared to F2 Series.

Features At A Glance

Displaying 1-6 of 8

C3.6 STAGE V ENGINE

The Cat® C3.6 engine meets EU Stage V emission standards while delivering up to a 10% fuel efficiency improvement compared to the previous model. The aftertreatment system is completely maintenance free with Selective Catalytic Reduction (SCR), Diesel Exhaust Fluid (DEF) and fit for life Diesel Particulate Filter (DPF) system.

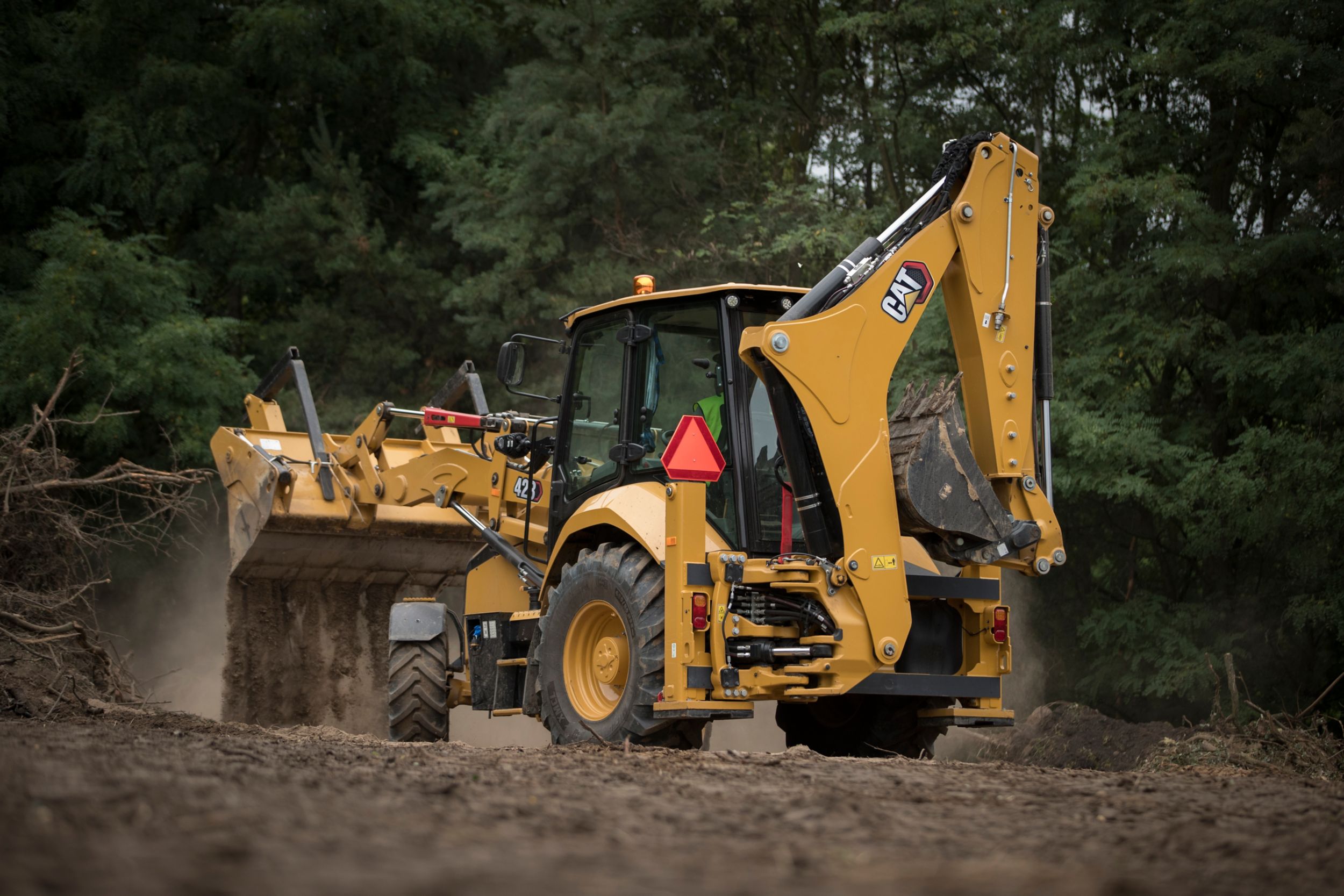

IMPROVED OPERATOR COMFORT

Mechanical Levers are standard with Pod Mounted Joysticks as an optional upgrade. The joysticks are mounted on fully adjustable pods and offer the operator finer controls while giving improved ergonomics and comfort.

GREATER LIFTING PERFORMANCE

The option of a larger boom cylinder will give greater lifting performance on the back of the 428 machine.

POWERSHIFT TRANSMISSION OPTION

The 428 comes with a mechanical floor-mounted shifter as standard. Upgrade to the steering column mounted powershift transmission for quicker and easier gear changes. Also available are the Autoshift and Autoshift with Lock-Up Torque Converter (LUTC) options. The LUTC option can offer significant fuel effieciency improvements when roading and better traction when navigating inclines or hills.

INTERACTIVE DISPLAY SCREENS

The choice of either a soft key or touchscreen display screen gives the operator information at the touch of their fingertips. Optional Machine Security Software is embedded into the display screen as well as notifications on service intervals.

POWERFUL AND EFFICIENT HYDRAULICS

The load sensing hydraulic system coupled with a variable displacement piston pump deliver powerful hydraulics when the operator really requires it.

The option of a larger boom cylinder will give greater lifting performance on the back of the 428 machine.

The load sensing hydraulic system coupled with a variable displacement piston pump deliver powerful hydraulics when the operator really requires it.

Choose between three engine options to help tailor machine performance to the application. Standard Mode or Standard Plus gives more speed and power when required. Eco Mode, (optional with pilot or powershift transmission) greatly improves fuel efficiency.

Product Link™ comes as standard on the Cat backhoe loader. Many features exist through Product Link including fuel burn and location allowing the owner to access all data to help increase productivity while reducing costs.

Specifications Standard Equipment Optional Equipment

Product Specifications for 428

Engine

Maximum Gross Power – SAE J1995: 2014	55.8 kW (76 hp) / 71.3 kW (97 hp) / 83.1 kW (113 hp) 55.8 kW (76 hp) / 71.3 kW (97 hp) / 83.1 kW (113 hp)
Power	55.4 kW, 70 kW or 74.4 kW 55.4 kW, 70 kW or 74.4 kW

Weights

Operating Weight - Nominal	18232 lb 8270 kg
Operating Weight - Maximum	24251 lb 11000 kg
Counterweights - Maximum	1014 lb 460 kg
Minimum Counterweight Recommendations - Extendible Stick: Loader Bucket - MP	0 lb 0 kg
Minimum Counterweight Recommendations - Standard Stick: Loader Bucket - MP	0 lb 0 kg
Air Conditioning	99 lb 45 kg
Minimum Counterweight Recommendations - Extendible Stick: Loader Bucket - GP	1014 lb 460 kg
Counterweights - Base	254 lb 115 kg
Ride Control	33 lb 15 kg
Minimum Counterweight Recommendations - Standard Stick: Loader Bucket - GP	254 lb 115 kg
Operating Weight - ROPS Capacity - Maximum	24251 lb 11000 kg
Extendible Stick	459 lb 208 kg
Auto-Shift Transmission	212 lb 96 kg
MP Bucket (1.03 m³/1.3 yd³) - with Fold-over Forks	1896 lb 860 kg
Cab - ROPS/FOPS	Standard Standard
Total Gross Weight Not to Exceed	24251 lb 11000 kg
Operating Weight (estimated) (55 kW/74 hp)	18232 lb 8270 kg
MP Bucket (1.03 m³/1.3 yd³) - without Fold-over Forks	1486 lb 674 kg
Note	Machine Configuration – 70 kW HRC engine; standard stick hoe; standard cab with A/C; AWD standard shift transmission; 1.03 m3 MP loader bucket; 600 mm standard duty hoe bucket; 340/80-20 and 480/80-26 tires; no counterweight; One Way Aux Lines; AWD Guard; Front Fenders; HD Battery; 80 kg operator; full fuel tank. Machine Configuration – 70 kW HRC engine; standard stick hoe; standard cab with A/C; AWD standard shift transmission; 1.03 m3 MP loader bucket; 600 mm standard duty hoe bucket; 340/80-20 and 480/80-26 tires; no counterweight; One Way Aux Lines; AWD Guard; Front Fenders; HD Battery; 80 kg operator; full fuel tank.
Operating Weight (estimated) (70 kW/94 hp)	18398 lb 8345 kg
Loader QC	408 lb 185 kg
Counterweights - Mid	529 lb 240 kg

Engine - EU Stage V (Standard)

Stroke	4.72 in 120 mm
Bore	3.86 in 98 mm
Note (1)	Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler and alternator. Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler and alternator.
Displacement	220 in³ 3.6 l
Engine	C3.6 55.4 kW Electronic Turbo Intercooled C3.6 55.4 kW Electronic Turbo Intercooled
Emissions	Meets EU Stage V emission standards. Meets EU Stage V emission standards.
Net Torque - SAE J1349	308 lb/ft 418 N·m
Torque Rise (net)	86% @ 1,200 rpm 86% @ 1,200 rpm
Note (2)	No derating required up to 3048 m altitude. Auto derate protects hydraulic and transmission systems. No derating required up to 3048 m altitude. Auto derate protects hydraulic and transmission systems.
Net Power Rating @ 2,200 rpm - SAE J1349:2011	52 kW/70 hp 52 kW/70 hp
Ratings at 2,200 rpm - Engine Power ISO 14396:2002	55 kW/75 hp 55 kW/75 hp
Ratings at 2,200 rpm - Gross Power SAE J1995:2014	55.8 kW/76 hp 55.8 kW/76 hp
Net Power Rating @ 2,200 rpm - ISO 9249:2007	51 kW/70 hp 51 kW/70 hp

Engine - EU Stage V (Optional)

Stroke	4.72 in 120 mm
Note (1)	Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler and alternator. Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler and alternator.
Emissions	Meets EU Stage V emission standards. Meets EU Stage V emission standards.
Torque Rise (net)	43% @ 1,500 rpm 43% @ 1,500 rpm
Displacement	220 in³ 3.6 l
Net Torque - SAE J1349	291 lb/ft 395 N·m
Engine	C3.6 70 kW Electronic Turbo Intercooled C3.6 70 kW Electronic Turbo Intercooled
Note (2)	No derating required up to 3048 m altitude. Auto derate protects hydraulic and transmission systems. No derating required up to 3048 m altitude. Auto derate protects hydraulic and transmission systems.
Bore	3.86 in 98 mm
Net Power Rating @ 2,200 rpm - SAE J1349:2011	64 kW/86 hp 64 kW/86 hp
Ratings at 2,200 rpm - Engine Power ISO 14396:2002	70 kW/95 hp 70 kW/95 hp
Ratings at 2,200 rpm - Gross Power SAE J1995:2014	71.3 kW/97 hp 71.3 kW/97 hp
Net Power Rating @ 2,200 rpm - ISO 9249:2007	63 kW/86 hp 63 kW/86 hp

Engine - EU Stage V (Optional) - A

Net Torque - SAE J1349	322 lb/ft 436 N·m
Torque Rise (net)	48% @ 1,500 rpm 48% @ 1,500 rpm
Engine	C3.6 74.4 kW Electronic Turbo Intercooled C3.6 74.4 kW Electronic Turbo Intercooled
Emissions	Meets EU Stage V emission standards. Meets EU Stage V emission standards.
Displacement	220 in³ 3.6 l
Note (2)	No derating required up to 3048 m altitude. Auto derate protects hydraulic and transmission systems. No derating required up to 3048 m altitude. Auto derate protects hydraulic and transmission systems.
Note (1)	Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler and alternator. Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler and alternator.
Bore	3.86 in 98 mm
Stroke	4.72 in 120 mm
Ratings at 2,200 rpm - Gross Power SAE J1995:2014	76 kW/103 hp 76 kW/103 hp
Net Power Rating @ 2,200 rpm - SAE J1349:2011	68 kW/92 hp 68 kW/92 hp
Net Power Rating @ 2,200 rpm - ISO 9249:2007	68 kW/92 hp 68 kW/92 hp
Ratings at 2,200 rpm - Engine Power ISO 14396:2002	74 kW/101 hp 74 kW/101 hp

Transmission

Note

Travel speeds of backhoe loader at full throttle, when equipped with 480/80-26 rear tires. Travel speeds of backhoe loader at full throttle, when equipped with 480/80-26 rear tires.

Transmission - Standard Shift Transmission (Standard)

Forward - 4th	24.9 mile/h 40 km/h
Reverse - 1st	3.7 mile/h 6 km/h
Reverse - 2nd	5.6 mile/h 9 km/h
Forward - 1st	3.7 mile/h 6 km/h
Reverse - 3rd	13 mile/h 21 km/h
Forward - 3rd	13 mile/h 21 km/h
Forward - 2nd	5.6 mile/h 9 km/h
Reverse - 4th	24.9 mile/h 40 km/h

Transmission - Powershift Transmission (Optional)

Reverse - 3rd	16.8 mile/h 27 km/h
Reverse - 1st	3.7 mile/h 6 km/h
Forward - 4th	24.9 mile/h 40 km/h
Forward - 2nd	6.2 mile/h 10 km/h
Forward - 3rd	12.4 mile/h 20 km/h
Reverse - 2nd	7.5 mile/h 12 km/h
Forward - 1st	3.7 mile/h 6 km/h

Transmission - Auto-Shift Transmission (Optional)

Reverse - 1st	3.7 mile/h 6 km/h
Forward - 4th	12.4 mile/h 20 km/h
Forward - 3rd	7.5 mile/h 12 km/h
Forward - 6th	24.9 mile/h 40 km/h
Forward - 1st	3.7 mile/h 6 km/h
Reverse - 2nd	7.5 mile/h 12 km/h
Forward - 2nd	6.2 mile/h 10 km/h
Reverse - 3rd	16.8 mile/h 27 km/h
Forward - 5th	16.8 mile/h 27 km/h

Transmission - Auto-Shift Transmission with Lock-Up Torque Converter (Optional)

Reverse - 3rd	16.8 mile/h 27 km/h
Reverse - 1st	3.7 mile/h 6 km/h
Forward - 3rd	7.5 mile/h 12 km/h
Forward - 6th	24.9 mile/h 40 km/h
Forward - 1st	3.7 mile/h 6 km/h
Reverse - 2nd	7.5 mile/h 12 km/h
Forward - 5th	16.8 mile/h 27 km/h
Forward - 4th	12.4 mile/h 20 km/h
Forward - 2nd	6.2 mile/h 10 km/h

Axle Ratings

Rear Axle - Static	58422 lb 26500 kg
Front Axle (AWD) - Static	51809 lb 23500 kg
Front Axle (AWD) - Dynamic	19842 lb 9000 kg
Rear Axle - Dynamic	22046 lb 10000 kg

Hydraulic System

System Pressure - Loader	3626 psi 250 bar
System Pressure - Backhoe	3626 psi 250 bar
Pump Type	Variable-Flow, Axial Piston Variable-Flow, Axial Piston
Type	Closed Center Closed Center
Pump Capacity @ 2,200 rpm	42.3 gpm 160 L/min

Steering

AWD Cylinder, One (1) Double Acting - Stroke	4.2 in 106 mm
Power Steering	Hydrostatic Hydrostatic
AWD Cylinder, One (1) Double Acting - Bore	2.6 in 65 mm
AWD Cylinder, One (1) Double Acting - Rod Diameter	1.6 in 40 mm
Type	Front Wheel Front Wheel
Turning Circle - AWD (inner wheel not braked) - Outside, Front Wheels	30.42 ft 9273 m
Turning Circle - AWD (inner wheel not braked) - Outside, Widest Loading Bucket	38.13 ft 11622 m

Service Refill Capacities

Rear Axle	4.2 gal (US) 16 l
Rear Axle - Planetaries	0.4 gal (US) 1.7 l
Hydraulic Tank	11.1 gal (US) 42 l
Engine Oil - With Filter	2.4 gal (US) 9 l
Hydraulic System	25.1 gal (US) 95 l
Fuel Tank	42.3 gal (US) 160 l
Cooling System - A/C	4.8 gal (US) 18 l
Diesel Exhaust Fluid	5 gal (US) 19 l
Front Axle - Planetaries	0.2 gal (US) 0.7 l
Front Axle	2.9 gal (US) 11 l

Service Refills Capacities

Transmission (Powershift/Autoshift)	4.18 gal (US) 19 l
Transmission (Standard Shift)	3.69 gal (US) 18 l

Loader Performance

Breakout Force

12320 ft·lbf 54.8 kN

Backhoe Digging Depth

Dig Depth

4778 mm/5700 mm (E-Stick) 4778 mm/5700 mm (E-Stick)

Operator Station

Controls

Mechanical Loader; Mechanical Hoe (Pilot Hoe Optional) Mechanical Loader; Mechanical Hoe (Pilot Hoe Optional)

428 Standard Equipment

Cab ROPS and FOPS

Cab, Standard

Tires/Steering/Brakes

All Wheel Drive

100% Differential Lock

Hydraulic Boosted Brakes

Tires 26 inch

Engine/Transmission

Engine, C3.6 55.4 kW

Battery, 750 CCA, Standard

Hinged Radiator Pack

Standard Mode

Transmission Neutralizer

Transmission, Four Speed Standard Shift

Controls

Controls, Mechanical Levers

Power Steering, Hydrostatic

Electrical

Display Screen, Soft Key

Product Link Cellular

Reversing Alarm

Stabilizer Alarm

Hydraulics

Variable Displacement Piston Pump

Side Shift Lock

Hydraulic Oil Cooler

Loader Kickout, Float

Loader Kickout, Return to Dig

Booms, Sticks and Linkages

Stick Standard, 4.3 m

Transport Lock, Swing

Transport Lock, Boom

Other Attachments

External Tool Box

Transport Tie Downs

428 Optional Equipment

Cab ROPS and FOPS

Cab, Deluxe

Tires/Steering/Brakes

Tires 28 inch

Engine/Transmission

Engine, C3.6 70 kW

Engine, C3.6 74.4 kW

Battery, 750 CCA, Heavy Duty

Auto Idle

Eco Mode

Standard + Mode

Engine Block Heater

Transmission, Four Speed Powershift (not on 55 kW engine)

Transmission, Six Speed Autoshift (not on 55 kW Engine)

Transmission, Six Speed Autoshift with Lock-Up Torque Converter (not on 55 kW engine)

Controls

Controls, Pilot Hoe Joysticks

Pattern Selector (ISO/SAE)

Electrical

Display Screen, Touchscreen

Product Link, Dual Mode (cellular and satellite)

Beacon, Rotating

Beacon, Strobe

Hydraulics

Hydraulic Quick Disconnects

Hydraulic Lines, One Way

Hydraulic Lines, Two Way

Powered Side Shift

Ride Control

Continuous Flow

Programmable Auxiliary Flow

Booms, Sticks and Linkages

Stick Extending, 4.3 m

Hoe Quick Coupler, Mechanical

Hoe Quick Coupler, Hydraulic

Loader Quick Coupler, Hydraulic

Other Attachments

Counterweight, 115 kg

Counterweight, 240 kg

Counterweight, 460 kg

Front Fenders

Street Pads, Stabilizers

Product Specifications for 428

Download Print

Engine

Maximum Gross Power – SAE J1995: 2014	55.8 kW (76 hp) / 71.3 kW (97 hp) / 83.1 kW (113 hp) 55.8 kW (76 hp) / 71.3 kW (97 hp) / 83.1 kW (113 hp)
Power	55.4 kW, 70 kW or 74.4 kW 55.4 kW, 70 kW or 74.4 kW

Weights

Operating Weight - Nominal	18232 lb 8270 kg
Operating Weight - Maximum	24251 lb 11000 kg
Counterweights - Maximum	1014 lb 460 kg
Minimum Counterweight Recommendations - Extendible Stick: Loader Bucket - MP	0 lb 0 kg
Minimum Counterweight Recommendations - Standard Stick: Loader Bucket - MP	0 lb 0 kg
Air Conditioning	99 lb 45 kg
Minimum Counterweight Recommendations - Extendible Stick: Loader Bucket - GP	1014 lb 460 kg
Counterweights - Base	254 lb 115 kg
Ride Control	33 lb 15 kg
Minimum Counterweight Recommendations - Standard Stick: Loader Bucket - GP	254 lb 115 kg
Operating Weight - ROPS Capacity - Maximum	24251 lb 11000 kg
Extendible Stick	459 lb 208 kg
Auto-Shift Transmission	212 lb 96 kg
MP Bucket (1.03 m³/1.3 yd³) - with Fold-over Forks	1896 lb 860 kg
Cab - ROPS/FOPS	Standard Standard
Total Gross Weight Not to Exceed	24251 lb 11000 kg
Operating Weight (estimated) (55 kW/74 hp)	18232 lb 8270 kg
MP Bucket (1.03 m³/1.3 yd³) - without Fold-over Forks	1486 lb 674 kg
Note	Machine Configuration – 70 kW HRC engine; standard stick hoe; standard cab with A/C; AWD standard shift transmission; 1.03 m3 MP loader bucket; 600 mm standard duty hoe bucket; 340/80-20 and 480/80-26 tires; no counterweight; One Way Aux Lines; AWD Guard; Front Fenders; HD Battery; 80 kg operator; full fuel tank. Machine Configuration – 70 kW HRC engine; standard stick hoe; standard cab with A/C; AWD standard shift transmission; 1.03 m3 MP loader bucket; 600 mm standard duty hoe bucket; 340/80-20 and 480/80-26 tires; no counterweight; One Way Aux Lines; AWD Guard; Front Fenders; HD Battery; 80 kg operator; full fuel tank.
Operating Weight (estimated) (70 kW/94 hp)	18398 lb 8345 kg
Loader QC	408 lb 185 kg
Counterweights - Mid	529 lb 240 kg

Engine - EU Stage V (Standard)

Stroke	4.72 in 120 mm
Bore	3.86 in 98 mm
Note (1)	Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler and alternator. Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler and alternator.
Displacement	220 in³ 3.6 l
Engine	C3.6 55.4 kW Electronic Turbo Intercooled C3.6 55.4 kW Electronic Turbo Intercooled
Emissions	Meets EU Stage V emission standards. Meets EU Stage V emission standards.
Net Torque - SAE J1349	308 lb/ft 418 N·m
Torque Rise (net)	86% @ 1,200 rpm 86% @ 1,200 rpm
Note (2)	No derating required up to 3048 m altitude. Auto derate protects hydraulic and transmission systems. No derating required up to 3048 m altitude. Auto derate protects hydraulic and transmission systems.
Net Power Rating @ 2,200 rpm - SAE J1349:2011	52 kW/70 hp 52 kW/70 hp
Ratings at 2,200 rpm - Engine Power ISO 14396:2002	55 kW/75 hp 55 kW/75 hp
Ratings at 2,200 rpm - Gross Power SAE J1995:2014	55.8 kW/76 hp 55.8 kW/76 hp
Net Power Rating @ 2,200 rpm - ISO 9249:2007	51 kW/70 hp 51 kW/70 hp

Engine - EU Stage V (Optional)

Stroke	4.72 in 120 mm
Note (1)	Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler and alternator. Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler and alternator.
Emissions	Meets EU Stage V emission standards. Meets EU Stage V emission standards.
Torque Rise (net)	43% @ 1,500 rpm 43% @ 1,500 rpm
Displacement	220 in³ 3.6 l
Net Torque - SAE J1349	291 lb/ft 395 N·m
Engine	C3.6 70 kW Electronic Turbo Intercooled C3.6 70 kW Electronic Turbo Intercooled
Note (2)	No derating required up to 3048 m altitude. Auto derate protects hydraulic and transmission systems. No derating required up to 3048 m altitude. Auto derate protects hydraulic and transmission systems.
Bore	3.86 in 98 mm
Net Power Rating @ 2,200 rpm - SAE J1349:2011	64 kW/86 hp 64 kW/86 hp
Ratings at 2,200 rpm - Engine Power ISO 14396:2002	70 kW/95 hp 70 kW/95 hp
Ratings at 2,200 rpm - Gross Power SAE J1995:2014	71.3 kW/97 hp 71.3 kW/97 hp
Net Power Rating @ 2,200 rpm - ISO 9249:2007	63 kW/86 hp 63 kW/86 hp

Engine - EU Stage V (Optional) - A

Net Torque - SAE J1349	322 lb/ft 436 N·m
Torque Rise (net)	48% @ 1,500 rpm 48% @ 1,500 rpm
Engine	C3.6 74.4 kW Electronic Turbo Intercooled C3.6 74.4 kW Electronic Turbo Intercooled
Emissions	Meets EU Stage V emission standards. Meets EU Stage V emission standards.
Displacement	220 in³ 3.6 l
Note (2)	No derating required up to 3048 m altitude. Auto derate protects hydraulic and transmission systems. No derating required up to 3048 m altitude. Auto derate protects hydraulic and transmission systems.
Note (1)	Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler and alternator. Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler and alternator.
Bore	3.86 in 98 mm
Stroke	4.72 in 120 mm
Ratings at 2,200 rpm - Gross Power SAE J1995:2014	76 kW/103 hp 76 kW/103 hp
Net Power Rating @ 2,200 rpm - SAE J1349:2011	68 kW/92 hp 68 kW/92 hp
Net Power Rating @ 2,200 rpm - ISO 9249:2007	68 kW/92 hp 68 kW/92 hp
Ratings at 2,200 rpm - Engine Power ISO 14396:2002	74 kW/101 hp 74 kW/101 hp

Transmission

Note

Travel speeds of backhoe loader at full throttle, when equipped with 480/80-26 rear tires. Travel speeds of backhoe loader at full throttle, when equipped with 480/80-26 rear tires.

Transmission - Standard Shift Transmission (Standard)

Forward - 4th	24.9 mile/h 40 km/h
Reverse - 1st	3.7 mile/h 6 km/h
Reverse - 2nd	5.6 mile/h 9 km/h
Forward - 1st	3.7 mile/h 6 km/h
Reverse - 3rd	13 mile/h 21 km/h
Forward - 3rd	13 mile/h 21 km/h
Forward - 2nd	5.6 mile/h 9 km/h
Reverse - 4th	24.9 mile/h 40 km/h

Transmission - Powershift Transmission (Optional)

Reverse - 3rd	16.8 mile/h 27 km/h
Reverse - 1st	3.7 mile/h 6 km/h
Forward - 4th	24.9 mile/h 40 km/h
Forward - 2nd	6.2 mile/h 10 km/h
Forward - 3rd	12.4 mile/h 20 km/h
Reverse - 2nd	7.5 mile/h 12 km/h
Forward - 1st	3.7 mile/h 6 km/h

Transmission - Auto-Shift Transmission (Optional)

Reverse - 1st	3.7 mile/h 6 km/h
Forward - 4th	12.4 mile/h 20 km/h
Forward - 3rd	7.5 mile/h 12 km/h
Forward - 6th	24.9 mile/h 40 km/h
Forward - 1st	3.7 mile/h 6 km/h
Reverse - 2nd	7.5 mile/h 12 km/h
Forward - 2nd	6.2 mile/h 10 km/h
Reverse - 3rd	16.8 mile/h 27 km/h
Forward - 5th	16.8 mile/h 27 km/h

Transmission - Auto-Shift Transmission with Lock-Up Torque Converter (Optional)

Reverse - 3rd	16.8 mile/h 27 km/h
Reverse - 1st	3.7 mile/h 6 km/h
Forward - 3rd	7.5 mile/h 12 km/h
Forward - 6th	24.9 mile/h 40 km/h
Forward - 1st	3.7 mile/h 6 km/h
Reverse - 2nd	7.5 mile/h 12 km/h
Forward - 5th	16.8 mile/h 27 km/h
Forward - 4th	12.4 mile/h 20 km/h
Forward - 2nd	6.2 mile/h 10 km/h

Axle Ratings

Rear Axle - Static	58422 lb 26500 kg
Front Axle (AWD) - Static	51809 lb 23500 kg
Front Axle (AWD) - Dynamic	19842 lb 9000 kg
Rear Axle - Dynamic	22046 lb 10000 kg

Hydraulic System

System Pressure - Loader	3626 psi 250 bar
System Pressure - Backhoe	3626 psi 250 bar
Pump Type	Variable-Flow, Axial Piston Variable-Flow, Axial Piston
Type	Closed Center Closed Center
Pump Capacity @ 2,200 rpm	42.3 gpm 160 L/min

Steering

AWD Cylinder, One (1) Double Acting - Stroke	4.2 in 106 mm
Power Steering	Hydrostatic Hydrostatic
AWD Cylinder, One (1) Double Acting - Bore	2.6 in 65 mm
AWD Cylinder, One (1) Double Acting - Rod Diameter	1.6 in 40 mm
Type	Front Wheel Front Wheel
Turning Circle - AWD (inner wheel not braked) - Outside, Front Wheels	30.42 ft 9273 m
Turning Circle - AWD (inner wheel not braked) - Outside, Widest Loading Bucket	38.13 ft 11622 m

Service Refill Capacities

Rear Axle	4.2 gal (US) 16 l
Rear Axle - Planetaries	0.4 gal (US) 1.7 l
Hydraulic Tank	11.1 gal (US) 42 l
Engine Oil - With Filter	2.4 gal (US) 9 l
Hydraulic System	25.1 gal (US) 95 l
Fuel Tank	42.3 gal (US) 160 l
Cooling System - A/C	4.8 gal (US) 18 l
Diesel Exhaust Fluid	5 gal (US) 19 l
Front Axle - Planetaries	0.2 gal (US) 0.7 l
Front Axle	2.9 gal (US) 11 l

Service Refills Capacities

Transmission (Powershift/Autoshift)	4.18 gal (US) 19 l
Transmission (Standard Shift)	3.69 gal (US) 18 l

Loader Performance

Breakout Force

12320 ft·lbf 54.8 kN

Backhoe Digging Depth

Dig Depth

4778 mm/5700 mm (E-Stick) 4778 mm/5700 mm (E-Stick)

Operator Station

Controls

Mechanical Loader; Mechanical Hoe (Pilot Hoe Optional) Mechanical Loader; Mechanical Hoe (Pilot Hoe Optional)

428 Standard Equipment

Cab ROPS and FOPS

Cab, Standard

Tires/Steering/Brakes

All Wheel Drive

100% Differential Lock

Hydraulic Boosted Brakes

Tires 26 inch

Engine/Transmission

Engine, C3.6 55.4 kW

Battery, 750 CCA, Standard

Hinged Radiator Pack

Standard Mode

Transmission Neutralizer

Transmission, Four Speed Standard Shift

Controls

Controls, Mechanical Levers

Power Steering, Hydrostatic

Electrical

Display Screen, Soft Key

Product Link Cellular

Reversing Alarm

Stabilizer Alarm

Hydraulics

Variable Displacement Piston Pump

Side Shift Lock

Hydraulic Oil Cooler

Loader Kickout, Float

Loader Kickout, Return to Dig

Booms, Sticks and Linkages

Stick Standard, 4.3 m

Transport Lock, Swing

Transport Lock, Boom

Other Attachments

External Tool Box

Transport Tie Downs

428 Optional Equipment

Cab ROPS and FOPS

Cab, Deluxe

Tires/Steering/Brakes

Tires 28 inch

Engine/Transmission

Engine, C3.6 70 kW

Engine, C3.6 74.4 kW

Battery, 750 CCA, Heavy Duty

Auto Idle

Eco Mode

Standard + Mode

Engine Block Heater

Transmission, Four Speed Powershift (not on 55 kW engine)

Transmission, Six Speed Autoshift (not on 55 kW Engine)

Transmission, Six Speed Autoshift with Lock-Up Torque Converter (not on 55 kW engine)

Controls

Controls, Pilot Hoe Joysticks

Pattern Selector (ISO/SAE)

Electrical

Display Screen, Touchscreen

Product Link, Dual Mode (cellular and satellite)

Beacon, Rotating

Beacon, Strobe

Hydraulics

Hydraulic Quick Disconnects

Hydraulic Lines, One Way

Hydraulic Lines, Two Way

Powered Side Shift

Ride Control

Continuous Flow

Programmable Auxiliary Flow

Booms, Sticks and Linkages

Stick Extending, 4.3 m

Hoe Quick Coupler, Mechanical

Hoe Quick Coupler, Hydraulic

Loader Quick Coupler, Hydraulic

Other Attachments

Counterweight, 115 kg

Counterweight, 240 kg

Counterweight, 460 kg

Front Fenders

Street Pads, Stabilizers

See how 428 compares against frequently compared products.

Backhoe Loaders

Selected

428

Maximum Gross Power – SAE J1995: 2014: 55.8 kW (76 hp) / 71.3 kW (97 hp) / 83.1 kW (113 hp); 55.8 kW (76 hp) / 71.3 kW (97 hp) / 83.1 kW (113 hp)
Operating Weight - Nominal: 18232 lb; 8270 kg
Operating Weight - Maximum: 24251 lb; 11000 kg

Backhoe Loaders

432

Maximum Gross Power – SAE J1995: 2014: 83.1 kW (113 hp) / 86.5 kW (118 hp); 83.1 kW (113 hp) / 86.5 kW (118 hp)
Operating Weight - Nominal: 18671 lb; 8469 kg
Operating Weight - Maximum: 24251 lb; 11000 kg

View Details

Use the comparison tool to compare detailed specs of Cat and competitor models.

Compare All Models

Tools And Expert Help At Every Turn

Find Dealer

Payment Calculator

Current Offers

Rental Options

Used Options

Product Brochures and More Are Ready to Download!

Caterpillar product brochures and other informational documents are available for your growing business.

Media Gallery

Photos

428 Backhoe Loader

Compatible Technology and Services

Leverage Caterpillar connected data and security principles to improve efficiencies, increase productivity and make your business more profitable.

VisionLink™

Technology Cookies are required.
Please note: You must accept the use of all cookies to enable this feature.
Cookie Settings

VisionLink™ is a cloud-based software application that takes the guesswork out of fleet management with key insights to maximize performance - regardless of fleet size or equipment manufacturer. Receive equipment data seamlessly to your desktop or mobile device, all from a convenient centralized solution to make informed decisions at every turn.

Explore Technology

1 - 8 of 9 Items items

Previous Next

VisionLink™ is a cloud-based software application that takes the guesswork out of fleet management with key insights to maximize performance - regardless of fleet size or equipment manufacturer. Receive equipment data seamlessly to your desktop or mobile device, all from a convenient centralized solution to make informed decisions at every turn.

Explore Technology

Side Shift Backhoe Loaders 428

Overview

IT'S ABOUT YOU

Benefits

Up To 10% Less Fuel Consumption*

More Technology

Up To 20% Better Lifting Performance*

Features At A Glance

C3.6 STAGE V ENGINE

IMPROVED OPERATOR COMFORT

GREATER LIFTING PERFORMANCE

POWERSHIFT TRANSMISSION OPTION

INTERACTIVE DISPLAY SCREENS

POWERFUL AND EFFICIENT HYDRAULICS

POWER MANAGEMENT MODES

PRODUCT LINK™

Product Specifications for 428

Engine

Weights

Engine - EU Stage V (Standard)

Engine - EU Stage V (Optional)

Engine - EU Stage V (Optional) - A

Transmission

Transmission - Standard Shift Transmission (Standard)

Transmission - Powershift Transmission (Optional)

Transmission - Auto-Shift Transmission (Optional)

Transmission - Auto-Shift Transmission with Lock-Up Torque Converter (Optional)

Axle Ratings

Hydraulic System

Steering

Service Refill Capacities

Service Refills Capacities

Loader Performance

Backhoe Digging Depth

Operator Station

428 Standard Equipment

Cab ROPS and FOPS

Tires/Steering/Brakes

Engine/Transmission

Controls

Electrical

Hydraulics

Booms, Sticks and Linkages

Other Attachments

428 Optional Equipment

Cab ROPS and FOPS

Tires/Steering/Brakes

Engine/Transmission

Controls

Electrical

Hydraulics

Booms, Sticks and Linkages

Other Attachments

Product Specifications for 428

Engine

Weights

Engine - EU Stage V (Standard)

Engine - EU Stage V (Optional)

Engine - EU Stage V (Optional) - A

Transmission

Transmission - Standard Shift Transmission (Standard)

Transmission - Powershift Transmission (Optional)

Transmission - Auto-Shift Transmission (Optional)

Transmission - Auto-Shift Transmission with Lock-Up Torque Converter (Optional)

Axle Ratings

Hydraulic System

Steering

Service Refill Capacities

Service Refills Capacities

Loader Performance

Backhoe Digging Depth

Operator Station

428 Standard Equipment

Cab ROPS and FOPS

Tires/Steering/Brakes

Engine/Transmission

Controls

Electrical

Hydraulics

Booms, Sticks and Linkages

Product Brochures and More Are Ready to Download!
