Hammers B1s

Starting MSRP*

$4,861.00 USD

Request A Price Click for Price

Key Specs

Operating Weight - With Tool
190.3 lb
86.3 kg
Energy Class
147.5 ft·lbf
200 J
Machine Class
1-2 Ton Mini Excavators
1-2 Ton Mini Excavators

Overview

Used for demolition and construction applications.

Product Specifications for B1s

Operating Weight - With Tool 190.3 lb 86.3 kg
Energy Class 147.5 ft·lbf 200 J
Machine Class 1-2 Ton Mini Excavators 1-2 Ton Mini Excavators
Tool Shaft Diameter 1.6 in 40 mm
Impact Frequency 800-1400 bpm 800-1400 bpm
Minimum Operating Pressure 1276 psi 8798 kPa
Minimum Carrier Weight 2420.7 lb 1098 kg
Optimal Hydraulic Flow 15-25 lpm (4-6.6 gpm) 15-25 lpm (4-6.6 gpm)
Overall Width 11.8 in 300 mm
Overall Length 13.4 in 340 mm
Overall Height 38.5 in 977 mm
Height - Without Tool 28.6 in 727 mm
Sound Level 118 dB 118 dB
Mounting Bracket Size Small-Medium Small-Medium

See how B1s compares against frequently compared products.

Product Brochures and More Are Ready to Download!

Media Gallery

Studio Shot

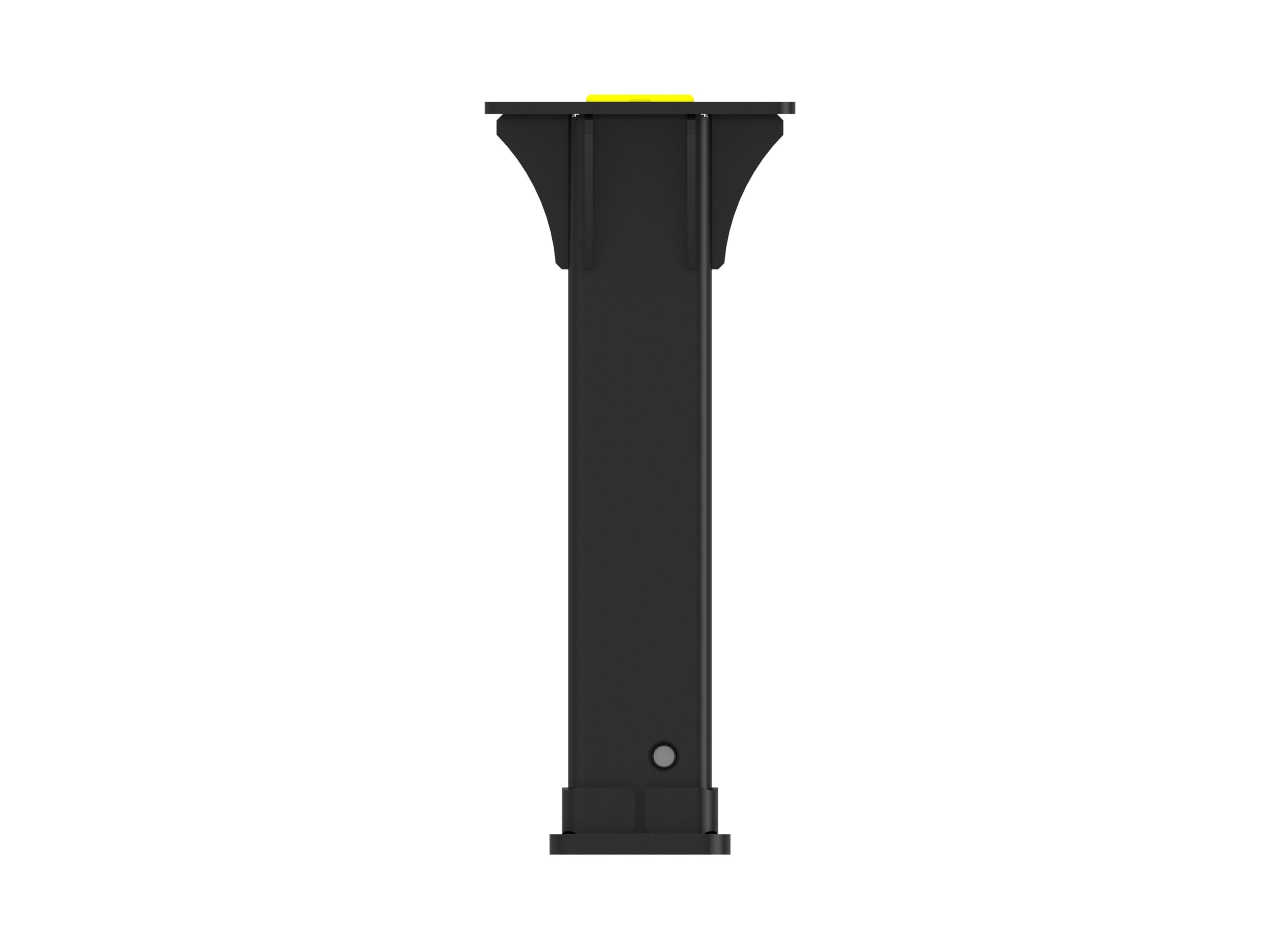

Front View

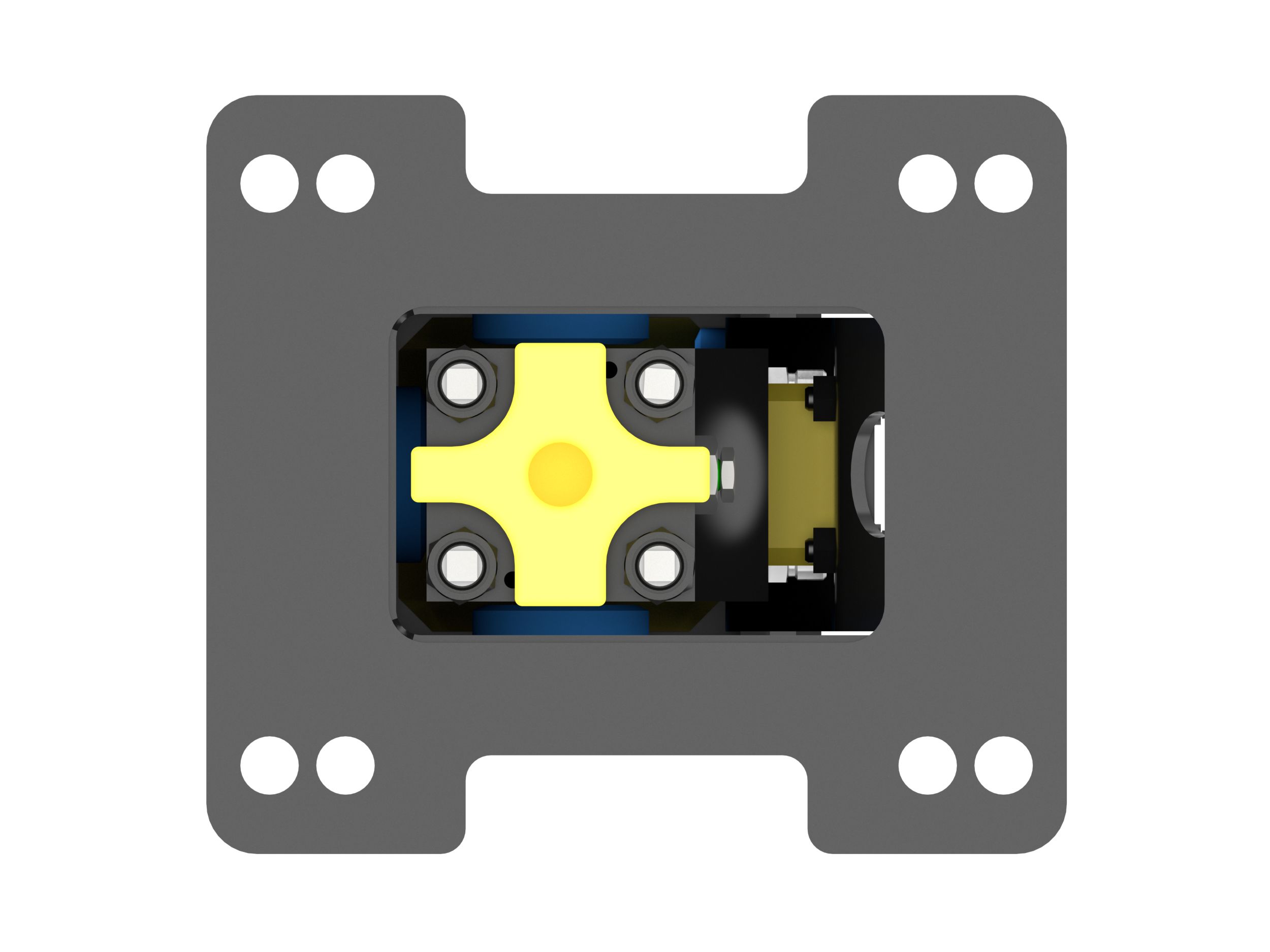

Top View

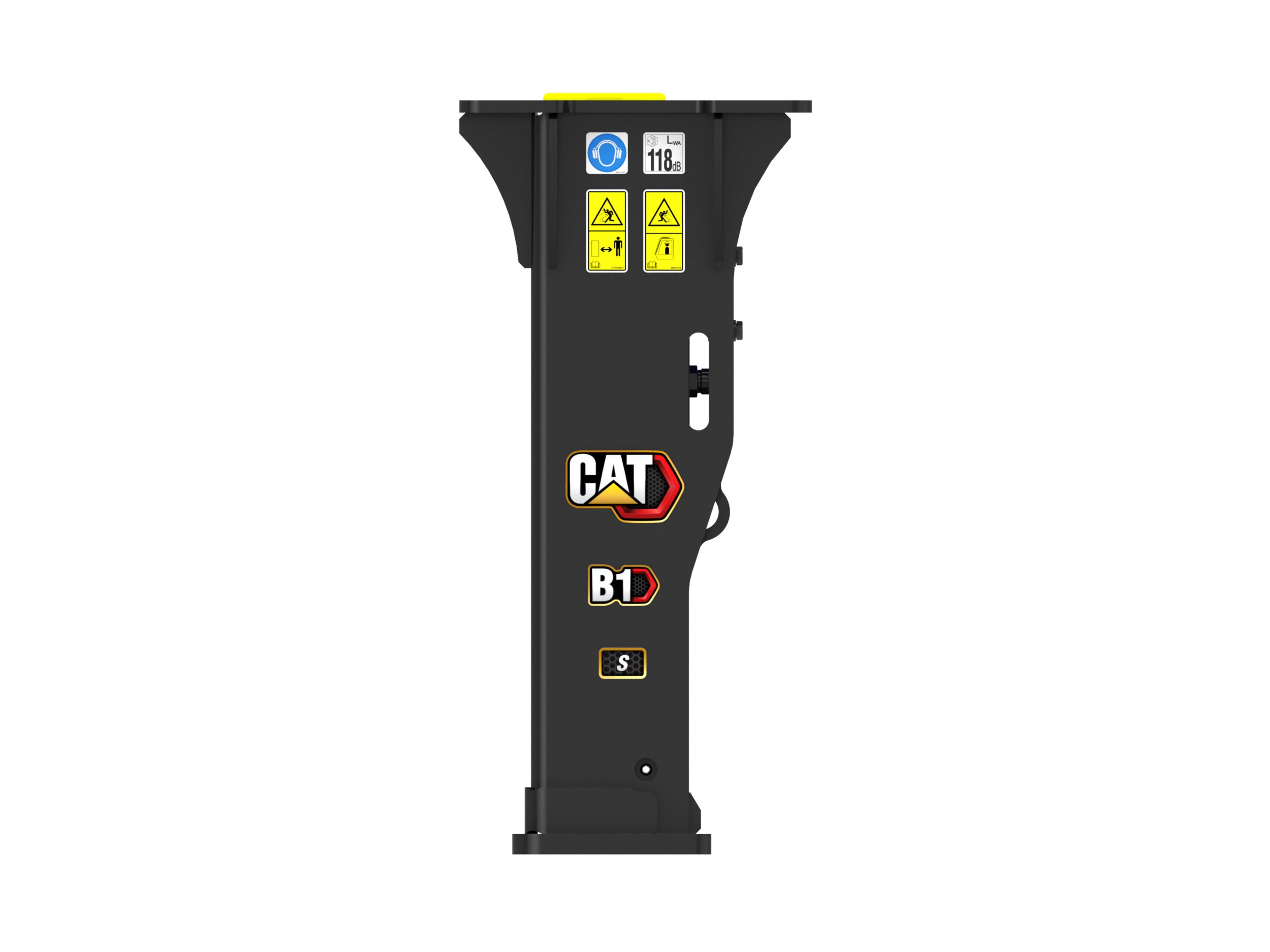

Left View

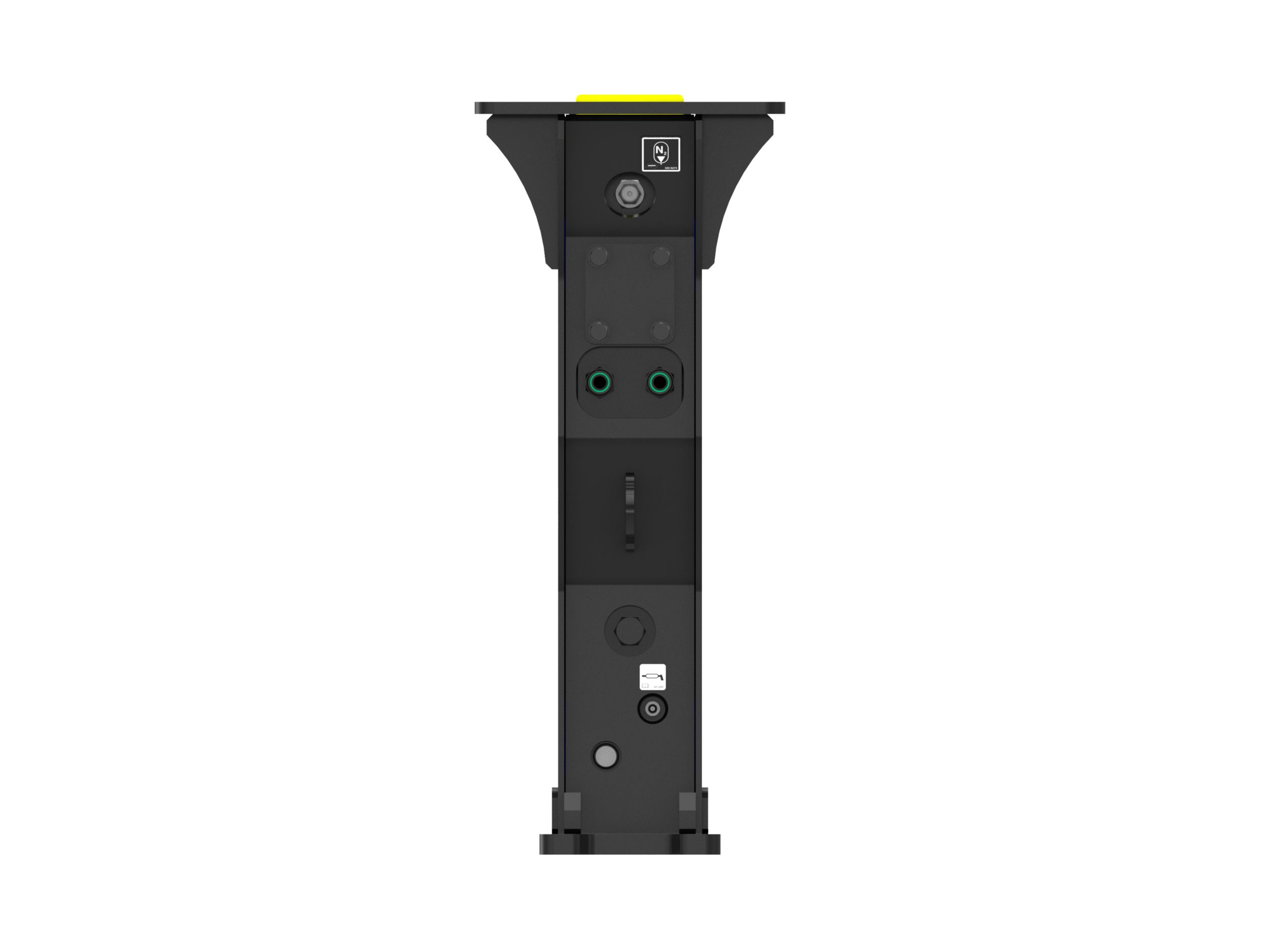

Rear View

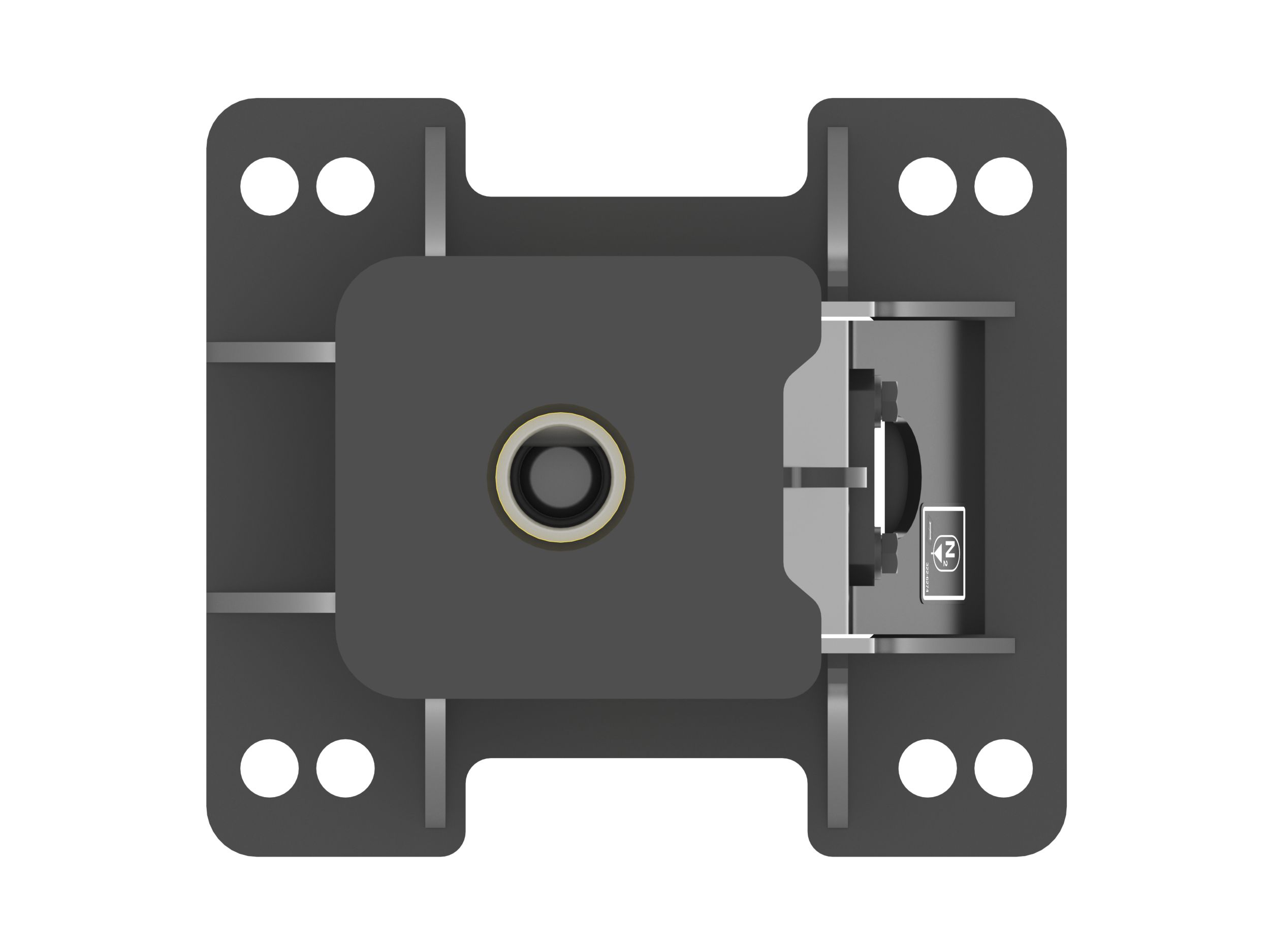

Bottom View

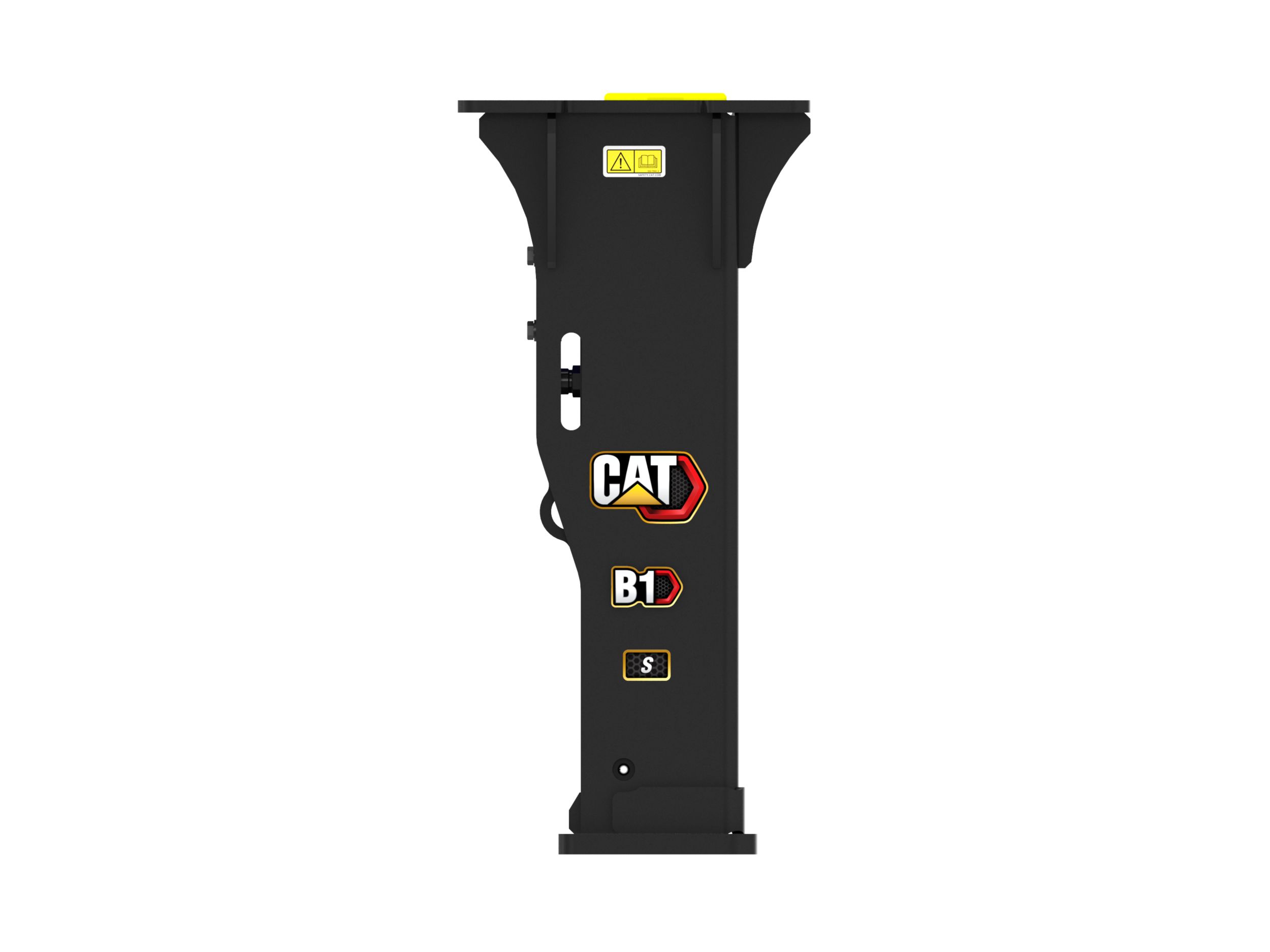

Right View

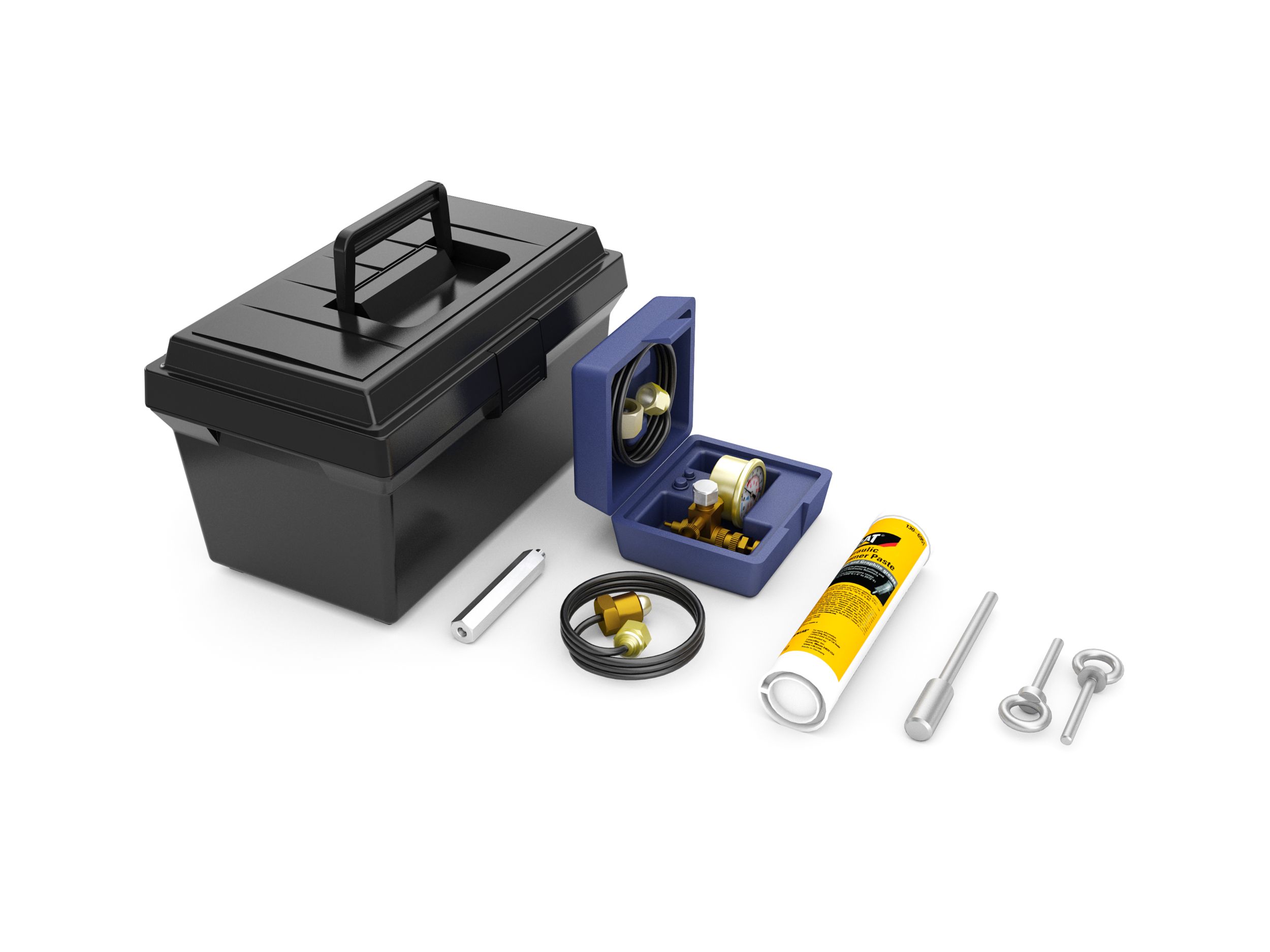

B1s Hammer Toolbox Contents

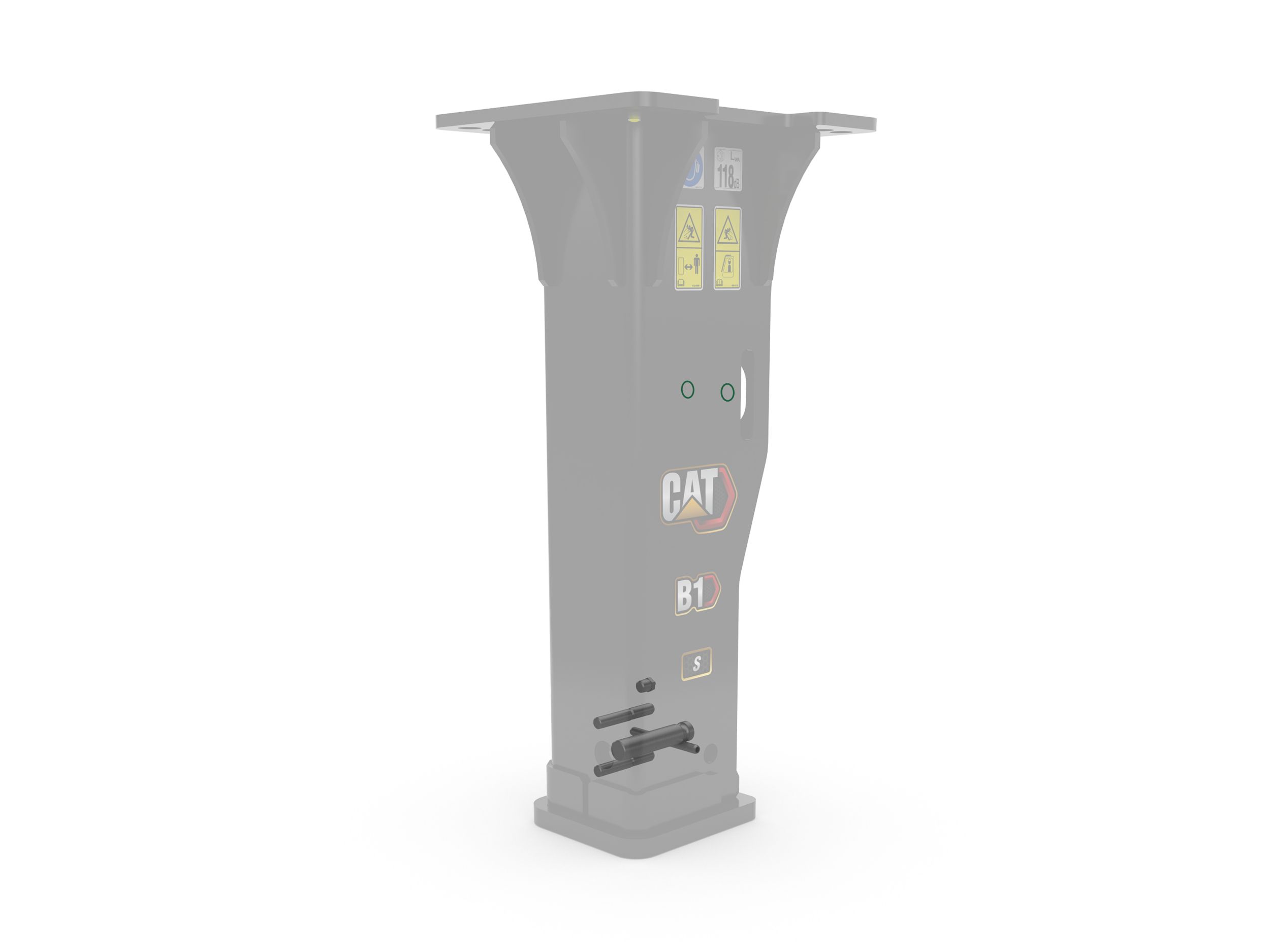

B1s Hammer Maintenance Kit

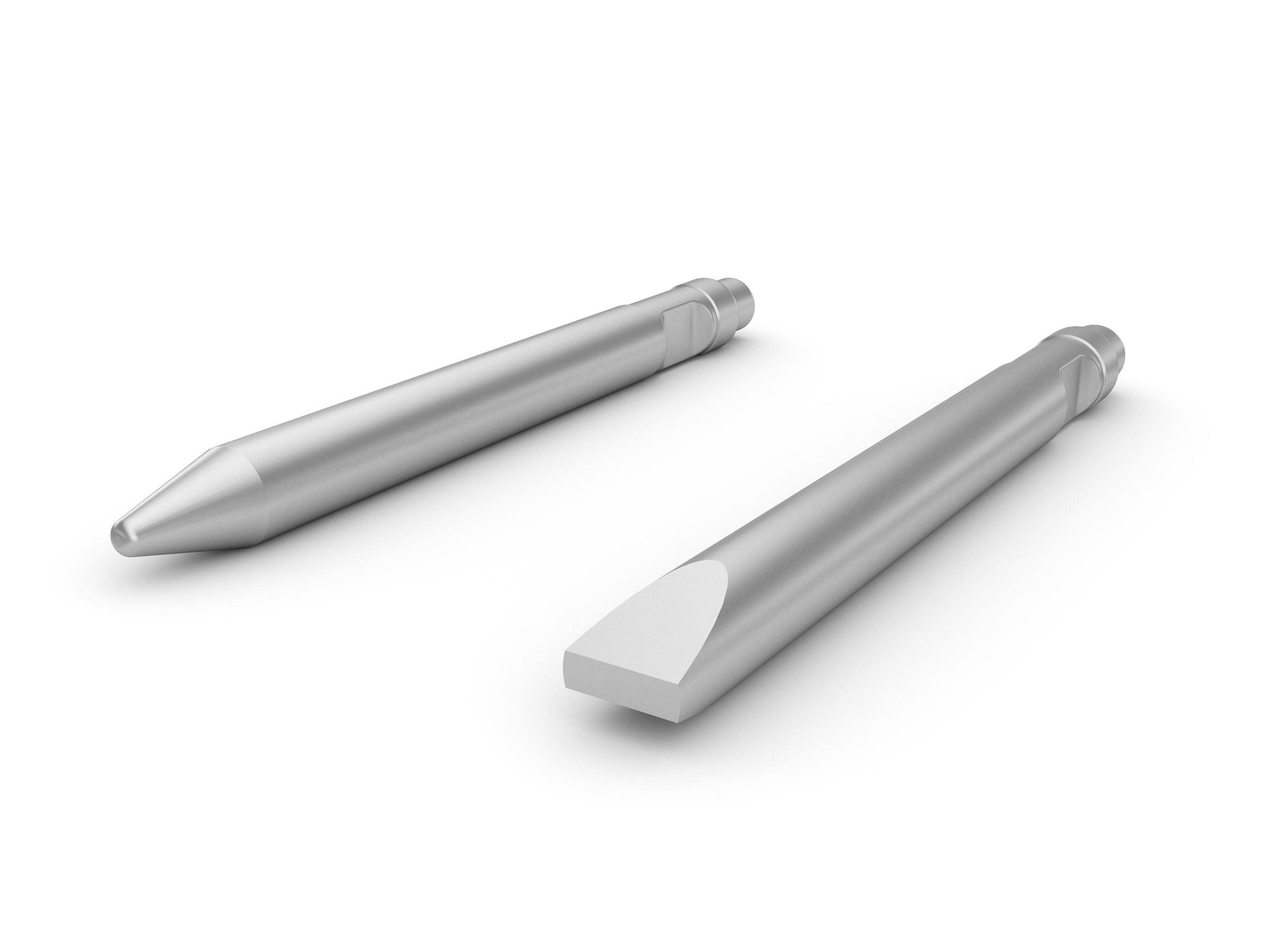

B1s Included Tools
