Motor Graders 24

Request A Price Find Dealer

Key Specs

Net Power - EEC 80/1269: 535 hp; 399 kW

Operating Weight - Typically Equipped: 165314 lb; 74985 kg

Blade Width: 24 ft; 7.3 m

24
Change model

Overview

Haul Road Master

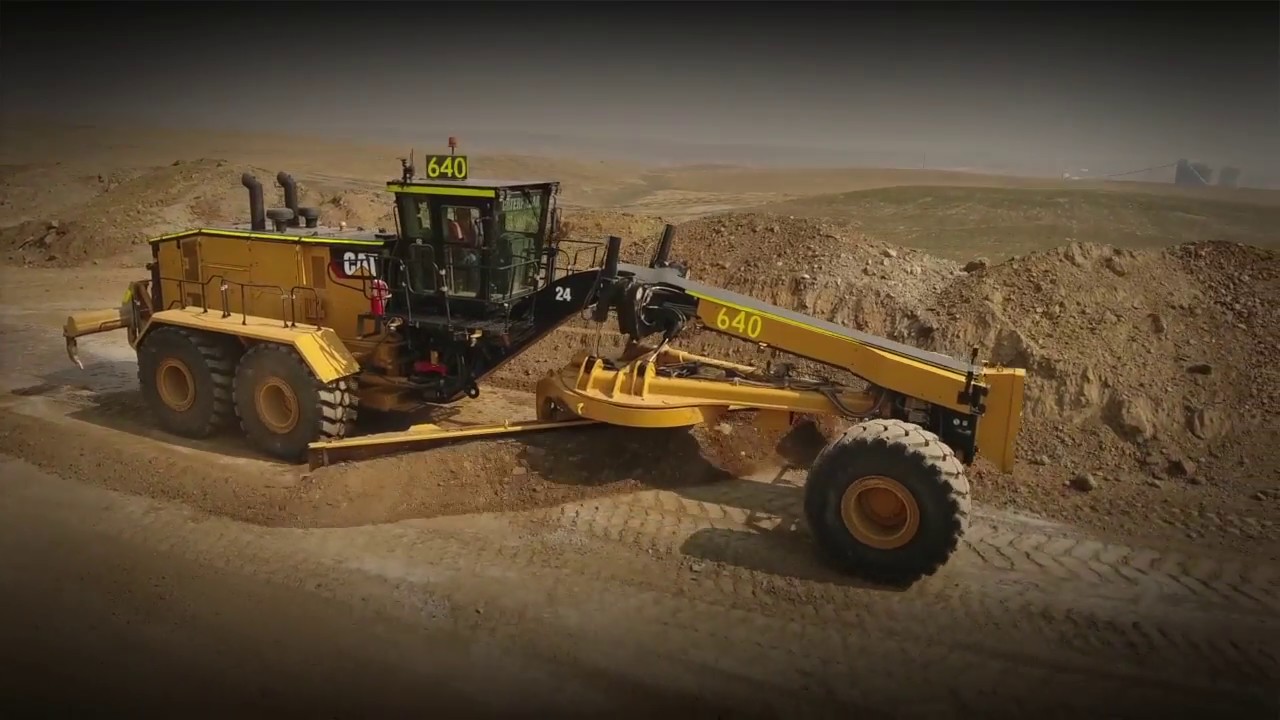

The largest of the Motor Graders, the Cat® 24 motor grader has the power to work wide haul roads, efficiently. Operators will appreciate the latest cab comforts and owners will benefit by the low operating costs. At 535 HP and with a 24 foot moldboard, this grader will keep your mining machines productive, safe and operators comfortable.

Benefits

Maintain cross slope

Cat Grade Control helps operator maintain desired cross slope.

Up To 11% More Weight

Ensures reliable traction and blade down pressure.

Manage your fleet

Cat MineStar helps manage your fleet to optimize quality and operating costs.

Features At A Glance

The improved power train rebuild life, new modular design and new machine protection features can save you up to 2,400 servicing hours over the life of the machine.
Cat C27 engine, 533 mm (21 in) transmission and lower power train provide 33 percent additional machine life before needing to be rebuilt.
New, innovative main component modular design means they can be removed and installed quicker and easier. Transmission and cooling package can be removed up to 70 percent faster than the 24M.
Fluid Service Center provides single location at ground level for access to engine, transmission, hydraulic oil and coolant. This feature, along with clustered filters and extended service intervals, saves you maintenance time and operating costs.
Hoses and electrical harnesses are split at easily accessible bulkhead locations allowing your service technicians to work with smaller sections easier and faster.
Ok-to-Start and Critically Low Fluid monitoring systems protect your machine by providing electronic verification of fluid levels and alerting you when low fluid levels are detected, protecting your machine.

Cat C27 engine provides enhanced altitude capabilities with no derate up to 3048 m (10,000 ft) for U.S. EPA Tier 4/EU Stage IV emission standards and 4572 m (15,000 ft) for equivalent Tier 2/Stage II emissions.
An 11 percent weight increase helps provide more traction and blade down pressure than the 24M.
Consistent Power-to-the-Ground changes real-time engine power levels to offset cooling fan losses resulting in best performance at all times independent of ambient conditions.

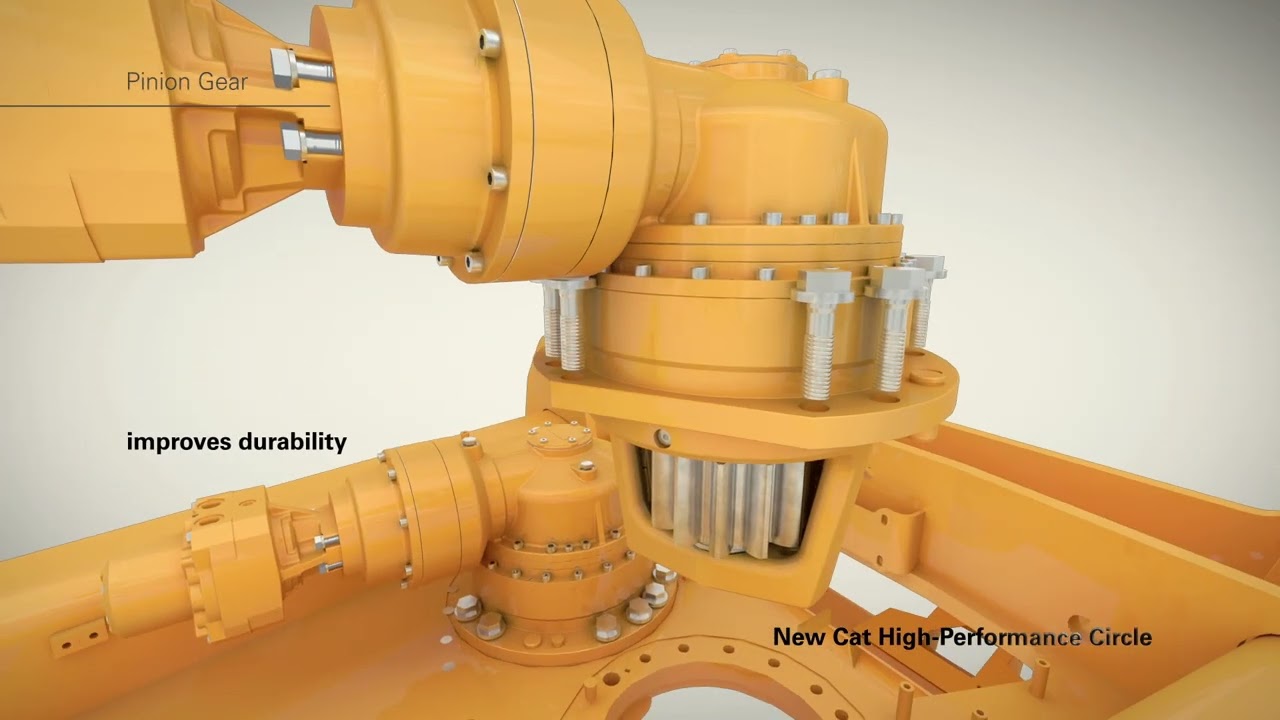

The new high performance circle (HPC) for the Cat 24 Motor Grader improves machine performance, efficiency and uptime availability when maintaining hauls roads at large mines.

Fifteen tie-off points located around engine enclosure and cab provide secure tie off hooks protecting you and your technicians when performing service operations.
Optional Working at Heights package adds an extra layer of safety by providing handrails and hand holds to improve access and safety.
The 24 is a Fire Suppression-Ready machine which means you can easily install a fire suppression system to further protect your investment.
Standard rearview camera provides better visibility from the cab to behind the machine while optional front-facing cameras provide enhanced forward and side visibility.
Standard seat belt indicator provides visual/audible alerts when the seat belt is not in use. The 24 is pre-wired so you can easily install a beacon on top of the cab to indicate seat belt usage.

The 24 features asset protection and performance-improving technologies including: engine overspeed/underspeed, second generation steering system, articulation eStop, ripper auto stow, implements lock out and circle angle limits, to name a few.
Standard Cat Grade with Cross Slope improves operator productivity and haul road quality and durability by helping maintain desired cross slope for appropriate water drainage by automatically controlling one side of the blade.
The Cat 24 is MineStar™ ready and includes Cat Product Link™ Elite and VIMS™ to help optimize equipment management, remote monitoring capabilities, machine availability and component life while reducing both repair cost and the risk of a catastrophic failure.

Specifications Standard Equipment Optional Equipment

Product Specifications for 24

Engine

Net Power - EEC 80/1269	535 hp 399 kW
Bore	5.4 in 137.2 mm
Stroke	6 in 152.4 mm
Note (1)	Net power is tested per ISO 9249, SAE J1349, and EEC 80/1269 Standards in effect at the time of manufacture. Net power is tested per ISO 9249, SAE J1349, and EEC 80/1269 Standards in effect at the time of manufacture.
Note (3)	Net power advertised is the power available at rated speed of 1,800 rpm, measured at the flywheel when engine is equipped with fan, air cleaner, muffler and alternator. Net power advertised is the power available at rated speed of 1,800 rpm, measured at the flywheel when engine is equipped with fan, air cleaner, muffler and alternator.
Note (2)	Optimized VHP Plus is standard for the 24. Optimized VHP Plus is standard for the 24.
Standard Capability	122 °F 50 °C
Emissions	Tier 4 Final/Stage IV or Equivalent to Tier 2/Stage II Tier 4 Final/Stage IV or Equivalent to Tier 2/Stage II
Note (4)	Power as declared per ISO 14396. Rated rpm 1,800 (561 hp) Power as declared per ISO 14396. Rated rpm 1,800 (561 hp)
Engine Model	Cat C27 Cat C27
Displacement	1648 in³ 27.03 l
Number of Cylinders	12 12

Weights

Operating Weight - Typically Equipped

165314 lb 74985 kg

Moldboard

Blade Width	24 ft 7.3 m
Blade Height	40 in 1025 mm

Blade Range

Maximum Depth of Cut	21.7 in 550 mm
Maximum Lift Above Ground	16.1 in 410 mm

Air Conditioning System

Air Conditioning

The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas.

Machine Weight

Weight*

161695 lb 73344 kg

24 Standard Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

POWER TRAIN

Engine: C27

24-volt electric start

Air filters, dual with precleaner

Automatic dust ejector

Ether starting aid

Automatic fan, suction with hydraulic demand

Drive, near zero fan speed

Torque divider, lock-up

Transmission, 533 mm (21 in) planetary powershift with 6F/3R, ECPC

Enhanced auto-shift, APECS

Directional shift management

Differential, lock/unlock (auto/manual)

Parking brake, multi-disc, sealed and oil cooled

Fast fill (fuel, hydraulic, transmission, coolant)

Fuel priming pump, electric

Electronic prescreener water/fuel

Prescreener separator, water/fuel

Thermal shields

Fluid monitoring (engine, transmission, hydraulic, differential)

ELECTRICAL

Alarm, back-up

Alternator, 150 ampere, sealed, filtered air intake

Maintenance free batteries, 12V (4), 200 amp-hour

Heavy duty starter (two)

Electrical hydraulic valves, base 8

Electrical system, 24 volt

Lights, reversing, stop, tail, turn

Starter receptacle plug-in

OPERATOR ENVIRONMENT

Air conditioner and heater sound suppressed, pressurized cab 73 dB(A) ISO 6394 at 70 percent fan speed

Adjustable armrest

Electro-hydraulic controls

Electronic throttle control

Automatic return to center articulation

10 inch digital touch screen information display

Rear vision camera

Coat hook

Comfort suspension seat, cloth-covered

Front fixed laminated window glass with intermittent wiper, sides (two), rear with wiper/washer

Retractable seat belt, 76 mm (3 in)

Hydraulic implement lockout for roading and servicing

TECHNOLOGY PRODUCTS

VIMS - 3G

Cat Grade with Cross Slope

Overspeed/underspeed protection

Second generation steering system

Ripper auto stow

Circle angle limits

SAFETY AND SECURITY

Fire suppression ready

Circle drive slip clutch

Locking doors

Ground level engine shutdown

Secondary steering

Working at heights tie-off anchors

Rear tandem access platforms

Seat belt indicator

GROUND ENGAGING TOOLS

Moldboard, 7315 mm x 1067 mm x 50 mm (24 ft x 42 in x 2 in)

Rear ripper with seven shank capacity, three shanks/tips provided

OTHER STANDARD EQUIPMENT

Blade lift accumulators

Lincoln Centro-Matic Autolube System

Drawbar, eight shoe with replaceable wear strips

Fuel tank, 908 L (240 gal) fast fill

Ground level fueling

Push plate-counterweight

SOS ports, engine, hydraulic, transmission, coolant, fuel

Hydraulic and electric bulkheads

Fluid service center: engine, transmission, hydraulic oil, and coolant ports

High Performance Circle

24 Optional Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

OPERATOR ENVIRONMENT

Heated seat

Heated and ventilated seat

Air horn

Radio Bluetooth

Radio Satellite Sirius

Outside mounted mirrors

Heated outside mounted mirrors 24V

Rear view camera additional dedicated monitor

Auto articulation

POWER TRAIN

Bar and plate duel core radiator

Precleaner Sy-klone

Control blade variable float

GUARDS

Guard Package including mud guard (two) bottom, eng. Compartment and front axle (two)

Tandem fenders with mounted guardrails

Sound suppression guard package

ELECTRICAL

Halogen operator access lighting package

LED operator access lighting package

Working halogen lighting package

Working LED lighting package

LED warning strobe light

SAFETY

Duel Access CAB platform

Front facing cameras (two)

Fire suppression system

Wheel chocks with mounting bracket

OTHER ATTACHMENTS

VIMS and Satellite Product Link

VIMS and Duel (Cell/Satellite) Product Link

Rims Only option, 25" x 29" MP

WORK TOOLS/G.E.T.

Flat 406 mm x 60 mm (16 in x 2.36 in) cutting edge

Serrated 406 mm x 75 mm (16 in x 2.95 in) cutting edge

Miningbit 355.6 mm x 75 mm (14 in x 2.13 in) cutting edge system

Tooth, ripper

8.5m (24 ft) moldboard

FLUIDS

Cold Weather Package - Arctic hydraulic oil, engine, hydraulic, transmission and coolant heater (240V/30A)

Product Specifications for 24

Download Print

Engine

Net Power - EEC 80/1269	535 hp 399 kW
Bore	5.4 in 137.2 mm
Stroke	6 in 152.4 mm
Note (1)	Net power is tested per ISO 9249, SAE J1349, and EEC 80/1269 Standards in effect at the time of manufacture. Net power is tested per ISO 9249, SAE J1349, and EEC 80/1269 Standards in effect at the time of manufacture.
Note (3)	Net power advertised is the power available at rated speed of 1,800 rpm, measured at the flywheel when engine is equipped with fan, air cleaner, muffler and alternator. Net power advertised is the power available at rated speed of 1,800 rpm, measured at the flywheel when engine is equipped with fan, air cleaner, muffler and alternator.
Note (2)	Optimized VHP Plus is standard for the 24. Optimized VHP Plus is standard for the 24.
Standard Capability	122 °F 50 °C
Emissions	Tier 4 Final/Stage IV or Equivalent to Tier 2/Stage II Tier 4 Final/Stage IV or Equivalent to Tier 2/Stage II
Note (4)	Power as declared per ISO 14396. Rated rpm 1,800 (561 hp) Power as declared per ISO 14396. Rated rpm 1,800 (561 hp)
Engine Model	Cat C27 Cat C27
Displacement	1648 in³ 27.03 l
Number of Cylinders	12 12

Weights

Operating Weight - Typically Equipped

165314 lb 74985 kg

Moldboard

Blade Width	24 ft 7.3 m
Blade Height	40 in 1025 mm

Blade Range

Maximum Depth of Cut	21.7 in 550 mm
Maximum Lift Above Ground	16.1 in 410 mm

Air Conditioning System

Air Conditioning

Machine Weight

Weight*

161695 lb 73344 kg

24 Standard Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

POWER TRAIN

Engine: C27

24-volt electric start

Air filters, dual with precleaner

Automatic dust ejector

Ether starting aid

Automatic fan, suction with hydraulic demand

Drive, near zero fan speed

Torque divider, lock-up

Transmission, 533 mm (21 in) planetary powershift with 6F/3R, ECPC

Enhanced auto-shift, APECS

Directional shift management

Differential, lock/unlock (auto/manual)

Parking brake, multi-disc, sealed and oil cooled

Fast fill (fuel, hydraulic, transmission, coolant)

Fuel priming pump, electric

Electronic prescreener water/fuel

Prescreener separator, water/fuel

Thermal shields

Fluid monitoring (engine, transmission, hydraulic, differential)

ELECTRICAL

Alarm, back-up

Alternator, 150 ampere, sealed, filtered air intake

Maintenance free batteries, 12V (4), 200 amp-hour

Heavy duty starter (two)

Electrical hydraulic valves, base 8

Electrical system, 24 volt

Lights, reversing, stop, tail, turn

Starter receptacle plug-in

OPERATOR ENVIRONMENT

Air conditioner and heater sound suppressed, pressurized cab 73 dB(A) ISO 6394 at 70 percent fan speed

Adjustable armrest

Electro-hydraulic controls

Electronic throttle control

Automatic return to center articulation

10 inch digital touch screen information display

Rear vision camera

Coat hook

Comfort suspension seat, cloth-covered

Front fixed laminated window glass with intermittent wiper, sides (two), rear with wiper/washer

Retractable seat belt, 76 mm (3 in)

Hydraulic implement lockout for roading and servicing

TECHNOLOGY PRODUCTS

VIMS - 3G

Cat Grade with Cross Slope

Overspeed/underspeed protection

Second generation steering system

Ripper auto stow

Circle angle limits

SAFETY AND SECURITY

Fire suppression ready

Circle drive slip clutch

Locking doors

Ground level engine shutdown

Secondary steering

Working at heights tie-off anchors

Rear tandem access platforms

Seat belt indicator

GROUND ENGAGING TOOLS

Moldboard, 7315 mm x 1067 mm x 50 mm (24 ft x 42 in x 2 in)

Rear ripper with seven shank capacity, three shanks/tips provided

OTHER STANDARD EQUIPMENT

Blade lift accumulators

Lincoln Centro-Matic Autolube System

Drawbar, eight shoe with replaceable wear strips

Fuel tank, 908 L (240 gal) fast fill

Ground level fueling

Push plate-counterweight

SOS ports, engine, hydraulic, transmission, coolant, fuel

Hydraulic and electric bulkheads

Fluid service center: engine, transmission, hydraulic oil, and coolant ports

High Performance Circle

24 Optional Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

OPERATOR ENVIRONMENT

Heated seat

Heated and ventilated seat

Air horn

Radio Bluetooth

Radio Satellite Sirius

Outside mounted mirrors

Heated outside mounted mirrors 24V

Rear view camera additional dedicated monitor

Auto articulation

POWER TRAIN

Bar and plate duel core radiator

Precleaner Sy-klone

Control blade variable float

GUARDS

Guard Package including mud guard (two) bottom, eng. Compartment and front axle (two)

Tandem fenders with mounted guardrails

Sound suppression guard package

ELECTRICAL

Halogen operator access lighting package

LED operator access lighting package

Working halogen lighting package

Working LED lighting package

LED warning strobe light

SAFETY

Duel Access CAB platform

Front facing cameras (two)

Fire suppression system

Wheel chocks with mounting bracket

OTHER ATTACHMENTS

VIMS and Satellite Product Link

VIMS and Duel (Cell/Satellite) Product Link

Rims Only option, 25" x 29" MP

WORK TOOLS/G.E.T.

Flat 406 mm x 60 mm (16 in x 2.36 in) cutting edge

Serrated 406 mm x 75 mm (16 in x 2.95 in) cutting edge

Miningbit 355.6 mm x 75 mm (14 in x 2.13 in) cutting edge system

Tooth, ripper

8.5m (24 ft) moldboard

FLUIDS

Cold Weather Package - Arctic hydraulic oil, engine, hydraulic, transmission and coolant heater (240V/30A)
