Key Specs

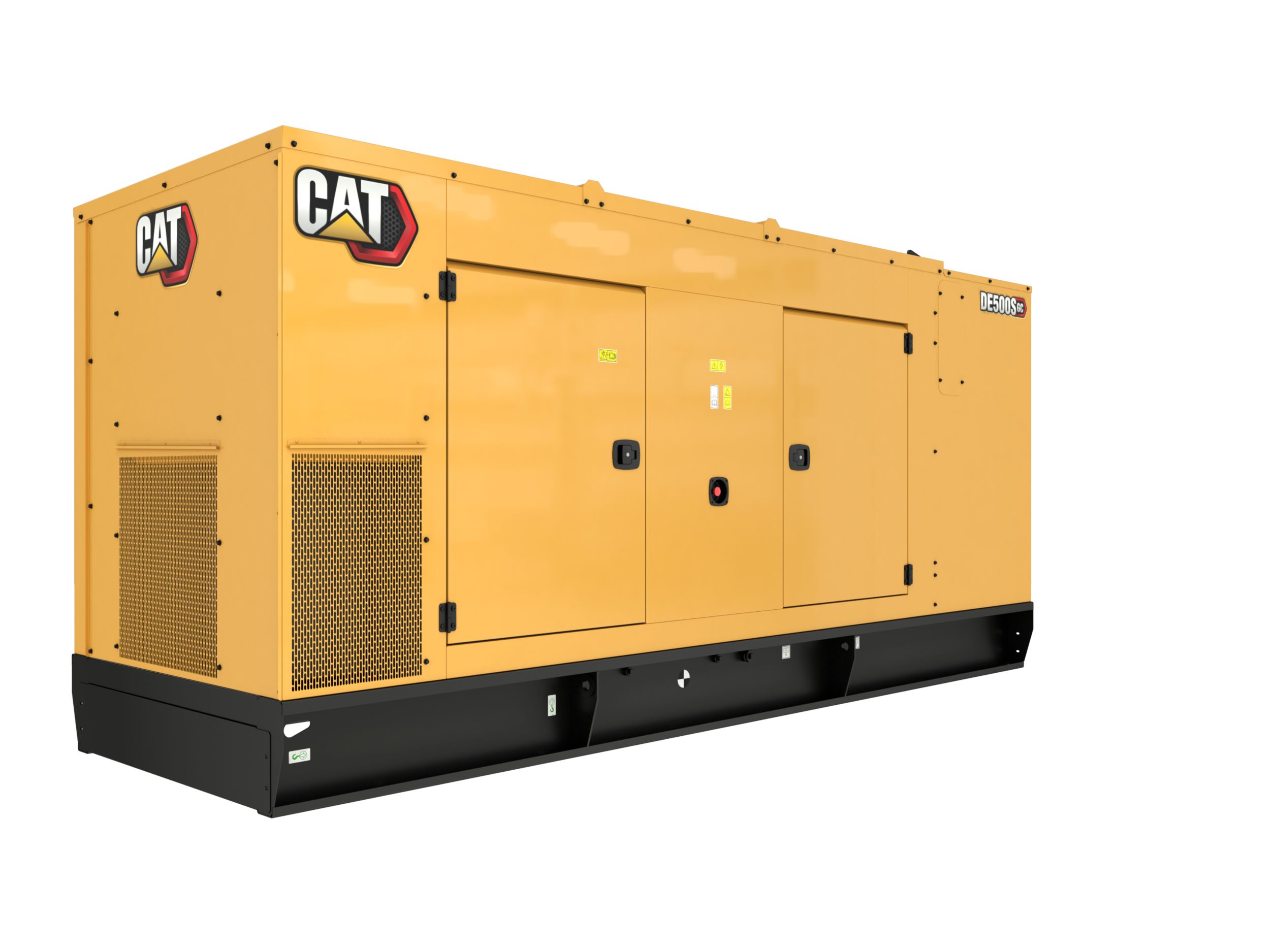

Producing reliable power 500 ekW at 60 Hz, our DE500S GC generator set powerd by C13 diesel engine designed to ISO 8528-5 transient response requirements.
Cat Connect option ensures your generator set is always ready to start and perform as expected
Longer run times between fuel fills; reduced operating costs
| Maximum Rating | 500 ekW 500 ekW |
| Minimum Rating | 500 ekW 500 ekW |
| Emissions/Fuel Strategy | Non Regulated Non Regulated |
| Voltage | 220 to 480 Volts 220 to 480 Volts |
| Frequency | 60 Hz 60 Hz |
| Speed | 1800 RPM 1800 RPM |
| Duty Cycle | Standby Standby |
| Engine Model | C13 In-line 6, 4-cycle diesel C13 In-line 6, 4-cycle diesel |
| Bore | 5.1 in 130 mm |
| Stroke | 6.2 in 157 mm |
| Displacement | 763 in³ 12.5 l |
| Compression Ratio | 15.8:1 15.8:1 |
| Aspiration | Turbocharged Air-to-Air Aftercooled Turbocharged Air-to-Air Aftercooled |
| Fuel System | EUI EUI |
| Governor Type | Adem™A4 Adem™A4 |
| Length - Maximum | 122 in 3100 mm |
| Width - Maximum | 52.7 in 1338 mm |
| Height - Maximum | 85.4 in 2168 mm |
| Dry Weight - Genset (maximum) | 6693 lb 3036 kg |
