XQ570 455 kW (568 kVA)

Mobile Generator Sets XQ570 Tier 4 Final

Request A Price Find Dealer

Key Specs

Rating Prime
455 ekW (568 kVA)
455 ekW (568 kVA)
Frequency
60 Hz
60 Hz
Voltage
120 - 600V
120 - 600V

Overview

568 kVA Mobile Diesel Generator Set

The Cat® XQ570 Rental Power Generator Setprovides world class performance and enhanced usability. This model is powered by the fuel-efficient Cat C18 Tier 4 Final compliantengine equipped with the Cat NOx Reduction System. Equipped with the new EMCP 4.4 control panel, the XQ570 features a user-friendly interface and automatic generator set paralleling. A principle advantage of the control system offers simpler and faster voltage changes. Providing greater flexibility when moving between multiple job sites with differing frequency and voltage needs, the auto-configuration capability eliminates the time required when reprogramming units and potential errors. Additional features include lower noise levels and improved part load fuel consumption.

Benefits

Flexible Two-way valve and external fuel ports

Easily switch between onboard and external fuel source for extended run times

Generator Set Mounted EMCP 4.4 Controller

Provides power metering, protective relaying, engine & generator control & monitoring and capability to run up to 8 units in parallel

Standard 500 Hour oil change intervals

Maximizes run time before routine service is required

Product Specifications for XQ570 Tier 4 Final

Rating Prime 455 ekW (568 kVA) 455 ekW (568 kVA)
Frequency 60 Hz 60 Hz
Voltage 120 - 600V 120 - 600V
Rating Standby 500 ekW (625 kVA) 500 ekW (625 kVA)
Engine Cat C18 Cat C18
Fuel Diesel Diesel
Height - Without Trailer 102 in 2591 mm
Length - Without Trailer 240 in 6096 mm
Width - Without Trailer 96 in 2438 mm
Weight with Lube Oil and Coolant, Without Trailer 24125 lb 11396 kg
100% Load 60Hz 33.2 gal/hr 126 l/hr
75% Load 60Hz 26.2 gal/hr 99 l/hr
50% Load 60Hz 19 gal/hr 72 l/hr
100% Load 60Hz 35.9 gal/hr 136 l/hr
75% Load 60Hz 28.3 gal/hr 107 l/hr
50% Load 60Hz 20.5 gal/hr 78 l/hr
Sound Power @ 7 meters (23 feet) @ All Ratings 74 dB(A) 74 dB(A)

XQ570 Tier 4 Final Standard Equipment

CAT C18 Diesel Engine

  • Heavy-duty.
    Turbocharged.
    After treatment

Generator

  • LC6134G Frame

Control Panel

  • Digital EMCP4.4 set mounted controller

Cat Connect remote monitoring

  • Provides package monitoring and management

Cooling System

  • Package mounted radiator with vertical air discharge.
    Filled from factory

Charging / Starting System

  • 12V heavy duty starting motor and charging alternator c/w battery isolator

Fuel System

  • 24 hour dual wall fuel tank with 3 way directional valve for external supply

Air Filter

  • Cyclonic/paper with dust cup and service indicator

Distribution

  • Single, robust enclosure for controls and distribution c/w 4 pole circuit breaker and safety cut off

Structure

  • Heavy Duty steel base frame with integral fuel tank.
    Lifting frame and 4 point lift.
    base frame is wider than enclosure to protect generator set during transportation

Enclosure

  • Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance

Exhaust

  • Integrated spark arresting silencer

Lube Oil

  • On engine primary and secondary oil filters. Filled from factory

General

  • Factory tested and inspected

Product Brochures and More Are Ready to Download!

See how XQ570 Tier 4 Final compares against frequently compared products.

Media Gallery

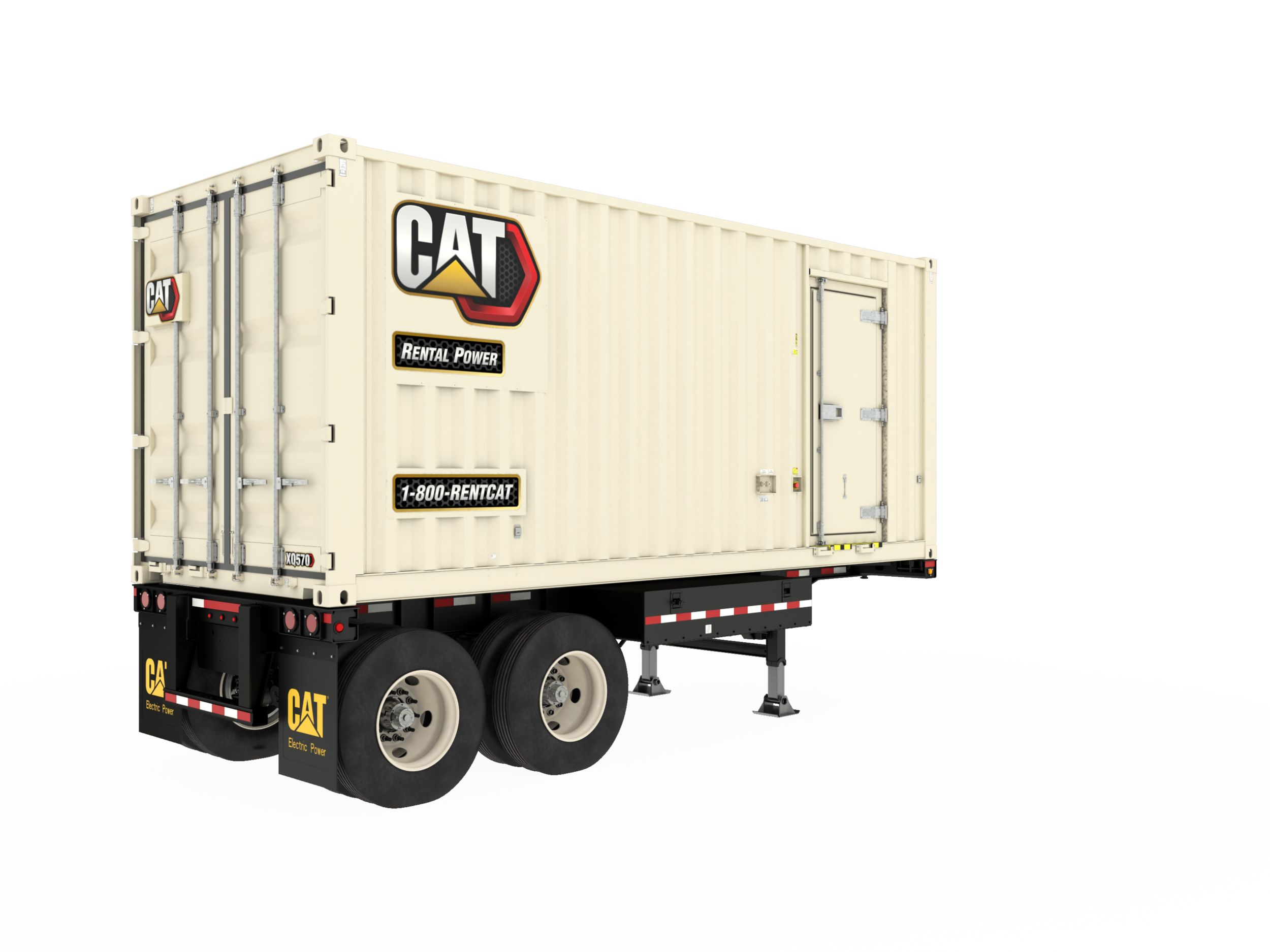

XQ570

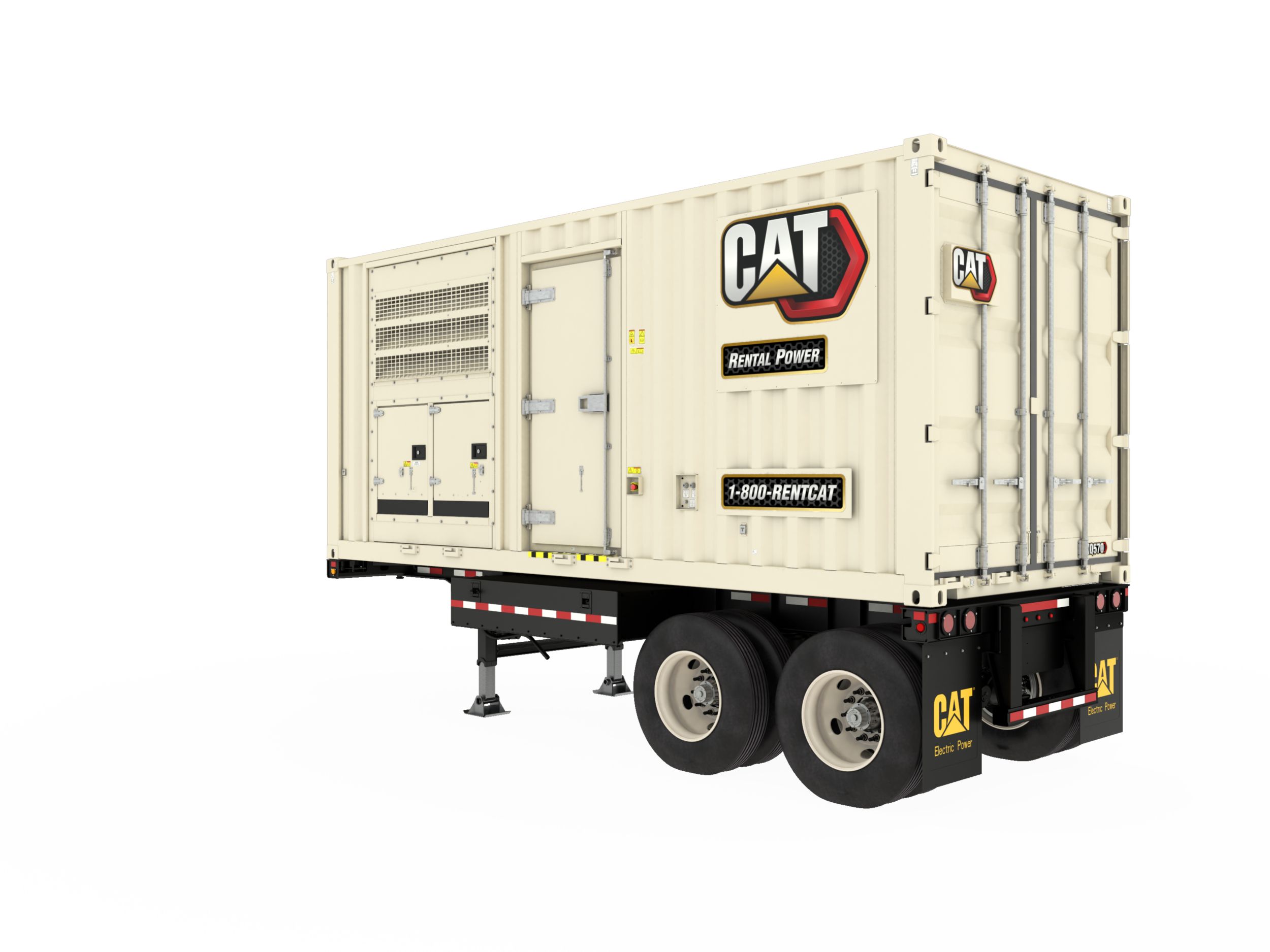

XQ570

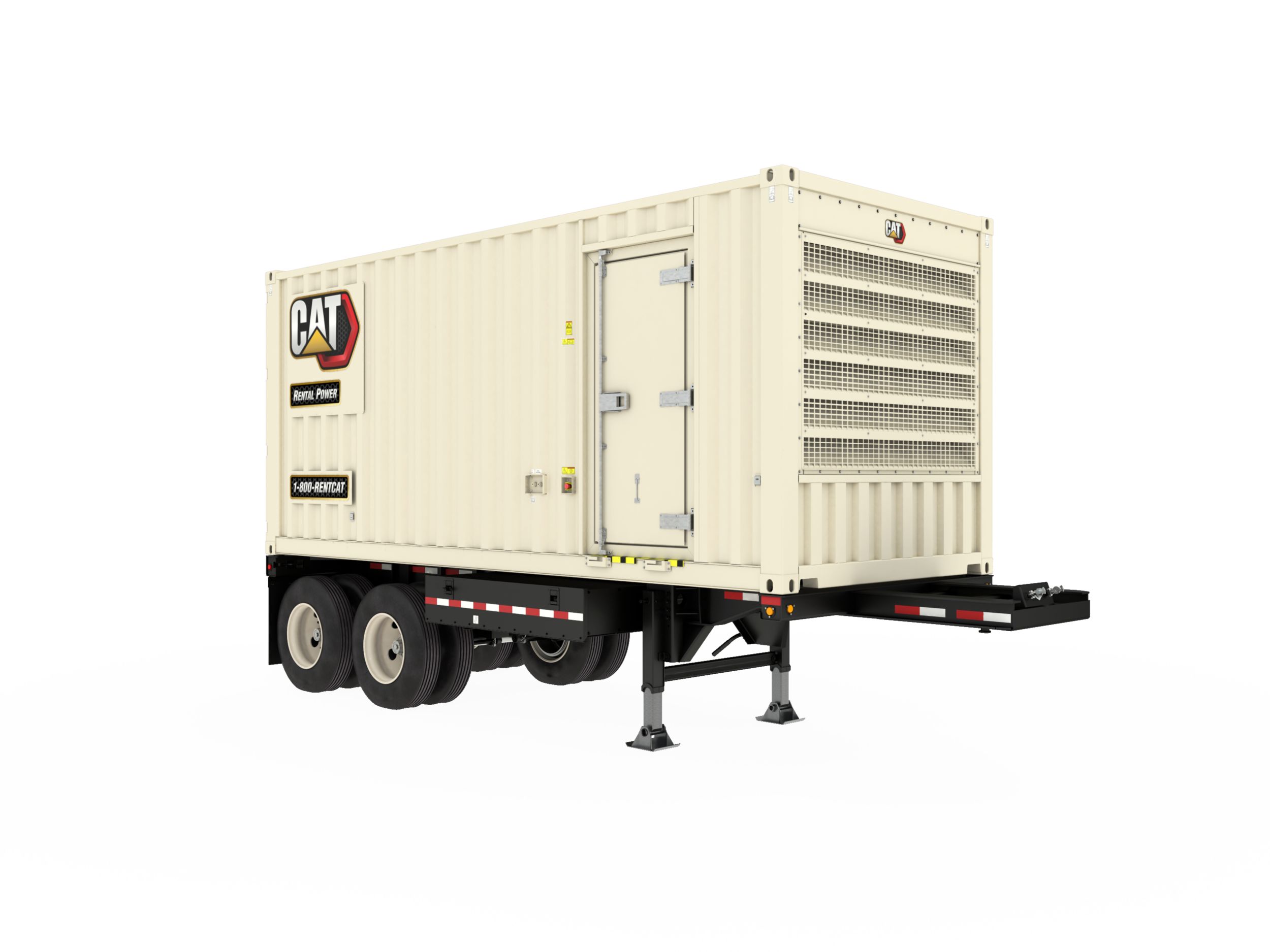

XQ570
