Weights
| Standard Operating Weight with ROPS | 5936 lb 2698 kg |
| Maximum Weight at Front Drum | 2861 lb 1301 kg |
| Maximum Operating Weight with ROPS | 5936 lb 2698 kg |
| Maximum Weight at Rear Drum | 1398 lb 3075 kg |
| Static Linear Load | 60.6 lb/in 13 kg/cm |
Account
If you already have an existing account with another Cat App, you can use the same account to sign in here
One Account. All of Cat.
Your Caterpillar account is the single account you use to log in to select services and applications we offer. Shop for parts and machines online, manage your fleet, go mobile, and more.
Welcome Back!
My Account Dashboard
Account Information
Site Settings
Security
Tandem Vibratory Rollers CB2.7
Request A Price Find DealerKey Specs
- Standard Operating Weight with ROPS
- 5936 lb
- 2698 kg
- Compaction Width
- 47.2 in
- 1200 mm
- Engine Power (1)
- 48.2 hp
- 36 kW
Overview
Versatile Compaction
The CB2.7 is a 2.7 to 3 metric ton compactor with 1200 mm (47 in) drums. It's a versatile machine that can be used as the only vibratory roller on small sized jobs or on larger jobs as a support roller for high-production rollers. Its high amplitude and drum width give it the capacity to achieve a tons-per-day production rate that make it an excellent match for shoulders, small parking lots, lane additions, or other similar sized jobs.
Benefits
Productive
Providing up to 33% more power with Cat C1.7T engine at 48 hp / 36 kW with optimized hydraulics and multiple ballast options
Easy to Maintain
CB2.7 provides reduced maintenance tasks, troubleshooting through Cat ET, and a 3-year/3000 hour vibe system service interval.
Simple to Operate
This machine has intuitive operator controls, a simple display, and an ergonomic operator station.
Features At A Glance
Simple to Operate
• Rocker switches and Cat gauge cluster with water tank gauge to help make operation easy• Variable water spray system to extend time between water fills
• Optional sliding operator seat and dual propel levers for reducing
Proven Productivity
• Large 720 mm (28 in) drum diameters for smooth mat finish• 14 mm (0.55 in) thick drum shells for longer durability
• Dual vibratory frequencies and ballast options to maximize compactive effort
• C1.7T engine with 36 kW (48.2 hp) (gross)
Technology Ready
• Product link for remote monitoring of machine location and status• Optional Compaction Measurement Value (CMV) displayed to the operator for improved compaction performance and consistency
Superior Safety
• High visability 75 mm (3 in) orange seatbelt to make job site safety visible• Seat with operator presence sensor to prevent unintended operation while out of the seat
• Slip resistant steps and platform for improved operator safety
• Optional rotating amber beacon
Easy to Service
• Cat controls with ET capability for easy troubleshooting• Reduced maintenance tasks for quick servicing
• 500 hour oil change interval to reduce maintenance time and costs
• Uptime kits and customer value agreements available to ensure maximum uptime
• LED lighting for durable and reliable performance
• External fuel fill for easy access
Product Specifications for CB2.7
Dimensions
| Compaction Width | 47.2 in 1200 mm |
| Drum Diameter | 28.3 in 720 mm |
| Overall Width | 51.7 in 1312 mm |
| Height - ROPS | 70.8 in 1799 mm |
| Overall Length | 99.2 in 2520 mm |
| Drum Width | 47.2 in 1200 mm |
| Wheel Base | 70.9 in 1800 mm |
Engine
| Engine Power (1) | 48.2 hp 36 kW |
| Engine Model | C1.7T C1.7T |
Operating Specifications
| Turning Radius - Outside Drum Edge | 3740 mm 147.2 in |
| Drum Offset | 2 in 50 mm |
| Travel Speed - Maximum | 7.5 mile/h 12 km/h |
| Static Linear Load | 70.6 lb/in 12.6 kg/cm |
| Turning Radius - Inside Drum Edge | 100 in 2540 mm |
| Curb Clearance | 17.8 in 453 mm |
| Ground Clearance | 11.2 in 285 mm |
Vibratory System
| Frequency | 64/53 Hz (3840/3180 vpm) 64/53 Hz (3840/3180 vpm) |
| Frequency | 3840 V/mm 64 Hz |
| Centrifugal Force - Maximum | 7929 lb 35 kN |
| Nominal Amplitude - High | 0.02 in 0.52 mm |
Service Refill Capacities
| Fuel Tank Capacity | 14.37 gal (US) 55 l |
| Water Spray Tank Capacity | 52.8 gal (US) 200 l |
CB2.7 Standard Equipment
OPERATOR ENVIRONMENT
- Adjustable Suspension Seat with Operator Presense Switch
- ROPS Folding
- Seat Belt - 75 mm (3 in) high visibility orange
- Operator Console w/ Water Tank Gauge, Emergency Stop, and Glove Box
- 12-volt Power Outlet
- Horn, Backup Alarm
COMPACTON SYSTEM
- Folding Scrapers
- Vibe Selection - front, rear, or both
- Pressurized, Triple-Filtration Spray System with Test Mode
POWERTRAIN
- Auto Engine Off and Auto Warmup
- Air Cleaner, Dual Element
- Engine Belt Guard
TECHNOLOGY
- Telematics
ELECTRICAL
- LED Working Lights
OTHER
- Vandal Protection - lockable hood, fuel fill, and controls cover
- Machine Life and Tiedowns
- Offsets Hitch
CB2.7 Optional Equipment
OPERATOR ENVIRONMENT
- ROPS Fixed
- Sun Canopy
- Seat - Side Shift
- Dual Propel Levers
COMPACTON SYSTEM
- Fixed Scrapers
- Cocoa Mats
- Edge Cutter Ready
- Water Sprayer Antifreeze Kit
- Ballast Kit - 200 kg (440 lb)
- Ballast Kit - 400 kg (880 lb)
POWERTRAIN
- Traction Control
TECHNOLOGY
- Remote Flash / Troubleshoot
- CMV - Compaction Measurement Value
ELECTRICAL
- Battery Disconnect
- LED Roading Lights
- Rotating Amber Beacon
OTHER
- Biodegradeable Hydraulic Oil
- Bumpers
- Single Point Lift
- Custom Paint
See how CB2.7 compares against frequently compared products.
Compactors
CB2.7
Selected
- Standard Operating Weight with ROPS
- 5936 lb
- 2698 kg
- Compaction Width
- 47.2 in
- 1200 mm
- Engine Power (1)
- 48.2 hp
- 36 kW
Compactors
CB2.5 GC
- Standard Operating Weight with ROPS
- 5546 lb
- 2521 kg
- Compaction Width
- 39.4 in
- 1000 mm
- Engine Power (1)
- 24.7 hp
- 18.4 kW
Compactors
CB2.7 GC
- Standard Operating Weight with ROPS
- 5936 lb
- 2698 kg
- Compaction Width
- 47.2 in
- 1200 mm
- Engine Power (1)
- 24.7 hp
- 18.4 kW
Use the comparison tool to compare detailed specs of Cat and competitor models.
Compare All Modelsassignment Product Brochures and More Are Ready to Download!
Caterpillar product brochures and other informational documents are available for your growing business.
- Key Features Downloadable PDF Opens in a New Tab file_download
- Compaction Control Technologies Downloadable PDF Opens in a New Tab file_download
- Paving Product Line Brochure Downloadable PDF Opens in a New Tab file_download
- Paving Application Guides and eBooks Downloadable PDF Opens in a New Tab file_download
Media Gallery
Photos
Videos
360 View
CB2.7 Utility Compactor
CB2.7 tandem vibratory roller compacting asphalt in a parking lot.
CB2.7 tandem roller front, left side

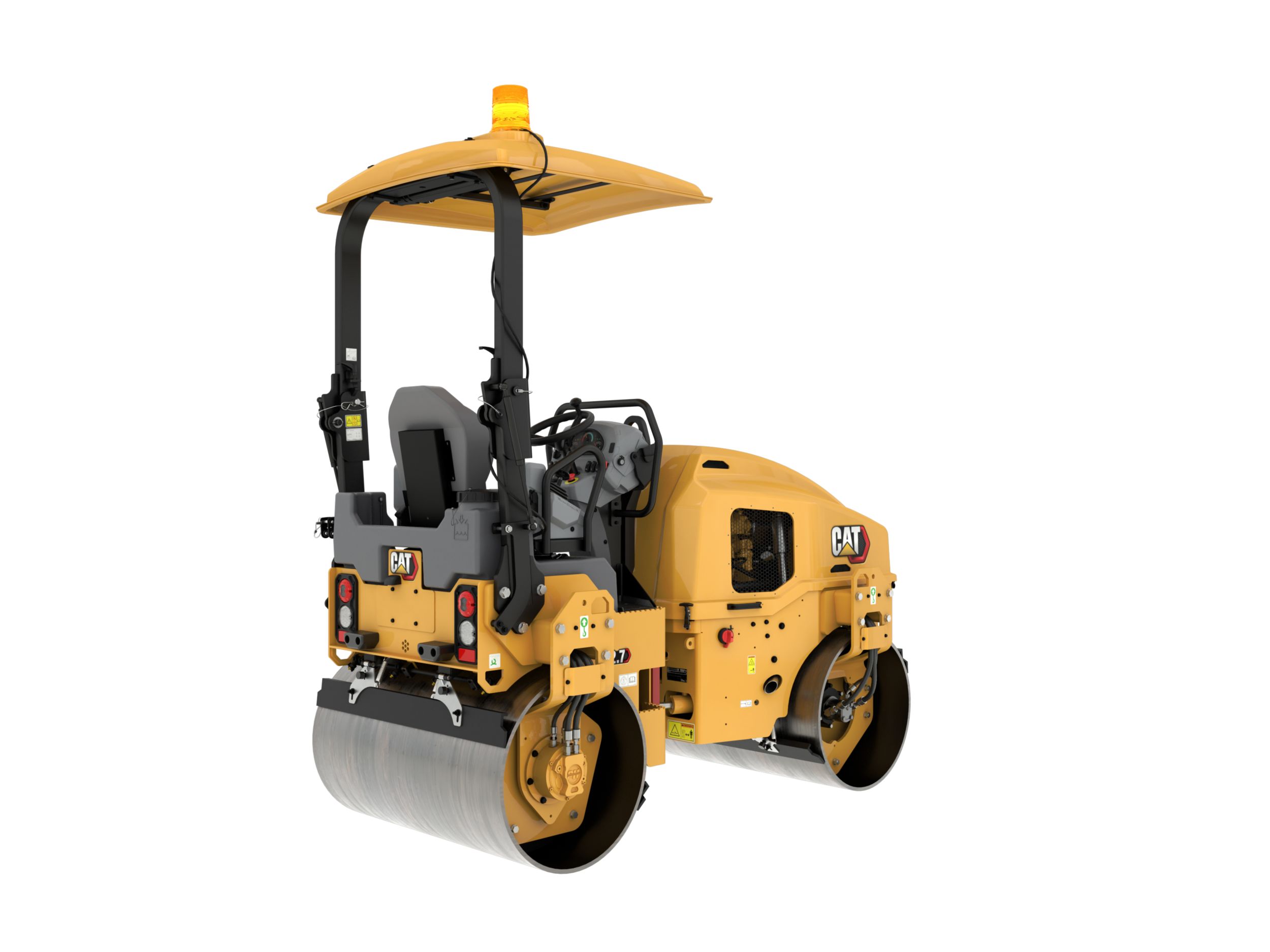

CB2.7 tandem roller rear, right side
