Tandem Vibratory Rollers CC2.7

Request A Price Find Dealer

Key Specs

Standard Operating Weight with ROPS
5718 lb
2599 kg
Compaction Width
47.2 in
1200 mm
Gross Power
48.2 HP
36 kW

Overview

Productive and Efficient

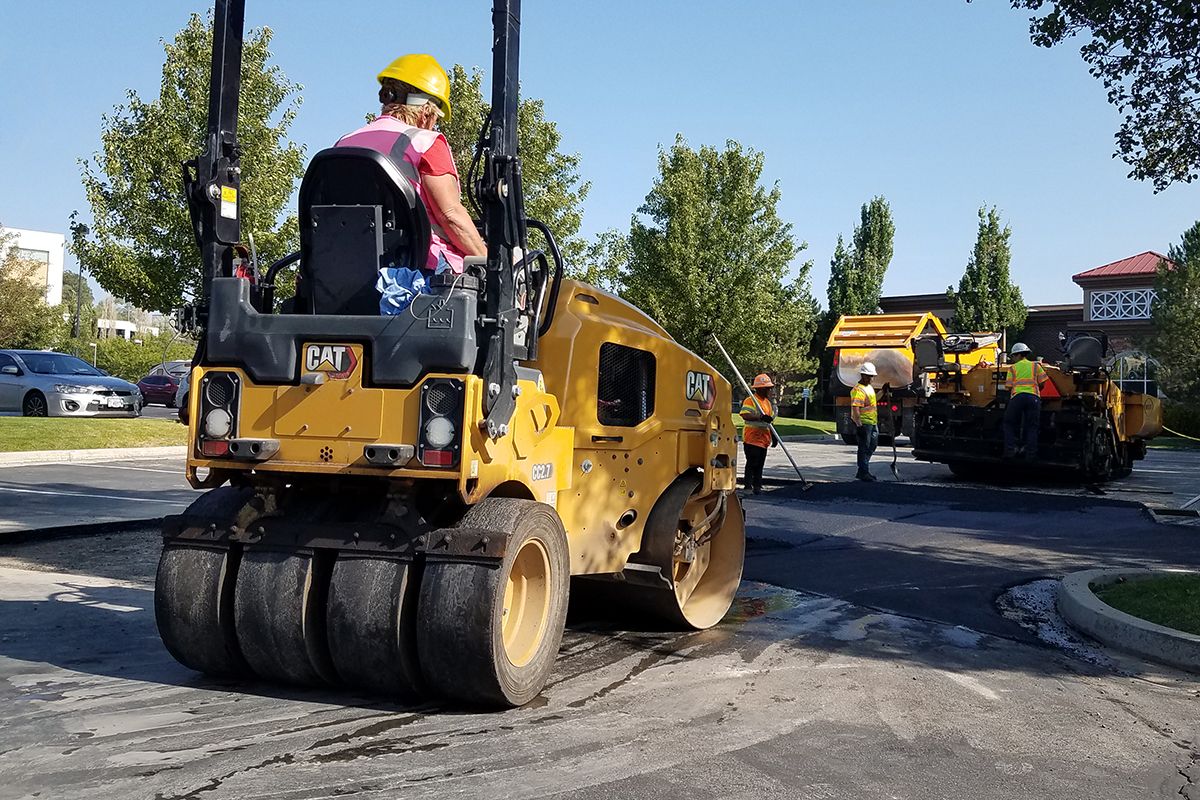

The CC2.7 is a 3 metric ton machine with a 1200 mm (47 in) front drum and 4 rear wheels. The combination compactor offers versatility with its 4 rubber tires that provide a kneading action for a smooth mat surface.

Benefits

Productive

Providing up to 33% more power with Cat C1.7T engine at 48 hp / 36 kW with optimized hydraulics and multiple ballast options.

Easy to Maintain

CC2.7 provides reduced maintenance tasks, troubleshooting through Cat ET, and a 3-year/3000 hour vibe system service interval.

Simple to Operate

This machine has intuitive operator controls, a simple display, and an ergonomic operator station.

Product Specifications for CC2.7

Standard Operating Weight with ROPS 5718 lb 2599 kg
Static Linear Load 61 lb/in 13.1 kg/cm
Maximum Operating Weight 6114 lb 2779 kg
Compaction Width 47.2 in 1200 mm
Overall Width 51.7 in 1312 mm
Drum Width 47.2 in 1200 mm
Height - ROPS 109.7 in 2786 mm
Wheel Base 70.9 in 1800 mm
Overall Length 99.2 in 2520 mm
Drum Diameter 28.3 in 720 mm
Turning Radius - Inside Drum Edge 100 in 2540 mm
Ground Clearance 11.2 in 285 mm
Curb Clearance 17.8 in 453 mm
Travel Speed - Maximum 6.8 mile/h 11 km/h
Static Linear Load 66.2 lb/in 11.85 kg/cm
Drum Offset 2 in 50 mm
Number of Wheels 4 4
Turning Radius - Outside Drum Edge 147.2 in 3740 mm
Gross Power 48.2 HP 36 kW
Net Power - ISO 9249 48.2 HP 36 kW
Engine Model C1.7T C1.7T
Nominal Amplitude - High 0.02 in 0.52 mm
Minimum Frequency 3180 VPM 53 Hz
Maximum Frequency 3840 VPM 64 Hz
Centrifugal Force per Drum - Maximum 7929 lb/ft 35 kN
Water Spray Tank Capacity 42.24 gal (US) 160 l
Fuel Tank Capacity 14.37 Gal 55 l

CC2.7 Standard Equipment

OPERATOR ENVIRONMENT

  • Adjustable Suspension Seat with Operator Presense Switch
  • ROPS Folding
  • Seat Belt - 75 mm (3 in) high visibility orange
  • Operator Console w/ Water Tank Gauge, Emergency Stop, and Glove Box
  • 12-volt Power Outlet
  • Horn, Backup Alarm

COMPACTON SYSTEM

  • Folding Scrapers
  • Vibe Selection - front, rear, or both
  • Pressurized, Triple-Filtration Spray System with Test Mode

POWERTRAIN

  • Auto Engine Off and Auto Warmup
  • Air Cleaner, Dual Element
  • Engine Belt Guard

TECHNOLOGY

  • Telematics

ELECTRICAL

  • LED Working Lights

OTHER

  • Vandal Protection - lockable hood, fuel fill, and controls cover
  • Machine Life and Tiedowns
  • Offsets Hitch

CC2.7 Optional Equipment

OPERATOR ENVIRONMENT

  • ROPS Fixed
  • Sun Canopy
  • Seat - Side Shift
  • Dual Propel Levers

COMPACTON SYSTEM

  • Fixed Scrapers
  • Cocoa Mats
  • Edge Cutter Ready
  • Water Sprayer Antifreeze Kit
  • Ballast Kit - 100 kg (220 lb)

TECHNOLOGY

  • Remote Flash / Troubleshoot
  • CMV - Compaction Measurement Value

ELECTRICAL

  • Battery Disconnect
  • LED Roading Lights
  • Rotating Amber Beacon

OTHER

  • Biodegradeable Hydraulic Oil
  • Bumpers
  • Single Point Lift
  • Custom Paint
