CS19 Vibratory Soil Compactor

Vibratory Soil Compactors CS19

Request A Price Find Dealer

Key Specs

Operating Weight - With Cab: 41641 lb; 18888 kg

Compaction Width: 84 in; 2134 mm

Gross Power: 175.7 hp; 131 kW

CS19
Change model

Overview

Efficient and Consistent Compaction

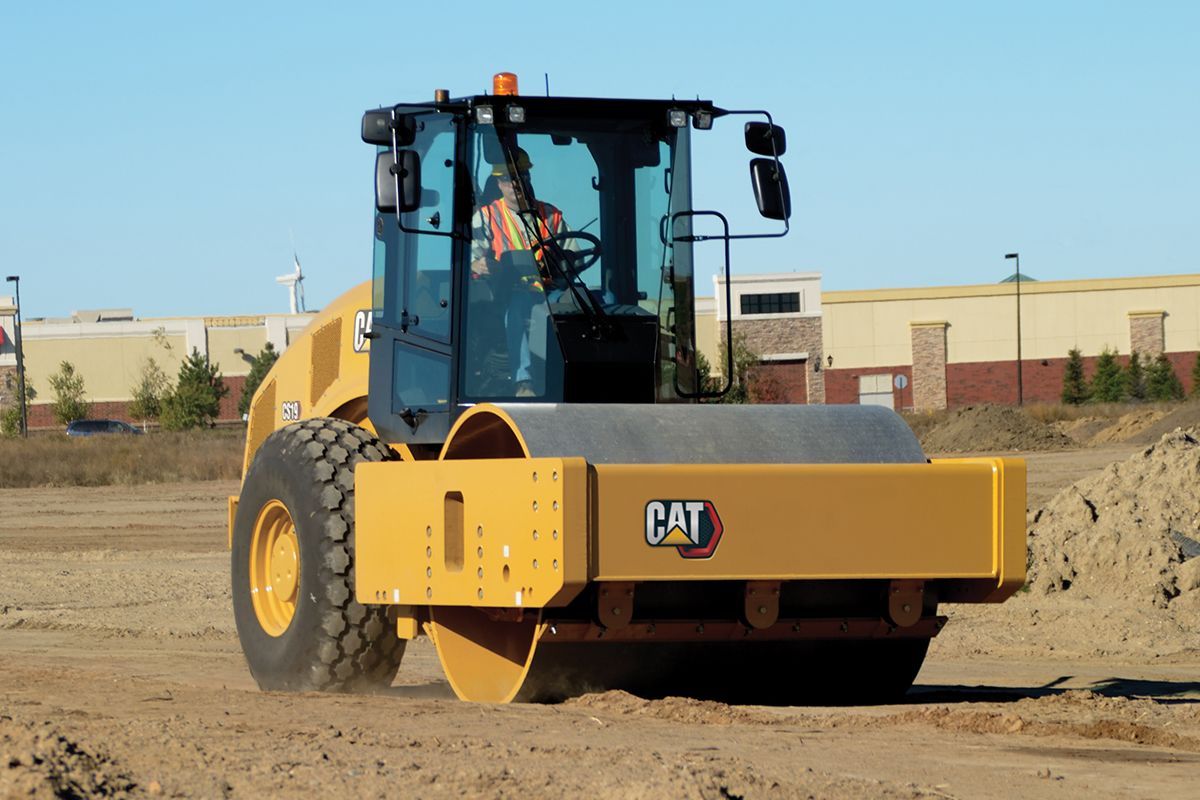

The Cat® CS19 Vibratory Soil Compactor features a smooth drum and is ideally suited for granular soil applications or cohesive soil applications with the use of an optional padfoot shell kit. A reliable propel system improves performance and efficiency and compaction technology solutions help you reach target density faster.

Benefits

Low Operating Costs

Eco-Mode, no-maintenance hitch with sealed-for-life bearings and extended service intervals help keep your operating and maintenance costs low.

Increase Efficiency with Compaction Technology

On-board compaction measurement technology indicates when specifications are met helping to eliminate guesswork, reduce unnecessary passes and minimize rework.

Exceptional Visibility and Comfort

A rear vision camera enhances visibility around the machine and a pivoting seat with integrated controls and tiltable steering console provide an ergonomic work environment.

Features At A Glance

Efficient Power

Built around a dual pump propel system, two pumps provide separate dedicated flow to the drum drive motor and rear axle motor for exceptional gradeability and traction in forward and reverse.
Powered by a Cat® C4.4 engine that meets U.S. EPA Tier 4 Final and Japan 2014 emission standards.
Eco-mode limits engine RPM helping to reduce fuel consumption.
Engine Idle Shutdown Timer reduces fuel burn and unnecessary idle time by shutting down the machine after a pre-set idling period.
A variable speed cooling fan operates at the lowest possible speed for optimal cooling.

Exceptional Compaction Performance

High static linear loads and amplitudes.
Exclusive eccentric weight design provides high reliability, smooth performance and low noise.
Automatic Speed Control and Auto-vibe functions make it easy to ensure consistent, high-quality compaction.
The Variable Frequency option provides a wide range of frequencies to help maximize compaction performance.
Increase machine versatility with the addition of an oval or square padfoot shell kit, allowing your smooth drum machine to compact semi-cohesive and cohesive materials.

Safe and Comfortable Work Environment

A rear vision camera with large color touchscreen display enhances visibility for more complete operator control and safety.
The pivoting seat with integrated multifunction LCD display and control console move with the operator.
Outstanding visibility to the front and rear of machine.
Low sound levels and vibration for greater operator comfort and productivity.
Operators are protected from the elements by a climate-controlled ROPS/FOPS cab with hinged glass windows.

Enhance Quality and Productivity with Technology

Get complete process control with increased coverage and more uniform compaction results using the optional exclusive semi-autonomous Command for Compaction technology to automate compaction.
Optional Cat Compact technologies help you consistently meet compaction targets faster, more uniformly, and in fewer passes – saving on fuel and reducing rework and material costs.
Exclusive Machine Drive Power (MDP) is an energy-based measurement and can be used on all soil types.
Compaction Meter Value (CMV) is an accelerometer-based measurement for granular soils.

Virtually Maintenance Free

Maintenance-free hitch with sealed-for-life bearings.
Ground-level access to the engine compartment and cooling module for easy service and fluid sampling.
Monitor fluid conditions with regular sampling to help extend change intervals up to 500 hours engine oil, 3000 hours eccentric housing and hydraulic oil, and 12000 hours coolant.
Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
VisionLink® takes the guesswork out of managing your entire fleet–regardless of size or equipment manufacturer*–by providing maintenance needs, machine hours, location, fuel usage, idle time, diagnostic codes, and more through interactive dashboards on your mobile device or desktop, helping you make informed decisions that lower costs, simplify maintenance, and improve safety and security on your jobsite.

* Data field availability can vary by equipment manufacturer and is provided through an application programming interface (API).

The Cat C4.4 is available in configurations that meet U.S. EPA Tier 4 Final and Japan 2014 emissions standards.
Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels* up to: 20% biodiesel FAME (fatty acid methyl ester) or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or "Caterpillar Machine Fluids Recommendations" (SEBU6250) for details.
*Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels.
Auto engine idle shutdown helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
A well-trained operator is worth the investment. Skilled operators benefit your bottom line by maximizing productivity, avoiding costly downtime, and maintaining jobsite safety - which can help to improve fuel efficiency and reduce greenhouse gas emissions.
Extended maintenance intervals not only reduce downtime but can decrease the amount of fluid and filters that are replaced over the life of the machine. Extend change intervals up to 500 hours engine oil, 3000 hours eccentric housing and hydraulic oil, and 12000 hours coolant.
Performance and safety can be augmented with standard and optional cameras that are viewed on in-cab displays.
Cat Compact technologies help you consistently meet compaction targets faster, more uniformly, and in fewer passes - saving on fuel and reducing rework and material costs.
Cat Scheduled Oil Sampling (S•O•S℠) Services helps reveal excessive wear, contaminated fluids or other "unseen" issues that can shorten component life. In many cases, you can extend oil and coolant change intervals by using fluid monitoring. Consult your Cat dealer or the machine's operation and maintenance manual for more information.

Specifications Standard Equipment Optional Equipment

Product Specifications for CS19

Engine

Gross Power	175.7 hp 131 kW
Engine Power - ISO 14396	173.5 hp 129.4 kW
Net Power - ISO 9249	147.1 hp 109.7 kW
Net Power - SAE J1349	145.2 hp 108.3 kW
Note (1)	Net power advertised is the power available at the engine flywheel when equipped with a fan at maximum speed, air cleaner, clean emissions module, and alternator. Net power advertised is the power available at the engine flywheel when equipped with a fan at maximum speed, air cleaner, clean emissions module, and alternator.
Engine Model	Cat® C4.4 Cat® C4.4
Emissions	U.S. EPA Tier 4 Final, Japan 2014 U.S. EPA Tier 4 Final, Japan 2014
Stroke	5 in 127 mm
Bore	4.1 in 105 mm

Weights

Operating Weight - With Cab	41641 lb 18888 kg
Weight - Drum with Cab	29637 lb 13443 kg
Note (1)	Operating weights are approximate and consider full fluids and 80 kg (176 lb) operator. Cab weights include heat and air conditioning. Operating weights are approximate and consider full fluids and 80 kg (176 lb) operator. Cab weights include heat and air conditioning.

Vibratory System

Vibratory Frequency - Standard	1680 VPM 28 Hz
Variable Frequency Option Range	23.3 - 28 Hz (1400-1680 vpm) 23.3 - 28 Hz (1400-1680 vpm)
Nominal Amplitude - High	0.083 in 2.1 mm
Nominal Amplitude - Low	0.039 in 0.98 mm
Centrifugal Force - Maximum	75234 lb 335 kN
Centrifugal Force - Minimum	35163 lb 156 kN
Static Linear Load - With Cab	348.8 lb/in 62.3 kg/cm

Dimensions

Compaction Width	84 in 2134 mm
Overall Length	20.1 ft 6.1 m
Overall Width	8.1 ft 2.5 m
Maximum Height	10.2 ft 3.1 m
Drum Diameter	60.4 in 1534 mm
Wheel Base	9.5 ft 2.9 m

Operating Specifications

Ground Clearance	16.8 in 427 mm
Curb Clearance	21.1 in 535 mm
Turning Radius - Inside Drum Edge	12.1 ft 3.7 m
Travel Speed - Maximum	7.1 mile/h 11.4 km/h

Service Refill Capacities

Fuel Tank Capacity	81.1 gal (US) 307 l
DEF Tank	5 gal (US) 19 l
Cooling System	7.4 gal (US) 28.2 l
Engine Oil - With Filter	3.1 gal (US) 11.6 l
Eccentric Weight Housings (combined)	6.9 gal (US) 26 l
Axle and Final Drives	6.3 gal (US) 24 l
Hydraulic Tank	13.2 gal (US) 50 l

Sustainability

Recyclability

96% 96%

CS19 Standard Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

OPERATOR ENVIRONMENT

ROPS/FOPS Cab with Climate Control, Cloth Seat, Exterior Rear View Mirrors

Adjustable Seat with Integrated Console

LCD Display with Lockable Vandalism Guard

Adjustable Tilting Steering Column with Integrated Cup Holders

Rear Vision Camera System with Color Touchscreen Display

High Visibility 50 mm (2 in) Seat Belt

12-volt Power Outlet

Horn, Backup Alarm

VIBRATORY SYSTEM

Smooth Drum

Pod-Style Eccentric Weight Housings

Dual Amplitude, Single Frequency

Auto-vibe Function

Single Adjustable Steel Scraper

TECHNOLOGY SOLUTIONS

VisionLink®

POWERTRAIN

Cat® C4.4 Engine

Air Cleaner, Dual Element

Three Speed Throttle Switch including Eco-mode

Automatic Speed Control (ASC)

Dual Propel Pumps; One for Drum Drive, One for Rear Axle

Fuel Filter, Water Separator, Priming Pump, Water Indicator

Tilting Radiator / Hydraulic Oil Cooler

Dual Braking System

Two-Speed Hydrostatic Transmission

Limited Slip Differential

ELECTRICAL

24 volt Electrical System

100 ampere Alternator

750 Cold-cranking Amps Battery Capacity

OTHER

Lockable Engine Enclosure, Hydraulic and Fuel Tanks

Sight Gauges for Hydraulic Oil Level and Radiator Coolant Level

S·O·S℠ Sampling Values: Engine Oil, Hydraulic Oil, and Coolant

Halogen Working Lights (4)

CS19 Optional Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

OPERATOR ENVIRONMENT

Sun Visor (Cab)

Roll-Down Screen (Cab)

High Visibility 76 mm (3 in) Seat Belt

VIBRATORY SYSTEM

Removable Shell Kit - Oval or Square Pads

Variable Frequency

Dual Adjustable Steel Scrapers

Dual Adjustable Polyurethane Scrapers

TECHNOLOGY SOLUTIONS

Measure - Machine Drive Power (MDP)

Measure - Compaction Meter Value (CMV)

Command for Compaction

POWERTRAIN

Transmission Guard

OTHER

Factory Filled Bio-Hydraulic Oil

Halogen Working Lights (8)

Amber Rotating Beacon

Product Specifications for CS19

Download Print

Engine

Gross Power	175.7 hp 131 kW
Engine Power - ISO 14396	173.5 hp 129.4 kW
Net Power - ISO 9249	147.1 hp 109.7 kW
Net Power - SAE J1349	145.2 hp 108.3 kW
Note (1)	Net power advertised is the power available at the engine flywheel when equipped with a fan at maximum speed, air cleaner, clean emissions module, and alternator. Net power advertised is the power available at the engine flywheel when equipped with a fan at maximum speed, air cleaner, clean emissions module, and alternator.
Engine Model	Cat® C4.4 Cat® C4.4
Emissions	U.S. EPA Tier 4 Final, Japan 2014 U.S. EPA Tier 4 Final, Japan 2014
Stroke	5 in 127 mm
Bore	4.1 in 105 mm

Weights

Operating Weight - With Cab	41641 lb 18888 kg
Weight - Drum with Cab	29637 lb 13443 kg
Note (1)	Operating weights are approximate and consider full fluids and 80 kg (176 lb) operator. Cab weights include heat and air conditioning. Operating weights are approximate and consider full fluids and 80 kg (176 lb) operator. Cab weights include heat and air conditioning.

Vibratory System

Vibratory Frequency - Standard	1680 VPM 28 Hz
Variable Frequency Option Range	23.3 - 28 Hz (1400-1680 vpm) 23.3 - 28 Hz (1400-1680 vpm)
Nominal Amplitude - High	0.083 in 2.1 mm
Nominal Amplitude - Low	0.039 in 0.98 mm
Centrifugal Force - Maximum	75234 lb 335 kN
Centrifugal Force - Minimum	35163 lb 156 kN
Static Linear Load - With Cab	348.8 lb/in 62.3 kg/cm

Dimensions

Compaction Width	84 in 2134 mm
Overall Length	20.1 ft 6.1 m
Overall Width	8.1 ft 2.5 m
Maximum Height	10.2 ft 3.1 m
Drum Diameter	60.4 in 1534 mm
Wheel Base	9.5 ft 2.9 m

Operating Specifications

Ground Clearance	16.8 in 427 mm
Curb Clearance	21.1 in 535 mm
Turning Radius - Inside Drum Edge	12.1 ft 3.7 m
Travel Speed - Maximum	7.1 mile/h 11.4 km/h

Service Refill Capacities

Fuel Tank Capacity	81.1 gal (US) 307 l
DEF Tank	5 gal (US) 19 l
Cooling System	7.4 gal (US) 28.2 l
Engine Oil - With Filter	3.1 gal (US) 11.6 l
Eccentric Weight Housings (combined)	6.9 gal (US) 26 l
Axle and Final Drives	6.3 gal (US) 24 l
Hydraulic Tank	13.2 gal (US) 50 l

Sustainability

Recyclability

96% 96%

CS19 Standard Equipment

Print

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

OPERATOR ENVIRONMENT

ROPS/FOPS Cab with Climate Control, Cloth Seat, Exterior Rear View Mirrors

Adjustable Seat with Integrated Console

LCD Display with Lockable Vandalism Guard

Adjustable Tilting Steering Column with Integrated Cup Holders

Rear Vision Camera System with Color Touchscreen Display

High Visibility 50 mm (2 in) Seat Belt

12-volt Power Outlet

Horn, Backup Alarm

VIBRATORY SYSTEM

Smooth Drum

Pod-Style Eccentric Weight Housings

Dual Amplitude, Single Frequency

Auto-vibe Function

Single Adjustable Steel Scraper

TECHNOLOGY SOLUTIONS

VisionLink®

POWERTRAIN

Cat® C4.4 Engine

Air Cleaner, Dual Element

Three Speed Throttle Switch including Eco-mode

Automatic Speed Control (ASC)

Dual Propel Pumps; One for Drum Drive, One for Rear Axle

Fuel Filter, Water Separator, Priming Pump, Water Indicator

Tilting Radiator / Hydraulic Oil Cooler

Dual Braking System

Two-Speed Hydrostatic Transmission

Limited Slip Differential

ELECTRICAL

24 volt Electrical System

100 ampere Alternator

750 Cold-cranking Amps Battery Capacity

OTHER

Lockable Engine Enclosure, Hydraulic and Fuel Tanks

Sight Gauges for Hydraulic Oil Level and Radiator Coolant Level

S·O·S℠ Sampling Values: Engine Oil, Hydraulic Oil, and Coolant

Halogen Working Lights (4)

CS19 Optional Equipment

Print

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

OPERATOR ENVIRONMENT

Sun Visor (Cab)

Roll-Down Screen (Cab)

High Visibility 76 mm (3 in) Seat Belt

VIBRATORY SYSTEM

Removable Shell Kit - Oval or Square Pads

Variable Frequency

Dual Adjustable Steel Scrapers

Dual Adjustable Polyurethane Scrapers

TECHNOLOGY SOLUTIONS

Measure - Machine Drive Power (MDP)

Measure - Compaction Meter Value (CMV)

Command for Compaction

POWERTRAIN

Transmission Guard

OTHER

Factory Filled Bio-Hydraulic Oil

Halogen Working Lights (8)

Amber Rotating Beacon

See how CS19 compares against frequently compared products.

Compactors

Selected

CS19

CS19

Operating Weight - With Cab: 41641 lb; 18888 kg
Compaction Width: 84 in; 2134 mm
Gross Power: 175.7 hp; 131 kW

Compactors

CP16

CP16

Operating Weight - With Cab: 36390 lb; 16506 kg
Compaction Width: 84 in; 2134 mm
Gross Power: 175.7 hp; 131 kW

View Details

Compactors

CP44B

CP44B

Operating Weight - With Cab: 16471 lb; 7471 kg
Compaction Width: 66 in; 1676 mm
Gross Power: 100.6 hp; 75 kW

View Details

Use the comparison tool to compare detailed specs of Cat and competitor models.

Compare All Models

Tools And Expert Help At Every Turn

Find Dealer

Payment Calculator

Payment Calculator

Current Offers

Rental Options

Used Options

Product Brochures and More Are Ready to Download!

Caterpillar product brochures and other informational documents are available for your growing business.

Media Gallery

Photos

CS19 Vibratory Soil Compactor

CS19 Vibratory Soil Compactor

CS19 Vibratory Soil Compactor

CS19 Vibratory Soil Compactor

CS19 Vibratory Soil Compactor

CS19 Vibratory Soil Compactor

CS19 Vibratory Soil Compactor

CS19 Vibratory Soil Compactor

CS19 Vibratory Soil Compactor

CS19 Vibratory Soil Compactor

CS19 Vibratory Soil Compactor

CS19 Vibratory Soil Compactor

CS19 Vibratory Soil Compactor

CS19 Vibratory Soil Compactor

CS19 Vibratory Soil Compactor

CS19 Vibratory Soil Compactor

CS19 Vibratory Soil Compactor

CS19 Vibratory Soil Compactor

CS19 Vibratory Soil Compactor

CS19 Vibratory Soil Compactor

CS19 Vibratory Soil Compactor

CS19 Vibratory Soil Compactor

CS19 Vibratory Soil Compactor

CS19 Vibratory Soil Compactor

Compatible Technology and Services

Leverage Caterpillar connected data and security principles to improve efficiencies, increase productivity and make your business more profitable.

Command

Compact

Equipment Management

Cat Command for Compaction

When your jobsite requires consistent and accurate compaction,
Command is right for the job.

Dramatically boost consistency, coverage, and safety through semi-autonomous equipment solutions with the all new Cat® Command for Compaction.

Cat Command for Compaction is an operator-assisted, semi-autonomous technology that automates the compaction process based on operator inputs. Command controls the speed, direction, steering, and vibration system of the soil compactor to promote consistency in compaction.

Explore Technology

1 - 8 of 9 Items items

Previous Next

When your jobsite requires consistent and accurate compaction,
Command is right for the job.

Dramatically boost consistency, coverage, and safety through semi-autonomous equipment solutions with the all new Cat® Command for Compaction.

Cat Command for Compaction is an operator-assisted, semi-autonomous technology that automates the compaction process based on operator inputs. Command controls the speed, direction, steering, and vibration system of the soil compactor to promote consistency in compaction.

Explore Technology

Cat Compact with Compaction Meter Value (CMV)

Compaction Meter Value is an accelerometer-based system that provides an indication of material stiffness. The system is available on smooth drum vibratory soil compactors and tandem vibratory asphalt compactors. It measures only when the vibratory system is active, and provides a unitless value calculation derived from the recorded data that indicates composite stiffness.

Explore Technology
Cat Compact with Machine Drive Power (MDP)

Cat Compact with Machine Drive Power (MDP) is an energy-based measurement system that correlates compaction with rolling resistance to provide an indication of soil stiffness. An optional mapping system helps operators visualize work as it occurs.

Explore Technology

1 - 8 of 9 Items items

Previous Next

Compaction Meter Value is an accelerometer-based system that provides an indication of material stiffness. The system is available on smooth drum vibratory soil compactors and tandem vibratory asphalt compactors. It measures only when the vibratory system is active, and provides a unitless value calculation derived from the recorded data that indicates composite stiffness.

Explore Technology

Cat Compact with Machine Drive Power (MDP) is an energy-based measurement system that correlates compaction with rolling resistance to provide an indication of soil stiffness. An optional mapping system helps operators visualize work as it occurs.

Explore Technology

Cat Inspect

Cat® Inspect allows you to access your equipment data on your mobile device. This easy-to-use app lets you capture inspection data and integrates with your other Cat data systems, so you can keep a close eye on your fleet. More than one million inspections are completed each year, providing convenience and accountability to equipment owners.

Explore Technology
VisionLink®

VisionLink® is a cloud-based software application that takes the guesswork out of fleet management with key insights to maximize performance - regardless of fleet size or equipment manufacturer. Receive equipment data seamlessly to your desktop or mobile device, all from a convenient centralized solution to make informed decisions at every turn.

Explore Technology

1 - 8 of 9 Items items

Previous Next

Cat® Inspect allows you to access your equipment data on your mobile device. This easy-to-use app lets you capture inspection data and integrates with your other Cat data systems, so you can keep a close eye on your fleet. More than one million inspections are completed each year, providing convenience and accountability to equipment owners.

Explore Technology

VisionLink® is a cloud-based software application that takes the guesswork out of fleet management with key insights to maximize performance - regardless of fleet size or equipment manufacturer. Receive equipment data seamlessly to your desktop or mobile device, all from a convenient centralized solution to make informed decisions at every turn.

Explore Technology
