Weights
| Operating Weight - With Cab | 24775 lb 11238 kg |
| Operating Weight - With ROPS/FOPS Canopy | 24435 lb 11084 kg |
| Weight - Drum with ROPS/FOPS Canopy | 13453 lb 6102 kg |
| Weight - Drum with Cab | 13549 lb 6146 kg |
My Account
Sign In
Welcome! Sign In to personalize your Cat.com experience
If you already have an existing account with another Cat App, you can use the same account to sign in here
Register Now
One Account. All of Cat.
Your Caterpillar account is the single account you use to log in to select services and applications we offer. Shop for parts and machines online, manage your fleet, go mobile, and more.
Welcome Back!
My Account Dashboard
Account Information
Site Settings
Security

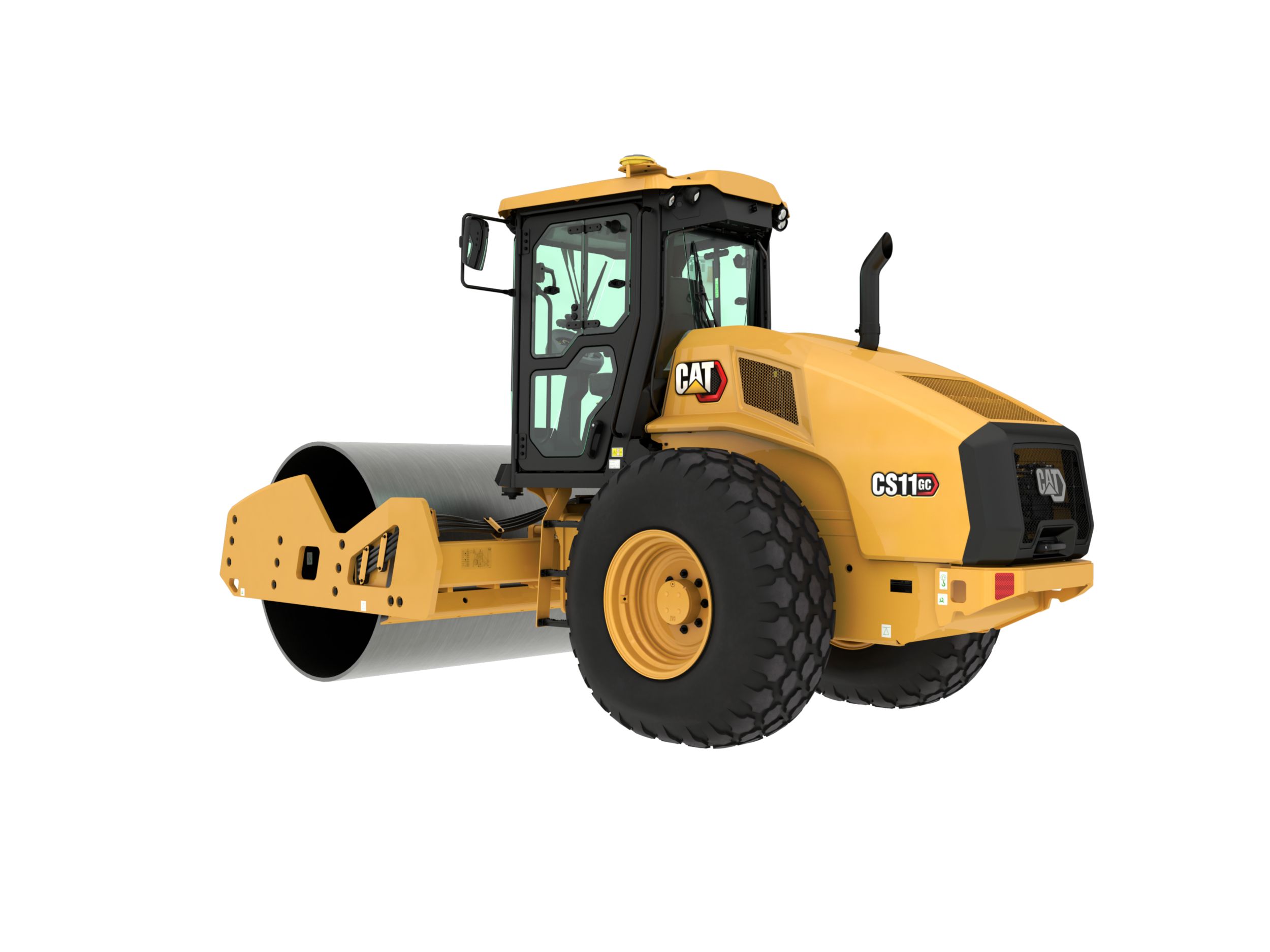

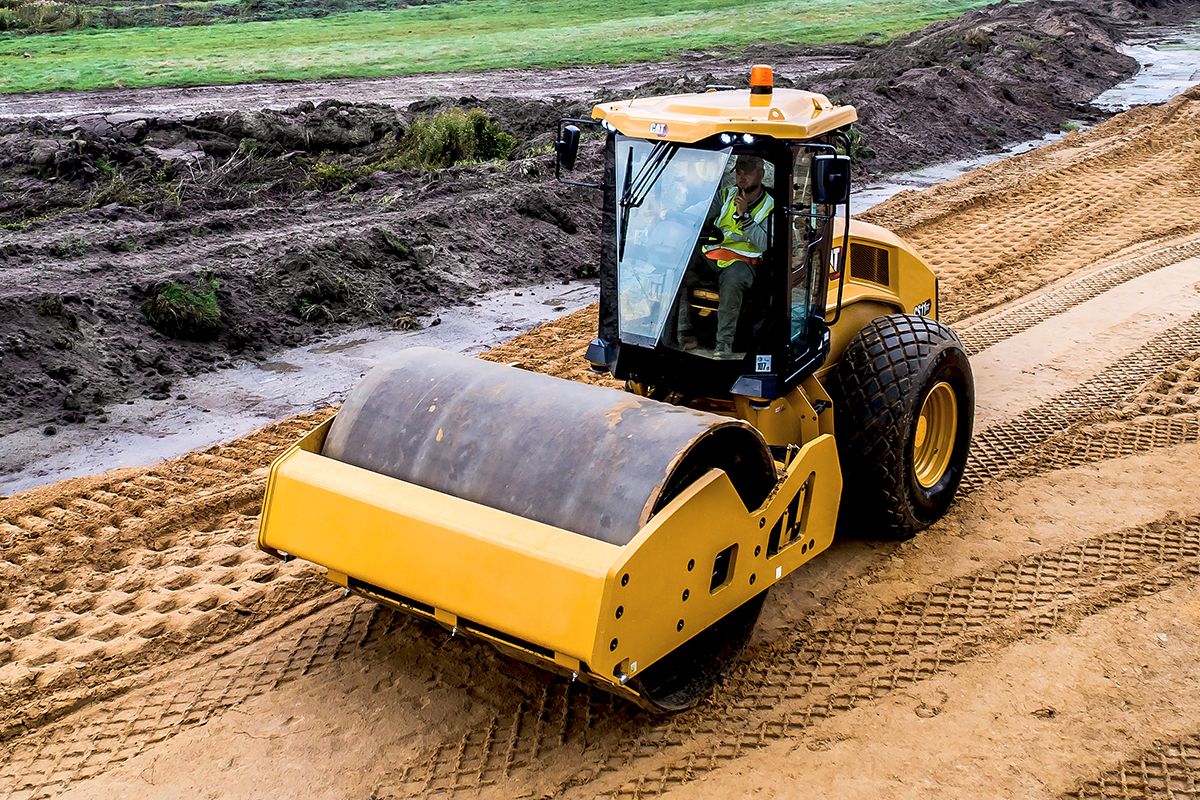

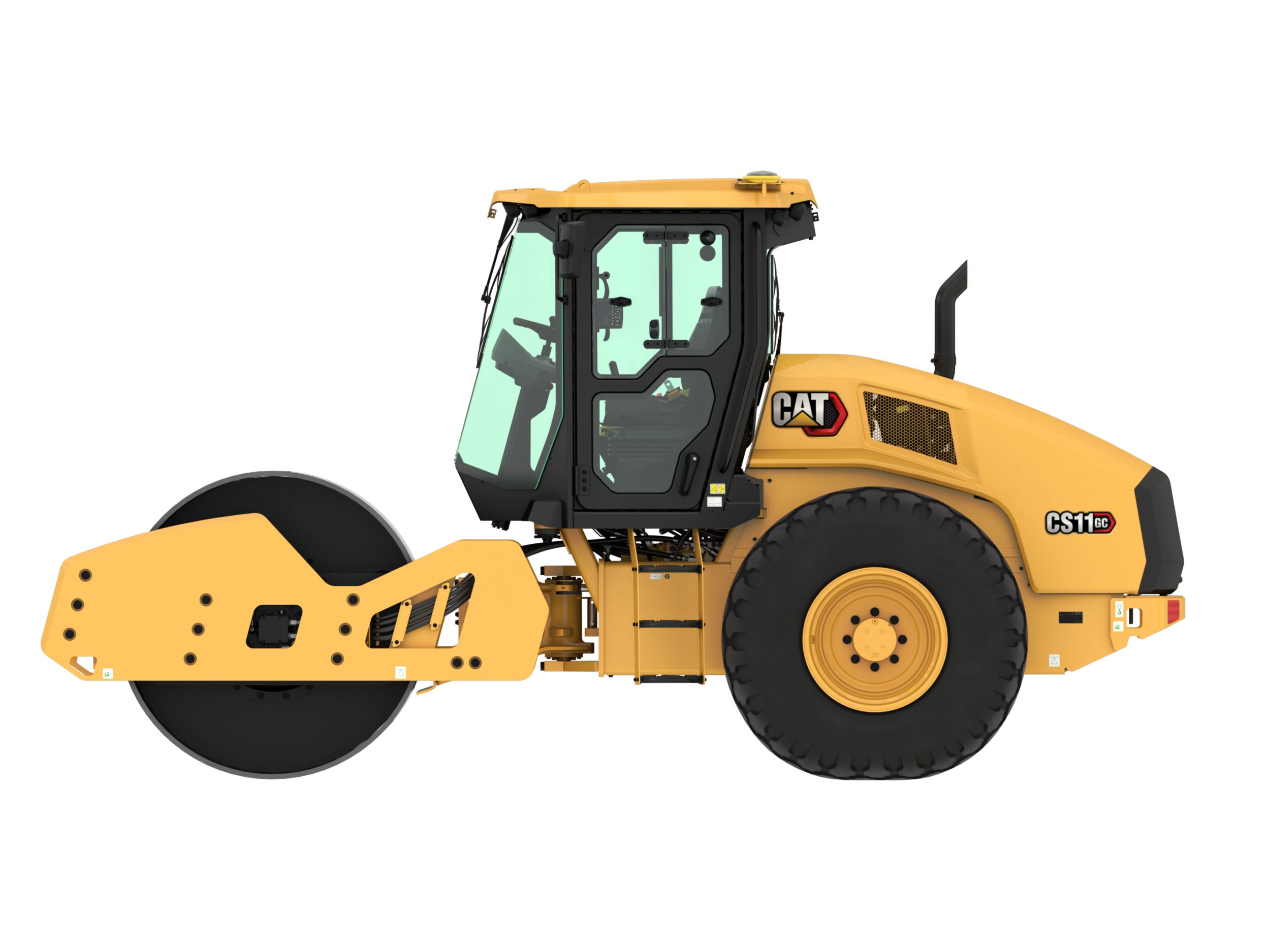

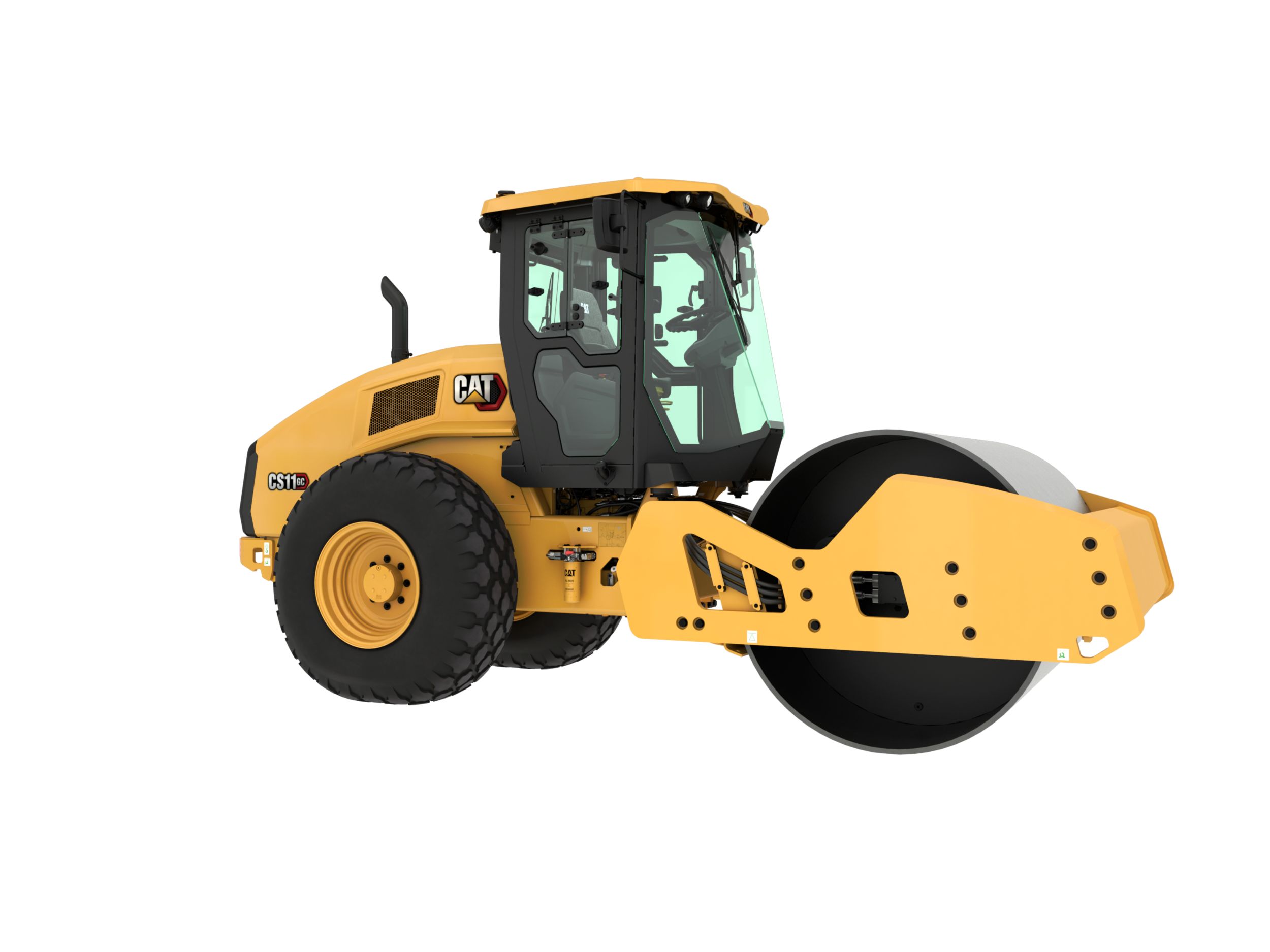

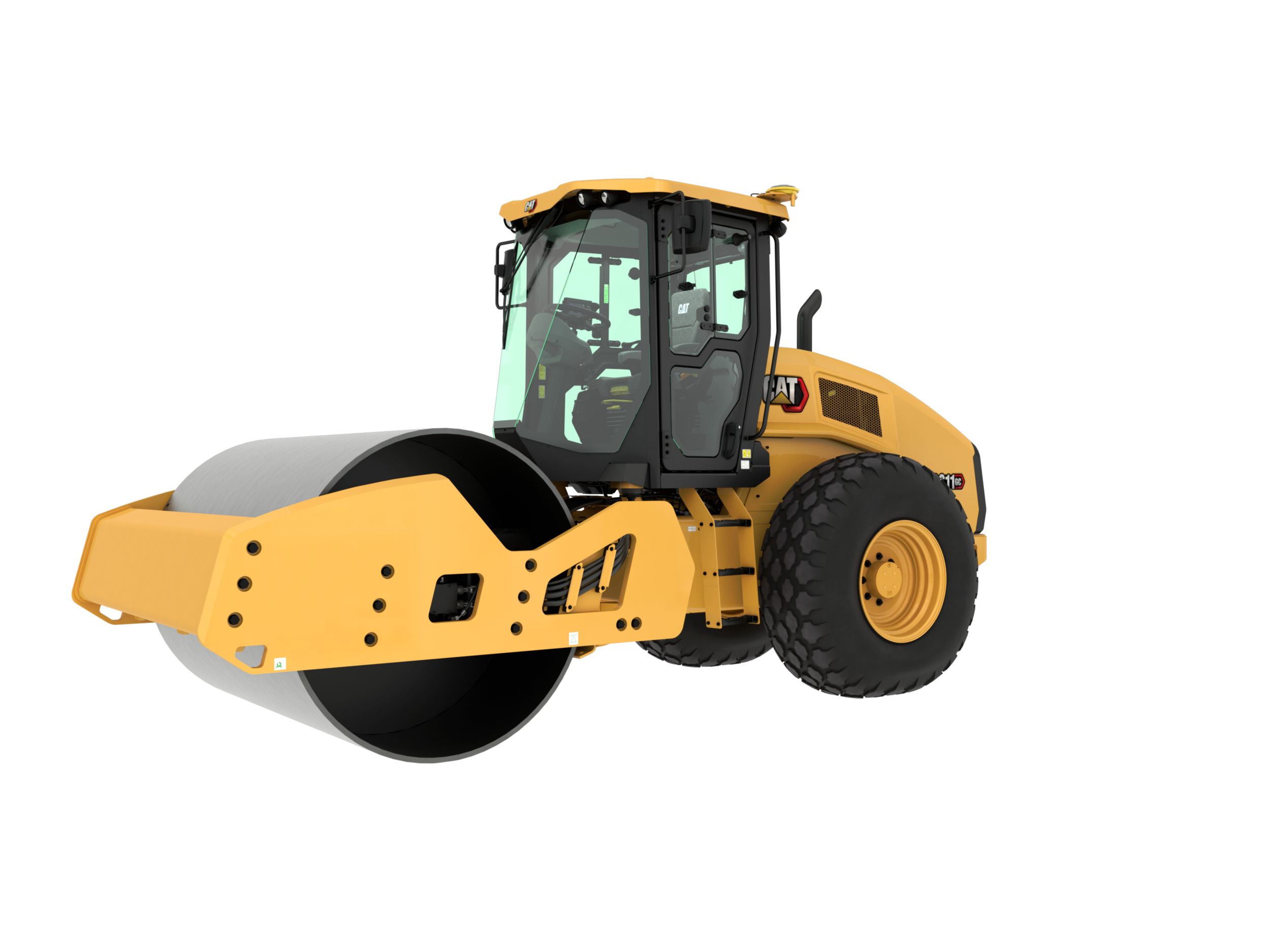

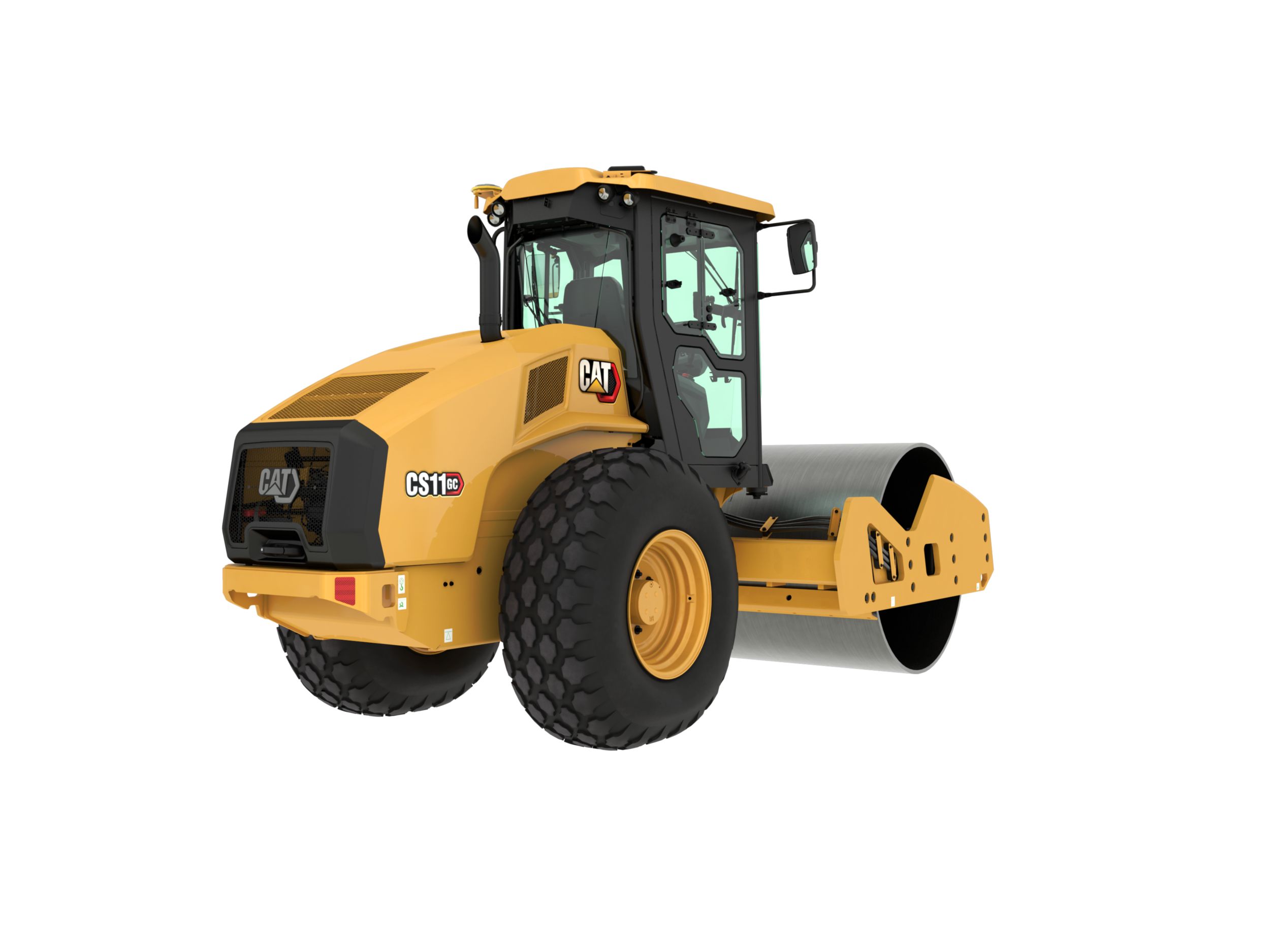

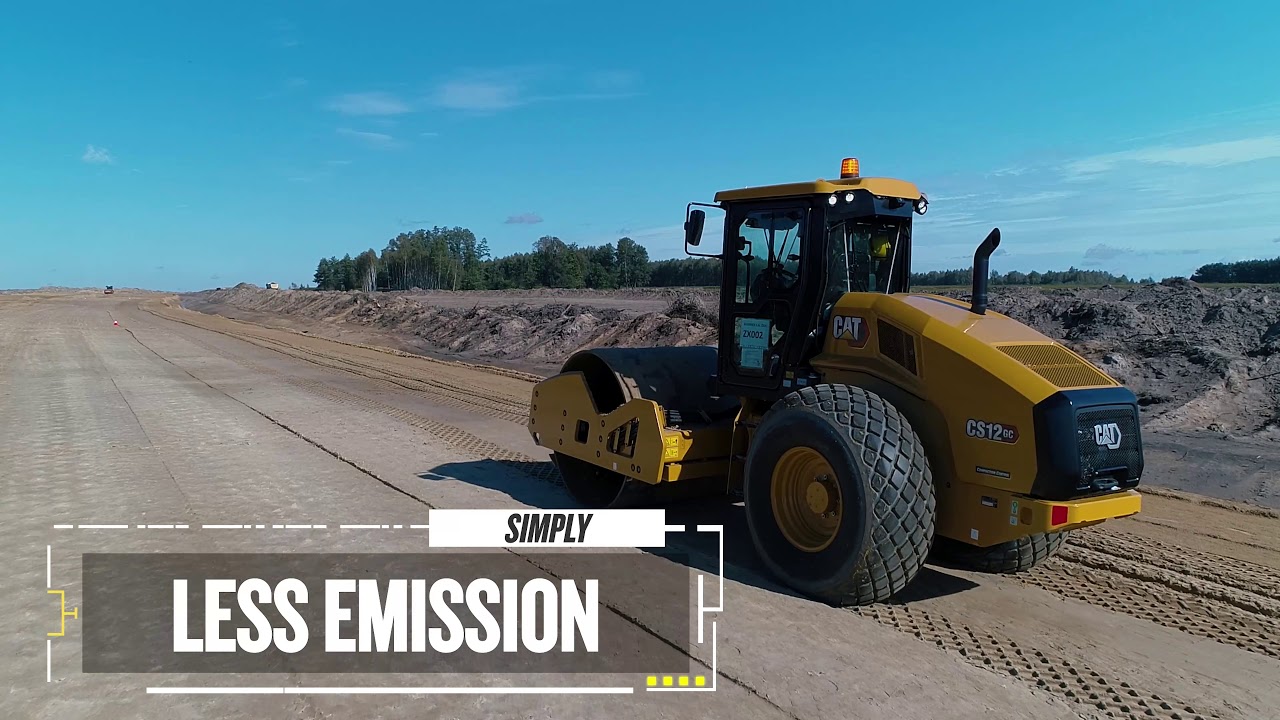

Vibratory Soil Compactors CS11 GC
Request A Price Find DealerKey Specs
- Operating Weight - With Cab
- 24775 lb
- 11238 kg
- Compaction Width
- 84 in
- 2134 mm
- Gross Power
- 120.7 HP
- 90 kW
Overview
Proven Performance and Reliability
GC Vibratory Soil Compactors deliver dependable, economical production with performance that exceeds expectations.
Benefits
Simple to Operate
The CS11 GC has an easy-to-use interface, excellent visibility, and auto-vibe function making it simple to operate.
Low Operating Costs
Up to 10% fuel savings with eco-mode, extended maintenance intervals, and a no-maintenance hitch with sealed-for-life bearings.
Improved Compaction
Increased amplitude and static linear load, flexible XT weight kits, and scalable compaction technologies bring improved compaction to your jobsite.
Features At A Glance
Comfortable and Ergonomic Operator Station
- The steering console features an LCD display. The display provides diagnostics and additional data to the operator. Machines that are equipped with Cat Compaction Control output compaction measurements to the display as well.
- A multi-position steering wheel adjusts for comfort. An adjustable vinyl seat with seat belt is comfortable and keeps controls and operating information within easy reach. The 12-volt adapter provides power for personal electronic devices. A floor mat reduces vibrations. Cup holders are provided on the steering column. Large mirrors provide excellent views to the rear of the machine.
- The operator is provided with excellent visibility to the front, drum edges rear tire edges and rear of machine enhancing safety and production. Optional mirrors provide enhanced visibility to the rear.
Powertrain
- GC Vibratory Soil Compactors feature a Cat engine that offers enhanced efficiency, better serviceability, ample power, and less noise.
Technologies that Enhance Quality and Productivity
- Cat Compaction Control can be augmented by adding an optional Global Navigation Satellite System (GNSS) mapping antenna and a dedicated display unit, which provides SBAS-level accuracy and allows the operator to visually monitor results, map them to locations and save the data for analysis or documentation purposes. An RTK GNSS mapping capability is also available that provides greater accuracy than SBAS.
- Two different compaction measurement technologies are available: Compaction Meter Value (CMV) or Machine Drive Power (MDP). Both technologies display real time measurements on the LCD display.
- Compaction Meter Value (CMV) is an accelerometer-based measurement system for granular soils. It is for use with smooth drum configurations. Functioning while the drum vibrates, it measures deep into the ground, 1.0 to 1.2 m (3-4 ft), providing the operator with a picture of what is beneath the surface. CMV can reveal many things to a trained operator, such as the location of hidden anomalies (buried objects, rocks, clay balls, etc.) or areas of poor compaction. It can even indicate the need for more moisture to aid compaction.
- Machine Drive Power (MDP) is an exclusive technology only available from Caterpillar. MDP indicates soil stiffness by measuring rolling resistance. It can be used by both smooth drums and smooth drum machines equipped with padfoot shell kits. It is effective on all soil types, and can function when the drum is static or vibrating. MDP measures closer to depth of the lifts of materials being compacted, around 30-60 cm (1-2 ft) deep. MDP is more flexible than CMV because it can be used on all soil types, and because it measures more shallow than CMV, which allows results to be correlated with portable measuring equipment such as lightweight falling deflectometers and nuclear gauges. Because it does not require the drum to vibrate, there is less risk of de-compaction when used for proofrolling.
Easy to Service
- Design provides ground level access to all service and maintenance points.
- Long service intervals contribute to more productivity and lower owning and operating costs. The vibratory system scheduled oil change interval is 3 years/3,000 hours. The hydraulic oil service interval is 3,000 hours. Engine oil service is every 500 hours.
Reliable Vibratory System
- GC vibratory soil compactors deliver excellent compaction performance due to high amplitude and static linear load.
- GC machines utilizes the proven Cat pod-style vibratory system. The system design significantly reduces the risk of contamination common to conventional designs that employ metal weights. Providing unrivaled reliability and performance, the Cat pod-style vibratory system is virtually maintenance free, with the first scheduled maintenance period at 3 years or 3,000 hours.
- An automatic vibration function provides consistency for more uniform compaction. When vibration is engaged, vibration will cease as the compactor slows beneath a predetermined speed. When propel resumes, vibration recommences at a predetermined speed. This feature contributes to uniform, high-quality work.
- Smooth drums are ideal for compacting granular materials and can be equipped with an optional padfoot shell kit for compacting cohesive and semi-cohesive materials.
Sustainability
- The Cat® C3.6 engine meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
- Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester)** or 100% renewable diesel, HVO (hydrogenated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
- Auto engine idle shutdown helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
- A well-trained operator is worth the investment. Skilled operators benefit your bottom line by maximizing productivity, avoiding costly downtime, and maintaining jobsite safety – which can help to improve fuel efficiency and reduce greenhouse gas emissions.
- Extended maintenance intervals not only reduce downtime but can decrease the amount of fluid and filters that are replaced over the life of the machine. The hydraulic oil can be replaced every 3000 hours, eccentric housing oil can be replaced every 3000 hours, and engine oil changes can be 500 hours.
- Performance and safety can be augmented with standard and optional cameras that are viewed on in-cab displays.
- Cat Compact technologies help you consistently meet compaction targets faster, more uniformly, and in fewer passes - saving on fuel and reducing rework and material costs.
- Cat Scheduled Oil Sampling (S•O•S℠) Services helps reveal excessive wear, contaminated fluids or other “unseen” issues that can shorten component life. In many cases,
you can extend oil and coolant change intervals by using fluid monitoring. Consult your Cat dealer or the machine's operation and maintenance manual for more information. - Remote Flash for engines helps to minimize downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.
- **Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel.
Product Specifications for CS11 GC
Operating Specifications
| Compaction Width | 84 in 2134 mm |
| Curb Clearance | 19.4 in 492 mm |
| Ground Clearance | 20.4 in 518 mm |
| Turning Radius - Inside Drum Edge | 12.7 ft 3.9 m |
| Travel Speed - Maximum | 6.8 mile/h 11 km/h |
| Static Linear Load - With ROPS/FOPS | 161.3 lb/in 28.8 kg/cm |
| Drum Width | 84 in 2134 mm |
Engine
| Gross Power | 120.7 HP 90 kW |
| Engine Model | Cat C3.6 Cat C3.6 |
| Net Power - ISO 9249 | 112.2 HP 83.7 kW |
| Net Power - SAE J1349 | 111.2 HP 82.9 kW |
| Stroke | 4.7 in 120 mm |
| Bore | 3.9 in 98 mm |
Dimensions
| Overall Length | 18.7 ft 5.7 m |
| Overall Width | 7.5 ft 2.3 m |
| Drum Width | 84 in 2134 mm |
| Height - With ROPS/FOPS or Cab | 9.8 ft 3 m |
| Drum Diameter | 60.4 in 1535 mm |
| Optional Blade Height | 27.1 in 688 mm |
| Wheel Base | 9.8 ft 3 m |
Vibratory System
| Nominal Amplitude - High | 0.079 in 2 mm |
| Nominal Amplitude - Low | 0.039 in 1 mm |
| Centrifugal Force - Maximum | 56202 lbf 250 kN |
| Centrifugal Force - Minimum | 33497 lbf 149 kN |
| Vibratory Frequency - Ecomode | 28.6-31.5 Hz 28.6-31.5 Hz |
| Vibratory Frequency - Ecomode | 1716-1890 vpm 1716-1890 vpm |
| Vibratory Frequency - Standard | 30-33 Hz 30-33 Hz |
| Vibratory Frequency - Standard | 1800-1980 vpm 1800-1980 vpm |
Service Refill Capacities
| Fuel Tank Capacity | 56.3 gal (US) 213 l |
Tires
| Tires | 23.1 x 26 23.1 x 26 |
CS11 GC Standard Equipment
OPERATOR ENVIRONMENT
- ROPS/FOPS Canopy with Handrails/Guardrails, Floor Mat
- Vinyl Adjustable Seat, Seat Belt
- Adjustable Tilting Steering Column
- 12-volt Power Outlet
VIBRATORY SYSTEM
- Dual Amplitude, Dual Frequency
- Pod-Style Eccentric Weight Housings
- Auto-vibe Function
- Rear Adjustable Steel Scraper
- Smooth Drum
POWERTRAIN
- Cat C3.6 Diesel Engine, 4 cylinder
- Single Propel Pump
- Fuel Filter, Water Separator, Priming Pump, Water Indicator
- Radiator/Hydraulic Oil Cooler
- Dual Braking System
- Two-speed Hydrostatic Transmission
ELECTRICAL
- 12 volt Electrical System
- 150 ampere Alternator
- 900 Cold-cranking Amps Battery Capacity
STANDARD
- ProductLinkTM
- Sight Gauges for Hydraulic Oil Level and Radiator Coolant Level
- High Ambient Temperature Oil Factory Fill
CS11 GC Optional Equipment
OPERATOR ENVIRONMENT
- ROPS/FOPS Cab with Climate Control
- Deluxe High-back Air-ride seat (Cab)
- Sun/Debris Shields (Canopy)
- Cab Internal Roll-down Sun Screen (Cab)
- Rear View Camera with Color Touchscreen Display
- Sound Reduction Kit
VIBRATORY SYSTEM
- Padfoot Shell Kit (oval or square pads available)
- Dual Adjustable Steel Scrapers
- Dual Adjustable Polyurethane Scrapers
POWERTRAIN
- Transmission Guard
TECHNOLOGY SOLUTIONS
- Measure - Compaction Meter Value (CMV)
- Map - SBAS GNSS Mapping
- Connect - Cloud and Machine Connectivity
OTHER
- XT Weight Kit
- Upgraded LED Light Package
- Amber Rotating Beacon
- Flotation Tread or Lug Tread Tires
