Key Specs

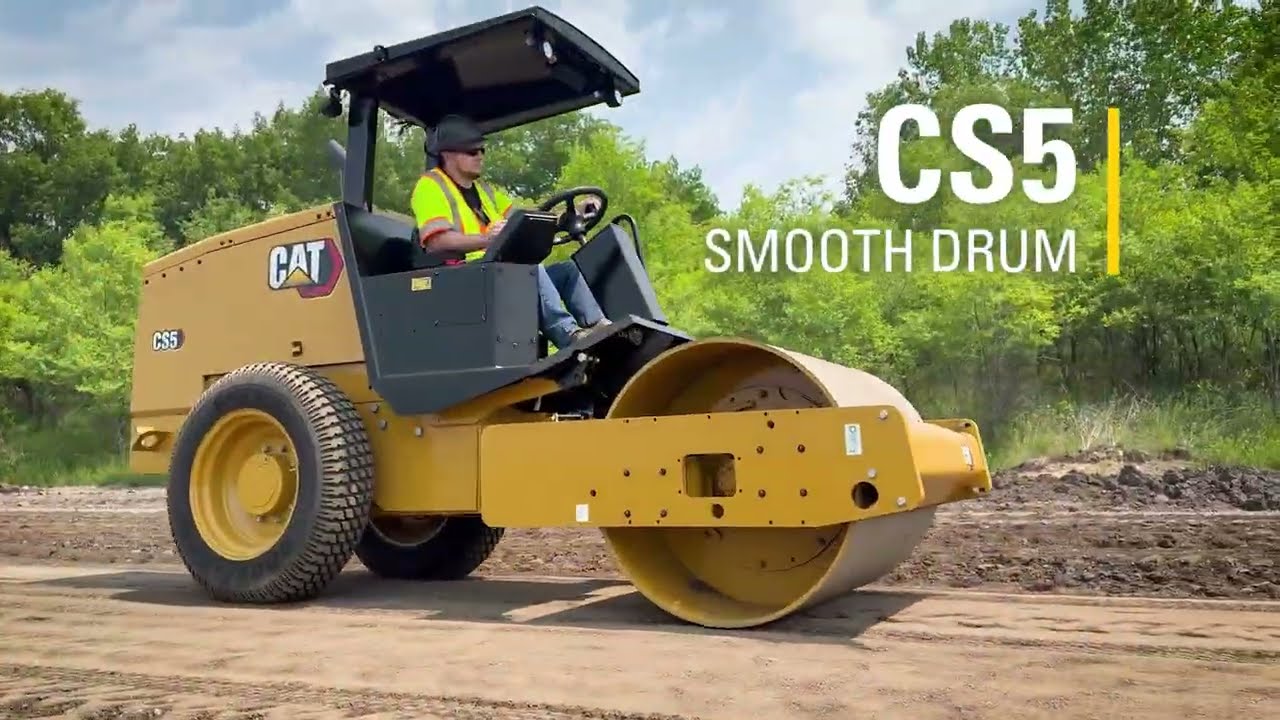

The Cat® CS5 Vibratory Soil Compactors are ideally suited for granular soil applications. A durable propel system and narrow machine width make it ideal for small compaction jobs or working in tight areas such as trenches or job sites with limited space.
| Operating Weight - With ROPS/FOPS Canopy | 9800 lb 4445 kg |
| Weight - Drum with ROPS/FOPS Canopy | 4497 lb 2040 kg |
| Note (1) | Operating weights are approximate and consider full fluids and 80 kg (176 lb) operator. Operating weights are approximate and consider full fluids and 80 kg (176 lb) operator. |
| Compaction Width | 50 in 1270 mm |
| Overall Length | 13.6 ft 4.2 m |
| Overall Width | 4.6 ft 1.4 m |
| Maximum Height | 8.3 ft 2.5 m |
| Drum Diameter | 40 in 1016 mm |
| Wheel Base | 7.3 ft 2.2 m |
| Gross Power | 74.6 hp 55.6 kW |
| Engine Power - ISO 14396 | 74.4 hp 55.5 kW |
| Net Power - ISO 9249 | 68.3 hp 50.9 kW |
| Net Power - SAE J1349:2011 | 67.5 hp 50.3 kW |
| Note (1) | Net power advertised is the power available at the engine flywheel when equipped with a fan at maximum speed, air cleaner, clean emissions module, and alternator. Net power advertised is the power available at the engine flywheel when equipped with a fan at maximum speed, air cleaner, clean emissions module, and alternator. |
| Engine Model | Cat® C3.4B Cat® C3.4B |
| Emissions | U.S. EPA Tier 4 Final U.S. EPA Tier 4 Final |
| Stroke | 4.3 in 110 mm |
| Bore | 3.9 in 99 mm |
| Ground Clearance | 13.7 in 348 mm |
| Curb Clearance | 13.5 in 344 mm |
| Turning Radius - Inside Drum Edge | 8.6 ft 2.6 m |
| Travel Speed - Maximum | 5.5 mile/h 8.8 km/h |
| Fuel Tank Capacity | 29.9 gal (US) 113 l |
| Cooling System | 4.8 gal (US) 18.3 l |
| Engine Oil - With Filter | 2.4 gal (US) 9 l |
| Eccentric Weight Housings (combined) | 14 gal (US) 53 l |
| Axle and Final Drives | 1.9 gal (US) 7.1 l |
| Hydraulic Tank | 10.6 gal (US) 40 l |
| Recyclability | 97% 97% |
| Nominal Amplitude - High | 0.051 in 1.3 mm |
| Centrifugal Force - Maximum | 17535 lb 78 kN |
| Static Linear Load - With ROPS/FOPS Canopy | 90.2 lb/in 16.1 kg/cm |
