Operating Specifications - 300.9D VPS
Digging Depth | 68 in 1731 mm |
Dumping Height - Maximum | 80 in 2035 mm |
Reach at Ground Level | 119 in 3027 mm |
Stick Force | 1012 lbf 4.5 kN |
Bucket Force | 2000 lbf 8.9 kN |

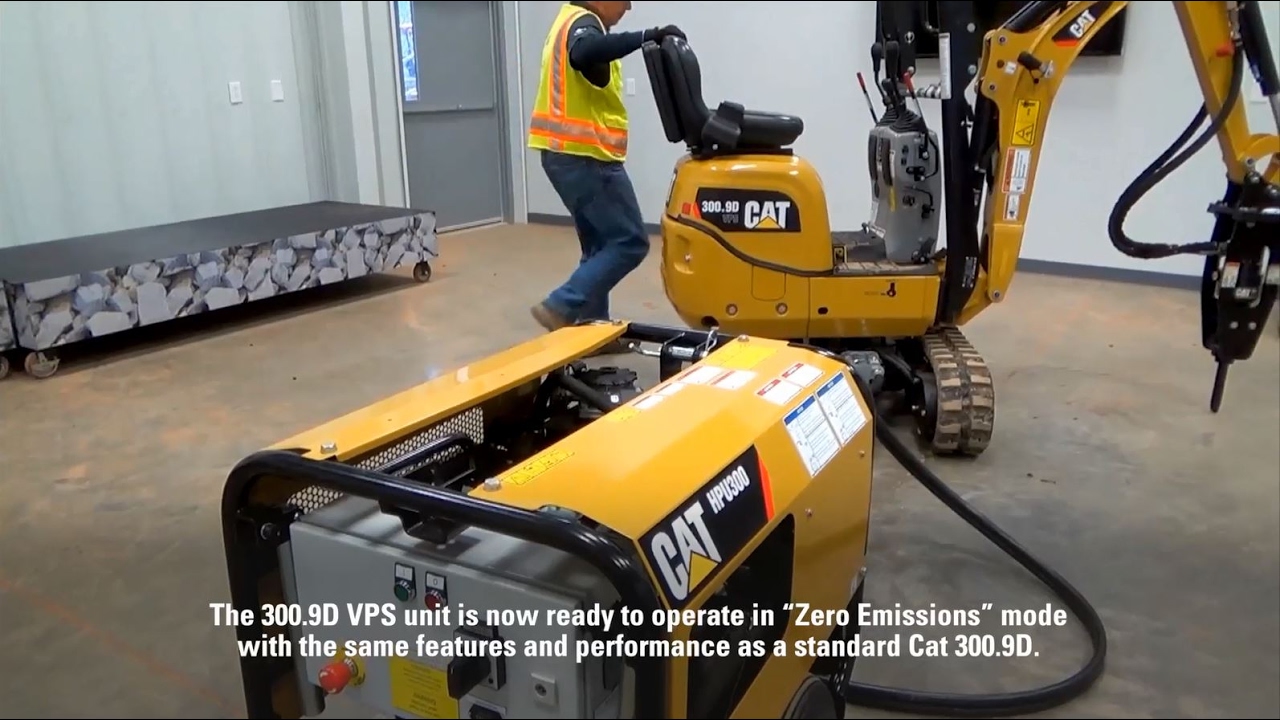

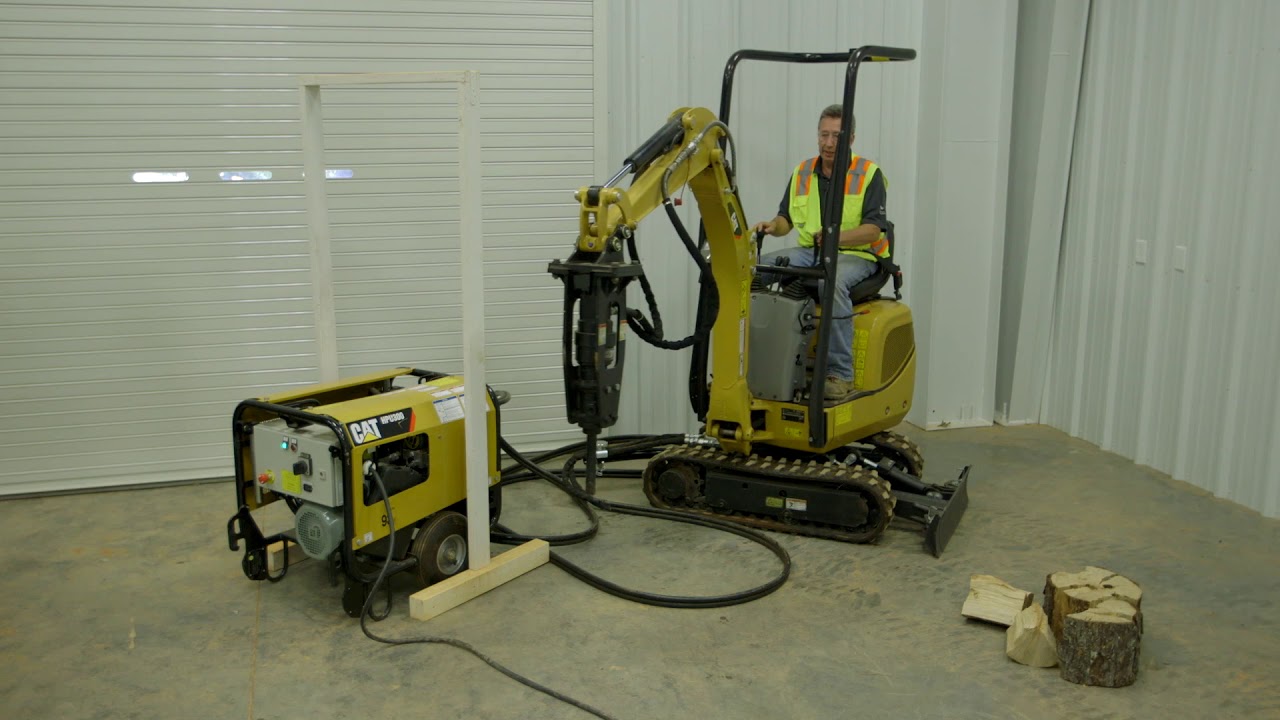

The innovative Cat 300.9D VPS with HPU300 Mini Excavator delivers versatility in a compact size with a choice of diesel or electric power. Its ability to fit through a narrow doorway makes it an excellent machine for indoor demolition work.
Work in tight areas
Simple controls for easy operation
Range of attachments for a variety of applications
Digging Depth | 68 in 1731 mm |
Dumping Height - Maximum | 80 in 2035 mm |
Reach at Ground Level | 119 in 3027 mm |
Stick Force | 1012 lbf 4.5 kN |
Bucket Force | 2000 lbf 8.9 kN |
Net Power | 13 HP 9.7 kW |
Engine Model | Yanmar 3TNV70 Yanmar 3TNV70 |
Emissions | Meets U.S. EPA Tier 4 Final/EU Stage V emission standards. Meets U.S. EPA Tier 4 Final/EU Stage V emission standards. |
Gross Power | 13 HP 9.7 kW |
Engine Type | Liquid Cooled, 3 Cylinder, Diesel Liquid Cooled, 3 Cylinder, Diesel |
Fuel Tank Capacity | 2.6 gal (US) 10 l |
Operating Weight | 2399 lb 1088 kg |
Length × Width × Height | 2476 × 700 × 1507 mm (108 × 28 × 59 in) 2476 × 700 × 1507 mm (108 × 28 × 59 in) |
Operating Weight | 2399 lb 1088 kg |
Shipping Weight | 2178 lb 988 kg |
Operating Pressure - Swing Gear | 1015 psi 70 bar |
Operating Pressure - Front Linkage and Travel | 2466 psi 170 bar |
Rotation Speed | 8 r/min 8 r/min |
Pump Type | Gear Gear |
Pump Flow | 6 gal/min 22 l/min |
Hydraulic Tank Capacity | 3.7 gal (US) 14 l |
Length × Width × Height | 930 × 720 × 1000 mm (36.5 × 28.3 × 39.5 in) 930 × 720 × 1000 mm (36.5 × 28.3 × 39.5 in) |
Operating Weight | 423 lb 192 kg |
Lift Height | 8 in 197 mm |
Dig Depth | 7 in 174 mm |
Width | 28 in 700 mm |
Height | 8 in 200 mm |
Flow Rate | 5.3 gal/min 20 l/min |
Hydraulic Oil Tank Capacity | 2.4 gal (US) 9 l |
Connecting Hose Length | 32.8 ft 10 m |
Operating Pressure | 2756 psi 190 bar |
Input Current | 16A 16A |
Motor Type | 3 Phase Electric Motor 3 Phase Electric Motor |
Performance - North America | 12 HP 9 kW |
Performance - Europe | 10 HP 7.5 kW |
Travel Speed | 1.1 mile/h 1.8 km/h |
Track Width | 7.1 in 180 mm |
