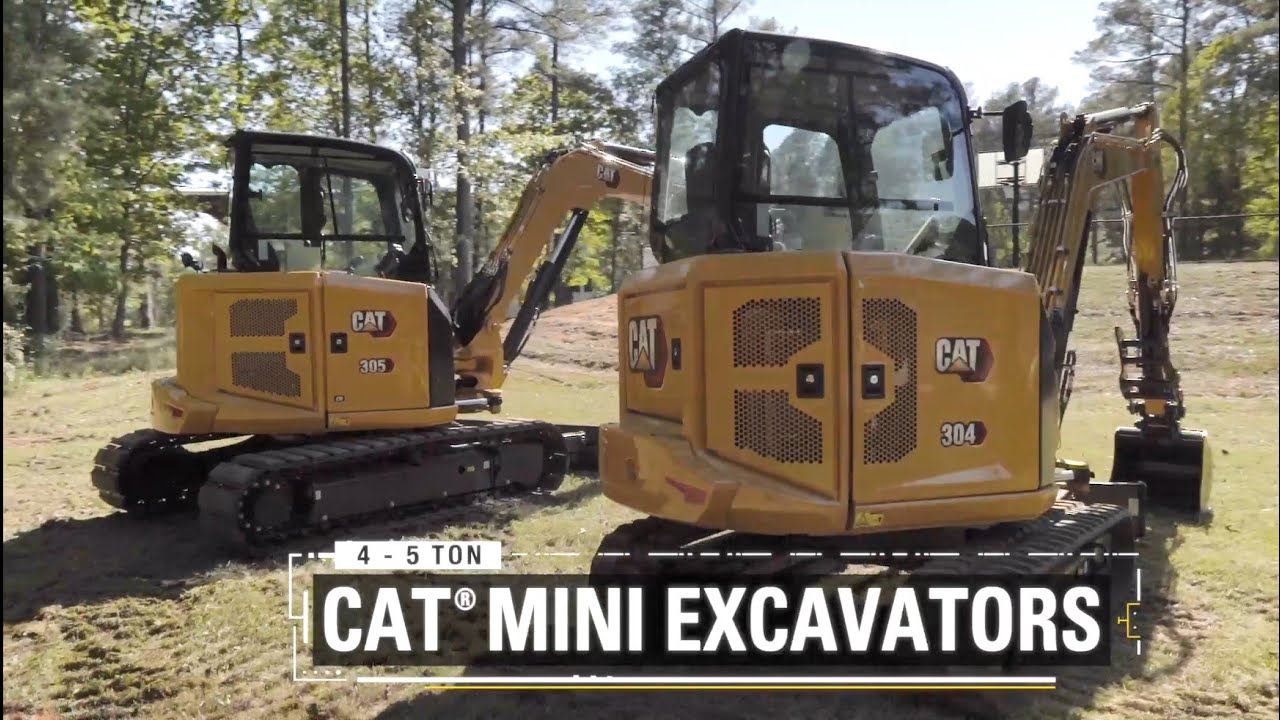

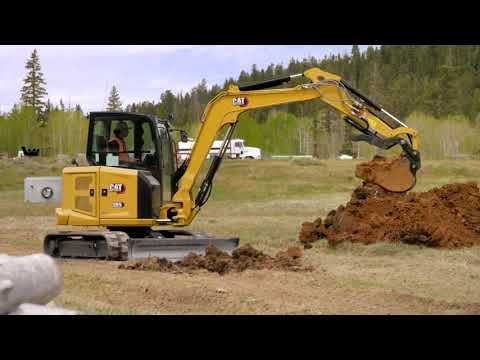

Mini Excavators 304

304 Standard Equipment

ENGINE

• Cat® C1.7 Turbo Engine (U.S. EPA Tier 4 Final/EU Stage V)

• Automatic Engine Idle

• Automatic Engine Shutdown

• Automatic Two Speed Travel

• Fuel Water Separator

• Power on Demand (not available in all regions)

• Variable Displacement Piston Pump

• Load Sensing/Flow Sharing Hydraulics

HYDRAULICS

• Smart Tech Electronic Pump

• Accumulator

• Automatic Swing Brake

• Auxiliary Hydraulic Lines

• One and Two Way Auxiliary Flow

• Continuous Auxiliary Flow

• Auxiliary Line Quick Disconnects

OPERATOR ENVIRONMENT

• Canopy or Cab (Canopy not available in some regions)

• Top Guard ISO 10262:1998 Level I

• ROPS – ISO 12117-2:2008

• TOPS – ISO 12117:1997

• Stick Steer Mode

• Travel Cruise Control

• Control Pattern Changer (optional in some regions)

• Adjustable Wrist Rests

• Washable Floor Mat

• Travel Pedals and Hand Levers

• Machine Security – Standard Key with Pass Code

• Fabric Suspension Seat (Cab only)

• Vinyl Suspension Seat (Canopy only)

• Hydraulic Lockout – All Controls

• Retractable High Visibility Seat Belt (75 mm/3 in)

• Coat Hook

• Cup Holder

• Storage Pocket

• Skylight

• Mounting Bosses for Front

• Signaling/Warning Horn

• Interior Light (Cab only)

• Boom Light, Halogen (not available in all regions)

• Utility Space for Mobile Phone

• Next Generation Color LCD Monitor (IP66)
  – Fuel Level and Coolant Temperature Gauges
  – Maintenance and Machine Monitoring
  – Performance and Machine Adjustments
  – Numeric Security Code
  – Multiple Languages
  – Hour Meter with Wake Up Switch
  – Jog Dial (cab only)

UNDERCARRIAGE

• Rubber Belt (350 mm/13.8 in)

• Dozer Straight Blade

• Dozer Blade Float

• Tie Downs on Track Frame

BOOM, STICK AND LINKAGES

• One Piece Boom (2500 mm/98.4 in)

• Standard Stick (1395 mm/54.9 in)

• Front Shovel Capable – Pin-On

• Thumb Ready

• Certified Lifting Eye

ELECTRICAL

• 12 Volt Battery

• Software (machine and monitor)

• Maintenance Free Battery

• Battery Disconnect

• 12 Volt Power Socket

• Travel Alarm (optional in some regions)

OTHER

• Counterweight (225 kg/496 lb)

304 Optional Equipment

OPERATOR ENVIRONMENT

• Cab with Air Conditioning

• Cab with Heater

• No Travel Pedals and Hand Levers (optional in some regions)

• Machine Security – Push to Start with Key Fob/Pass Code

• LED Front Lights

• LED Front and Rear Lights

• LED Boom Light

• Mirrors, Left, Right and Rear

• Camera

• Radio – Bluetooth®, Auxiliary, Microphone, USB (charging only) (Cab only)

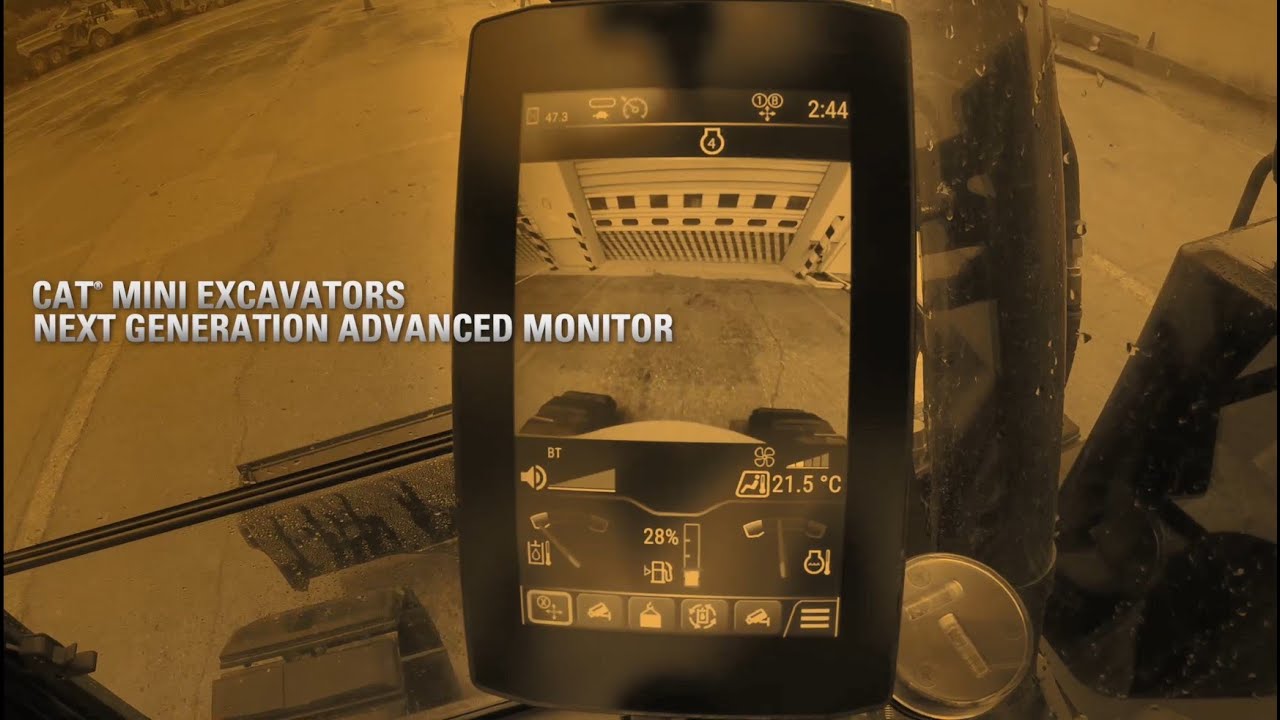

• Next Generation Advanced Monitor
  – Touch Screen
  – Site Reference System
  – High Definition Camera Capable (IP68 and IP69K)
  – Numeric Security Code

UNDERCARRIAGE

• Steel Track (350 mm/13.8 in)

• Steel Track with Rubber Pads

• Angle Blade

BOOM, STICK AND LINKAGES

• Long Stick (1695 mm/66.7 in)

• Front Shovel Capable – Dual Lock Manual Coupler

• Front Shovel Capable – Hydraulic Coupler

• Attachments including Couplers, Thumbs, Buckets, Augers and Hammers

• 2nd Auxiliary Hydraulic Lines

• Bucket Divert Lines

• Boom Lowering Check Valve

• Stick Lowering Check Valve

• Hydraulic Quick Coupler Lines

ELECTRICAL

• Product Link™ PL243 (regulations apply)

• Product Link PLE643 (regulations apply)

GUARDING

• Polycarbonate Half Height Front Guard (Canopy only)

• Polycarbonate Front Guard (ISO 10262:1998 Level I and EN356 P5A)

• Heavy Duty Front Guard ISO 10262:1998 Level II

• Heavy Duty Top Guard 10262:1998 Level II (Cab only)

OTHER

• Bio Oil Capable

• Eco Drain

• Water Jacket Heater
