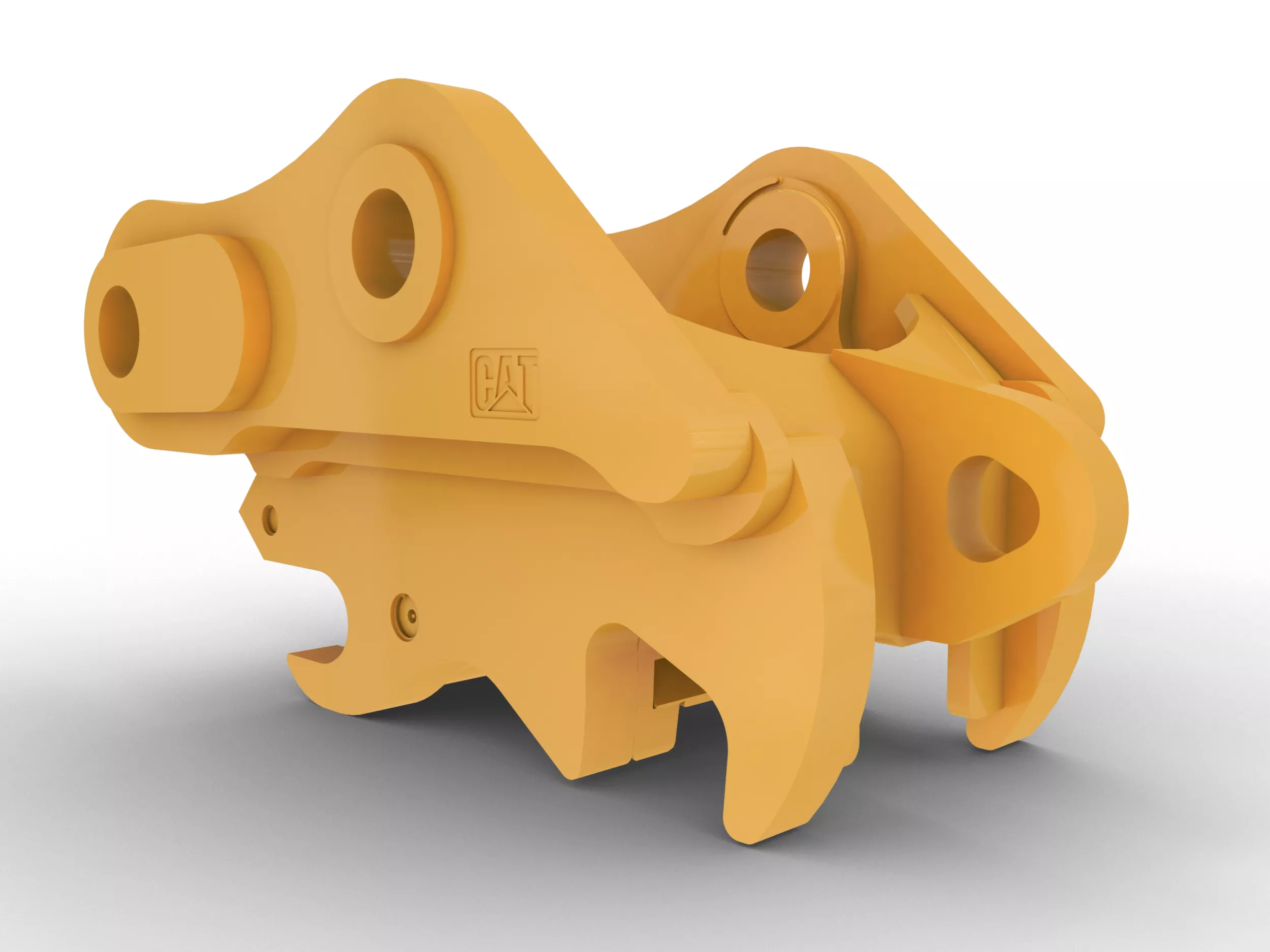

Pin Grabber Couplers Pin Grabber Coupler (HB-Linkage): 570-6304

Request A Price Find Dealer

Key Specs

Minimum Carrier Weight
90 ton (US)
90 ton (US)
Maximum Carrier Weight
95 ton (US)
95 ton (US)
Weight
3430 lb
1556 kg

Overview

Cat® Pin Grabber Couplers bring another level of productivity and versatility to your operation. Add the ability to change attachments quickly and conveniently to your operation, while staying aligned to worldwide safety standards.

Product Specifications for Pin Grabber Coupler (HB-Linkage): 570-6304

Minimum Carrier Weight 90 ton (US) 90 ton (US)
Maximum Carrier Weight 95 ton (US) 95 ton (US)
Weight 3430 lb 1556 kg
Attachment Pin Diameter - Stick (Front) 4.72 in 120 mm
Attachment Pin Diameter - Link (Rear) 4.72 in 120 mm
Pin Spread - Minimum 23.23 in 590 mm
Pin Spread - Maximum 27.4 in 696 mm
Lifting Eye Working Load Limit 52911 lb 24000 kg
Width - Machine Interface 35.28 in 896 mm
Width - Attachment Interface 21.34 in 542 mm

See how Pin Grabber Coupler (HB-Linkage): 570-6304 compares against frequently compared products.
