Pin Grabber Couplers Pin Grabber Coupler (315-Linkage): 391-4347

Request A Price Find Dealer

Key Specs

Minimum Carrier Weight: 15 ton (US); 15 ton (US)

Maximum Carrier Weight: 18 ton (US); 18 ton (US)

Weight: 659 lb; 299 kg

Pin Grabber Coupler (315-Linkage): 391-4347
Change model

Overview

Cat® Pin Grabber Couplers bring another level of productivity and versatility to your operation. Add the ability to change attachments quickly and conveniently to your operation, while staying aligned to worldwide safety standards.

Features At A Glance

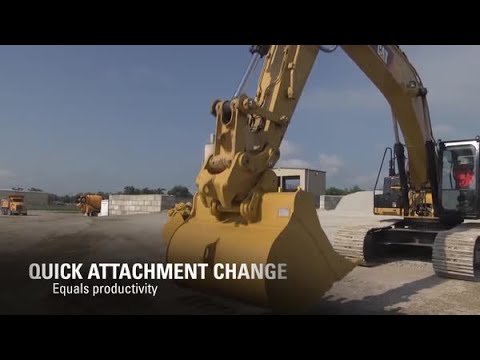

Get back to work faster with the capability to change attachments in seconds
Attachments are shareable between similar sized excavators
Couplers are weighted to handle big payloads, so you do not have to compromise on bucket size
Do more with your equipment. Added versatility allows you to switch easily from digging, grading, material handling, compacting soil, breaking rocks, and more.
Trenching widths available for certain coupler sizes:
- Saves backfill time and material
- Keeps the widest part of the coupler inside the digging width of 24- and 30-inch buckets
- Fully compatible with wider buckets and the same attachments as the standard models
Pin Grabber Performance Buckets – recessed pins for an even further reduced tip radius
Pick up buckets in reverse position to clean out square corners

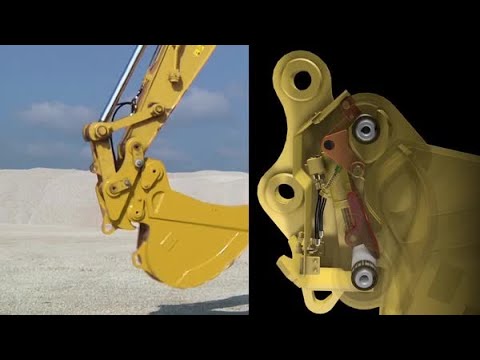

Redundant locking system secures attachments:
- Primary wedge – Blocks pin movement like a deadbolt lock
- Secondary latch – Indicates to operator if coupler is either open or closed. Hinged to clamp the pin in place.
- Two spring-loaded arms – Assure secondary latch stays closed
In the event you experience a loss of hydraulic pressure, redundant locking systems keep attachment in place
Short coupler profile maintains tight tip radius, breakout force, and digging power
Cast frame pieces made from abrasion-resistant steel

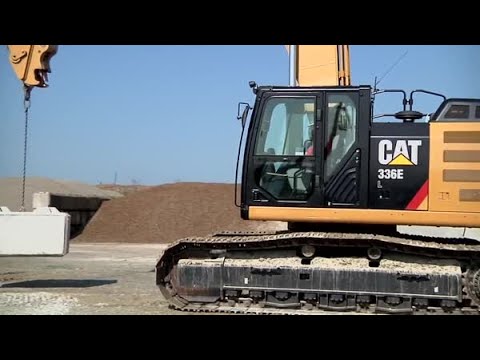

Integrated, centered lift eye handles wide range of shackle, chain, and cable. Its interior shape keeps loads stable.
- Couplers without a lift eye are available in Japan to meet local lifting restrictions.

Visual and audible indicate to operator attachments are secure to the coupler.
Greasing block provides a primary and easily accessible grease point.
Operating procedures are simple and intuitive.
Compliant with worldwide safety standards: ISO13031, EN474, and AS 4772:2008.
Simplify on-the-job maintenance and improve reliability with the debris shield covering and protecting critical coupler components.

Boost Efficiency and Productivity with Integrated Technologies

Never waste time looking for your couplers again. Cat asset tracking is available on select Pin Grabber Couplers.
Track your entire fleet of attachments and machines from one source. Couplers with asset tracking can be viewed in VisionLink®alongside Product Link™subscribed equipment.
Keep your assets secure. Couplers with an asset tracker send an alert if they leave an easy-to-setup site boundary.

Product Specifications for Pin Grabber Coupler (315-Linkage): 391-4347

Minimum Carrier Weight	15 ton (US) 15 ton (US)
Maximum Carrier Weight	18 ton (US) 18 ton (US)
Weight	659 lb 299 kg
Attachment Pin Diameter - Stick (Front)	2.76 in 70 mm
Attachment Pin Diameter - Link (Rear)	2.76 in 70 mm
Pin Spread - Minimum	15.71 in 399 mm
Pin Spread - Maximum	18.5 in 470 mm
Lifting Eye Working Load Limit	22046 lb 10000 kg
Width - Machine Interface	18.11 in 460 mm
Width - Attachment Interface	10.67 in 271 mm
