HCS60 Hydraulic Connecting S Type Coupler

Hydraulic Connecting S Type Couplers Hydraulic Connecting S Type Coupler HCS60: 590-2376

Request A Price Find Dealer

Key Specs

Machine Class
12-19
12-19
Height
15.4 in
392 mm
Weight
331 lb
150 kg

Overview

Cat® Hydraulic Connecting S Type Couplers connect to your machine's hydraulics and electronics giving you the ability to pick up an attachment with full functionality in seconds without leaving the cab. These couplers deliver the productivity and versatility benefits you expect from a coupler. Additionally, they bring safety to your people, equipment, and overall operation while increasing the life of the other attachments in your fleet.

Product Specifications for Hydraulic Connecting S Type Coupler HCS60: 590-2376

Machine Class 12-19 12-19
Weight 331 lb 150 kg
Lift Hook Capacity 5 ton (US) 5 ton (US)
Height 15.4 in 392 mm
Length 29.3 in 743 mm
Width 16.3 in 413 mm
Maximum Operating Pressure 5076 psi 350 bar
3/8" Hydraulic Connectors (Mounted) 2 2
3/8" Hydraulic Connector Flow 13 gal/min 50 l/min
1/2" Hydraulic Connectors (Optional) 1 1
1/2" Hydraulic Connector Flow 21 gal/min 79 l/min
3/4" Hydraulic Connectors (Mounted) 2 2
3/4" Hydraulic Connector Flow 59 gal/min 225 l/min

See how Hydraulic Connecting S Type Coupler HCS60: 590-2376 compares against frequently compared products.

Media Gallery

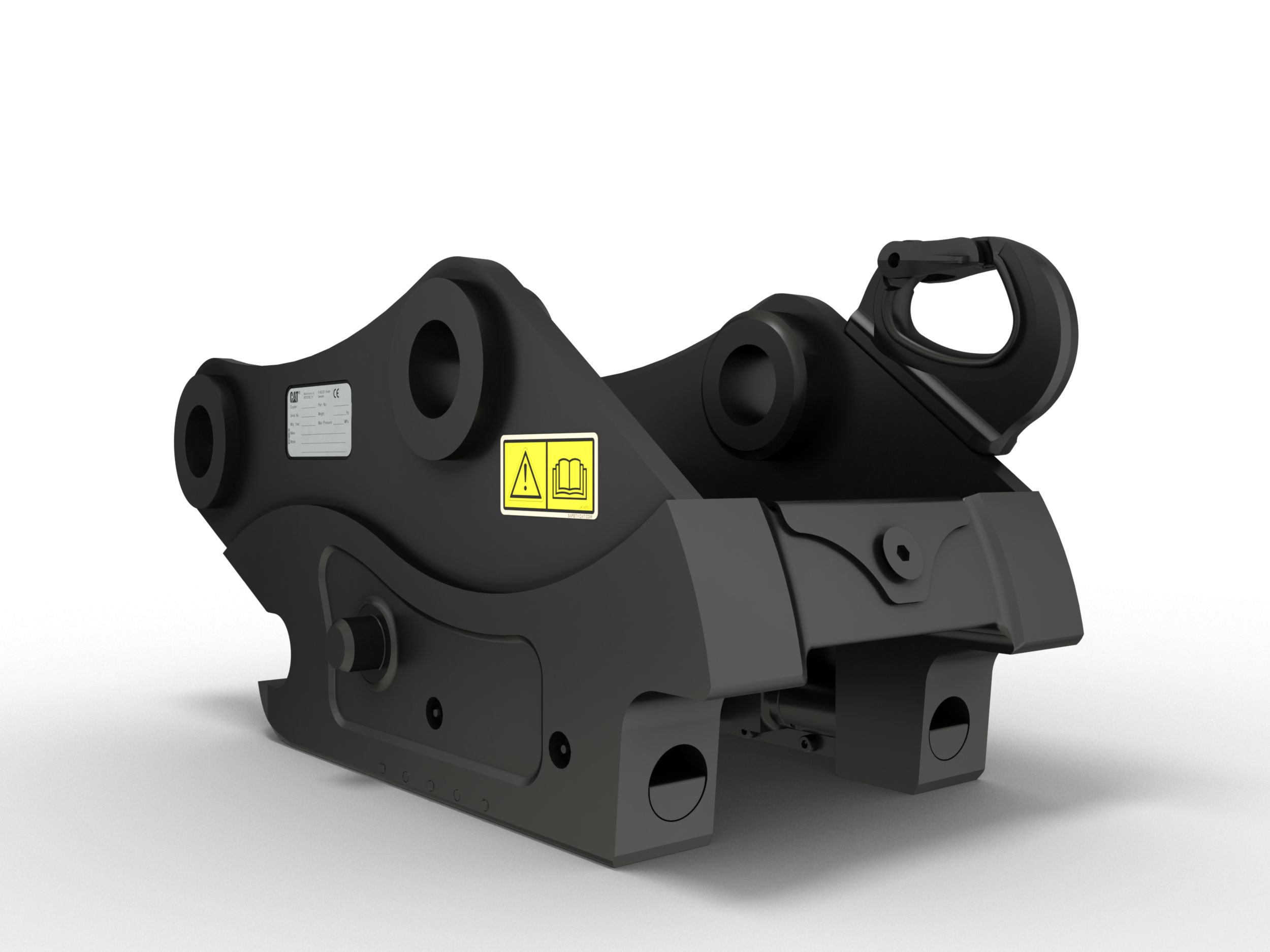

HCS60 Hydraulic Connecting S Type Coupler

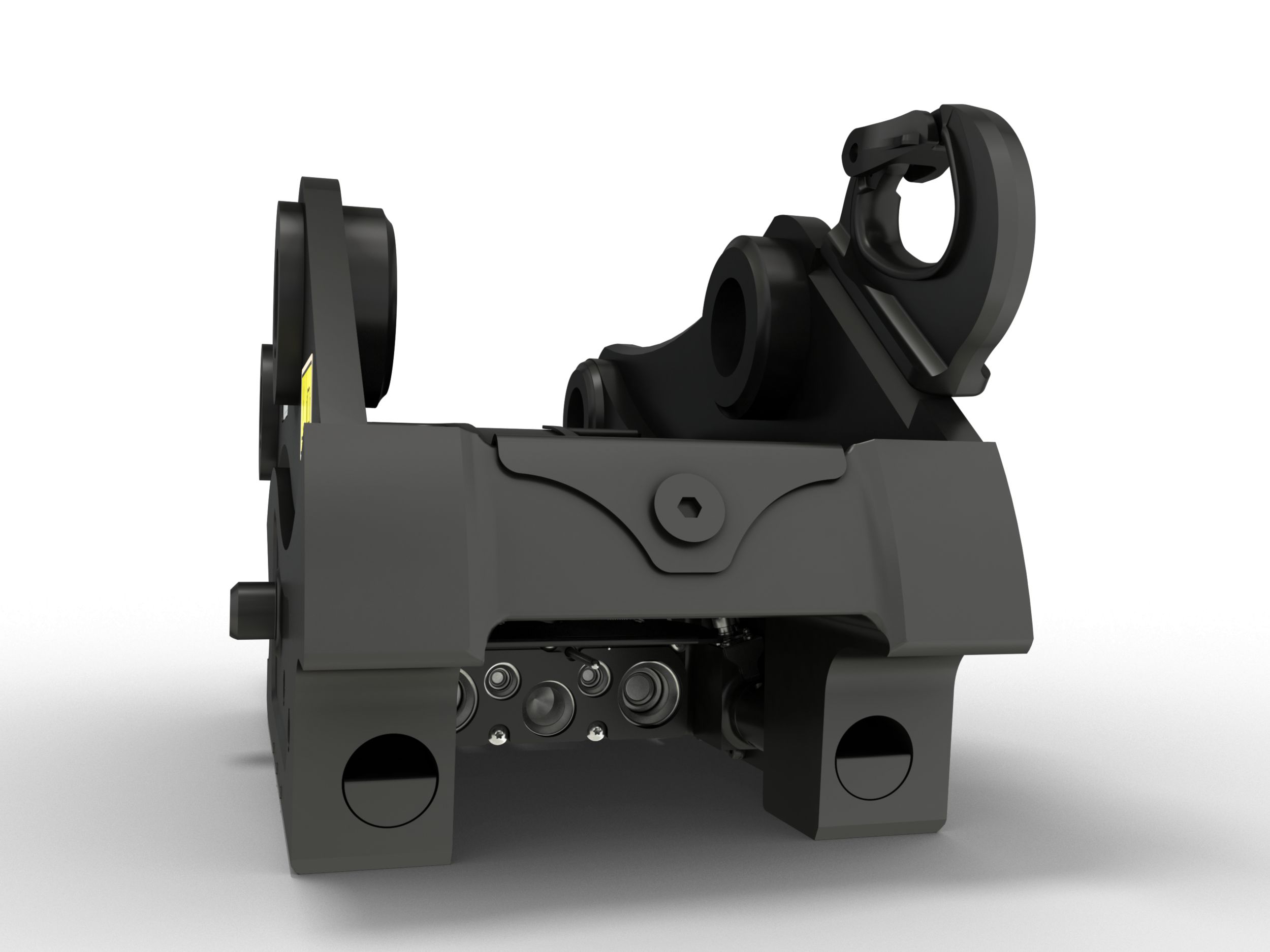

HCS60 Hydraulic Quick Disconnects
